Summary of Contents for KE2 Connect KE2-EM35

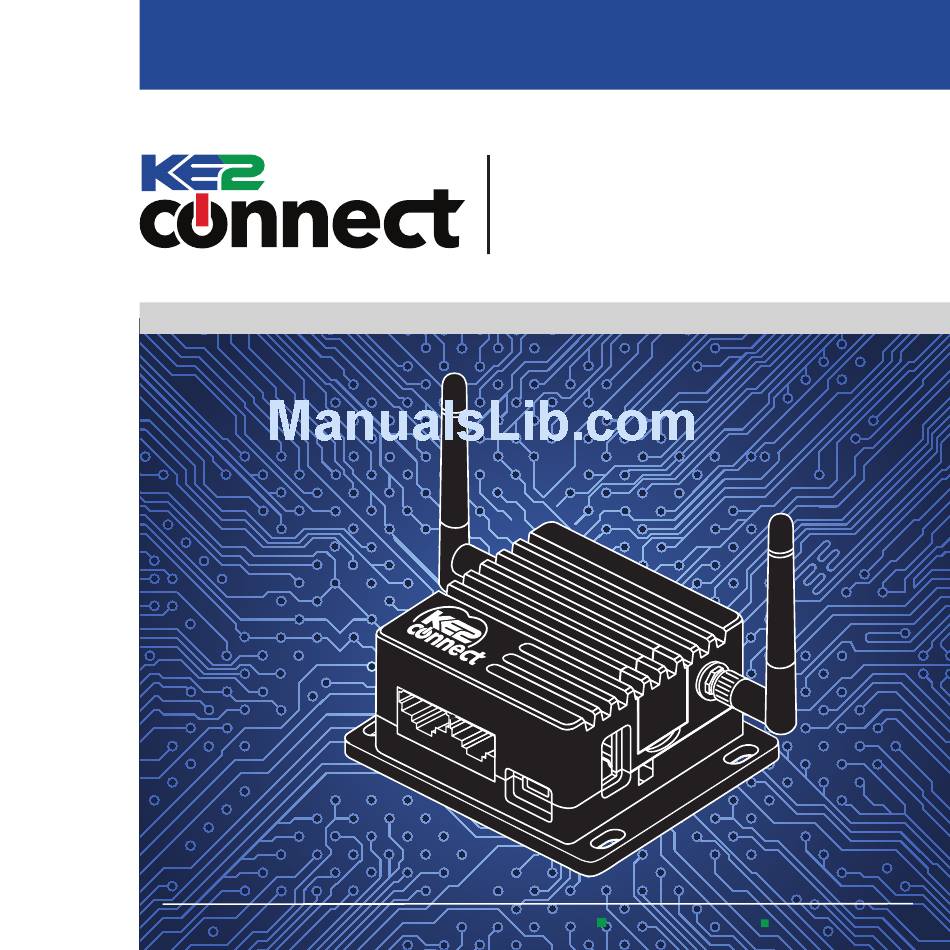

- Page 1 KE2-EM35 Edge Manager Q.5.56 - February 2018 12 Chamber Drive . Washington, MO. 63090 ke2connect.io 636.266.0140...

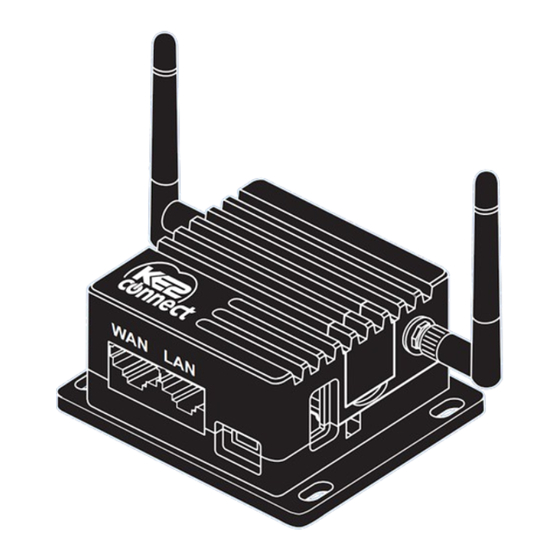

- Page 2 Hardware: EM-35 Router Micro USB Power Cable LED Indicators Antenna: RP-SMA Bulkhead RS485 Serial/ModBus Connection Ethernet Ports Restart/Factory Reset Power USB 2.0 ©Copyright 2018 KE2 Connect Inc.
-
Page 3: Specifications
Restart/Factory Reset: Press & hold for 3 seconds, then release to Restart the KE2-EM35. Press & hold for 10 seconds to Reset to Factory Defaults. Restart/Factory Reset Specifications: 650 MHz Memory Storage 16MB Nor + 128MB Nand Dual Flash Frequency 2.4 GHz... - Page 4 Connect: ❶ Plug in the power cable & the Internet cable. When powered up, your KE2-EM35 will broadcast a WiFi signal with the SSID: KE2EDGE-xxxxxx The Internet connects to WAN Plug the Internet cable (data only) into WAN. ❷ ❷...
-
Page 5: Internet Connection
Visit http:/ /192.168.50.1 in your browser, to set up your http://192.168.50.1 KE2-EM35. LED Indicators Internet Connection: After you have plugged in your KE2-EM35 to the WAN, you will see the main web interface. DHCP/Static RS48 Seria The default protocol is DHCP. - Page 6 Access the Local Dashboard: To access the KE2-EM35, connect to the same net- work as the device. Since it is an Ethernet device, speaking TCP/IP, users can connect to it by simply launching their preferred web browser, and typing in the address bar: http:/ /em35 -or- http:/ /192.168.50.1.
- Page 7 Access to Management Console, where setup changes are made Displays active alarms Download to CSV le Up to 35 devices are automatically displayed on the dashboard When log button selected, user prompted for date range. Management ware Version...
-
Page 8: Management Console
Management Console: A User Name and Password are required when ac- cessing the Management Console. When logged in to the Management page, users can make changes to the following settings: Customize Portal, Alarm Noti- fications, Data Logging & System Updates. A detailed look at each of these follows. - Page 9 Customize your portal Setup alarm noti cations Data logging setup System updates Allow KE2 to manage/con gure EM35 and all devices remotely Access KE2- EM35 (with valid subscription) from Portal Automatically discover and display ONLY KE2 devices Management Console will display all* of the KE2 devices connected to the Network directly or through the KE2-EM35s.
- Page 10 Management Console Features: Devices Discovered KE2 devices Setup or change the Portal Site name and Password Enter e-mail or text addresses for noti cations & preferred “Subject” line (If multiple addresses are entered, use a comma to seperate each address) Access Establish the frequency that data points are logged...
- Page 12 Management Console Features (continued): Logs System...
