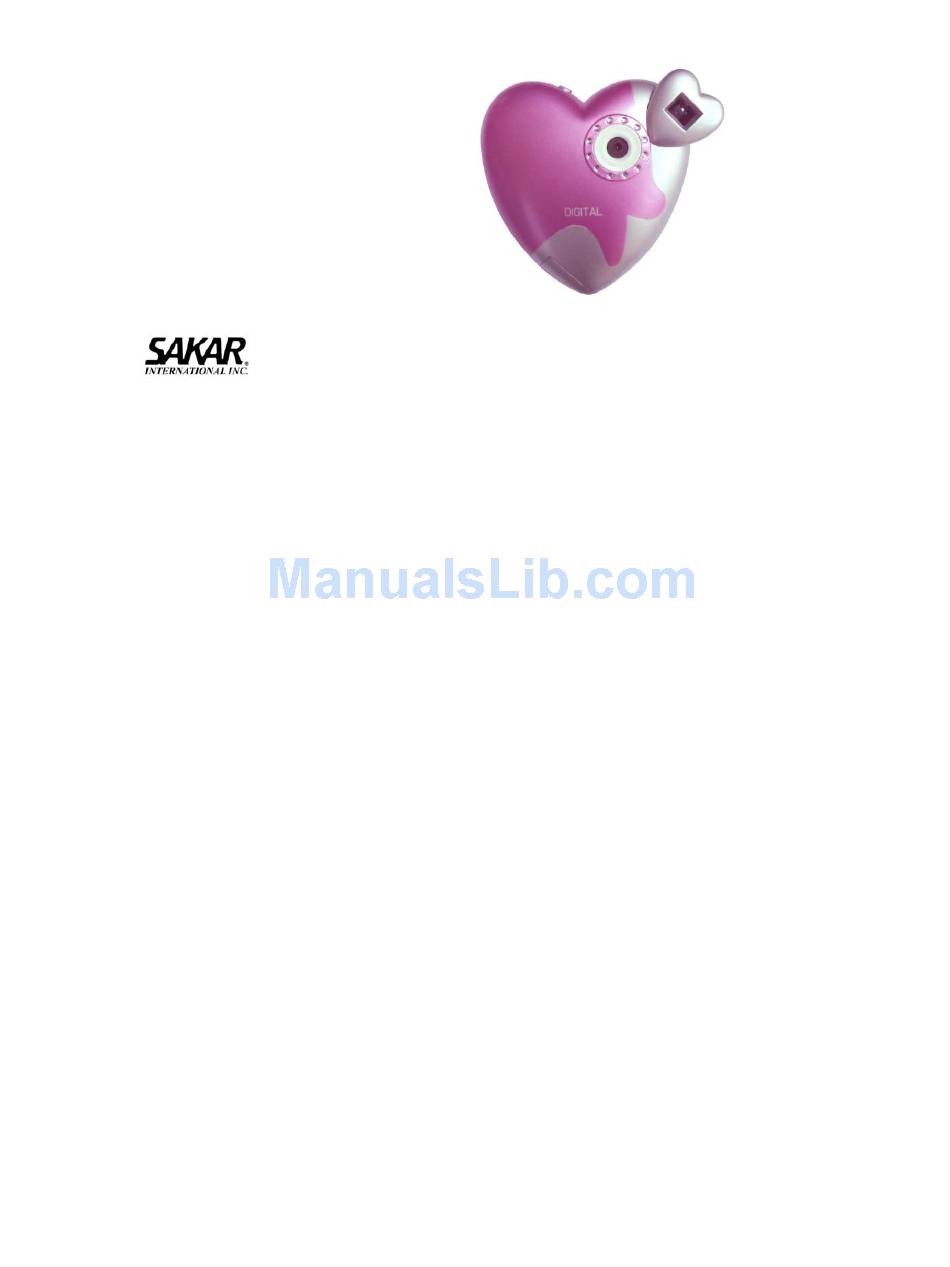

Page 1: Digital Camera
14097 Digital Camera Owner’s Manual © 2006 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies. - 1 -... -
Page 2: Table Of Contents
Table of Contents What your camera includes: ... 3 Computer System Requirements... 4 A Quick Look at Your Camera ... 4 Preparing Your Camera for Use ... 5 Starting Your Camera ... 6 The Camera Modes ... 7 Installing Limited Too Photo Manager Software ... 12 Software &... -
Page 3: What Your Camera Includes
Thank you for purchasing your digital camera. This unit can be used as a webcam it can also be used as a low-resolution digital camera. This camera is equipped with a 16MB built-in RAM, therefore you are able to use it to take up to 152 low-resolution photos under QCIF mode and high compression. Please note that in order to speak with friends and colleagues over the Internet, you will need a PC headset and microphone. -
Page 4: Computer System Requirements
Computer System Requirements To be able to download photos to your PC you will need the following minimum configuration: Pentium processor or above with MS Windows 98 SE, 2000, ME, XP 32 MB RAM, 80 MB free disk space Available USB Interface CD-ROM Drive Color display (16 bit or higher recommended) A Quick Look at Your Camera... -
Page 5: Preparing Your Camera For Use
Preparing Your Camera for Use Battery Installation Your camera requires two AAA batteries. Insert the batteries into the camera: Slide the cover of the battery compartment open. Insert batteries according to the polarities (+ and -) indicated inside the battery compartment. -
Page 6: Starting Your Camera
Starting Your Camera Press the mode button to start the camera. The camera will sound a beep to confirm that your camera is on and ready for use. The LCD display will show the number of photos you can take before needing to download them to your PC. -
Page 7: The Camera Modes
The Camera Modes Photo Resolution and Compression There are 2 photo resolutions to select from, HI or Lo. Press the mode button to select "HI” or "Lo” shown on the LCD display. If the LCD displays “HI” this means that the present resolution is “Lo” and in order to change to “HI”, click on the shutter button within 5 seconds. - Page 8 All photos taken after changing compression will be at the new compression. The photo compression and resolution settings determine the number of photos and the amount of memory required for each photo. The following table tells you how many photos can be taken based on the image resolution and compression: Resolution Compression...
- Page 9 Press the mode button to select the Press the shutter button to start a 10 second count down (the LCD will flash once a second). After 10 seconds a photo is taken. Delete (Last Photo) To delete the last photo taken: 1.
- Page 10 Press the shutter button again within 5 seconds. All photos in the camera will be deleted and the LCD counter will be reset to show the number of photos you can take at the current resolution and compression. Frequency: Using the incorrect frequency setting under fluorescent lighting could result in poor images or video flickering (when using the WebCam).
- Page 11 Energy save mode: In order to conserve battery power, if the camera is not used within 30 seconds, the camera will automatically switch off. Video Mode: To take video clips (AVI format): Press the mode button to select shown on the LCD screen. Press and hold down the shutter button until you want to stop shooting or until the memory is full.
-
Page 12: Installing Limited Too Photo Manager Software
Installing Limited Too Photo Manager Software Before attempting to install the software, make sure that you do not have the camera or the USB cable attached to your computer. This may cause your installation to fail. Do not connect the cable to the computer until the entire installation process has been completed. - Page 13 Insert the CD into your CD-Rom drive. Make sure that your camera is not connected to the computer. On the “Install your camera software” screen, select your camera model from the drop down list and click the “Install” button to install the “Photo Manager” followed by the installation of WebCam Express.
- Page 14 1. On the “Photo Manager" screen, click the “Next” button. 2. Please review the license terms and click the “Agree” button to continue. - 14 -...
- Page 15 3. Let the “Photo Manager” installer create the folder where the program will be installed to, and then click “Install”. 4. Click “Finish” to let the “Photo Manager” installer finish the installation program. - 15 -...
- Page 16 5. This will automatically launch the Install shield for the camera driver. Click “Next” to continue. 6. Once the program has finished installing you will have to restart your computer. 7. Congratulations!! You have successfully installed the “Limited Too Photo Manager” software, the “WebCam Express”...
-
Page 17: Downloading Photos
Downloading Photos Use the “Limited Too Photo Manager” program to import photos and video clips (AVI files) from your camera. Plug one end of the USB cable into the USB slot on your camera. Plug the other end of the USB cable into a USB port on your computer. Make sure that your camera is connected and turned on. - Page 18 The “Get photos” wizard will appear with the correct name of your camera device selected in the “Active devices” list in the “Express” mode. Click the “Next” button to proceed. On the next screen, choose where you want to place your photos and video clips. and click the “Finish”...
- Page 19 Select one of two options for the size of your pictures. High resolution (pixel up selected) or low resolution. All of the pictures you imported will then appear in the “Select photos” mode’s main window. - 19 -...
-
Page 20: Everything You Need To Get The Most Of Your Photos And More
Everything you need to get the most of your photos and MORE Download photos instantly from your digital camera, media cards, CDs and storage devices to your computer. Manage your photos by creating countless unique photo collections without duplicating any photos. Burn CDs of any folders for backup and storage. - Page 21 Now that you have your camera installed you can use it to capture short movies called AVI files. The length of time you can record an AVI while the camera is connected to your computer will vary, depending on how much hard drive space you will use to save the file.
- Page 22 Click the “Capture” button to start recording the video. The recording elapse time will appear under the video. Click the “Pause” button to hold the recording. To continue recording click the “Capture” button again. To finish recording click the “Stop” button. The videos will be automatically saved into a default directory.
-
Page 23: Viewing Videos
2. To learn how to change the user settings, go to the “Set User Preferences” section in the Quick Start help. Video Conferencing with the WebCam You can use this camera as a webcam to chat with friends and family, sending live video feeds straight to them NOTE: In order to use this feature you must make sure that you have YAHOO MESSENGER Version 5.5 or later. -
Page 24: Technical Support
Sakar One Year Warranty This warranty covers for the original consumer purchaser only and is not transferable. Products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship. Your product will be repaired or (at our discretion) replaced at no charge (excluding shipping, handling and insurance charges). -
Page 25: Appendix A: Technical Specifications
Appendix A: Technical Specifications Image Sensor Resolution Memory Number of Pictures Lens Focus Range Shutter Range Status LCD display Self-Timer Video frame rate Video mode Power source Auto power off PC interface Operation System Weight Dimension CMOS Sensor 100K (352x 288) pixels 352x 288 (CIF) 1M x 16 bytes SDRAM Ld: Hi 18CIF/Lo 64 QCIF Hd: Hi 50 CIF Lo 152 QCIF... -
Page 26: Appendix B: Troubleshooting
Appendix B: Troubleshooting Q: I have taken photos, but my computer says "No photos in camera." What do I do? • First, ensure that you have taken photos with your camera. Press the shutter button a few times to take some sample photos and try again. - Page 27 2. Now reinstall the software. Insert the CD that came with your camera. It should automatically run the installation. 3. Restart the computer. 4. Once your computer is back up, plug the camera into your computer's USB port. 5. Right-click on the "My Computer" icon. Select Properties. If you are running Windows 98 SE or Windows ME: Click on Device Manager.
- Page 28 If you are running Windows 2000 or XP: Right click on the non functioning device and select uninstall. If a warning pops up, press OK. 6. Restart your computer again. Your camera is now successfully installed. Q: How do I make sure I don't lose important pictures? •...
