AGR Installation and Operation Guide
The AirGlide Internal GPS Upgrade for:
AirGuide Model 2025
w/ a plastic internal frame

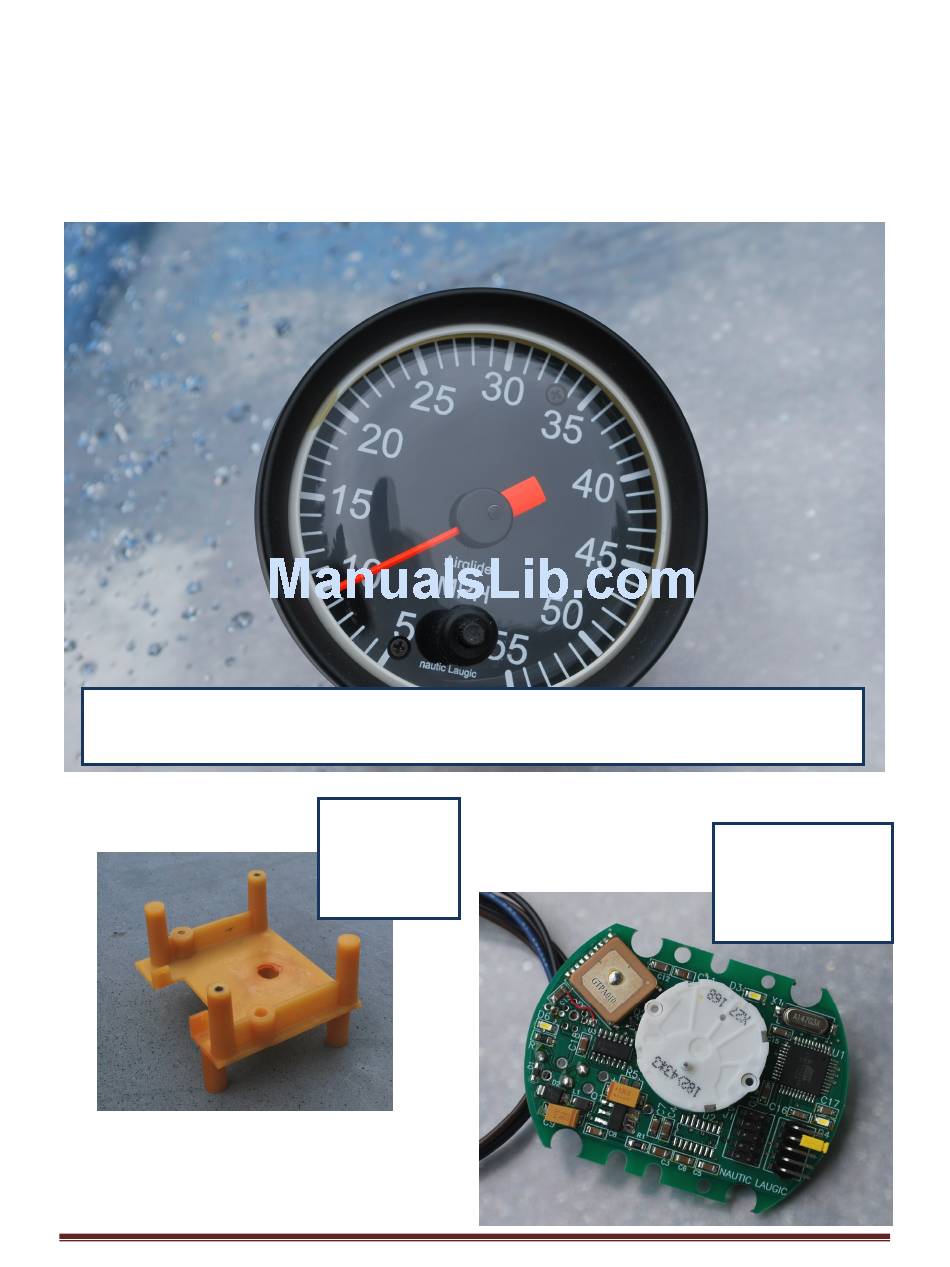

This Kit includes all the components necessary to upgrade the Pitot driven speedometer to GPS.
The finished gauge will mount exactly has it did originally. The integrated Backlights are life-time LEDs.
This document outlines the step-by-step conversion procedure and installation.
*** This retrofit is NOT intended to work with the original gauge dial... only the new dial is used.
Please download the most up to date instructions:
nauticlaugic.com >> Tech Support >> AirGlide
Plastic
AirGlide
Internal
Internal GPS
Frame
Upgrade
nautic Laugic
www.nauticlaugic.com
Page 1
Advertisement
Summary of Contents for AirGuide 2025
- Page 1 AGR Installation and Operation Guide The AirGlide Internal GPS Upgrade for: AirGuide Model 2025 w/ a plastic internal frame This Kit includes all the components necessary to upgrade the Pitot driven speedometer to GPS. The finished gauge will mount exactly has it did originally. The integrated Backlights are life-time LEDs.
- Page 2 AGR Installation and Operation Guide The AirGlide Kit, Tools, and Prep Contents QUANTITY DESCRIPTION AirGlide Retro-fit Assembly (AGR) Dial, 5-to-55 MPH Screw, FltHd, #2-56 x ¼” Washer, #6, Nylon, Black Grommet, Rubber General Small Tools and Material Required DESCRIPTION SCREW DRIVERS: PHILLIPS (#0-0, #1, #2) / SMALL FLAT-HEAD (2) PLIERS: NEEDLE NOSE / STANDARD ASSORTED NUT DRIVERS ASSORTED WRENCHES...
- Page 3 AGR Installation and Operation Guide Disassembly Begin with the gauge removed from dash: Thereby, free the Pitot hose (cut if necessary). Remove the Backlight, by pulling it from the case. And remove the mounting bracket. *** Remember to always protect the Lens Face with a soft cloth or pad to avoid scratches.
- Page 4 AGR Installation and Operation Guide 7. Now evacuate all the pressure-mechanical components from frame. a. Using Diagonal Cutters, snip the spindle shaft, and remove. b. Continue to turn the Adjustment Screw Counter-Clockwise until it’s loose, and remove. Save its spring and washer. c.
- Page 5 AGR Installation and Operation Guide modifications as needed. g. Thread the Retaining screw into the frame to make sure the frame threads are clear and cut. Do the same for the Adjustment screw. Remove both screws. Assembly Clean the case. insert and seat the rubber grommet into the old Backlight hole. 2.
- Page 6 AGR Installation and Operation Guide 6. Gently remove the protection paper from the new Dial surfaces. Face up, slide the Dial over the Adjustment screw, and allow it to rest on the frame posts. Align the Dial mounting holes to the frame posts.
- Page 7 AGR Installation and Operation Guide Your AirGlide Speedometer is READY for Power. nautic Laugic www.nauticlaugic.com Page 7...
-
Page 8: Electrical Install
AGR Installation and Operation Guide Electrical Install Return the Speedometer to the Dash. Feed the wires thru the dash front. 2. Mount the Speedometer. 3. Provide a source of CLEAN (Noise-free), Key-switched +12Vdc Power. Tap into power that ISN’T directly feeding a Pump, Starter Motor, or etc. - Page 9 AGR Installation and Operation Guide Addendum: Registration Test and Fine-Tune Calibration Attached the BROWN and BLUE WIRES to a switched +12VDC source (Battery, power supply.) Connect the BLACK WIRE to the negative (common) side of the power source... DON'T ENERGIZE JUST YET. 2.
