MEN Mikro Elektronik CB71C User Manual

Rugged com express module with amd v1000 ansi-vita 59 rce
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

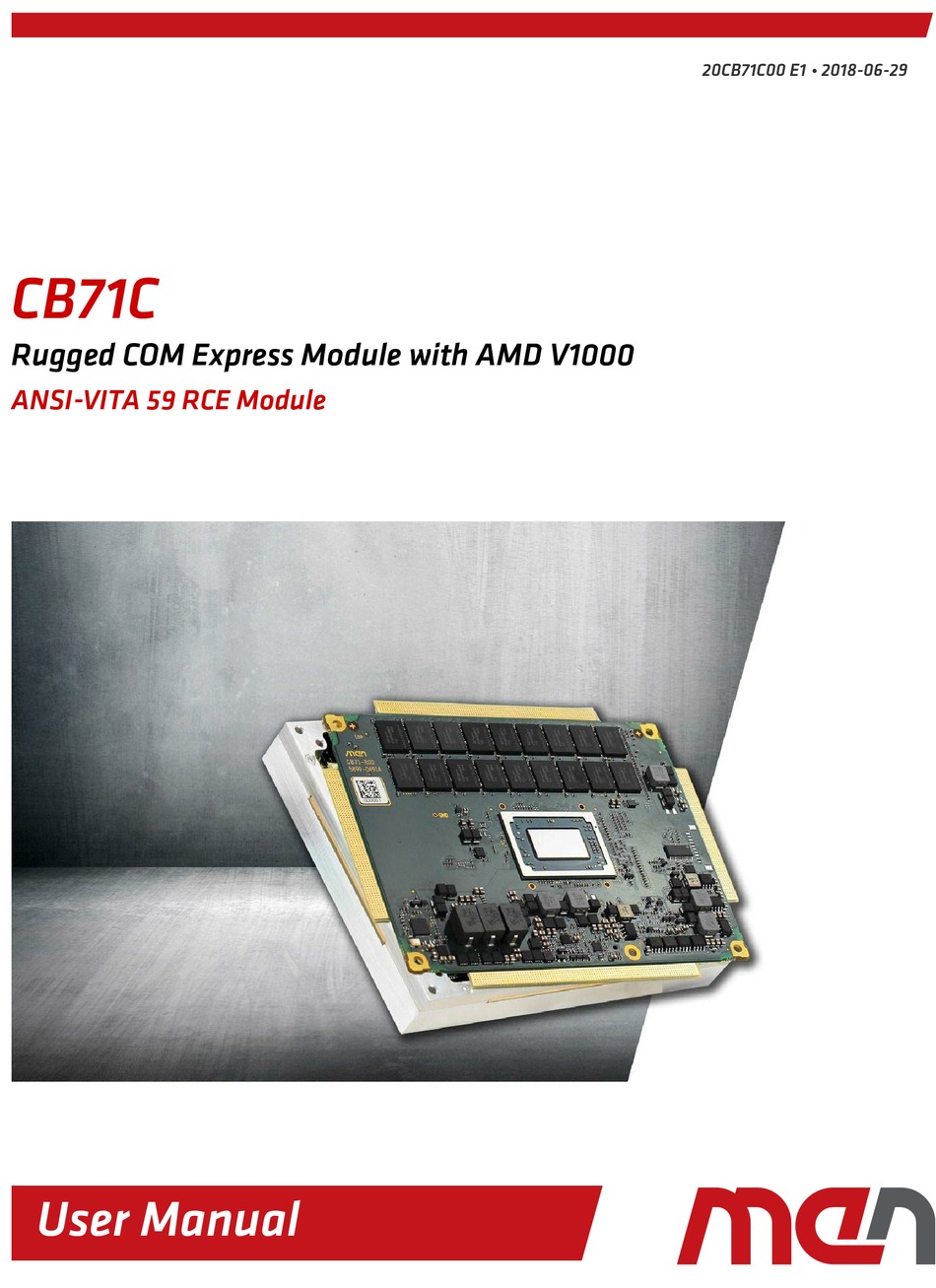

20CB71C00 E1
2018-06-29
CB71C
Rugged COM Express Module with AMD V1000
ANSI-VITA 59 RCE Module
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB71C and is the answer not in the manual?

Questions and answers

Related Manuals for MEN Mikro Elektronik CB71C

Summary of Contents for MEN Mikro Elektronik CB71C

  • Page 1 20CB71C00 E1 2018-06-29  CB71C Rugged COM Express Module with AMD V1000 ANSI-VITA 59 RCE Module User Manual...

  • Page 2: Table Of Contents

    Using the CB71C under Linux ........
  • Page 3 Contents 3.13 PCI Express ............29 3.14 UART .

  • Page 4: About This Document

    This user manual is intended only for system developers and integrators, it is not intended for end users. It describes the design, functions and connection of the product. The manual does not include detailed information on individual components (data sheets etc.). CB71C product page with up-to-date information and downloads: www.men.de/products/cb71c/ History Issue...
  • Page 5 About this Document Conventions Indicates important information or warnings concerning situations which could result in personal injury, or damage or destruction of the component. Indicates important information concerning electrostatic discharge which could result in damage or destruction of the component. Indicates important information or warnings concerning proper functionality of the product described in this document.

  • Page 6: Product Safety

    Product Safety Product Safety Electrostatic Discharge (ESD) Computer boards and components contain electrostatic sensitive devices. Electrostatic discharge (ESD) can damage components. To protect the PCB and other components against damage from static electricity, you should follow some precautions whenever you work on your computer. Power down and unplug your computer system when working on the ...

  • Page 7: Legal Information

    Legal Information Legal Information Changes MEN Mikro Elektronik GmbH ("MEN") reserves the right to make changes without further notice to any products herein. Warranty, Guarantee, Liability MEN makes no warranty, representation or guarantee of any kind regarding the suitability of its products for any particular purpose, nor does MEN assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including, without limitation, consequential or incidental damages.
  • Page 8 Nevertheless, MEN is registered as a manufacturer in Germany. The registration number can be provided on request. Copyright © 2018 MEN Mikro Elektronik GmbH. All rights reserved. Germany France China...

  • Page 9: Product Overview

    Powerful Processing and Graphics on a Single Chip The CB71C is based on AMD's V1000 APU family. It is equipped with a Radeon Vega next- generation 3D graphics engine and supports up to 4 displays with a resolution of up to 4k without the need for additional graphics hardware.

  • Page 10: Product Architecture

    Product Overview Product Architecture 1.2.1 Interfaces 1.2.1.1 CB71C Rugged COM Express Board Layout Figure 1. Board layout – RCE inside cover and frame, connector side Cooling Wing COM Express Connectors D110 C110 B110 A110 Cooling Wing Holes for mounting a COM Express module version on a carrier board. Screws connecting the frame and cover of the module . Do not remove. Holes for mounting the Rugged COM Express module on a  carrier board. 20CB71C00 E1...

  • Page 11: Figure 2. Board Layout - Connector Side (Cb71 Com Express)

    Product Overview 1.2.1.2 CB71 COM Express Board Layout Figure 2. Board layout – connector side (CB71 COM Express) D110 C110 B110 A110   Holes for mounting the COM Express module on a carrier board. 20CB71C00 E1 2018-06-29 Page 11 ...

  • Page 12: Functions

    Product Overview 1.2.2 Functions Figure 3. Functional diagram B Onboard Options ECC DDR4  eMMC SDRAM SATA (6 Gb) Gb Ethernet Ethernet  Ctrl PCIe  USB 2.0 Switch PCIe 2.0 x1 USB 3.1 PCIe 3.0 x1 AMD V1000 APU UART PCIe 3.0 x4 HD Audio 4 GPO I/O  Expander 4 GPI Reset SMBus Boot  Flash COM Express Connectors 20CB71C00 E1 2018-06-29 Page 12 ...

  • Page 13: Technical Data

    Product Overview Technical Data The following CPU types are supported:  AMD V1404I, 4 cores, 4 threads, tbd GHz, 15W, 2 MB cache AMD V1807B, 4 cores, 8 threads, 3.35 GHz, 35-54W, 2 MB cache Memory System RAM  Soldered DDR4, ECC 32 GB max.
  • Page 14 125 mm x 95 mm (models conforming to PICMG COM.0 COM Express Basic format) See the MEN website for technical product drawings including the  exact dimensions of CB71C: www.men.de/products/cb71c/#doc See the COM Express COM.0 specification for the dimensions of ...
  • Page 15 ECE R10 Rev.5 (E-mark)  BIOS AMI Aptio UEFI Firmware  Software Support Linux  Windows (on request)  See the MEN website for supported operating system versions, available software and more details on supported functions: www.men.de/products/cb71c/#downl 20CB71C00 E1 2018-06-29 Page 15 ...

  • Page 16: Cooling Concept

    Chapter 3.3 Trusted Platform Module (TPM) on page If you do not use the cover and frame supplied by MEN and/or no heat sink, warranty on functionality and reliability of the CB71C may cease. If you have any questions or problems regarding thermal behavior, contact MEN.

  • Page 17: Cooling Of Com Express Modules (Com.0)

    Chapter 3.3 Trusted Platform Module (TPM) on page A general heat spreader solution, e.g., for evaluation purposes, is available from MEN as an accessory for COM Express models. See the MEN website for ordering information: www.men.de/products/cb71c/#ord 20CB71C00 E1 2018-06-29 Page 17...

  • Page 18: Product Identification

    Product Identification MEN documentation may describe several different models and design revisions of the CB71C. You can find the article number, design revision and serial number affixed to the CB71C. Article number: Indicates the product family and model. This is also MEN’s main ...

  • Page 19: Getting Started

    The following steps are necessary: » Power down the system. » Plug the CB71C on your carrier board, making sure that the COM Express connec- tors are properly aligned. » Fasten the screws connecting the COM Express module to the carrier.
  • Page 20 The following steps are necessary: » Power down the system. » Plug the CB71C on your carrier board, making sure that the COM Express connec- tors are properly aligned. » Fasten the screws connecting the COM Express module to the carrier.

  • Page 21: Installing Operating System Software

    Getting Started Installing Operating System Software By default, no operating system is installed on the CB71C. Please refer to the respective manufacturer's documentation on how to  implement the operating system. See the MEN website for all available software: ...

  • Page 22: Using The Cb71C Under Linux

    Getting Started Using the CB71C under Linux This chapter describes how to use Linux software together with the CB71C. A detailed step-by-step description is given where needed. 2.5.1 Accessing SMBus/I2C Devices using Standard Linux I2C Tools For detailed information how to access SMBus/I2C devices using standard Linux I2C...

  • Page 23: Functional Description

    Functional Description Functional Description Power Supply The CB71C is supplied via the carrier board and supports the PWR_OK signal (input from main power supply) available at the COM Express connector according to the PICMG COM.0 standard. 3.2.1 Processor Core The following CPU types are supported: AMD V1404I, 4 cores, 4 threads, tbd GHz, 15W, 2 MB cache ...

  • Page 24: Watchdog

    The following units can generate events in the log:  Application software running on CB71C  The event time stamp is derived from the BMC’s operation time counter. The length of power cuts is not visible in the event log.

  • Page 25: Reset

    CRTC (Chipset Real-Time Clock) is the real-time clock of the processor.  The CB71C supports a 3 V back-up voltage input using J1 pin VCC_RTC (J1-A47) and 5 V inputs on standby voltage pins VCC_5V_SBY (J1-B84-87). This allows to back up the RTC by a supercapacitor or battery installed on the carrier for data retention during power off.

  • Page 26: Memory

    Chapter 3.16.1 COM Express Connectors on page 30 for the connector pinout. 3.8.2 eMMC Multimedia Card The CB71C comes with a 16 GB eMMC multimedia device already soldered on the board. Higher capacities up to 64 GB are available as hardware options. 20CB71C00 E1 2018-06-29 Page 26 ...

  • Page 27: Video

    Functional Description Video The CB71C supports: DDI[1:3] implementation according to PICMG COM.0 standard  Resolution: DP 1.4, DVI 1.0, HDMI 2.0b LVDS-A/eDP interface according to PICMG COM.0 standard, no LVDS option  Resolution: DP 1.4, eDP 1.4, DVI 1.0, HDMI 2.0b Chapter 3.16.1 COM Express Connectors on page 30...

  • Page 28: Ethernet Status Leds

    Functional Description 3.12.1 Ethernet Status LEDs The CB71C provides control signals for Ethernet status LEDs at the COM Express connector. Table 1. Ethernet status LEDs Signal Function GBE0_LINK# Indicates the link status On: Link up  Off: No link ...

  • Page 29: Pci Express

    Functional Description 3.13 PCI Express The CB71C supports: PEG[0:3] implementation according to PICMG COM.0 standard  PCIE0 to PCIE6 implementation according to PICMG COM.0 standard  PCIE0,1,4,5,6 (PCIe 3.0) PCIE2,3 (PCIe 2.0) Chapter 3.16.1 COM Express Connectors on page 30 for the connector pinout.

  • Page 30: Rugged Com Express

    Table 2. Connector types – COM Express Connector Type On CB71C 2-row, 220-pin free height 4H receptacle, 0.5 mm pitch, e.g., Tyco Electronics 3-6318490-6 Mating 2-row, 220-pin free height 5H plug connector, 0.5 mm pitch, e.g., Tyco Electronics 3-1827253-6 In the following pinout tables the COM Express connectors are shown as seen on a carrier board.
  • Page 31 Functional Description GBE0_MDI0- PWRBTN# USB_SSRX3- USB_SSTX3- GBE0_MDI0+ SMB_CK USB_SSRX3+ USB_SSTX3+ GBE0_CTREF SMB_DAT DDI1_CTRL- SUS_S3# SMB_ALERT# DDI1_PAIR6+ CLK_AUX+ DDI1_CTRL- SATA0_TX+ SATA1_TX+ DDI1_PAIR6- DATA_AUX- SATA0_TX- SATA1_TX- SUS_S4# SUS_STAT# SATA0_RX+ SATA1_RX+ PCIE_RX6+ PCIE_TX6+ SATA0_RX- SATA1_RX- PCIE_RX6- PCIE_TX6- SATA2_TX+ SATA3_TX+ SATA2_TX- SATA3_TX- SUS_S5# PWR_OK DDI1_HPD SATA2_RX+ SATA3_RX+...
  • Page 32 Functional Description USB0+ USB1+ DDI3_PAIR2+ DDI2_PAIR2+ VCC_RTC EXCD1_PERST# DDI3_PAIR2- DDI2_PAIR2- RSVD 10 EXCD1_CPPE# GBE0_SDP SYS_RESET# DDI3_PAIR3+ DDI2_PAIR3+ LPC_SERIRQ CB_RESET# DDI3_PAIR3- DDI2_PAIR3- PCIE_TX5+ PCIE_RX5+ PEG_RX0+ PEG_TX0+ PCIE_TX5- PCIE_RX5- PEG_RX0- PEG_TX0- GPI0 GPO1 PCIE_TX4+ PCIE_RX4+ PEG_RX1+ PEG_TX1+ PCIE_TX4- PCIE_RX4- PEG_RX1- PEG_TX1- GPO2 PCIE_TX3+ PCIE_RX3+ PEG_RX2+...
  • Page 33 Functional Description eDP_AUX_SEL VCC_5V_SBY PEG_RX10- PEG_TX10- eDP_HPD VCC_5V_SBY PCIE_CLK_REF+ PEG_RX11+ PEG_TX11+ PCIE_CLK_REF- VGA_RED PEG_RX11- PEG_TX11- SPI_POWER VGA_GRN PEG_RX12+ PEG_TX12+ SPI_MISO VGA_BLU PEG_RX12- PEG_TX12- GPO0 VGA_HSYNC SPI_CLK VGA_VSYNC PEG_RX13+ PEG_TX13+ SPI_MOSI VGA_I2C_CK PEG_RX13- PEG_TX13- TPM_PP VGA_I2C_DAT SPI_CS# SER0_TX BMC_STATUS_LED PEG_RX14+ PEG_TX14+ SER0_RX RSVD PEG_RX14-...

  • Page 34: Table 4. Signal Mnemonics

    SUS_S5# Indicates system is in Soft Off state SYS_RESET# Reset button input WAKE0# Wake signal from PCIe device to wake CB71C from sleep state WAKE1# General purpose wake-up signal Output indicating that a watchdog time-out event has occurred Thermal Protection...
  • Page 35 Functional Description Signal Direction Function PCIE_TX0+, PCIE_TX0- Differential PCIe transmit lines, lane 0, PCIe 3.x PCIE_RX1+, PCIE_RX1- Differential PCIe receive lines, lane 1, PCIe 3.x PCIE_TX1+, PCIE_TX1- Differential PCIe transmit lines, lane 1, PCIe 3.x PCIE_RX2+, PCIE_RX2- Differential PCIe receive lines, lane 2, PCIe 2.x PCIE_TX2+, PCIE_TX2- Differential PCIe transmit lines, lane 2, PCIe 2.x PCIE_RX3+, PCIE_RX3-...
  • Page 36 Functional Description Signal Direction Function USB0+, USB0- in/out Differential USB lines, port 0, required for USB 3.1 interface USB1+, USB1- in/out Differential USB lines, port 1, required for USB 3.1 interface USB2+, USB2- in/out Differential USB lines, port 2, required for USB 3.1 interface USB3+, USB3- in/out Differential USB lines, port 3...
  • Page 37 Functional Description Signal Direction Function Miscellaneous SPKR Output for audio enunciator - the "speaker" in PC-AT systems. This port provides the PC beep signal and is mostly intended for debugging purposes. TPM_PP Physical Presence pin of Trusted Platform Module (TPM). Active high.

  • Page 38: Hardware/Software Interface

    Hardware/Software Interface Hardware/Software Interface This chapter is intended for software developers or board integrators who need deeper knowledge of the implementation details of the CB71C interfaces and its internal connections. SMBus/I2C Devices Table 5. SMBus/I2C devices 8-Bit Address 7-Bit Address...
