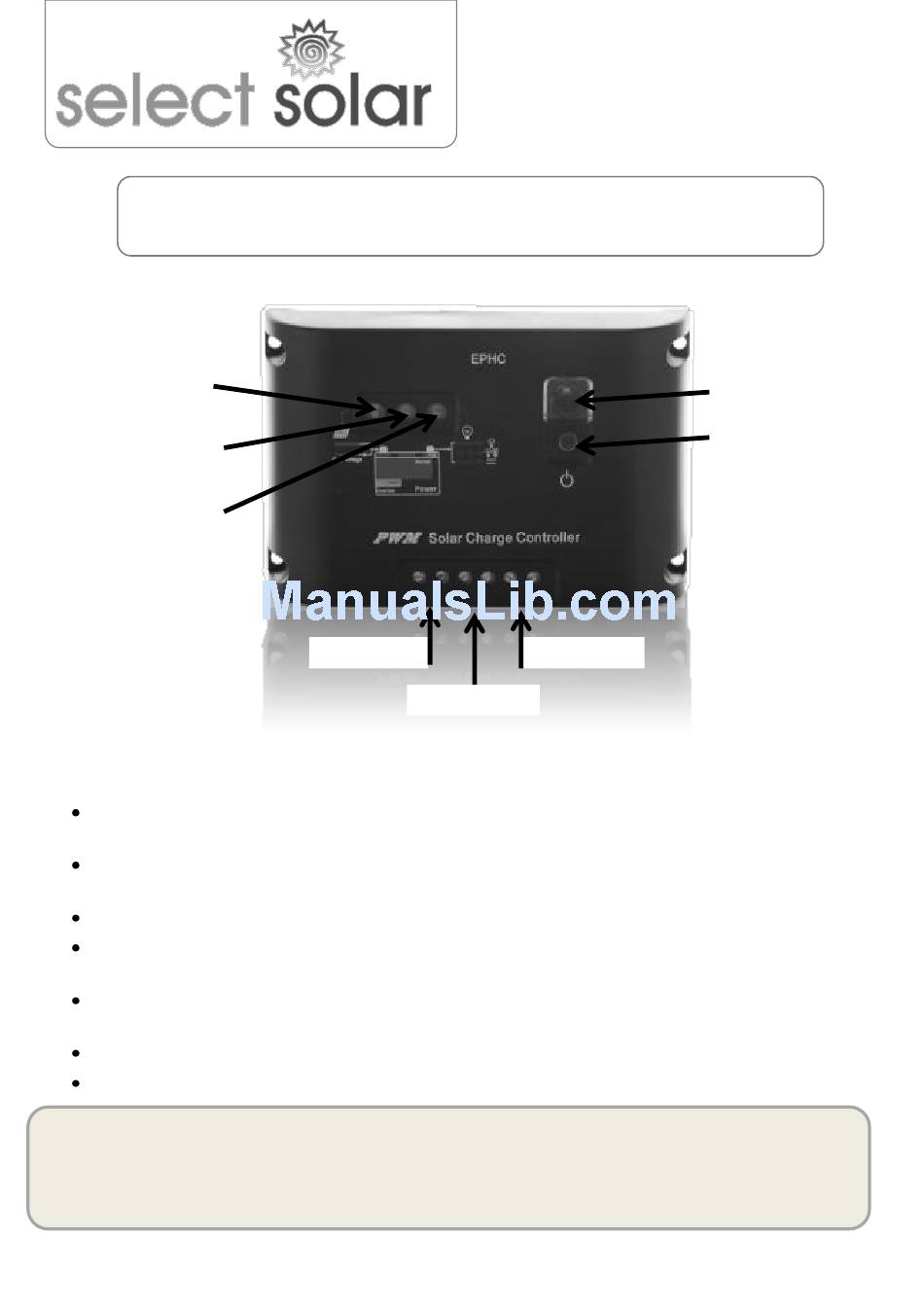

EPHC 10A 12/24V Solar Charge Regulator
PV charge status
(LED1)
Battery status
(LED2)
Short circuit
(LED3)

1 - Features

Suitable for 12V or 24V solar panels with a current rating up to 10A. Automatic battery voltage
detection.
High efficiency Pulse Width Modulated charging. Boost, recovery and float charging modes keep your
battery optimally charged.
No moving hardware. Flash memory protects against temperature and vibration problems.
High level of self-protection. Protection against overload, short circuit, reverse connection, lightening,
overcharging, overdischarging and PV reverse current.
LED condition indicators. LED indicators forcharging status, battery status, short-circuit and over-
loading.
Temperature range -35
Low voltage disconnect feature for loads up to 10A
Weight: 250g
Regulation Point 14.4v
Float charge: 13.6V
PV connection
Battery connection
o
o
C - 55
C; temperature compensation charging
Self-consumption: 6mA
Low voltage Disconnect: 11.1V
Warranty: 1 year
INSTRUCTION GUIDE
Load connection
Dimensions: 140 x 90.5mm
Low voltage reconnect: 13.1V (all 12V)
CE certified
for
Load switch (LED4)
Load ON/OFF
EPHC Controller May 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPHC 10A and is the answer not in the manual?

Questions and answers

Paul Stacey
February 1, 2025

What does the load switch actually do on a EPHC-EC 10A 12v unit please ?

1 comments:
Mr. Anderson
February 10, 2025

The load switch (LED4) on the Select Solar EPHC 10A 12V unit controls the connection of the load to the regulator. When the load switch is ON, the LED4 indicator is solid red, meaning the load is receiving power. When the load switch is OFF, there is no light on LED4, indicating that the load is disconnected.

This answer is automatically generated

Summary of Contents for select solar EPHC 10A

  • Page 1 INSTRUCTION GUIDE EPHC 10A 12/24V Solar Charge Regulator PV charge status Load switch (LED4) (LED1) Battery status Load ON/OFF (LED2) Short circuit (LED3) PV connection Load connection Battery connection 1 - Features Suitable for 12V or 24V solar panels with a current rating up to 10A. Automatic battery voltage detection.
  • Page 2 30 seconds. Load Switch (LED4) Solid red – load switch is ON No light – load switch of OFF Select Solar Ltd Waterpark Storage, 4 Ermin Way Barns, The Street, Latton, Swindon, Wiltshire, SN6 6DN. www.selectsolar.co.uk EPHC Controller May 2012...
