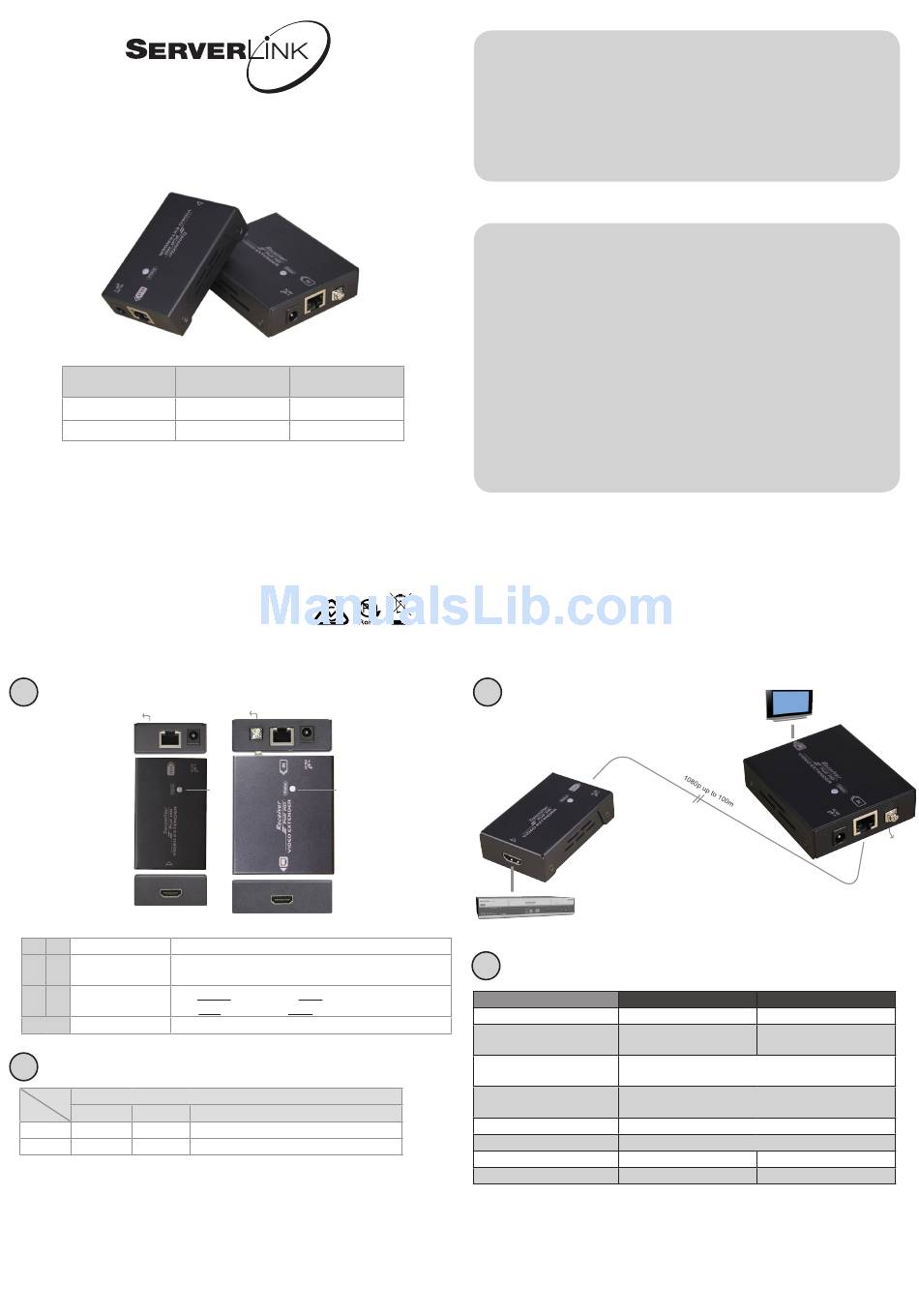

serverLink SL-HXP-070 Instructions

HDMI Extender

over CAT 5
Maximum Distance
Model
SL-HXP-070
SL-HXP-100
Low-quality cables elevate noise levels and degrade output signals. Please
use good quality cables and display devices that are capable of handling the
resolution and refresh rate selected.
PP5-HEM122Z-200
1

Product Description

T1
Grounding
Transmitter (Tx)
T2
T1 R1 RJ45 Jack Use a CAT 5e or CAT 6 cable to connect Tx to Rx
[T2] Connect to an HDMI source
T2 R2 HDMI connector
[R2] Connect to an HDMI display
[T3] Green: Power on / Blue: Link OK
T3 R3 LED Indicator
[R3] Red: Power on / Blue: Link OK
P Power Supply Apply power to either the Tx or Rx unit
2

LED Indicator

LED
Power on Link OK No video source or monitor connected
Unit
Tx Green Blue
Rx Red Blue
NOTE:
1. The system will disable the video output signal when it detects non-HDCP
compliant display(s) on playing the HDCP video source. All the connected
output displays MUST be HDCP compliant when the video source is HDCP
compliant.
2. The quality of the output signal will largely depend upon the quality of the
video source, cable and display device used. Low-quality cables can degrade
the output signal causing elevated noise levels and so the use of good
quality cables is recommended.
Maximum Distance
@ 1080p @ 4K2K
70m 35m
100m 70m
Features and functions may be added or changed
after the manual was written. Please visit our
website to download the latest version of manual
for reference.
R1 P
P
Grounding
R3
T3
Receiver (Rx)
R2
Status
Flashing blue & green
Flashing blue & red

Package Contents

● HDMI Extender Transmitter Unit
● HDMI Extender Receiver Unit
● Power Adapter
● User Manual
● Grounding Wire
● Foot Pad Set

Features

● Extend your HDMI signal up tp 100m over a single CAT 5e or CAT 6
cable
● Supports full uncompressed HD video and audio
● Supports High Speed HDMI with 3D
● Supports Phantom Power - Use a single power supply at either the
transmitter end or the receiver end
● HDMI resolution support: 4K2K, 1080p, 1080i, 720p, 576p, 576i, 480p
and 480i
● Deep Colour support: 24-bit and 36-bit
● Audio format support: LPCM, Dolby AC-3, DTS7.1 & DSD
● HDCP version: HDCP v1.2
● Supports bandwidth up to 10.2Gbps
● Compact size - easy to set up and simple to install
3

Connection Pattern

Transmitter Unit
Grounding
To prevent damage to the product or any connected
devices, and to improve audio/video signal quality, it is
recommended to ensure that the extender systems are
properly grounded.
4

Specifications

Model Transmitter Unit
Input → Output
LED
x 1 (Dual Color)
(Link / Video status)
Video Resolution (max)
SL-HXP-070: 70m @ 1080p / 35m @ 4K2K
Extension Distance
SL-HXP-100: 100m @ 1080p / 70m @ 4K2K
Power Supply
Enclosure
Weight (g)
H x W x D (mm)
Above video resolution and extension distance are based on a single CAT 5e
or CAT 6 24AWG solid cable without cascade. STP cabling is recommended
for environments with high EMI or RFI. For the best performance results, using
stranded cabling or other thinner cables and coiling of excess cable lengths
should be avoided.
x 1
x 1
x 1
x 1
x 2
x 2
Receiver Unit
Receiver Unit
HDMI → RJ45 RJ45 → HDMI
x 1 (Dual Color)
4K Ultra HD 2160p (3840 x 2160)
Full HD 1080p (1920 x 1080)
DC 12V (Phantom Power)
Metal
120 195
22 x 52 x 80 25 x 67 x 80
Grounding
