The vibration generator is for generating mechanical
waves to study oscillations and resonance.

1. Safety instructions

• When plugging in or removing accessories, take care
not to apply too much pressure or force on the
mounting in order to avoid damaging the loud-
speaker. Hold the mounting still with one hand
whilst inserting or removing the accessory with the
other.

2. Description, technical data

The vibration generator consists of a loudspeaker fit-
ted inside a stable plastic housing. A mounting pin
with a 4-mm socket is attached to the speaker to trans-
mit the oscillations.
Springs, Chladni plates, rubber bands and other ac-
cessories can be attached to the vibration generator
and allowed to oscillate. A function generator with a
power output (e.g. U21010 function generator with in-
terface or U21015 F12 function generator) is required
to generate the oscillations. Including holder for stand
rod (up to 8 mm Ø) on the rear side of the apparatus
for the demonstration of standing waves in a coil
spring. The generator is equipped with overload pro-
tection.
PHYSICS PHYSICS
PHYSICS PHYSICS

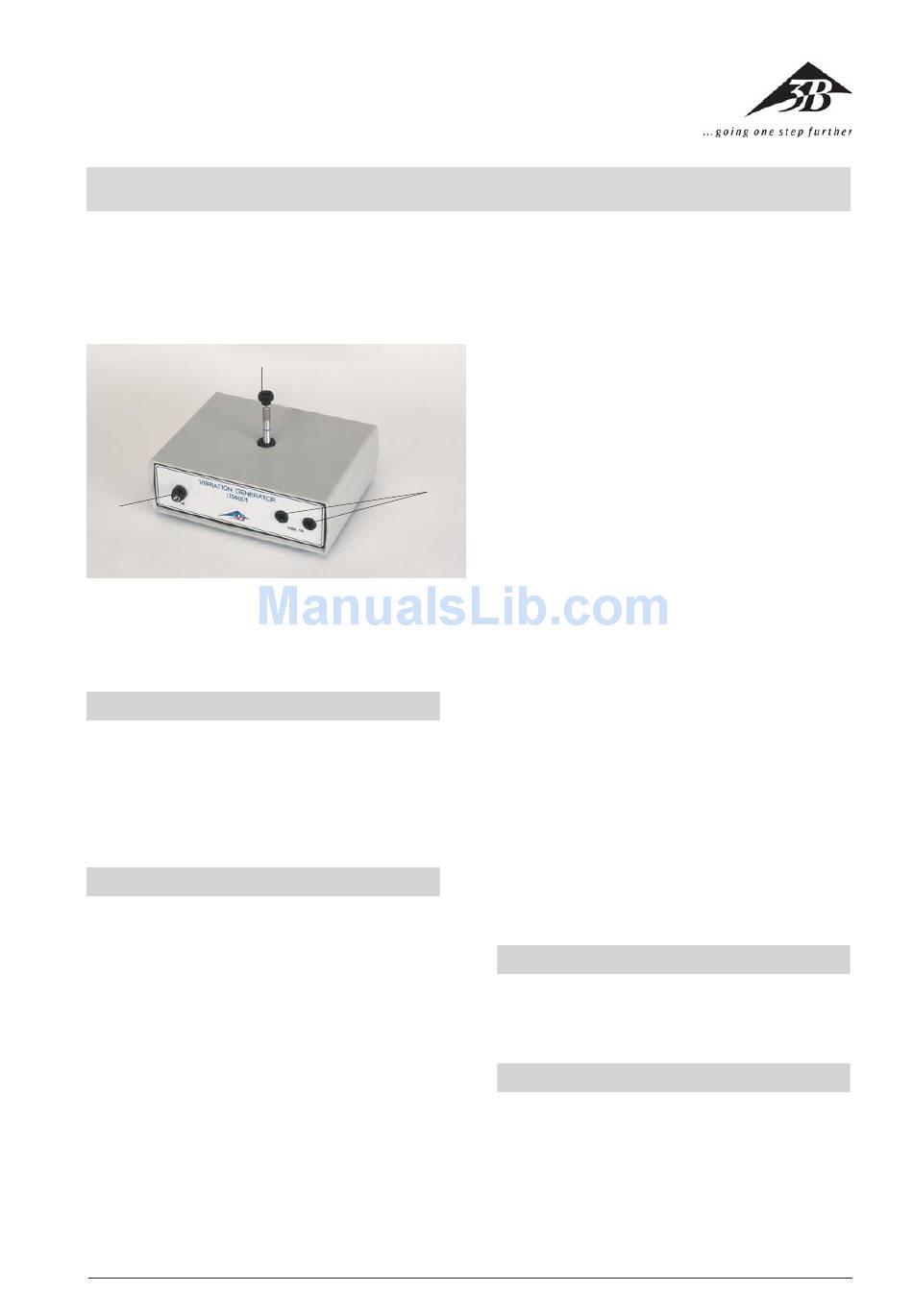

U56001 Vibration generator
1
1
Input sockets (4-mm safety sockets)
2
Mounting pin with 4-mm socket
3
Fuse holder (with F 1.0 fuse for 250V)
Connection:
Impedance:
Frequency range:
Overload protection:
Dimensions:
Weight:

2.1 Accessories

U56002 Rubber band
U56003 Accessories for spring oscillations
U56004 Accessories for kinetic gas theory
U56005 Chladni plate, circular
U56006 Chladni plate, square
U56007 Resonance wire, ring shaped
U56008 Accessories for rope waves

3. Changing the fuse

• Unscrew the fuse holder.
• Replace the blown fuse with a new one.
• Screw the fuse holder back in.

4. Sample experiments

• Attach appropriate accessories for the experiment
to the vibration generator.
• Connect a function generator and modify the fre-
quency.
3
®
via 4-mm safety sockets
8 Ω
0 up to 20 kHz
1 A fuse, (N 1.0 for 250 V)
200x160x70 mm
1.4 kg
