- Page 1 TI-5000 RigExpert ® USB Transceiver Interface User’s manual...
-
Page 3: Table Of Contents
Table of contents Introduction Operating the TI-5000 Front and rear panels Transceiver and computer connection Updating the firmware Annexes Annex 1: Specifications Annex 2: Changing audio input and output level... -
Page 4: Introduction
RigExpert TI-5000 is a device for • CAT interface for various transceiver operating phone, CW and digital modes models using personal computer with USB port. - Page 5 In RigExpert TI-5000, the squelch input is assigned to the DCD line of the COM port used for PTT and CW outputs. RigExpert TI-5000...
-
Page 6: Operating The Ti-5000

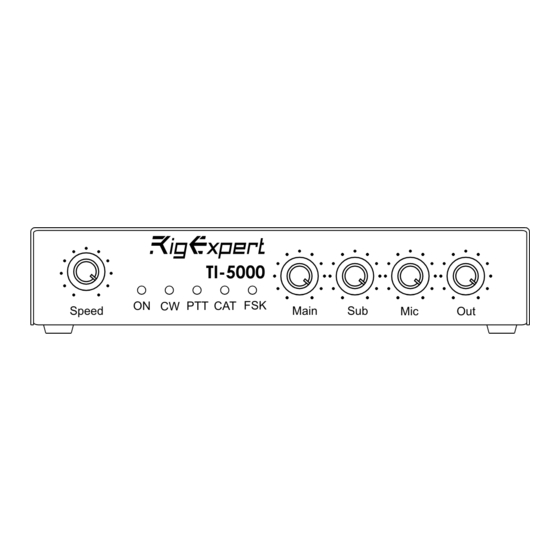

TI-5000 Front and rear panels Front panel: 1. Speed. CW speed pot for the WINKEY 6. FSK. Lights when RigExpert TI-5000 is keyer. May be deactivated by software. sending FSK data. 2. ON. Lights when the RigExpert TI- 7. Main. Input level, channel 1 (main 5000 device is plugged in and the drivers receiver audio). - Page 7 12. MIC2. Microphone input connector USB port. (3.5 mm). 17. USB OUT. USB hub output to connect 13. FOOTSW. Foot switch, RCA socket. USB devices such as computer mouse. 14. TRANSCEIVER. 25-pin transceiver connector. USB IN FOOTSW TRANSCEIVER USB OUT PADDLE RigExpert TI-5000...
-
Page 8: Transceiver And Computer Connection
You may either order a transceiver cable with your TI-5000 or assemble it yourself. See the schematic diagrams on our website, www.rigexpert.com . A number of analog and digital signals are routed between your transceiver and Rig- Expert TI-5000. - Page 9 Use a standard USB A-B cable (up to 5 meters long) to connect your RigExpert TI-5000 to a USB port of your computer. It is recommended to use USB sockets located at the back panel of the PC. Once the cable is connected, computer detects a new device.
-
Page 10: Updating The Firmware
TI-5000 to a USB port of your computer. It is recommended to use USB sockets located at the back panel of the PC. • Start the RigExpert Flash Tool You may find Flash Tool at the Downloads section of the website, www.rigexpert.com. User’s manual... - Page 11 • Press Next to continue • Choose the option of update You may update your TI-5000 via Internet or with local file (you may find firmware file at the Downloads section of the website, www.rigexpert.com). After choose press Next button.
- Page 12 • Wait until RigExpert Flash Tool will finish the update firmware of your TI-5000 • Press Finish button Now your TI-5000 is ready for use! This process is fail-safe: in case of a problem, just start over. User’s manual...
- Page 13 RigExpert TI-5000...
-
Page 14: Annexes
Annex 1 CAT serial port: Specifications • Baudrate: 300-115200 baud • Electrical compatibility: RS-232, CI-V, TTL or inverted-TTL (Yaesu, Icom, Kenwood, Ten-Tec, Elecraft and JRC General features: transceivers) • Transceiver audio interface for operat- ing digital modes, voice recording and PTT/CW outputs: playback •... - Page 15 • Various transceiver models supported Dimensions: 20 x 10 x 4 cm (7.9 × 3.9 × 1.6 in) Operating temperature: 0…40 °C (32…104 °F) Weight: 300 g (10.58 oz) Warranty: 2 years RigExpert TI-5000 is made in Ukraine. RigExpert TI-5000...
-
Page 16: Annex 2: Changing Audio Input And Output Level
You can adjust input and output audio levels by regulators on the front panel. However, it is possible to increase range of input and output audio levels by using 6 switches which are located on bottom side of TI-5000. Main... - Page 17 RigExpert TI-5000...
- Page 18 Copyright © 2018 Rig Expert Ukraine Ltd. “RigExpert” is a registered trademark of Rig Expert Ukraine Ltd. Made in Ukraine Doc. date: 28-Feb-2018...
