Zultys MXmeeting M200 Administration Manual

Web conference/collaboration appliance

Advertisement

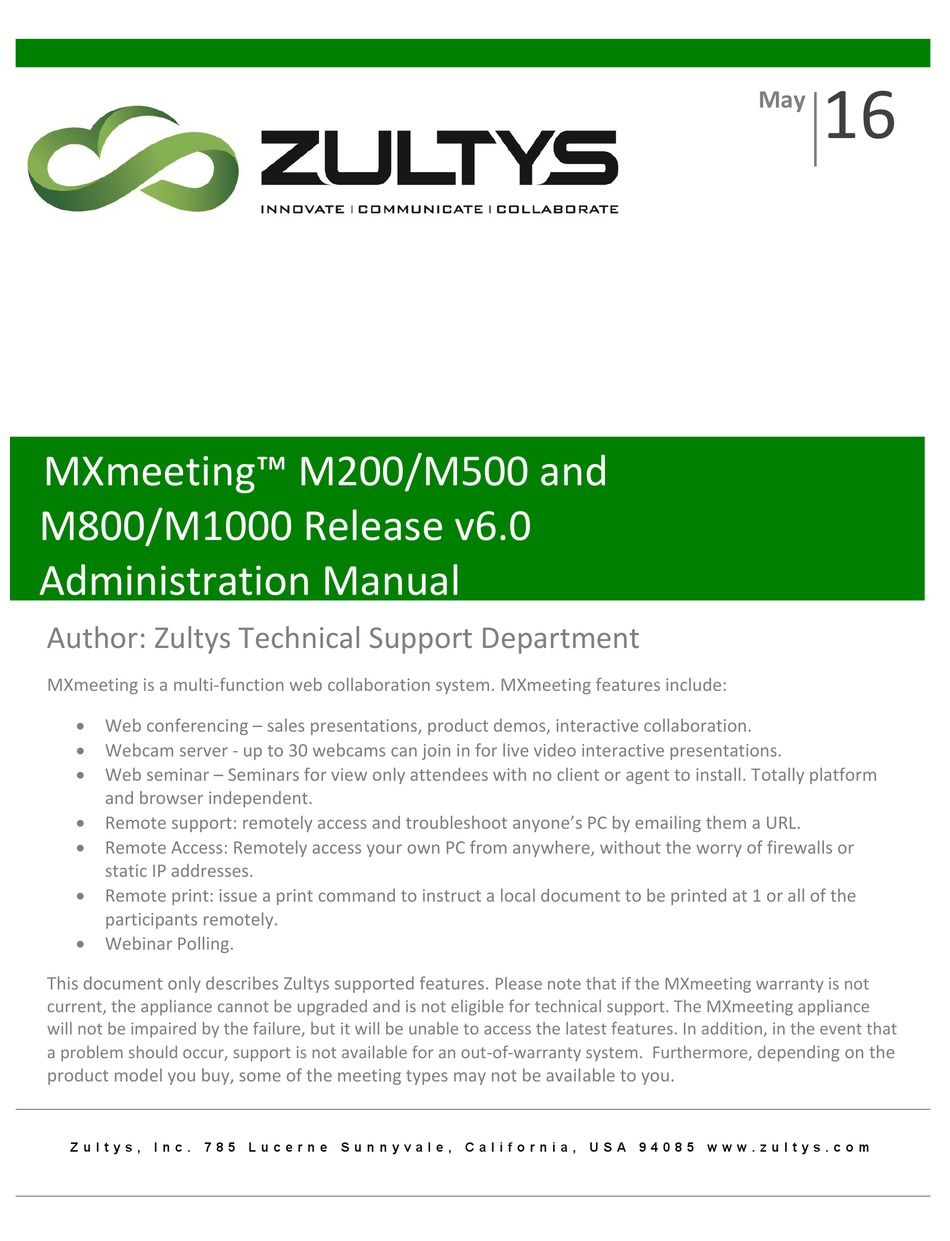

MXmeeting™ M200/M500 and
M800/M1000 Release v6.0
Administration Manual
Author: Zultys Technical Support Department
MXmeeting is a multi-function web collaboration system. MXmeeting features include:
 Web conferencing – sales presentations, product demos, interactive collaboration.
 Webcam server - up to 30 webcams can join in for live video interactive presentations.
 Web seminar – Seminars for view only attendees with no client or agent to install. Totally platform
and browser independent.
 Remote support: remotely access and troubleshoot anyone's PC by emailing them a URL.
 Remote Access: Remotely access your own PC from anywhere, without the worry of firewalls or
static IP addresses.
 Remote print: issue a print command to instruct a local document to be printed at 1 or all of the
participants remotely.
 Webinar Polling.
This document only describes Zultys supported features. Please note that if the MXmeeting warranty is not
current, the appliance cannot be upgraded and is not eligible for technical support. The MXmeeting appliance
will not be impaired by the failure, but it will be unable to access the latest features. In addition, in the event that
a problem should occur, support is not available for an out-of-warranty system. Furthermore, d epending on the
product model you buy, some of the meeting types may not be available to you.
