MA lighting 130417 User Manual

MA SEVEN WAY BOOSTER - the safe and easy way to distribute DMX signals.
The risk of using only one chain is eliminated and the cable-losses are smaller.
MA SEVEN WAY BOOSTER distributes DMX 512 (1990) signals to seven separate outputs.
The direct output (DMX THRU) remains functional also in the event of booster failure (e.g. fail of power
supply).

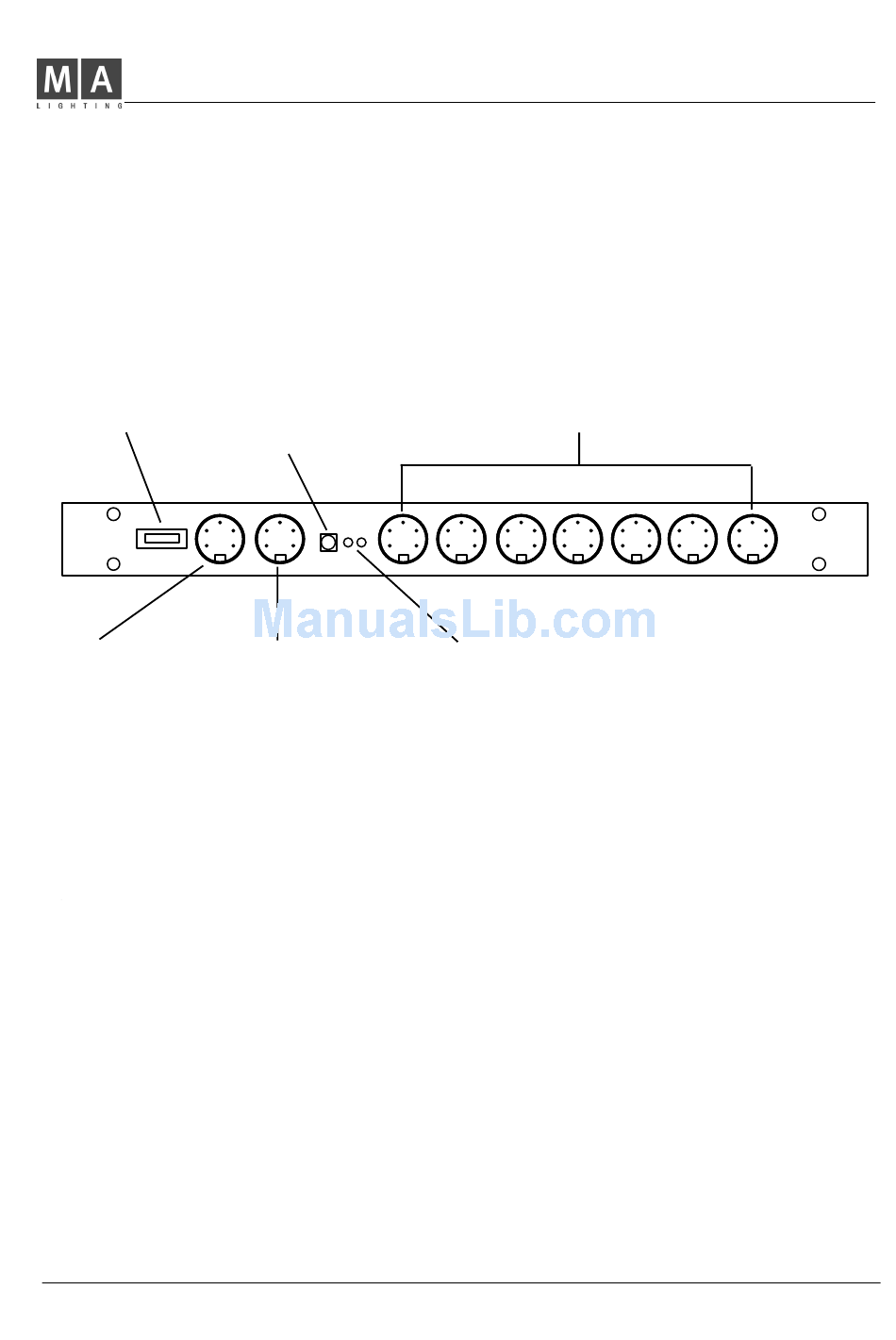

power switch
resistor
DMX input

FEATURES:

DMX IN:
DMX THRU:
OUTPUTS:
LOAD:
SIGNAL IN:
SIGNAL OK:

TECHNICAL DATA:

Mains supply:
Signal input/output
Unit dimensions
Weight
eMail: info@malighting.de . Tel.: + 49 9 31 49 79 40 . User's Manual MA Seven Way Booster
MA Seven Way Booster
rotary switch for
termination
DMX thru
Overvoltage protected DMX input
Directly coupled DMX output, unit independent
Seven each optically isolated amplified outputs
All DMX outputs are overvoltage protected
Termination resistor adjustable with rotation switch, if this unit is the last
unit in the DMX chain (distributor junction)
LED shows the received input signal
LED shows the input of data with correct DMX-format
230 VAC / 50 Hz or 110 VAC / 60 Hz (factory setting)
USITT DMX 512 (1990) via 5POL XLR (male)
Pin layout:
Pin 1 =
Pin 2 =
Pin 3 =
19 inch (483mm) / 1U (44,5mm)
W x H x D (mm): 435 x 42 x 170
9,0 lbs (4,0 Kg)
Made in Germany
7 optically isolated outputs
signal LEDs
ground
data -
data +
