MEK Tubedrive TD-2 Manual

Manual Tubedrive TD-2 Solo Boost – Mosfet Edition

Power requirements

Current draw
Insput impedance
Output impedance
Max. Input level
Max. Output level
Max. Gain Boost
Controls
Toggle Switch
Jacks
Indicator
Switch 3PDT
2 DIP-Switch
Dimension
Weight
Leaving technical changes

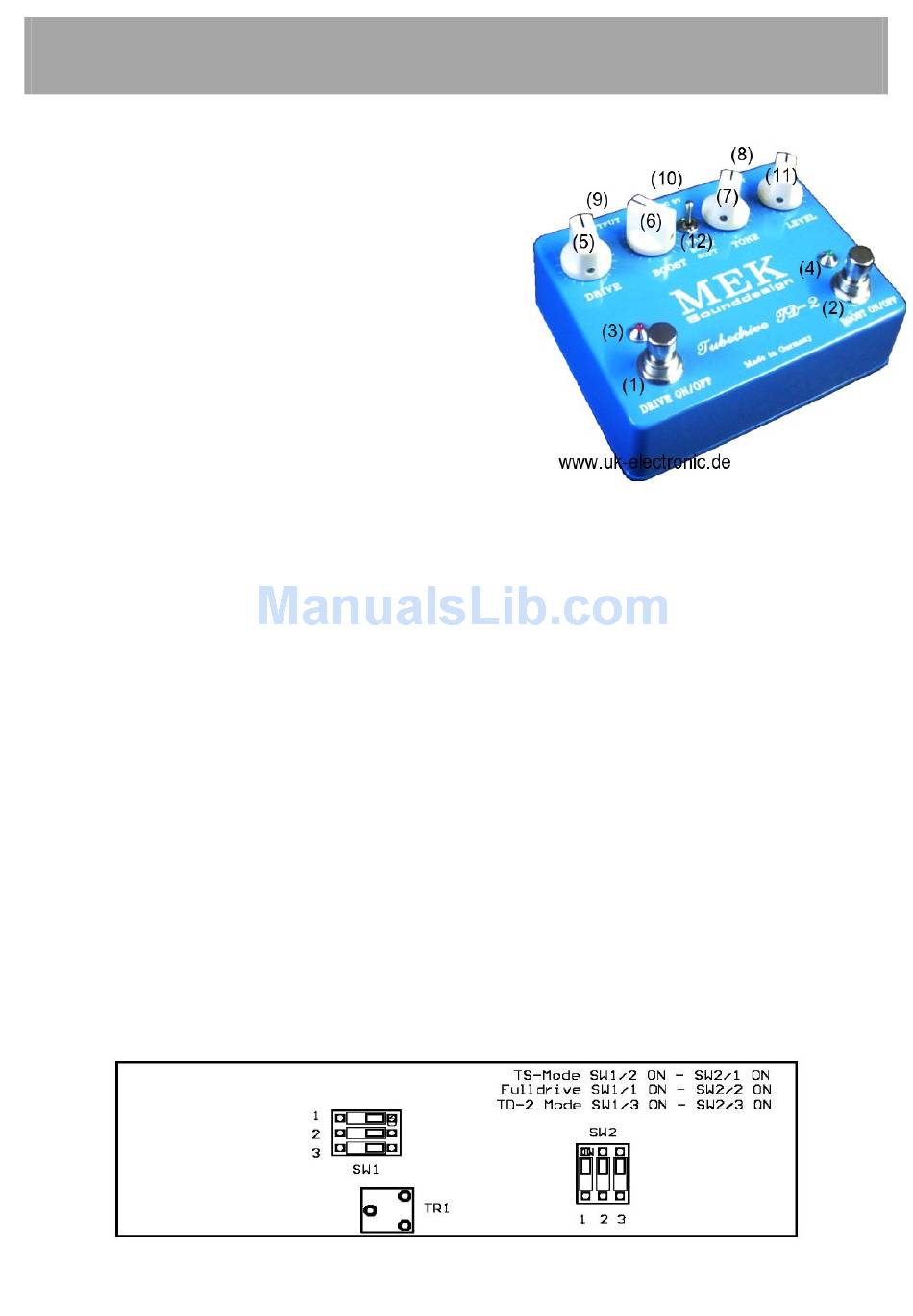

Operation:

•
To the operation a battery must either be inserted into the battery receptacle (please unscrew equipment) to this or be a
stabilized power supply unit attached to the 9 V DC jack (10).
•
When plugging the instrument cable in to the input socket (8) the equipment is switched on.
•
The output jack (9) gets connected to the intensifier or to following stock exchange securities equipments etc..
•
The desired Sound is the corresponding needs adjusted with the controls drive (5), switch' hard, Boost & soft (12), tone
(7) and level (11). With the toggle switch (12) you switch in the position's soft a classic Overdrive in the position's hard
against this one Distortionsound. In the middle position the equipment works without as a Booster for any influence of
the clipping diodes etc. for end for this reason is the volume of sound also according to higher. The four controls works
in all three switch positions, though
•
with the switch Boost on/off (2), you can switch a volumeboost. Drive switched on is also the Boostfunction without
separately utilizable. The Booster works purely linearly with max. gain of 20 dB (10 subject) in this function. The Boost
becomes the Overdrive post-connected in the drive business over the Boost switch. and shown by the green LED (4).
•
Switch drive ON/OFF (1) the effect becomes one or with the switch Boost ON/offstage (2) becomes, turned off and
shown about the LED (3), the distortion degree increased depending on need and shown by the LED (4) with this.
•
The equipment is inside equipped with two DIP switches to the optimal adjustment and for different Sounds.
•
To avoid damages to the equipment, the cable must be pulled from the input socket before changing the battery.
•
In principle, we recommend the use of a stabilized power supply unit.
•
Power supply specification: See imprint on the case underside.
9V battery 6F22/ DC adaptor
9...18V, DC stabilized
7mA / 10mA
>500 KOhm
10 Kohm
-6 dB
Ca. + 6dB
Ca. +20dB
Drive, Boost,Tone, Level
Hard, Boost, Soft,
Input, Output, DC in
LED 3mm red– Drive On/Off
LED 3mm green – Boost ON/OFF
Effect On/ Off – Boost On/ Off
Drive modes
Approx. 120 x 94 x 35 mm
Approx. 340g (without battery)
Adjustings of the DIP switches
