SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO., LTD
V600 User Manual
2017-10-25

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V600 and is the answer not in the manual?

Questions and answers

Summary of Contents for ShenZhen Chainway Information Technology Co., Ltd V600

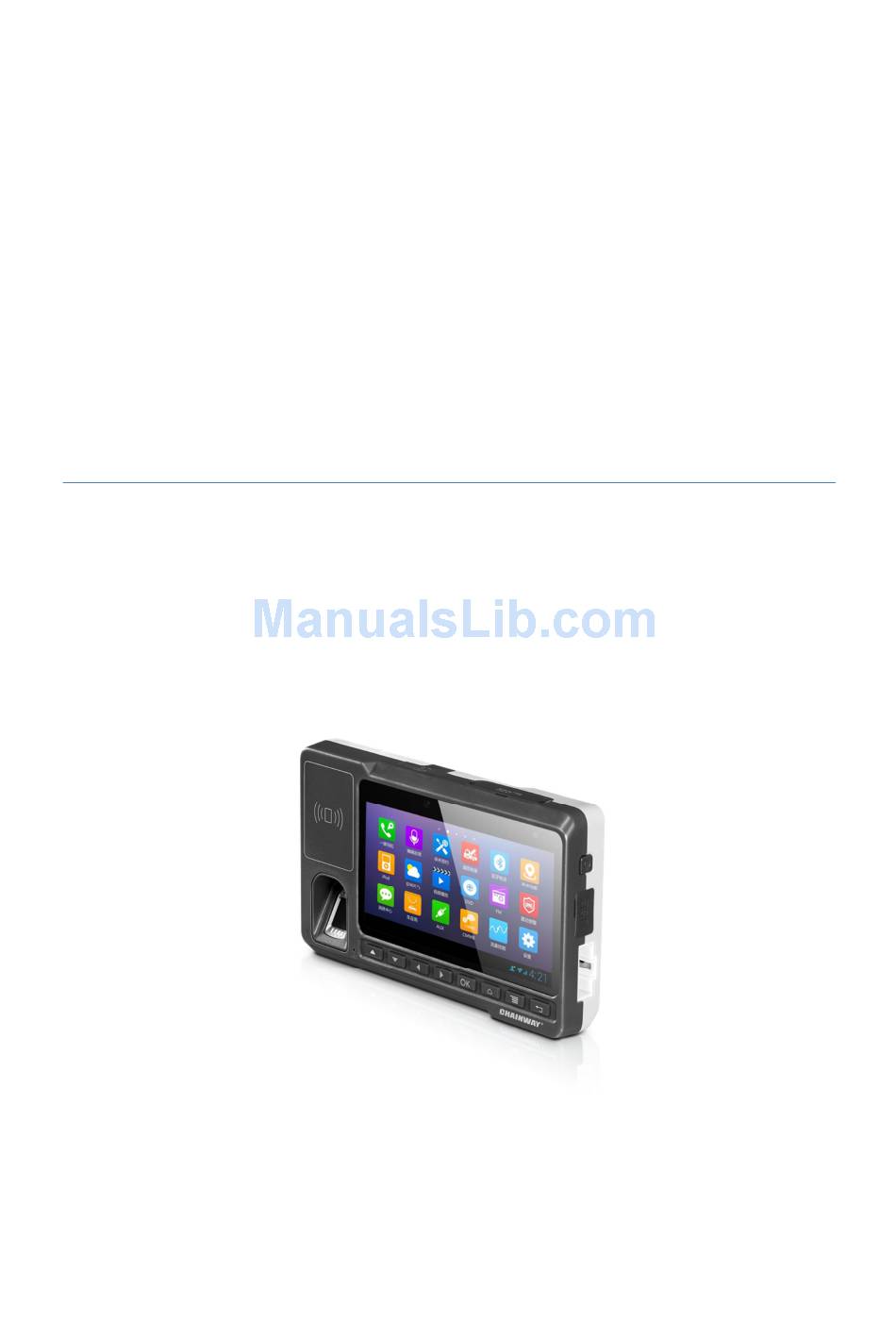

  • Page 1 SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO., LTD V600 User Manual 2017-10-25...
  • Page 2 V600 User Manual...

  • Page 3: Table Of Contents

    V600 User Manual Contents Statement ..................4 Chapter 1 Introduction ............... 6 Chapter 2 Installation ................ 7 2.1 Extrinsic feature ............... 7 2.2 SIM card and Micro SD card installation ........ 10 2.3 Power connection ..............10 2.4 Power Button ................. 11 Chapter 3 Data Acquisition ..............
  • Page 4 V600 User Manual 5.3 Sensor ................... 29 5.4 Keyboard ................30 5.5 Network ................. 31...

  • Page 5: Statement

    V600 User Manual Statement 2013 by ShenZhen Chainway Information Technology Co., Ltd. All rights reserved. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission written from Chainway. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems.
  • Page 6 V600 User Manual...

  • Page 7: Chapter 1 Introduction

    V600 User Manual Chapter 1 Introduction Chainway V600 is a fixed vehicle computer with superior and reliable performance. Featuring 4G LTE network, 2.4G & 5G dual-band Wi-Fi, ultrafast Quadcore processor, GPS & BDS, two-channel external camera,5MP autofocus camera, fingerprint and face recognition, OBD data collection, Bluetooth 4.0 as well as biometrics, supporting...

  • Page 8: Chapter 2 Installation

    V600 User Manual Chapter 2 Installation 2.1 Extrinsic feature V600 Extrinsic feature and interface are showed as below: Front:...
  • Page 9 V600 User Manual Back ： Top ：...
  • Page 10 V600 User Manual Right:...

  • Page 11: Sim Card And Micro Sd Card Installation

    SIM card slot needs to be opened by niddle. 2.3 Power connection Refer to right picture in section 2.1, connect one end to V600 device, the other end to vehicle to supply power. Attention: Under development stage, the power cable can be connected to the DC adapter to supply power, please pay attention to VCC and GND connection difference via the sign on the cable.

  • Page 12: Power Button

    V600 User Manual 2.4 Power Button Refer to right picture 2.1, long press the power button for 3s to power on and off the device. Short press the power button to get the device into and out of sleep mode.

  • Page 13: Chapter 3 Data Acquisition

    V600 User Manual Chapter 3 Data Acquisition V600 is able to gain its high data acquisition ability through RFID, fingerprint and camera ： • Data acquisition, identification and validation for passengers and drivers can be collected with fingerprint and IC card.
  • Page 14 V600 User Manual 2. Press “14443A”，and press “scan” to start scanning. 3. The function supports M1 and ULTRA LIGHT read and write.

  • Page 15: 14443B

    V600 User Manual 3.1.2 14443B In Appcenter to open “14443B” function and UID infor can be scanned.

  • Page 16: Fingerprint

    V600 User Manual 3.2 Fingerprint 1. Open the Fingerprint Demo in Appcenter. 2. Put the finger to the fingerprint module and set the ID/name of the template under “ACQUISITION”. 3. Put the finger to the fingerprint module properly and identify by ID/Name/Score under “IDENTIFICATION”.

  • Page 17: Camera

    V600 User Manual 3.3 Camera 3.3.1 Front Camera Click icon “Camera” in the home page and test the front camera function:...

  • Page 18: External Camera (Optional)

    V600 User Manual 3.3.2 External Camera (optional) Connect the external camera to the extension cable to get external camera running, refer to picture below ：...
  • Page 19 V600 User Manual Demo and test: 1. Open OTG function in App center first.
  • Page 20 V600 User Manual 2. Enter “Mainactivity” to and test the external camera function:...

  • Page 21: Obd

    V600 User Manual 3.4 OBD OBD with below functions: Accurately record the location, speed and fuel consumption, • and trigger real time alarm. It helps analyze driving behaviors and give pertinent • suggestions, saving traffic overheads. Professional vehicle fault diagnosis is realized to ensure •...

  • Page 22: Chapter 4 Network Communication

    V600 User Manual Chapter 4 Network Communication Whether indoors or outdoors, V600 provides enterprises with anywhere, anytime real-time connectivity by Bluetooth, fast 4G LTE network and 2.4G & 5G Wi-Fi. 4.1 Phone 4.1.1 Phone Call 1. Click this icon. 2. Click the number button to input the numbers.

  • Page 23: Contacts

    V600 User Manual 4.1.2 Contacts 1. Click “Contacts” to open the contacts list. 2. Click icon to add the new contact. 3. Click icon to import/export or delete the contact list.

  • Page 24: Messaging

    V600 User Manual 4.1.3 Messaging 1. Click icon to open the message list. 2. Click icon to input the content. 3. Click icon to send the message. 4. Click icon to add photos, videos.

  • Page 25: Gps

    V600 User Manual 4.2 GPS 1. Open the GPS demo in App center and turn on GPS module. 2. Set the GPS parameters and get the GPS data information.
  • Page 26 V600 User Manual...

  • Page 27: Bluetooth

    V600 User Manual 4.3 Bluetooth 1. Open the Bluetooth demo in App center and turn on the Bluetooth. 2. Input the content or select the file, then scan the nearby Bluetooth printer and pair them. 3. Select the printer and click “Print” to print.

  • Page 28: Chapter 5

    V600 User Manual Chapter 5 5.1 PING 1. Open the Ping in App center. 2. Set the Ping parameters and select the internal/external addresses.

  • Page 29: Volume Settings

    V600 User Manual 5.2 Volume Settings 1. Open the Volume Setting demo in Appcenter. 2. Set the volumes based on the requirements.

  • Page 30: Sensor

    V600 User Manual 5.3 Sensor 1. Open the Sensor demo in App center. 2. Test the sensor based on the requirements.

  • Page 31: Keyboard

    V600 User Manual 5.4 Keyboard 1. Open the Keyboard demo in Appcenter. 2. Set and test the key values of the device.

  • Page 32: Network

    V600 User Manual 5.5 Network 1. Open the Network demo in Appcenter. 2. Test the WIFI/Mobile signal based on the requirements.
