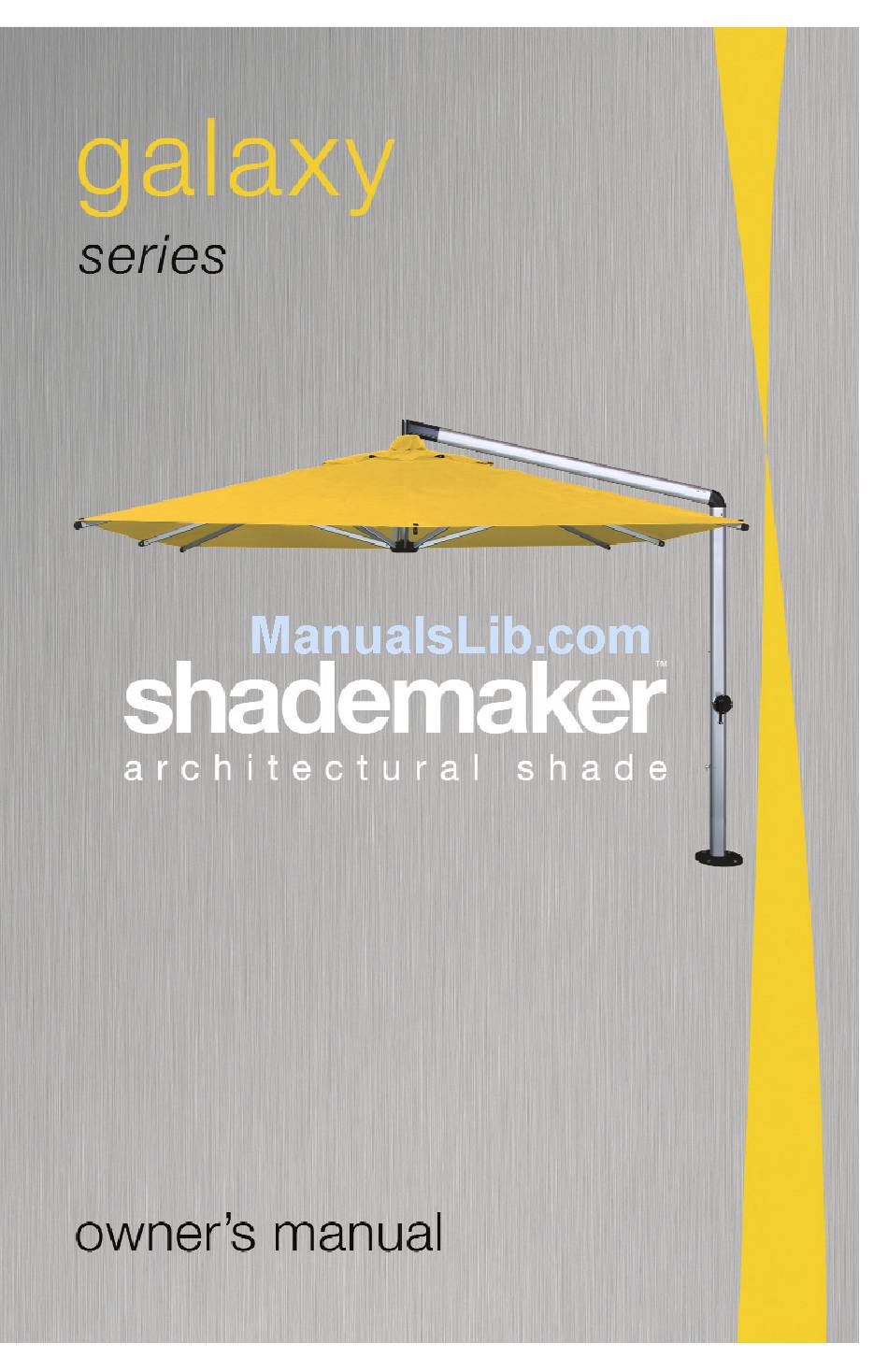

Shademaker galaxy series Owner's Manual
  1. Manuals
  2. Brands
  3. Shademaker Manuals
  4. Indoor Furnishing
  5. galaxy series
  6. Owner's manual

Shademaker galaxy series Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the galaxy series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Shademaker galaxy series

  • Page 2 Those filing warranty claims will be responsible for all shipping, handling and freight charges on all claims to Shademaker in Baldwin Park, CA. All warranty claims must be submitted with the original proof of purchase, date of purchase, name of dealer and the description of the damage.
  • Page 3 I M P O R T A N T : Please read this entire manual before installing or operating your Galaxy umbrella. G A L A X Y W I N D R E S I S T A N C E G U I D E L I N E S : Moderate to Strong Winds When installed properly, the Galaxy is engineered to handle moderate to strong wind conditions in the open canopy position.
  • Page 4 Square Octagon Galaxy 5.0 16’5” Octagon Applications: Our largest sidepost, the Galaxy series combines strength with classic design and functionality. Features & Functionality: Rotates 360° around the mast, unique, fool-proof rotational locking mechanism, state-of-the-art external winding mechanism makes it easy to raise and lower, vented canopy. Canopy fabric is fade, rot and mold resistant;...
  • Page 5 A B O U T T H E G A L A X Y This high quality shade solution combines functionality and design in an elegant way and will provide you with years of enjoyment and satisfaction. 1. MARINE GRADE ANODIZED ALUMINUM: Proprietary extrusions of high tensile alloy ensure long life in exposed conditions.

  • Page 6: Installation Fittings

    A S S E M B L Y A N D I N S T A L L A T I O N The Galaxy is an extra large and extra strong sidepost structure. To ensure longevity, it needs to be assembled and installed professionally. Because the Galaxy is designed to handle strong winds, we recommend either anchoring the Galaxy to an existing substantial concrete slab or installing it in a newly poured concrete pier using our in- ground fitting.
  • Page 7 STEP 1: INSTALLING THE GALAXY INSTALLATION FITTING VERY IMPORTANT: To achieve the exact desired position of the Galaxy canopy (when in the open position or a perfectly symmetrical multiple Galaxy installation, it is imperative that the installation fitting be aligned correctly. Please follow the detailed instructions below. CONCRETE MOUNT KIT: The Concrete Mount Kit has twelve (12) holes, six (6) are countersunk for bolting to the concrete patio, and the other four (4) are tapped to accept the stem bolts.
  • Page 8 CONCRETE MOUNT KIT DIAGRAM Upper Internal Stem Locator Screw Washer Acetal Ring Stem Bolt Lower Internal Stem Excalibur Bolt (not included)
  • Page 9 IN-GROUND FITTING: The Galaxy in-ground fitting has six (6) tapped holes to accept six (6) stem bolts. 1. Concrete fitting into newly poured concrete or into the ground using the diagram and instructions found on page 9. Make sure two TAPPED HOLES are lined up in the direction of the desired primary mast and boom position.
  • Page 10 IN-GROUND FITTING DIAGRAMS Upper Internal Stem Locator Screw Washer Lower Internal Stem Acetal Ring Stem Bolt In-Ground Fitting 700mm M12 Machine Screws x 6 Accepts Stem Bolt 400mm Ground Level 300mm Recommended Steel Bar 800mm Length = 1.0m Quantity = 6 Concrete 1.2m Approx.
  • Page 11 STEP 2: INSTALLING THE GALAXY 1. Unpack Galaxy and lay out on ground as in drawing on page 11, ensuring crank box is face up. 2. Ensure small screw in top of boom will be uppermost when the Galaxy is standing. CAUTION: Never undo this screw.
  • Page 13 It is very important that the eight spacer buttons are always in place. If at any point you find you are missing spacer buttons, contact Shademaker immediately to request more. Continue to manually free the arms when opening until all eight spacer buttons are again installed.

  • Page 14: Step 4: Operation

    STEP 4: OPERATION To open the Galaxy canopy: 1. To open canopy after the eight (8) spacer buttons are inserted, turn crank handle in clockwise direction. CAUTION: Ensure arms begin opening as you start to wind. If you experience any level of resistance, make sure all eight arms are free and responding to crank handle.
  • Page 15 T O P R O P E R L Y F O L D T H E G A L A X Y C A N O P Y The 100% solution dyed acrylic canopy will last longer if you fold it as it was packed and shipped.
  • Page 16 O T H E R S H A D E M A K E R S T Y L E S A V A I L A B L E Side Posts Orion Sirius Center Posts Top Mount Astral Corona Nova 13401 Brooks Drive Baldwin Park, CA 91706 p 626.338.8810 f 626.338.8816 info@shademakerusa.com shademakerusa.com ©2011 Shademaker. All rights reserved. SMOM-GALAXY-411...
