StrideOn Knee Walker User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
This User Guide and all the safety instructions must be read and adhered to before use of the StrideOn. For
questions, please contact the place of purchase/rental or call StrideOn Australia Pty Ltd at (07) 3423 0487.

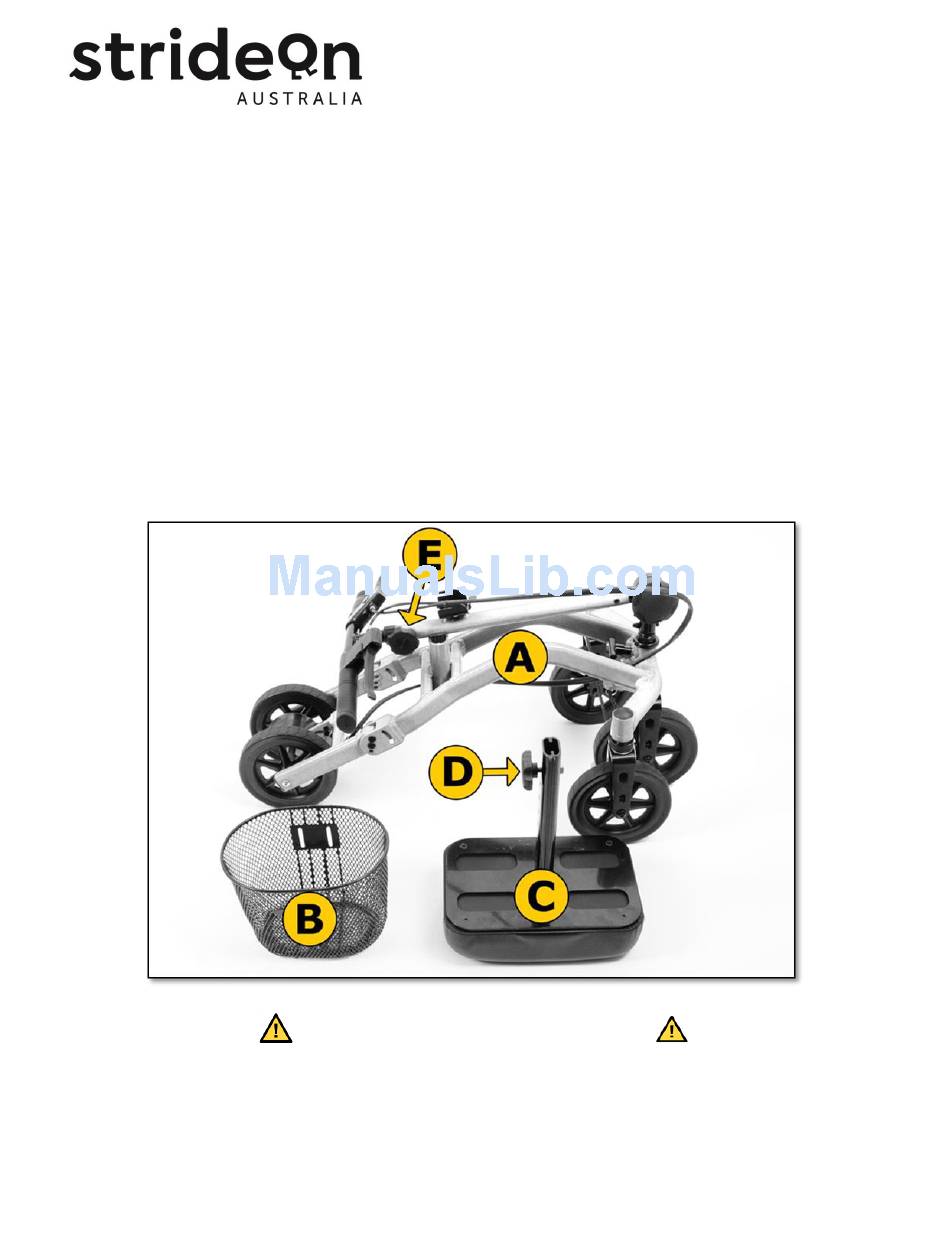

Verify the following parts are included with the StrideOn. If any of the items are missing or damaged do not use the
StrideOn and contact the place of purchase/hire immediately.
A) StrideOn Frame
B) Basket
C) Knee Pad
D) Knee Pad Height adjustment bolt and thumb screw
E) Steering Column Height Adjustment Bolt and Thumb Screw
Never use the StrideOn on stairs, moving walkways or escalators
Always engage the parking brake before mounting or dismounting the StrideOn
Be cautious when approaching thresholds or uneven terrain
User Guide
Always abide by this User Guide
Maximum User Weight: 180 Kg

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Knee Walker and is the answer not in the manual?

Questions and answers

Summary of Contents for StrideOn Knee Walker

  • Page 1 StrideOn Australia Pty Ltd at (07) 3423 0487. Verify the following parts are included with the StrideOn. If any of the items are missing or damaged do not use the StrideOn and contact the place of purchase/hire immediately.
  • Page 2 (Figure 1D). To unfold the back section of the Knee Walker. Pull the black Pull Pin out (Figure 2A) and pull the back of your Knee Walker towards you (Figure 2B). When it is in position you will hear a click and the black Pull Pin will lock the back section in position ready for use (Figure 2C).
  • Page 3 Knee Pad Post and the Knee Rest Plate Tube. Once fully secure, the Knee Pad will not move up and down. If there is movement, the Knee Pad has not been secured properly. WARNING: Do not sit or rest on your Knee Pad. Page 3 of 8 StrideOn - User Manual ©2017 StrideOn Ltd...
  • Page 4 Before use, always make sure the Parking Brakes are engaged when mounting and dismounting the StrideOn. To use the brakes, simply pull up on the Brake Handles as you would a bicycle (See Figure 6B). To operate the Parking Brakes, push down on the Brake Handles (See Figure 6A). This will lock the brakes in position and prevent the StrideOn from rolling.
  • Page 5 Please note StrideOn Australia Pty Ltd or any employee of StrideOn Australia Pty Ltd are not qualified to advise you on whether you are suitable to use the StrideOn or if it is fit for your purpose or condition. You should consult with your Doctor/Medical practitioner if you have any concerns whatsoever, before using the StrideOn.

  • Page 6: Safety Instructions

    Order replacement parts through your authorised dealer. • Using un-authorised parts will void the service warranty. For questions about the proper use of your StrideOn Knee Walker, please contact an authorised dealer. Or contact us at: StrideOn Australia Pty Ltd.

  • Page 7: Limited Warranty

    This warranty is extended to the original purchaser or user of StrideOn Australia products Lifetime warranty on the Frame StrideOn Australia Pty Ltd guarantees the StrideOn to be free of defects in workmanship and materials for a period of 1 year from the date of purchase.
  • Page 8 Knee Walker For questions about the proper use of your StrideOn Knee Walker, please contact an authorised dealer. Or contact us at: StrideOn Australia Pty Ltd. 10/3 Fermont Road Underwood, QLD 4119 www.strideon.com.au ©2017 StrideOn Australia Pty Ltd Manufactured in China...
