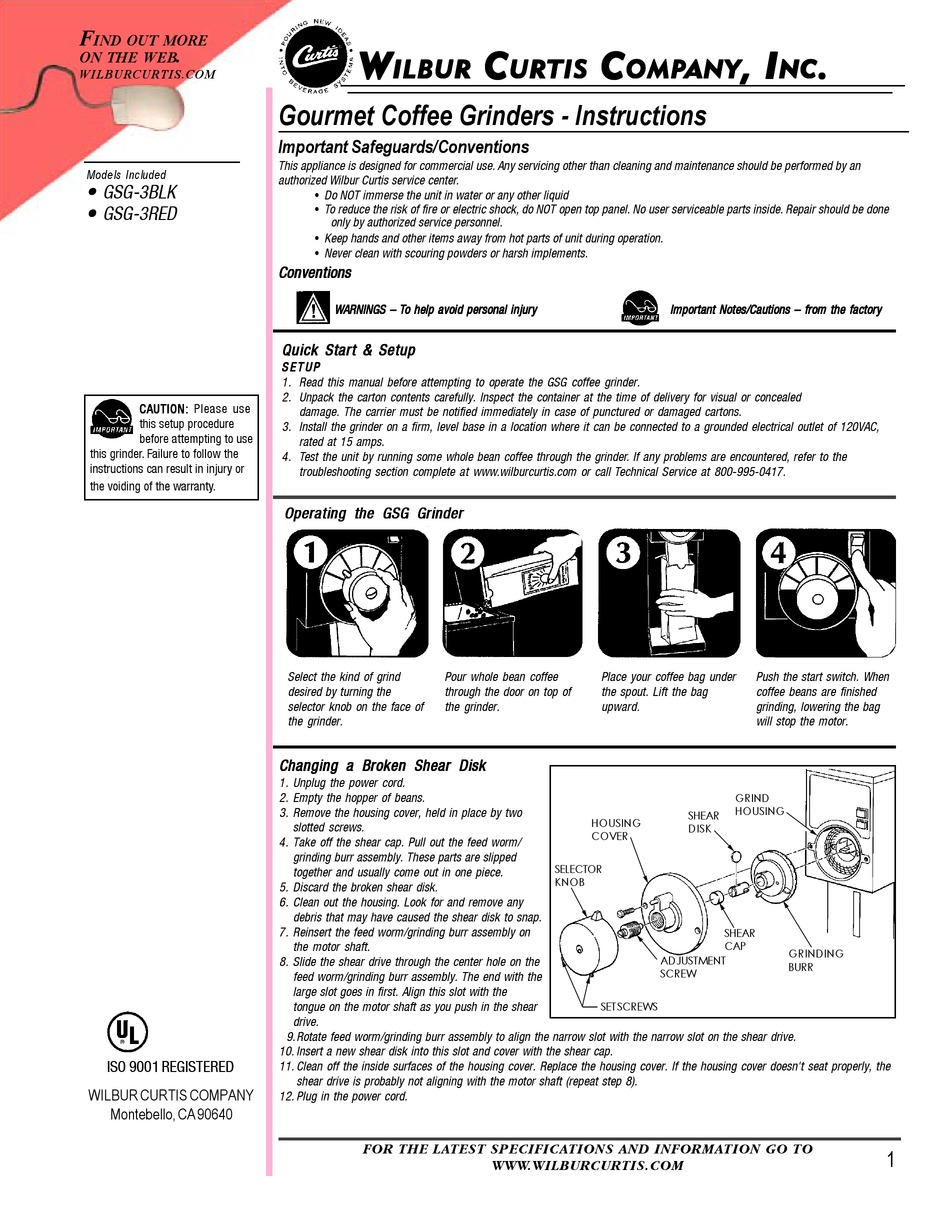

Wilbur Curtis Company GSG-3RED Instructions For Use

F
IND OUT MORE
.
ON THE WEB
WILBURCURTIS.COM
Models Included
• • • • • GSG-3BLK
• • • • • GSG-3RED
CAUTION: CAUTION:
CAUTION: Please use CAUTION: CAUTION:
this setup procedure
before attempting to use
this grinder. Failure to follow the
instructions can result in injury or
the voiding of the warranty.
ISO 9001 REGISTERED
WILBUR CURTIS COMPANY
Montebello, CA 90640
W W W W W
ILBUR ILBUR
ILBUR ILBUR ILBUR
Gourmet Coffee Grinders - Instructions
Important Safeguards/Conventions
This appliance is designed for commercial use. Any servicing other than cleaning and maintenance should be performed by an
authorized Wilbur Curtis service center.
• Do NOT immerse the unit in water or any other liquid
• To reduce the risk of fire or electric shock, do NOT open top panel. No user serviceable parts inside. Repair should be done
only by authorized service personnel.
• Keep hands and other items away from hot parts of unit during operation.
• Never clean with scouring powders or harsh implements.
Conventions Conventions Conventions
Conventions Conventions
W W W W W ARNINGS – ARNINGS – ARNINGS – T T T T T o help a ARNINGS – o help avoid personal injur o help a o help a void personal injur void personal injur void personal injury y y y y
ARNINGS – o help a void personal injur
Quick Start & Setup Quick Start & Setup
Quick Start & Setup Quick Start & Setup Quick Start & Setup
S E T U P S E T U P S E T U P S E T U P S E T U P
1. Read this manual before attempting to operate the GSG coffee grinder.
2. Unpack the carton contents carefully. Inspect the container at the time of delivery for visual or concealed
damage. The carrier must be notified immediately in case of punctured or damaged cartons.
3. Install the grinder on a firm, level base in a location where it can be connected to a grounded electrical outlet of 120VAC,
rated at 15 amps.
4. Test the unit by running some whole bean coffee through the grinder. If any problems are encountered, refer to the
troubleshooting section complete at www.wilburcurtis.com or call Technical Service at 800-995-0417.
Operating the GSG Grinder Operating the GSG Grinder
Operating the GSG Grinder Operating the GSG Grinder Operating the GSG Grinder
Select the kind of grind Pour whole bean coffee
desired by turning the through the door on top of
selector knob on the face of the grinder.
the grinder.
Changing a Broken Shear Disk Changing a Broken Shear Disk
Changing a Broken Shear Disk Changing a Broken Shear Disk Changing a Broken Shear Disk
1. Unplug the power cord.
2. Empty the hopper of beans.
3. Remove the housing cover, held in place by two
slotted screws.
4. Take off the shear cap. Pull out the feed worm/
grinding burr assembly. These parts are slipped
together and usually come out in one piece.
5. Discard the broken shear disk.
6. Clean out the housing. Look for and remove any
debris that may have caused the shear disk to snap.
7. Reinsert the feed worm/grinding burr assembly on
the motor shaft.
8. Slide the shear drive through the center hole on the
feed worm/grinding burr assembly. The end with the
large slot goes in first. Align this slot with the
tongue on the motor shaft as you push in the shear
drive.
9. Rotate feed worm/grinding burr assembly to align the narrow slot with the narrow slot on the shear drive.
10. Insert a new shear disk into this slot and cover with the shear cap.
11. Clean off the inside surfaces of the housing cover. Replace the housing cover. If the housing cover doesn't seat properly, the
shear drive is probably not aligning with the motor shaft (repeat step 8).
12. Plug in the power cord.
FOR THE LATEST SPECIFICATIONS AND INFORMATION GO TO
C C C C C C C C C C
URTIS URTIS OMP OMP
URTIS URTIS URTIS OMP OMPANY OMP
Place your coffee bag under
the spout. Lift the bag
upward.
HOUSING
COVER
SELECTOR
KNOB
ADJUSTMENT
SCREW
SET SCREWS
WWW.WILBURCURTIS.COM
, I , I , I , I , I . . . . .
ANY ANY NC NC
ANY ANY NC NC NC
Important Notes/Cautions – from the factor Important Notes/Cautions – from the factory y y y y Important Notes/Cautions – from the factor
Important Notes/Cautions – from the factor Important Notes/Cautions – from the factor
Push the start switch. When
coffee beans are finished
grinding, lowering the bag
will stop the motor.
GRIND
HOUSING
SHEAR
DISK
SHEAR
CAP
GRINDING
BURR
1
