Related Manuals for Parblo coast 16
Summary of Contents for Parblo coast 16

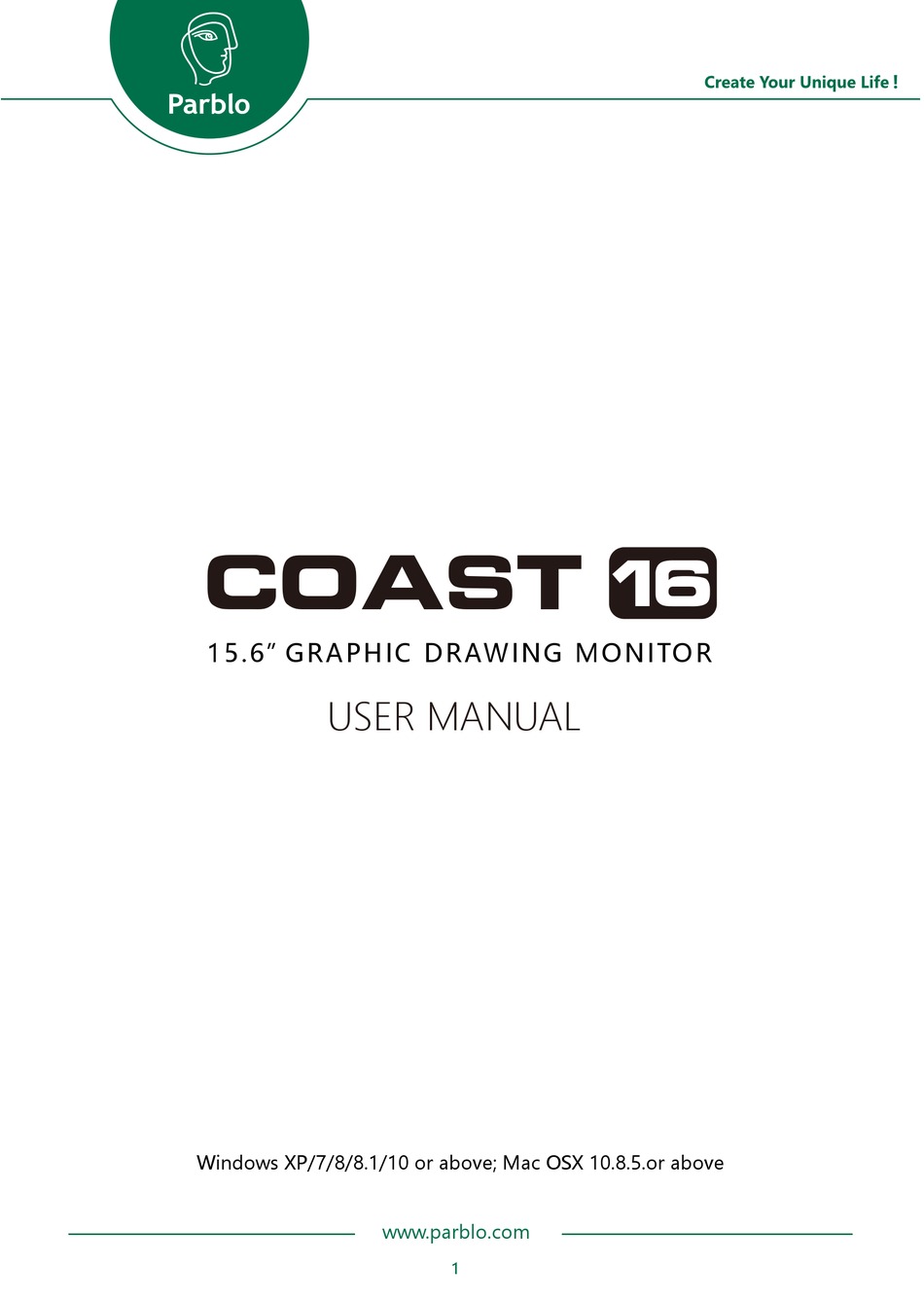

- Page 1 15 . 6” GR APHI C D RAWI NG MO NITOR USER MANUAL Windows XP/7/8/8.1/10 or above; Mac OSX 10.8.5.or above www.parblo.com...
-
Page 2: Table Of Contents
Contents 1. Product Overview 2. Driver Installation a. Windows b. Mac 3. Driver Configuration a. Windows b. Mac 4. Specification 5. FAQ www.parblo.com... -
Page 3: Product Overview
Product Overview Space Shift Ctrl Canvas/Brush +/- Space Shift Ctrl Fixed Stand 30° Power Switch/Status Led Menu USB Type-C Mini HDMI www.parblo.com... - Page 4 Pen Tip: It can be as the same function as left key of the mouse. When the tip gets too short or develops a sharp edge, you can replace it with one of the replacement tips inside the pen box. (Please replace the pen tips according to the FAQ9.) www.parblo.com...
-
Page 5: Driver Installation
STEP4: Insert the disk into your CD drive, open it and install the driver by following the computer instruction. (Note: or you candownload the up-to-date driver from http://parb- lo.com/support by finding out “PARBLO COAST16”.) Kindly Remind If your computer has installed the driver forParblo Coast16 and you will see the following message: www.parblo.com... - Page 6 STEP5: Restart your computer after finishing the installa- tion. STEP6: Once it is installed successfully, the digital pen should be in a control of the cursor. Pls open“tablet set- ting” in the “start tray” of your computer/laptop and test the pressure. www.parblo.com...
-
Page 7: Mac
STEP2: Insert the disk into your CD driver,open it and install the driver by following the screen instruction. (Note: Or you candownload the up-to-date driver from http://parblo.com/- support by finding out “PARBLO COAST16”.) STEP3: Log out and restart your computer/laptop by follow- ing the computer instruction. -
Page 8: Driver Configuration
Driver Configuration You may configure the Parblo Coast16 by modifying the functions of the pen tip and the shortcut keys, please follow the WIN and MAC installation steps to configure your Parblo. Windows 1. ap [Start] >and then find [Tablet Setting] (you can directly search for it in the Search Bar), double-tap it and open it. -
Page 9: Mac
“Monitor 1”; if you want the digital pen to con- trol Parblo only, please choose “Monitor2”. ⊙ Calibrate:Please click the “Calibrate” and you will see 4 red-cross on the Coast16‘s screen, please use the digital... - Page 10 If you want the pen to control your computer only, please choose the “Monitor 1”; if you want the digital pen to con- trol Parblo only, please choose “Monitor2”. ⊙ Calibrate: Please click the “Calibrate” and you will see 4 red-cross on the Coast16’s screen, please use the digital...
-
Page 11: Specification
440 x 280 x 14.5mm/ 17.3 x 11 x 0.6 inches Weight 1.2kg/35oz Fixed Stand 30° Express Key 1 x dial ring &8 x customizable keys Windows XP/7/8/8.1/10 (32/64bit) or above; Mac OSX 10.8.5or above OperationTemp/Humidity 0-65℃/20-80% Storage Temp/Humidity -10-80℃/ 10-90% Certification CE, FCC, RoHS www.parblo.com... -
Page 12: Faq
Make sure the power switch of Coast16 is on. Check the USB connection. Make sure the USB interface is not loose and also try another USB port of your computer Try another USB to type-C cable (a normal Android type-C charger cable is workable). www.parblo.com... - Page 13 5. What should I do if the pen doesn’t work? Check if there is any other tablet driver installed in your computer; if you find any, uninstall it and also Parblo driver and reinstall the driver. Find and open “tablet setting” in the start menu; if you can’t open it or it says “Not find tablet”, please uninstall...
- Page 14 7. What if there is no pen pressure in the drawing software? Check if there is any other tablet driver installed in your computer; if you find any, uninstall it and also Parblo driver and reinstall the driver. Open the driver and test the pressure in the test area; if it works, the issue is caused by the setting of the drawing software;...
- Page 15 11. Tochange the left-handed and right-handed mode pls see FAQ sheet Q9 12. If this FAQ cannot meet your needs, please feel free to email us via: cs@parblo.com withthe following information: Your order number. The name and version of your computer operation system.
