Jintaobao JTB-3005-03 User Manual

Thermostat Panel
Thermostat Panel
User Manual

Description

JTB-3005-03 is a Z-Wave enabled room thermostat
support control cool/heat/fan climate in Z-Wave
system. The desired temperature in the room can be
set locally using the button on the front of the unit. It
works in the same way as a normal room thermostat
with hard wired to the heating source; meanwhile
control is achieved using Z-Wave wireless signals
also. This enables you to control heating times and
schedule zone heating.
This product can be operated in any Z-Wave network
with other Z-Wave certified devices from other
manufacturers. All non-battery operated nodes within
the network will act as repeaters regardless of vendor
to increase reliability of the network.

Feature

版本号：1.02
English/Chinese LCD display with backlight
Room/Keeping temperature display
Fan speed High/Medium/Low/Auto
Relay control output
Auto resume after power up
Thermostat Cool/Hot/Fan mode
●
2-wire/3-wire valve control

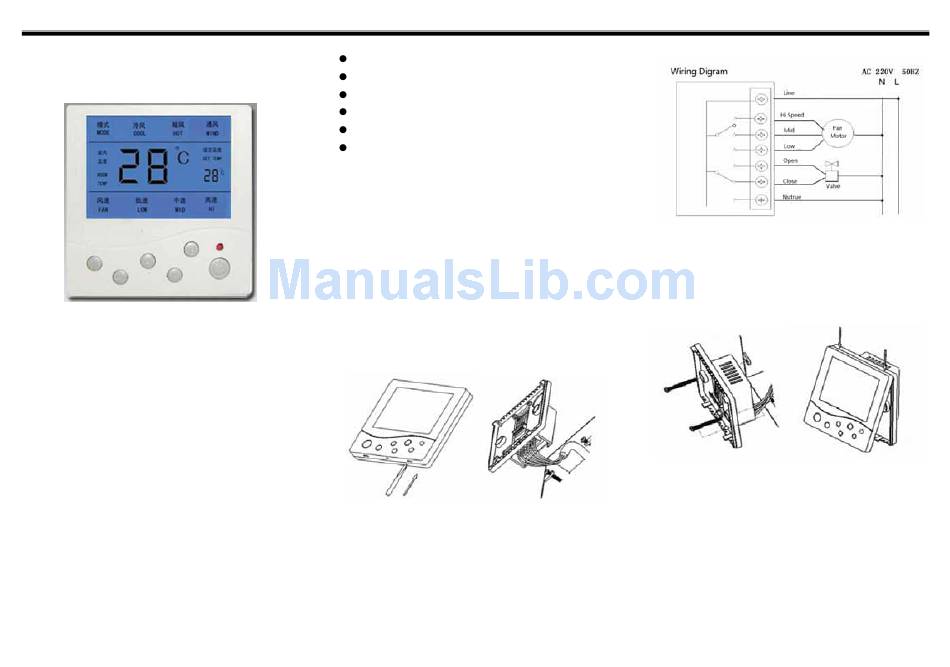

Installation

1. Open back cover: with a 3.5mm wide screwdriver
along the slope of the extension to the slot in the 4mm,
a little hard to pry down to open the cover as follow
figure.
2. Connect load to the terminal on power unit as following
diagram. For 2 wire electric valve, connect to terminal
"open" and "nature"
3. Place power unit inside wall switch box and install
panel on it with the screw ship out together as
following figure
`
4. Connect power unit cable to panel socket on the
middle of panel back side. Recommend Add
thermostat panel into Z-Wave system before next stop.
5. Put the panel on the cover in around 30 degrees angle,
and put down panel to stuck front with back cover.
CAUTION
1. SHUT DOWN POWER BEFORE INSTALLTION.
2. TIGHTEN TERMINAL and CONNECT FOLLOWING
THE WIRING DIAGRAM
3. INPUT POWER AND LOAD SHOULD ACCORDING
TO SPECIFICATION
更新日期：2017-10-16
JTB-3005-03
