MSR -11 P Installation And Operating Manual page 3

Legend 'A'
mm 1244.6
inches 49
Weight Kilograms Pounds
Shipping 41
Operating 147
The relationship between the flowing water level and the overflow weir is set by
adjusting the outlet weir. The weir should be set so that when the water is flowing
through the system, the water level upstream of the oil overflow weir is about 1/4"
to 1/8" below the top of that weir. The weir is preset at the factory, but the
elevation of the water level should be checked during the initial installation. It is
not expected that it will be necessary to adjust the weir, unless operations
change substantially.

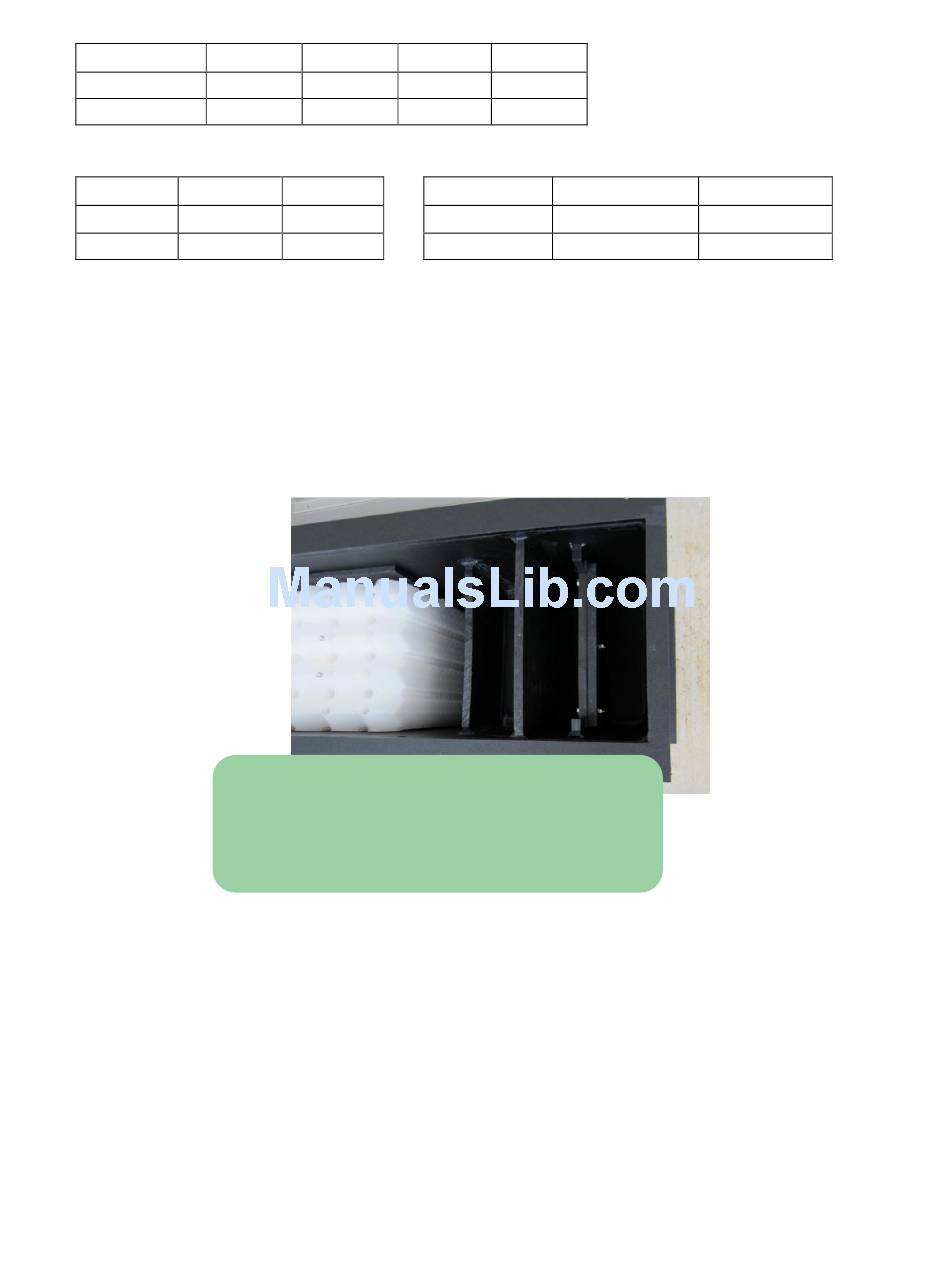

adjustable water overflow weir
Adjust overflow weir by loosening bolts, sliding to desired elevation and re-
tightening bolts. Be sure weir is level.
INITIAL INSTALLATION REQUIREMENTS AND SETUP
The separator system must be provided with support to keep it level and elevated
so that the water flow and oil flow out of the separator by gravity.
The separator must be installed as level as possible. The system should be level
within at least 1/8" end to end and side to side.
'B' 'C'
1219.2 425.5
48 16.75
Capacities
91
324 US gallons
Oil separation weir,
Oil collection chamber and
'D'
390.5
15.375
Water volume
Liters 102
27
Oil tank
4
1.25
