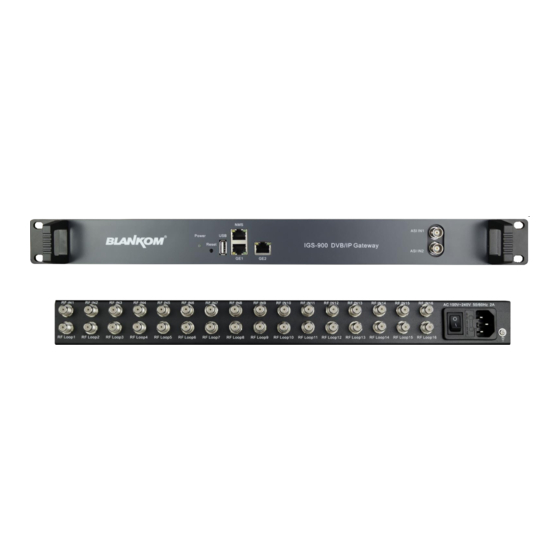

IGS-900 Tuner to IP Gateway
Datasheet and operation Manual
V 1.2
1 / 28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IGS-900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Blankom IGS-900

  • Page 1 IGS-900 Tuner to IP Gateway Datasheet and operation Manual V 1.2 1 / 28...

  • Page 2: Table Of Contents

    IGS-900 16 DVB Tuner to IP-Out Table of Content TABLE OF CONTENT ........................ 2 INTRODUCTION: ........................3 FEATURES ..........................3 SPECIFICATIONS ........................4 QUİCK-START INSTALLATİON:....................5 NETWORK SETUP: ........................9 CHANGING USER-ACCOUNT: ....................10 TUNER-SETUP: ........................11 ASI-INPUT(S): ........................14 SPTS OUTPUT SETTINGS: ......................

  • Page 3: Introduction

    GbE output. The BLANKOM IGS-900 is also characterized with an high integration level, high performance and very cost effective. This streamer is very adaptable to new generations of IPTV headend systems i.e. in hospitality environments serving FreeToAir (FTA) content and BISS encrypted Services.

  • Page 4: Specifications

    IGS-900 16 DVB Tuner to IP-Out Specifications Optional 1: 16 DVB-S/S2 tuners input +2 ASI input---SPTS output Input Optional 2: 14 DVB-S/S2 tuners input +2 ASI input --- MPTS output Optional 3: 16 DVB-S/S2 tuners input --- MPTS output Input Frequency 950-2150MHz QPSK 2~45Mbauds;...

  • Page 5: Quick-Start Installation

    IGS-900 16 DVB Tuner to IP-Out Quick-Start Installation: The user can control and set the configuration of the device with any computer by connecting to the web server-Interface (WebIF) by the 100BaseT NMS Port. The user should ensure that the computer’s IP address is different from other device’s IP address;...
  • Page 6 IGS-900 16 DVB Tuner to IP-Out Manually reboot and maybe better to safe the config first? Internally and external: The file can be uploaded by LOAD CONFIGURATION. The Safe-Restore menu is self-explaning: It internally SAVEs or RESTORE the settings. Author: Ralf Riedel...
  • Page 7 IGS-900 16 DVB Tuner to IP-Out Load an external previously safed config is almost better: Try and error ;-( Reason: We have changed the SPTS mode to MPTS operation and that doesn't accept the previous safed settings from the SPTS mode. So we go back to SPTS.
  • Page 8 IGS-900 16 DVB Tuner to IP-Out REAR -> OFF -ON Author: Ralf Riedel April 15, 2018 Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2018-03RR Page 8...

  • Page 9: Network Setup

    IGS-900 16 DVB Tuner to IP-Out Success. Network Setup: We assume that the user is familiar with IP settings and already knows his own system to connect the unit to. If you use the Output Streaming: We recommend using 2 separate Switches! At least a 100BaseT for the Management NMS RJ45 port and a second one with Gigabit Ethernet 10/100/1000BaseT with at least Layer 2+ with IGMP V2 features.

  • Page 10: Changing User-Account

    IGS-900 16 DVB Tuner to IP-Out Changing user-account: Change it to your needs, but do not forget the password otherwise you would need to reset the unit with the Front-panel RESET switch (press it min. 10…15 sec) to factory default.

  • Page 11: Tuner-Setup

    IGS-900 16 DVB Tuner to IP-Out Tuner-Setup: Using a Multiswitch with more than one SAT-position and > 16 outputs: You can set every single Tuner Input individually. Using a SAT-Splitter: Be carefull, active splitter needs at least one 13V…18V DC connection to it to operate.
  • Page 12 IGS-900 16 DVB Tuner to IP-Out We are using a 1-8 active splitter here and so we have to take care, that the first 8 inputs will be setup to tune the same polarisation and set the first Input to it LOW-Band =9750...
  • Page 13 IGS-900 16 DVB Tuner to IP-Out Following 7 tuner INPUTS at the splitter do not need DC. Example to tune to a second Satellite, here with connected Input no. 9 directly to a Multiswitch w/o using a splitter: chosing HIGH-Band (the High- and Low-Band are seperated. High band starts at 11700...

  • Page 14: Asi-Input(S)

    IGS-900 16 DVB Tuner to IP-Out Remark: We do not recommend to use the Loop-outputs to serve the next RF Input because of it's too much attenuation. The reception might fail because of a too weak signal input. Now we have configured 9 of 16 Inputs: And we can mix with the ASI…...

  • Page 15: Spts Output Settings

    IGS-900 16 DVB Tuner to IP-Out SPTS output Settings: CA Filter and PidRemap are ON by default. CA-Filter: If you do not need to filter decrypted unnecessary EMM/ECM PIDs from the Input Streams, please uncheck them. Pid Remapping isnt almost necessary for SPTS streaming. In MPTS mode it can avoid overlapping PID-Re-Multiplex problems.
  • Page 16 IGS-900 16 DVB Tuner to IP-Out Now we sent this to the output on the right side: proceed with all Inputs to generate your favorite Streams… Finally you'll get an overview how manyyou have selcetd from which input left to the...

  • Page 17: Stream Output Settings

    IGS-900 16 DVB Tuner to IP-Out Stream output settings: The RTSP-streams can be unicast received by GBE1: by selecting the output service rtsp://192.168.2.137:5000/1 … /512 (max streams in SPTS) and GBE2: rtsp://192.168.2.150:5000/1 … /512 while in MPTS mode The single streams are /1 … /16 only, but consider which output you have directed them to.

  • Page 18: Addon: Biss Decryption

    IGS-900 16 DVB Tuner to IP-Out Addon: BISS decryption: You can insert different BISS keys and finally select the outputs which should be "de-bissed" before they are streamed out: Author: Ralf Riedel April 15, 2018 Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2018-03RR Page 18...

  • Page 19: Check The Streams

    IGS-900 16 DVB Tuner to IP-Out Check the streams: Inputs: SPTS outputs: Author: Ralf Riedel April 15, 2018 Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2018-03RR Page 19...
  • Page 20 IGS-900 16 DVB Tuner to IP-Out Using Dektec Fantasi with streamexpert, GE2 disconnected, 1 = ONE (SD) udp://224.2.2.2:3004 13= ONEHD udp://224.2.2.2:3052 and others… Almost OK… Author: Ralf Riedel April 15, 2018 Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2018-03RR Page 20...
  • Page 21 IGS-900 16 DVB Tuner to IP-Out RTSP screenshots: first is in MPTS, 2 a SPTS stream Author: Ralf Riedel April 15, 2018 Filename: Blankom_IGS-900-16_Tuner_to_IP_Gateway_user_manual2018-03RR Page 21...

  • Page 22: Safety And Other Recommendations

    Installation Notes All types of the IRENIS-BLANKOM family are 19“devices with 1 RU height designed for installation in 19” racks. In addition to the front panel screws an internal module support is required at the rack. Depending on the Frontend used and the operating adjustments, the RF-input port carries DC Voltage (13V /18V, max.

  • Page 23: Recommendations

    IGS-900 16 DVB Tuner to IP-Out Note: IPv4 global scope sessions use multicast addresses in the range 224.2.128.0 - 224.2.255.255 with SAP Announcements being sent to 224.2.127.254 Port 9875 (note that 224.2.127.255 is used by the obsolete SAPv0 and MUST NOT be used).
  • Page 24 IGS-900 16 DVB Tuner to IP-Out Host Extensions for IP Multicasting [RFC1112] specifies the extensions required of a host implementation of the Internet Protocol (IP) to support multicasting. The multicast addresses are in the range 224.0.0.0 through 239.255.255.255. Address assignments are listed below.
  • Page 25 IGS-900 16 DVB Tuner to IP-Out Choosing a UDP port number for multicast streams is also important. Even if you use a different multicast IP for each of your streams, we strongly recommend using different UDP port numbers as well. This is because a server and all software running on the server receives ALL multicast traffic on an open port and extra processing is required to filter out the required traffic.
  • Page 26 IGS-900 16 DVB Tuner to IP-Out Server 2003 uses the range 1025–5000 by default, until Microsoft security update MS08-037 from 2008 is installed, after which it uses the IANA range by default. Windows Server 2008 with Exchange Server 2007 installed has a default port range of 1025–60000.
  • Page 27 IGS-900 16 DVB Tuner to IP-Out RTP: a part from: https://tools.ietf.org/html/rfc3550 Chapter 11: RTP relies on the underlying protocol(s) to provide demultiplexing of RTP data and RTCP control streams. For UDP and similar protocols, RTP SHOULD use an even destination port number and the corresponding RTCP stream SHOULD use the next higher (odd) destination port number.

  • Page 28: Contact

    IGS-900 16 DVB Tuner to IP-Out Note: Regarding SAP (Session Announcement Protocol) IPv4 global scope sessions use multicast addresses in the range 224.2.128.0 - 224.2.255.255 with SAP Announcements being sent to 224.2.127.254 Port 9875 (note that 224.2.127.255 is used by the obsolete SAPv0 and MUST NOT be used).
