GXI-3000 Control Unit

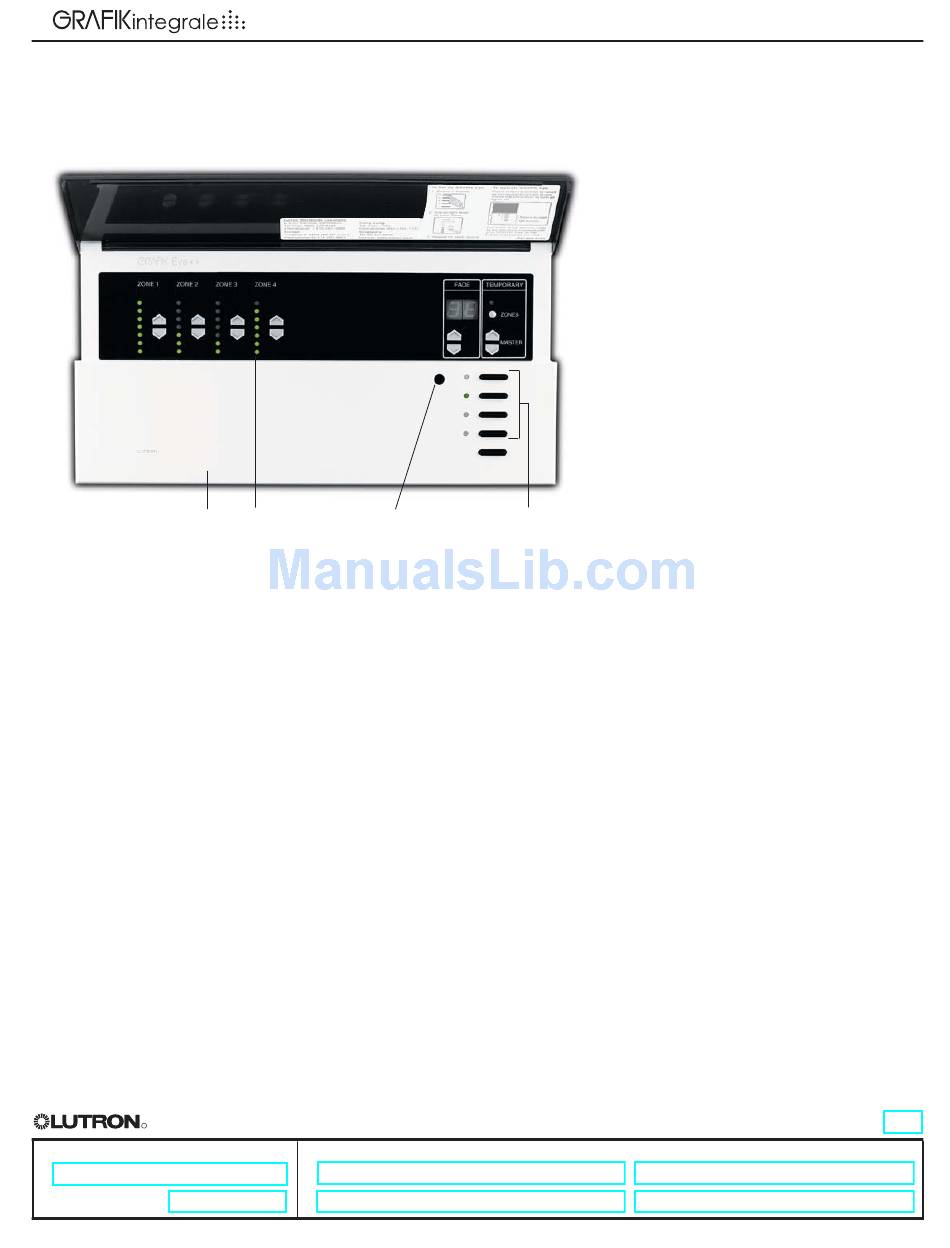

Cover (shown open)
Base
S P E C I F I C AT I O N S U B M I T TA L
R
Job Name:
Job Number:
Zone
Infrared Receiver
Model Numbers:
GXI-3000
Scene Selection
Buttons
Preset Dimming Controls
Description
• Provides pushbutton recall of four
preset lighting scenes, plus Off.
• Allows setup of lighting scenes
using buttons on the Control Unit.
• Controls virtually any light source
without an interface.
• Provides lockout options to
prevent accidental changes.
• Includes built-in infrared receiver
for operation with an optional
remote control.
Models available to:
• Accept 230V (CE) input power.
• Control four zones of lighting.
GXI-3100 Control Unit allows
setup of lighting scenes using
buttons on the Control Unit.
GXI-3500 Control Unit allows
setup of lighting scenes using a
PC, including setting lighting
levels in 1% increments.
gxi-1 2.26.04
Page
1
Advertisement
Table of Contents
Summary of Contents for GRAFIKintegrale GXI-3100
- Page 1 • Includes built-in infrared receiver for operation with an optional remote control. Models available to: • Accept 230V (CE) input power. • Control four zones of lighting. GXI-3100 Control Unit allows Base Zone Infrared Receiver Scene Selection setup of lighting scenes using Buttons buttons on the Control Unit.
-
Page 2: Specifications
GXI-3000 Preset Dimming Controls gxi-2 2.26.04 Specifications Input Power Key Design Features • 230V (CE), 50Hz. • Meets IEC 801-2. Tested to withstand 15kV • Lightning Strike Protection: electrostatic discharge without damage or Can withstand voltage surges of up to 6000V memory loss. - Page 3 GXI-3000 Preset Dimming Controls gxi-3 2.26.04 How to Build a Model Number Cover Options Color Options G X I - 3 1 0 4 - T - C E - W H Opaque Architectural Matte Finishes Cover and Base will match. Standard –...
- Page 4 GXI-3000 Preset Dimming Controls gxi-4 2.26.04 Dimensions and Mounting 76mm 200mm 208mm 138mm 95mm 84mm 227mm Side View Backbox Front Views Lutron P/N 241-400 49mm 116mm 73mm Lutron P/N 241-691 (old-work backbox) Page S P E C I F I C AT I O N S U B M I T TA L Job Name: Model Numbers: Job Number:...
- Page 5 GXI-3000 Preset Dimming Controls gxi-5 2.26.04 230V (CE) Mains Voltage Wiring Pull power wiring from distribution panel and to light fixtures. Each Consult Lutron for: line voltage terminal can accept up to two 2.5mm wires. • Non-dim relay wiring. For phase-to-neutral wiring, connect one phase to Live and the other •...
- Page 6 GXI-3000 Preset Dimming Controls gxi-6 2.26.04 PELV Terminal Connections • Each PELV terminal accepts up to two 1.0mm wires. • Daisy chain the terminal 1, 3, and 4 connections to all Control Units, Wallstations, and Control Interfaces. • Each Control Unit has its own power supply. Terminate the terminal 2 connection (12VDC power) so that each Control Unit supplies power to a maximum of three Wallstations.
