Summary of Contents for ELAN Lighting TRANSCEIVER WS

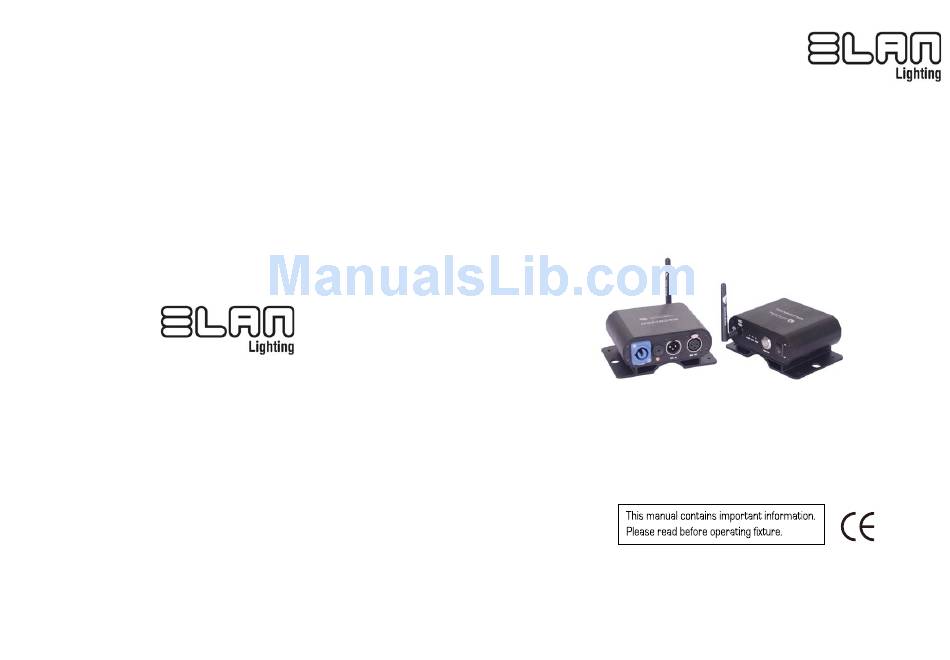

- Page 1 TRANSCEIVER WS RECEIVER WS User manual...
- Page 2 3.4 To unlink all Receivers On the Transmitter, press and hold the FUNCTION button until LINK begins flashing. All registered Receivers linked to that Transmitter will be unlinked. Note: The Receiver will stay linked/logged on to the Transmitter no matter DMX signal or power is cut off.
- Page 3 DJ, etc. Please read this user manual carefully and thoroughly before operation. Unpacking The following items are included in the box: 1 x TRANSCEIVER WS or RECEIVER WS ■ 1 x Power cable ■ 1 x Mounting bracket ■...
- Page 4 • Plug and play, no need configuration for IP address • Point-to-point, point-to-multipoint or multpioint-to-multipoint operation 1.4 Product overview Mounting bracket 2.3 System connection Function button On/Off Power In Fuse DMX In/DMX Out Use DMX cables to connect DMX IN of the TRANSCEIVER to DMX source and DMX OUT of RECEIVER to lighting equipments.
