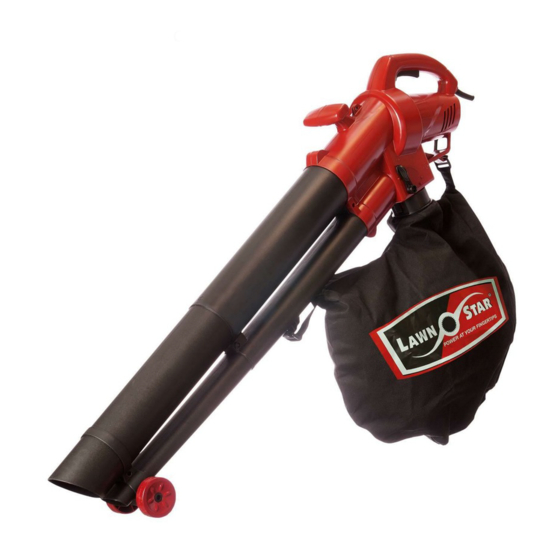

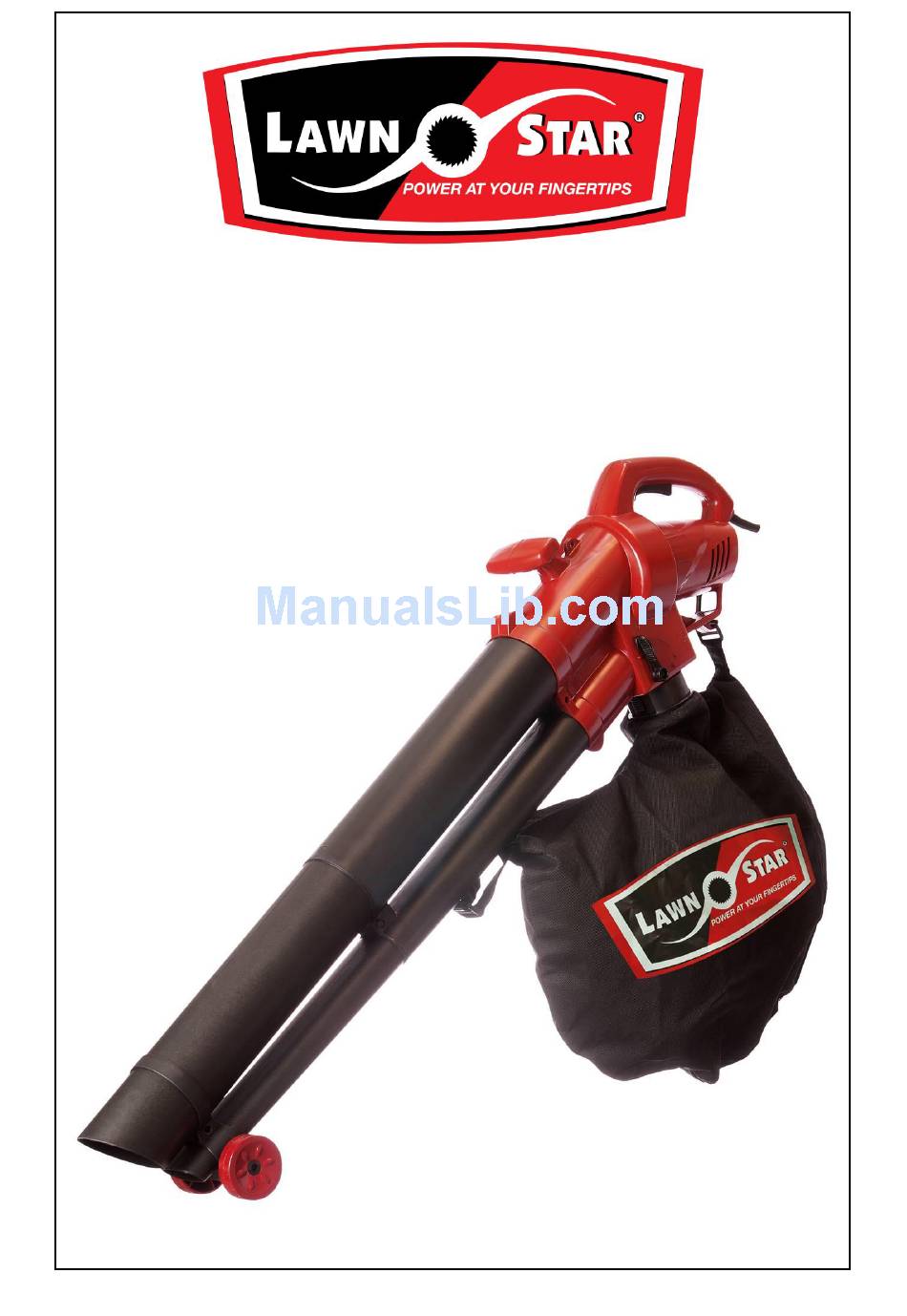

- Page 1 GARDEN VACUUM / BLOWER / MULCHER OPERATING INSTRUCTIONS MODEL LSBV 2800...
-
Page 2: Description Of Parts
Figure 1 DESCRIPTION OF PARTS 1. Strap 2. Screw 3. Front assist handle 4. Function selector lever 5. ON/OFF Power switch 6. Cord restraint 7. Cable & plug 8. Hook for collection bag 9. Collection bag 10. Hook for collection bag 11. - Page 3 DESCRIPTION SYMBOL ATTENTION! OBSERVE THE FOLLOWING SAFETY WARNINGS READ THE OPERATORS MANUAL BEFORE OPERATING THIS MACHINE. IT CONTAINS SAFETY AND OPERATING INSTRUCTIONS. KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE. WEAR EYE AND EAR PROTECTION KEEP ALL PERSONS AND ANIMALS AT A SAFE DISTANCE.
-
Page 4: Safety Precautions
Thank you for purchasing the Lawn Star garden vac / blower / mulcher which is one of the finest and most advanced vac / blower / mulchers today’s technology can produce. Before you begin using it, please read this instruction manual carefully and familiarise yourself with the control and the proper use of this product to ensure you get the best possible performance from it. - Page 5 THE USE OF THIS VAC/BLOWER/MULCHER FOR COMMERCIAL OR RENTAL PURPOSES WILL INVALIDATE THE WARRANTY. Clip Slot Lower Upper chute chute Lower Upper chute chute 50mm Screw Clip (not visible Slot (not visible in this picture) in this picture) Figure 3 Figure 4 Clip Slot on...
-
Page 6: Maintenance, Care And Storage
CAUTION Before switching the vac/blower/mulcher on, ensure that the bag collar, bag support straps and bag are correctly attached to the main body. Ensure that the zipper on the bag is closed. OPERATING INSTRUCTIONS Attach extension cord with suitable female coupler to the plug provided on the vac/blower/mulcher. Insert a loop of the extension cord into the strain-relief mechanism provided in the underside of the main body (Fig.11) to prevent accidental detachment of plug. - Page 7 Figure 9 Figure 10 Figure 11 Vacuum Blower mode mode Vacuum Blower Figure 12 Figure 13...
- Page 8 LAWN STAR ( PTY ) LTD. For service and warranty repairs please contact your nearest Service Agent listed below: CUSTOMER CARE : 0860-LAWNSTAR HEAD OFFICE : 98 Bofors Circle, Epping 2 South, Cape Town PO Box 496, Parow, 7499 Tel: 021-535-5249...
-
Page 9: Warranty Card
PHONE : PHONE: LIMITED DOMESTIC USE WARRANTY Lawn Star (Pty) Ltd. guarantees this unit to be free from defects in material and workmanship. If any such defect should become apparent during a period of 12 MONTHS from the date of the original purchase, we undertake to repair this unit free of charge or replace this unit with a factory reconditioned unit at our discretion.
