Page 1

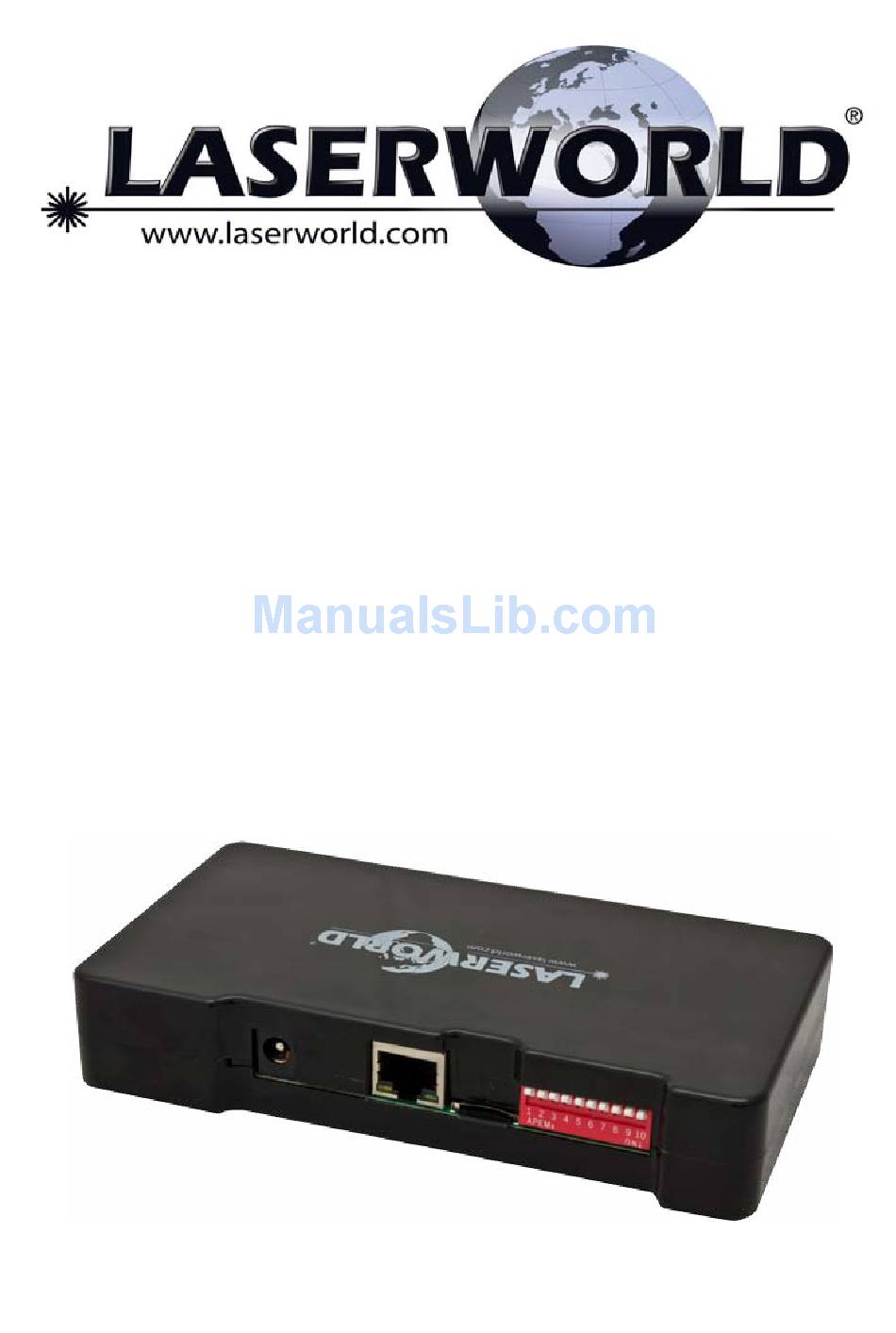

Manual / Bedienungsanleitung Laserworld ShowNET Network Interface Please read this manual carefully prior to product operation! Bitte lesen Sie diese Bedienungsanleitung vor Inbetriebnahme des Produkts! English Deutsch 11/2015...
Page 3
This manual and its information have been dem Einzelfall dokumentiert. made with due care. Laserworld AG cannot, Diese Betriebsanleitung und die darin ent- however, take any responsibility for errata, haltenen Informationen wurden mit der ge- bugs, or the resulting damages.
Manual: MicroNet Slim - Network Interface 1. Scope of delivery & details Please check if all listed parts are included and undamaged. Included in delivery: 1 x Network Interface 1 x Power Supply Unit 1 x Manual 1 x micro-SD Card 2.
Manual: MicroNet Slim - Network Interface 5. Operation Technical overview: - X/Y scanner output with 12 bit resolution (4096 different positions on each axis) - Up to 6 color output with 8 bit resolution (256 different values per color channels): red, green, blue, intensity, user defined 1, user defined 2 - DMX512 input and output (non-isolated) - 10/100 Mbit Ethernet port - Flexible IP address setting: fixed address, DHCP or AutoIP...
Page 8
Manual: MicroNet Slim - Network Interface DMX settings 0-192 Size of the laser projection X axis 193-255 Automatic size change of X axis with increasing speed 0-192 Size of the laser projection Y axis 193-255 Automatic size change of Y axis with increasing speed 0-192 Position of the laser projection X axis 193-255 Automatic position change of X axis with increasing speed...
Page 9
Make sure that no firewall is blocking the network traffic between the computer and the ShowNET Interface. The firewall has to be configured to grant network access to the laser show software. If the network connection does not work, try to temporarily disable the firewall. If this helps, create a matching rule and re-activate the firewall.
Page 10
Windows computer with enabled AutoIP is necessary to use this feature. In Windows 7, 8 and 10, AutoIP is enabled by default. In Windows XP, it has to be enabled manually. Before trying to connect a ShowNEt to the computer, make sure that the AutoIP feature is enabled. 5.4.3 Static IP address Using a static IP address is the most stable option for network control.
Page 11
6. Use as ILDA signal range extender The Laserworld ShowNET interface is capable to act as range extender for ILDA signals by tranforming an incoming ILDA signal on the ILDA IN interface to a standard TCP/IP network signal and transferring this signal back to standard ILDA on a receiver unit (obviously two Laserworld ShowNET interfaces are requi- red for this kind of application!) .
The only difference between sender and receiver configuration is dip switch 5, which is 0 for the sender and 1 for the receiver. 7. Power Supply Use the power supply (included in delivery) to connect the ShowNET Interface to mains. page 12 / 24...
We cannot inform you in case of changes of this manual. If you have any questions, please contact your dealer. For service please contact your dealer or Laserworld. Please use only spare parts of Laserworld. Subject to change without notice. Because of the vast amount of data we cannot guarantee any correctness of given information.
Manual: MicroNet Slim - Network Interface 1. Lieferumfang & Hinweise Bitte prüfen Sie, ob Sie die Lieferung vollständig erhalten haben und die Ware unbeschädigt ist. Im Lieferumfang enthalten sind: 1 x Netzwerk Interface 1 x Netzteil 1 x Bedienungsanleitung 1 x microSD Karte 2.
Manual: MicroNet Slim - Network Interface 5. Bedienung Funktionsübersicht: - X/Y Scanner-Ausgabe mit 12 bit Auflösung (4096 verschiedene Positionen auf jeder Achse) - Ausgabe von bis zu 6 Farben (lizensabhängig) mit 8 bit Auflösung (256 verschiedene Werte je Farbkanal): Rot, Grün, Blau, Intensität, benutzerdefiniert 1, benutzerdefiniert 2 - DMX512 Eingang und Ausgang (nicht-isoliert) - 10/100 Mbit Ethernet-Port - Flexible IP-Adresseinstellung: fixe Adresse, DHCP oder AutoIP...
Page 18
Manual: MicroNet Slim - Network Interface 5.1 DMX Modus Dip-Schalter-Einstellungen Schalter muss für den DMX-Modus an (1) sein Für die Laserausgabe muss der DMX-Kanal 1 einen Wert größer als 0 haben (empfohlen 64 - 192) und auch DMX Kanal 2 muss einen Wert über 0 haben. DMX Einstellungen Kanal Wert...
Page 19
Manual: MicroNet Slim - Network Interface DMX Einstellungen Kanal Wert Funktion 80-95 Musterprojektion in Magenta 96-111 Musterprojektion in Cyan 112-127 Musterprojektion in Weiß 128-255 Regenbogeneffekt 0-31 Default Scannergeschwindigkeit (200 pps) 32-255 Scannergeschwindigkeit manuell (5 - 30kpps) Achtung: Die Scanner dürfen nicht überlastet werden. Herrscht Unklarheit darüber, was die maximale Scannergeschwindigkeit des Projektors ist, sollte die Default Scannergeschwindigkeit verwendet werden.
Page 20
Manual: MicroNet Slim - Network Interface 5.4 Netzwerk Modus Wichtig: Wird eine Lasershow-Software verwendet, muss darauf geachtet werden, dass keine Firewall den Datenverkehr zwischen Laser und PC behindert. Sollte die Netzwerkverbindung nicht funktionieren, sollte die Firewall zeitweilig deaktiviert werden. Immer wenn die DIP-Schalter-Einstellungen für den Netzwerk Modus geändert werden (z.B.
Page 21
192.168.0.100 (Subnetz = 255.255.255.0) 6. Nutzung als ILDA-Signal Reichweitenverlängerung Das Laserworld ShowNET Interface kann auch zur Erhöhung der Reichweite eines ILDA Signals aus einem anderen DAC interface genutzt werden. Dabei wird das Signal aus dem anderen DAC direkt in den ILDA IN Eingang der ShowNET eingespeist, danach über Netzwerk beliebig weit übertragen, und mit einem weiteren ShowNET Interface am Zielpunkt wieder in das ILDA Signal zurückverwandelt (dort...
Der einzige Unterschied zwischen Sender und Empfänger ist die Schalterstellung des Schalters 5, die beim Sender 0 , beim Empfänger 1 ist. 6. Stromversorgung Stromversorgung über das Netzteil (im Lieferumfang enthalten) VErwenden Sie das im Lieferumfang enthaltene Netzteil zur Stromversorgung des ShowNET Interfaces. page 22 / 24...
Sollten Änderungen an dieser Bedienungsanleitung vorgenommen werden, können wir Sie darüber nicht in Kenntnis setzen. Bitte kontaktieren Sie für Fragen Ihren Händler. Für Servicefragen wenden Sie sich bitte an Ihren Händler oder aber an Laserworld. Verwenden Sie auschließlich Laserworld-Ersatzteile. Änderungen vorbehalten. Aufgrund der Datenmenge kann keine Gewähr für die Richtigkeit der Angaben gegeben werden.
