Fern-Howard FHL414 Setup Instructions

FHL414 Set-up Configuration - Micro Sensor

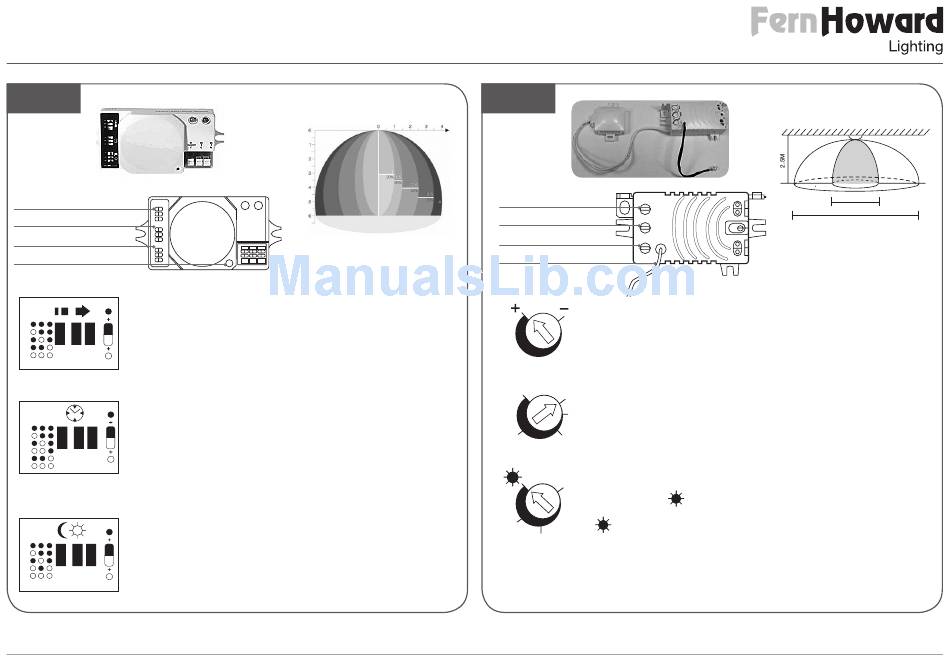

Fern-Howard luminaires can come with 3 different types of micro-sensor controllers. Please determine which
micro-sensor your luminaire has (Type 1, 2 or 3) and follow the relevant set-up instructions below.
Type 1
Adjustable Detection Area
Hold Time
Daylight Threshold
Daylight Sensor
Detection Sensitivity:
This determines the effective range of
1 2 3
the motion detector and is set by DIP
switches on the sensor itself. Note
1 2 3 that reducing the sensitivity will also
narrow the detection range.
Hold Time:
This determines the length of time
1 2 3
the lamp is held on after movement is
detected and is set by DIP switches.
1 2 3 The walk test setting is useful when
installing the fitting to establish
correct operation and range.
Daylight Sensor:
This setting holds the lamp off should
1 2 3
there be sufficient daylight and is set
using DIP switches on the sensor.
1 2 3
For more Information call 01420 470 400 email lighting@fernhoward.com or visit www.fernhoward.com
Detection Area
The following settings are available:
I - maximum range up to 5m
II - range up to 3.5m
III - range up to 2m
IV - range up to 1.5m
V - range up to 1m
The following settings are available:
I - Walk test mode 5s
II - 30s
III - 3 minutes
IV - 5 minutes
V - 15 minutes
VI - 25 minutes
The following settings are available:
I - 2 Lux darkness operation only
II - 5 Lux darkness operation only
III - 20 Lux twilight operation
IV - 30 Lux twilight operation
V - daylight, daylight sensor
operation disabled
Type 2
Hold Time
Adjustable Detection Area
Daylight Threshold
Daylight Sensor wire remote
Meter
Sensor Sensitivity:
Adjustable '-' approx. 2M to '+' approx 10M
Time
30m Test
Delay off Time:
5s
5 sec to 30 min range and Test mode
15m 5m
Lux
5 Ambient Light Override:
Approx. 5 Lux to
5 Lux - sensor module can work at dark status only
- sensor module can work at any light level
500
100
IMPORTANT NOTE: When a setting change on a micro-sensor has been
made, the luminaire must be power cycled for the change to take effect.
Detection Area
3M
10M
Max 200W
