EQUIPMENT SHIPPED

• FoxBox GT2;
• Wall power supply (12V - 2A);
• GSM antennae.
all the components have been tested before the shipment.
Note:

OPERATIONAL REQUIREMENTS

• Electricity source (100 – 240 VAC);
• LAN Ethernet and an Ethernet RJ45 cable;
• A PC with a web browser (recommended: Mozilla Firefox) on the same network of the FoxBox (by default, IP
address like 192.168.0.x, FoxBox's one is 192.168.0.98);
• A working SIM card(s), able to send and receive SMS;
• A Phillips screwdriver.
Note: please check that you are installing the device in a place with enough GSM coverage. You can do it using a
common mobile phone.

COMPONENTS INSTALLATION

before starting the installation, please check that the SIM doesn't have a PIN code. In case there is, please
Note:
remove it using a common mobile phone.
Powered by High Connexion Italia / www.hcnx.it
FOXBOX GT2

QUICK INSTRUCTIONS

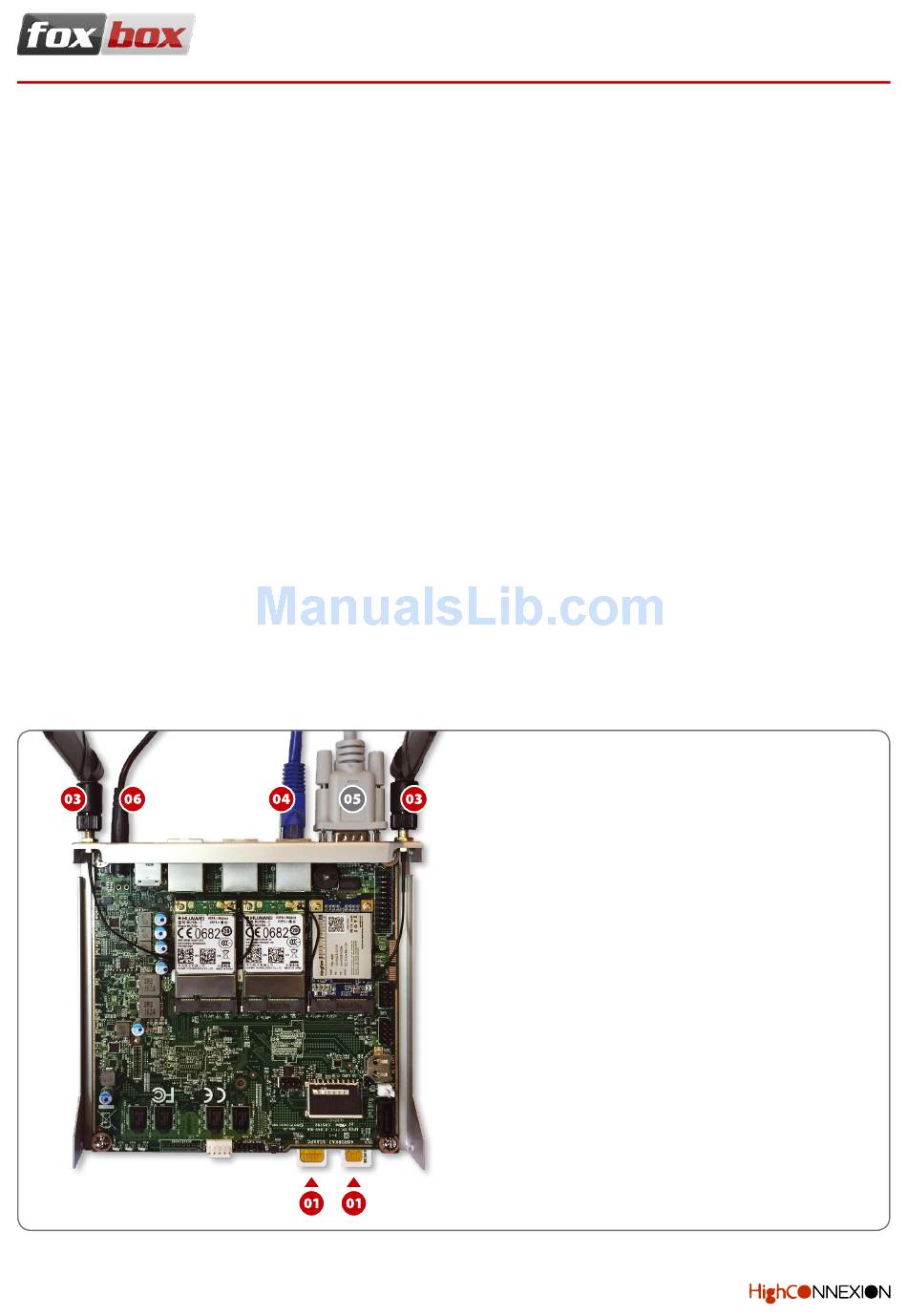

01. Insert the SIM cards in the placeholders.
Note: the SIM card slots are positioned on
the lower side of the board!
02. Close the FoxBox case and fasten all the
four lateral screws.
03.
Plug-in the antenna connectors.
04. Plug-in a RJ45 Ethernet cable.
Note: connect the cable to the central
Ethernet port if you want to use Zeroconf
(aka "Bonjour".)
05. Optionally, plug-in a Serial cable.
06. Plug-in the power supply.
