User manaul
Model No.: S91,S90,J11,J12,J15,J16,J21,J23,J25

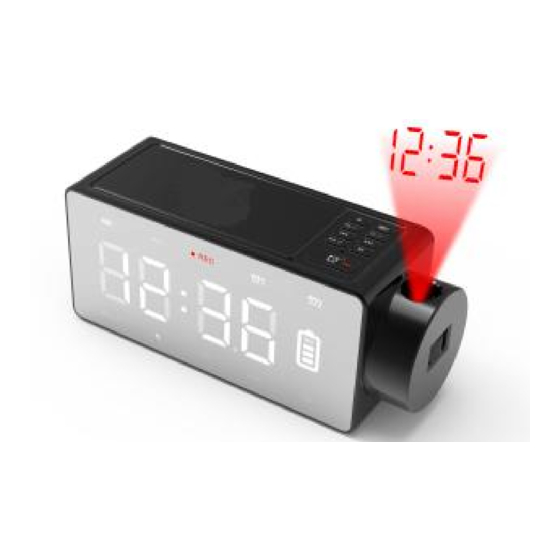

Product Name: BLUETOOTH SPEAKER
Main Functions:
1. Mobile Phone Exclusive Smart Bluetooth Speaker
2. Clock: Adjust Time by Four Buttons. Smart Screen Saver Big Screen Display
3. Clock Projection: HD Color Clock Projection with Adjustable Brightness
4. Dual Alarms: One-click Snooze, Five Kinds of Gradual Ringtone
5. DIY Ringtone
6. Bluetooth / FM / AUX / TF, One-click Timing Playing
7. Bluetooth: Compatible V4.2+BR+EDR+BLE
8. Bluetooth Hands-Free Calling, One-click Answering and Hang-up
9. Bluetooth Mode Support Reminder by Wechat Pay and Alipay
10. TF: Support MP3 / WMA (double decoding) Audio Format
11. AUX-in External Audio Input
12. FM Frequency: 87.5-108MHz
13. Priority Play Post Plug-in
14. Intelligent Reset: Restore Factory Settings with a Single Key
Built-in 18650 Power Battery
15.
Technical Parameters:
Bluetooth Output: RMS 2*5W ( 10% THD+N 4Ω 1KHz)
SNR: ≥75dB
Distortion: ≤1%
Frequency: 80Hz-18KHz
Audio Input Mode: Bluetooth / AUX / TF Card / FM
Advertisement
Table of Contents
Summary of Contents for Shenzhen Hongdian Technologies S91

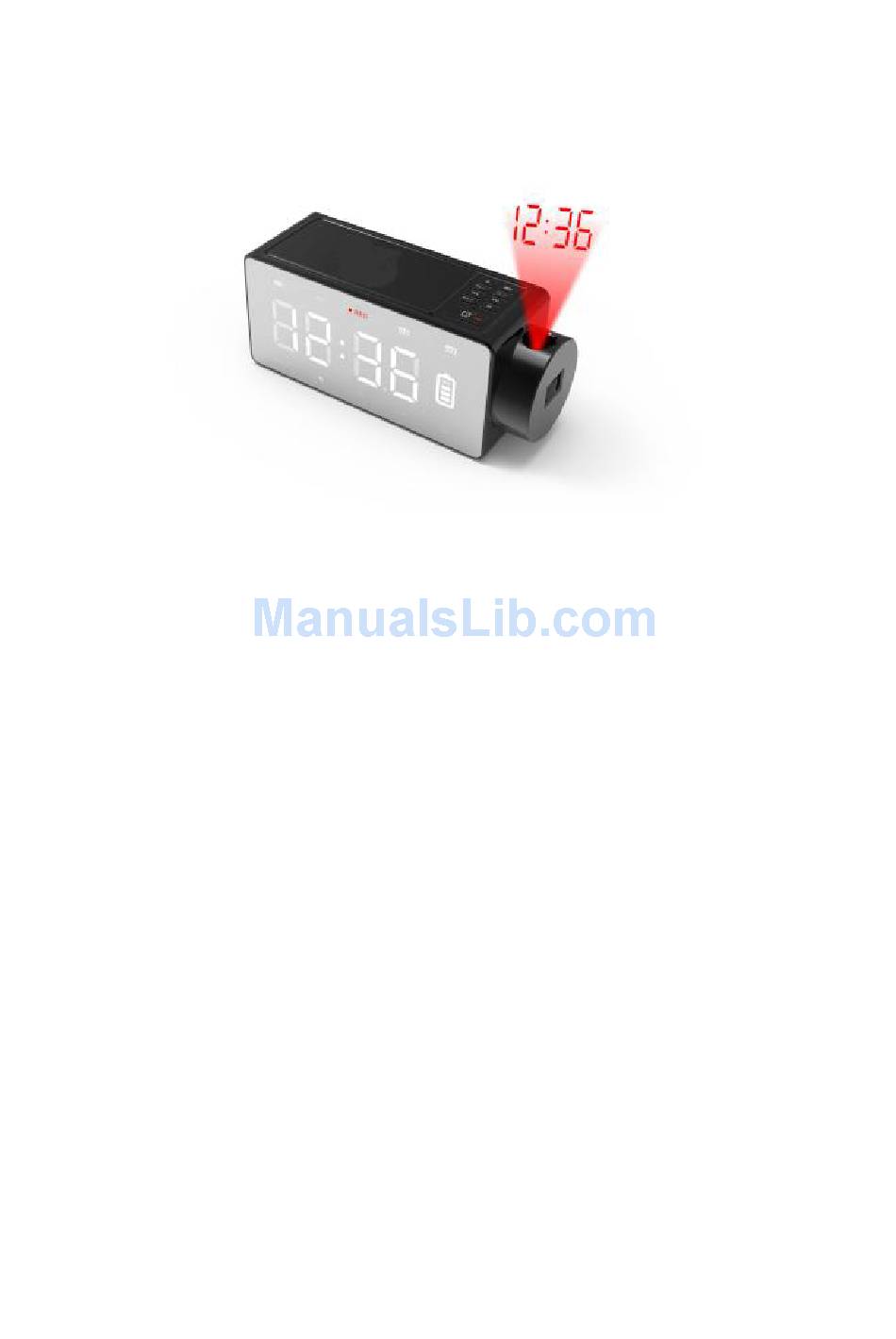

- Page 1 User manaul Model No.: S91,S90,J11,J12,J15,J16,J21,J23,J25 Product Name: BLUETOOTH SPEAKER Main Functions: 1. Mobile Phone Exclusive Smart Bluetooth Speaker 2. Clock: Adjust Time by Four Buttons. Smart Screen Saver Big Screen Display 3. Clock Projection: HD Color Clock Projection with Adjustable Brightness 4.
- Page 2 Volume Adjustment: Buttons Speaker: φ52 4Ω 5W*2 Working Voltage: 3.7V 2000mAh AUX Maximum Input Sensitivity: 800mV Working Temperature: 0℃～+50℃ Product Size:201X71X86MM Net Weight:630g Usage: 1. Reset: Built-in hidden reset switch in external audio source interface, restore factory settings. 2. Turn “ON” position. The screen lights up. “LOAD” enters the CLOCK mode. Initial time starts at 12:00.
- Page 3 or long press “Previous / Next” or “V+ / V-” both can change the hour up or down. (The machine has an AM PM system. One hour is skipped every 12 hours during setting hour) 2. After the hour is set, the minute number flashes after 5S no operate. Or short press “M” key to enter minute setting.
- Page 4 time. Return to Clock state when short press “Alarm 1” or 5S no operate. 2. Check Alarm 2: When CLOCK mode. Short press “Alarm 2” to show Alarm 2 setting time. Return to Clock state when short press “Alarm 2” or 5S no operate.
- Page 5 2. Use a Bluetooth device, such as smart phone, turn on the Bluetooth function on the phone to search for and connect the device named S91. Voice prompt when connected successfully. It will be automatically connected if the phone connected the Bluetooth device recently.
- Page 6 6. Short press or long press “V+ / V-” to adjust volume. 7. When Bluetooth connection state. Quickly short press the “Play” button Twice to call back the last time the phone was called. Short press again to hang up. Short press the “Play”...
-
Page 7: Fcc Warning
FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
