Summary of Contents for Arrakis Systems Simple-IP-8A

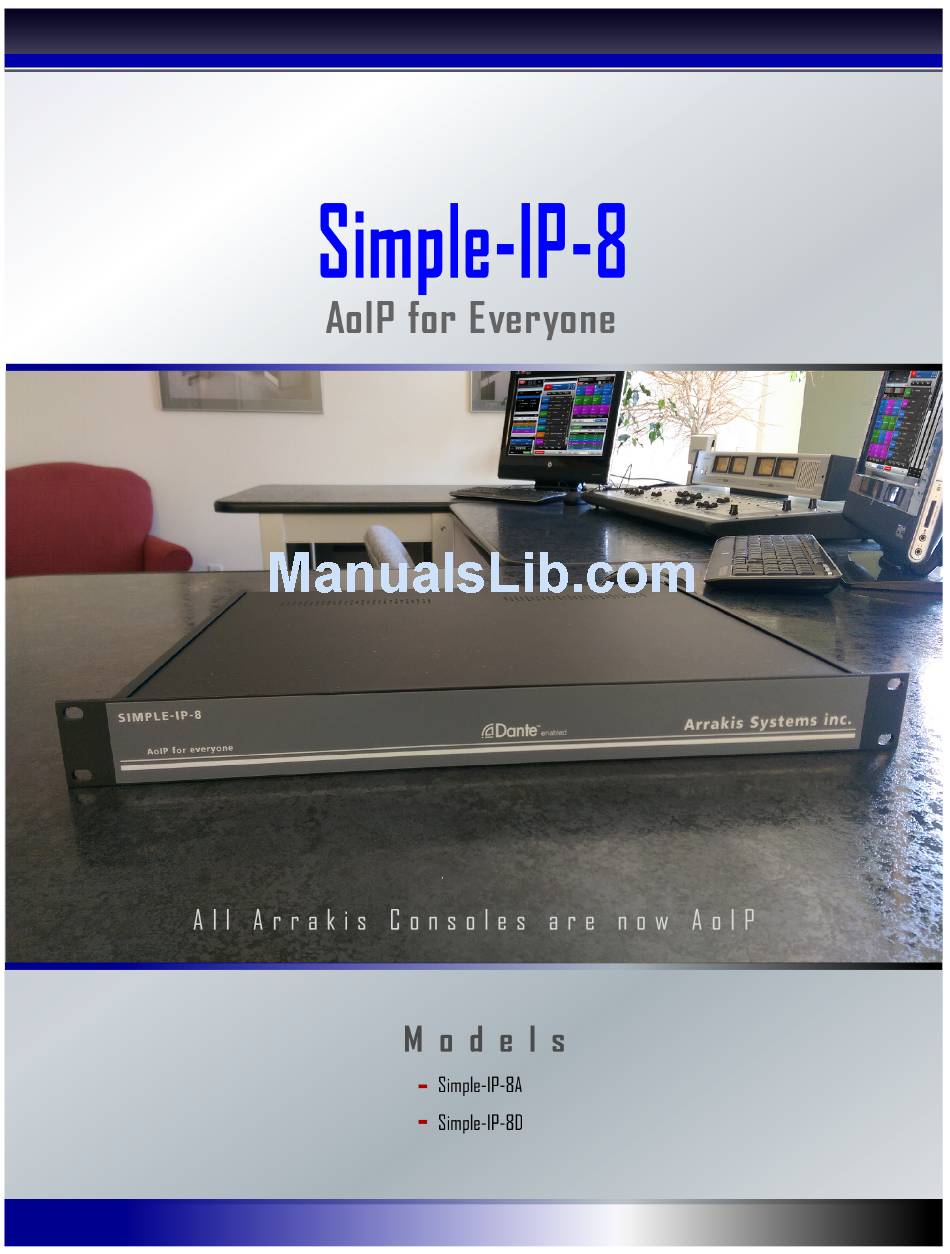

- Page 1 . . . P r o d u c t M a n u a l . . . AES-67 compliant Simple-IP-8 A l l A r r a k i s C o n s o l e s a r e n o w A o I P M o d e l s w w w .
- Page 2 Welcome Thank you from Arrakis Systems inc. Thank you for purchasing this product by Arrakis Systems inc. Our company has provided pro- fessional audio equipment to the broadcast, commercial audio, and consumer audio markets for more than 35 years. Our products are sold worldwide and are well known for leading edge technology, quality, and reliability.
- Page 3 • Uses the world standard Audinate DANTE protocol (> 300 manufacturers and 750 compatible products) • Simple-IP is made by Arrakis Systems, who has been building professional audio products for > 35 years • Simple-IP and DANTE audio networks support up to 512 x 512 simultaneous audio streams •...
- Page 4 About Simple-IP AES-67 compliant Markets Broadcast Recording Audio Distribution over your PC Network Simple-IP is a one rack unit AoIP box with 8 mono inputs Commercial Installed Sound and 8 outputs (or 4 by 4 stereo pairs). Available in 2 models: analog &...
-
Page 5: About Dante
About DANTE Based on industry standards, Audinate created Dante, an uncompressed, multi-channel digital media network- ing technology, with near-zero latency and synchronization. Dante is the preferred audio networking solution that has been adopted by more pro-audio AV manufacturers than any other networking technology. Interoperability is not a dream of the future, but a reality today. - Page 6 About DANTE device latencies. There is no longer any need to remember device IDs or channel numbers. Instead, a single audio channel is referred to just like an email address: “leadVocal @ StageBoxSL or ”chairmans_mic @ conferenceroomA”. Set it and forget it. Once the network is configured, the computer running Dante Controller can be removed from the network, and reconnected only if changes are required or system monitoring is desired.
-
Page 7: Network Setup
Network Setup Dante Controller Software Dante Controller software is used to set up Simple-IP on yur network. You can set up the audio paths and network configuration with the software and then turn it off. The setup is saved to the Dante devices. Dante Controller is a free software application that enables you to route audio and configure devices on a Dante network. -
Page 8: Ethernet Cabling
Ethernet Hardware Ethernet Cabling While Simple-IP and Dante will operate on 100Mbit networks, a Gigabit network is recommended. Cable types should be either: (1) CAT5e, or (2) CAT6. Both shielded and unshielded cables are suitable but shielded cables may be more appropriate depending on your RF environment. - Page 9 The Network A Multi-use or a Dedicated Network ? Simple-IP and DANTE devices can be placed on an ethernet network that includes other PCs and network traffic, such as your business network. For casual audio transport this is perfectly acceptable. For mission critical audio transport a separate, audio only, network is recommended.
-
Page 10: Dante Virtual Soundcard
Connecting Audio PCs Dante Virtual Soundcard PC, Mac: Meet Dante Dante Virtual Soundcard turns your computer into a Dante-powered workstation, seamlessly integrating your PC or Mac with Dante audio devices on your network. Instantly connect to record, process and playout using any audio application and any combination of Dante-enabled devices. - Page 11 Simple-IP Installation SIMPLE-IP-8A 8 in by 8 out Analog (4 by 4 stereo) AES-67 compliant Main Backup Network Network power input output input output input output input output Ethernet Ethernet Connection Connection RJ45 Wiring Diagram Wire Color Audio 1,2,3,4,5,6,7,8 White w/Orange Stripe...
- Page 12 Simple-IP Installation SIMPLE-IP-8D 8 in by 8 out Digital (4 by 4 stereo) AES-67 compliant Main Backup Network Network power input output input output input output input output Ethernet Ethernet Connection Connection All digital inputs and outputs are AES3 balanced and transformer isolated. XLR Wiring Diagram 1 3 2 Audio...
- Page 13 Simple-IP Specifications SIMPLE-IP-8A SIMPLE-IP-8D Analog Line Inputs Digital Inputs Number 8 mono (or 4 stereo pairs) Number 8 mono, (4 stereo) Connectors RJ45 (2 balanced mono) Connectors XLR (qty 4) Frequency Respose 20-20kHz +(-) 0.0dB Sample rates 32/44.1/48/96/192kHz THD+N 0.005% at +18dBu...
- Page 14 Safety 1. Read All Instructions. All safety and operating 16. A Product and Cart Combination should be the type of power supplied to your facility, instructions must be read before operating the consult your local power company. moved with care. Quick stops, excessive force, 10.
- Page 15 Warning C AU T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: SHOCK HAZARD - DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE ANY COVER OR PANEL.
- Page 16 This product carries a 1 year manufacturer‘s warranty subject to the following guidelines and limitations: Except as expressly excluded herein, Arrakis Systems inc. (“Seller”) warrants equipment of its own man- ufacture against faulty workmanship or the use of defective materials for a period of one (1) year from date of shipment to Buyer.
- Page 17 5-27-2016 Arrakis Systems inc. 6604 Powell Street Loveland, Colorado 80538 Voice 970.461.0730 Fax 970.663.1010 Sales email: sales@arrakis-systems.com Support email: support@arrakis-systems.com consolesupport@arrakis-systems.com website: www.arrakis-systems.com all features and specifications are subject to change without notice...
