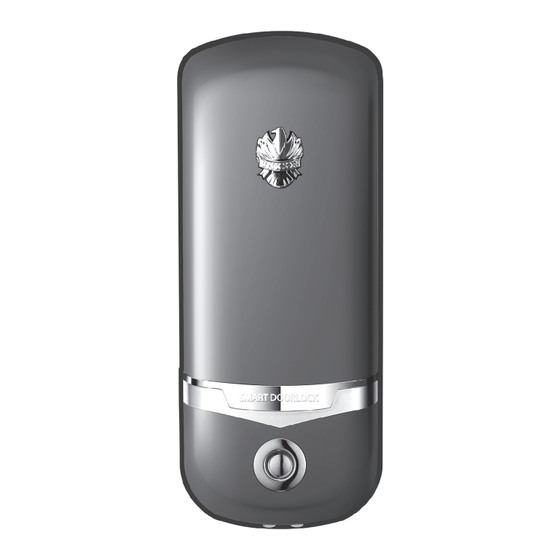

UNICOR HIGHTECH 315N User Manual

315 Series
User Manual
315N 315D
UNICOR HIGHTECH CO., LTD
CAUTION
As this is a keyless digital door lock, damage may occur
to parts of the dead lock system if it is not used according
to the manual. Users should be fully aware of the manual
and how to operate this product.
- This manual may change without notice in case of product improvement.
- Product specifications are subject to change without prior notice.
- This manual should not be edited or changed without manufacturer's permission.
Registering and changing the password
(Up to 3 passwords can be registered)
The door must be open while registering the password.
Default password is 1,2,3,4.
Caution
1. Open [Battery cover] of the Back 2. Open [Keypad cover] of Front Ass'y
Ass'y and press [Register button] and press password (4 ~ 12 digit) except
once brie y. [ ] and [ # ] buttons.

3. Press [ ] to save. 4. To register another password,

repeat No. 2 & 3.
[Entering password]
5. Password registration is nished
if you press [Registraion button].
1. In case of registering more than 1 password, all process should be done
at a time. (Existing passwords will be deleted when registering new password)
2. When all three passwords are registered, Registration mode will be
automatically end.
Caution
3. If no password is entered within 7 seconds while registering password,
registration will be cancelled.
Registering the digital key/smart key (for 2way only)
1. Open [Battery cover] 2. Place the digital key or
and press [Register button] smart key on the touch
brie y. point of the front ass'y.
(Whenever you contact it,
registration is done with
beep sound).
※When you register new digital key, smart key or register it again, you need to
register all digital key or smart key at a time.
▶Deleting digital key or smart key
Press [Register button] and [0] button for 5 seconds and all registered
digital keys or smart keys will be deleted.
Safety precautions
The precautionary measures are for the safety of the user, for the prevention
of property damage, and for the avoidance of any inconveniences due to
an accident. These must be read and followed properly.
Warning
• Do not disassemble or alter the lock.
• Do not install where the distance over 5mm
between the door and door frame.
• Please do not expose the password and change the
password in regularly.
• Batteries should not be exposed directly to heat
sources or ames, or submerged in water, because
they may leak or explode, resulting in severe
damage. Please do not use damaged batteries.
• Do not press using sharp tools or press numeric
button excessively.
• Make sure the door is completely locked when
going out.
Product Composition
Front Ass'y
315S
User Manual
Digital Keys
(315D model only)
Locking the door from inside
▶When auto lock is set
Default setting is auto lock so the door
will be locked automatically in 3 seconds
after it's closed.
▶When manual lock is set
Press [Open / Lock] button of Back Ass'y or turn the manual lock knob to
[Locked] position to lock the door.
Locking the door from outside
▶When auto lock is set
Default setting is auto lock so the door
will be locked automatically in 3 seconds
after it's closed.
▶When manual lock is set
Push the [Keypad cover] up and press [
3. Press [Register button]
Opening the door from inside
to complete registration.
Press [Open / Lock] button of the Back Ass'y or turn the manual lock knob to
[Open] position to open the door.
• Place the batteries carefully and correctly
according to their polarity (+/-). If the batteries
are inserted in a wrong way, di erently from the
indicated direction or polarity, leakage or rupture
could occur. Pay attention to it.
• Please do not mix old with new batteries or use
di erent types. Always use new alkaline batteries.
• Do not clean the product with ammable materials
such as alcohol, benzene or thinners. Such
materials may damage the surface or cause a re.
• Replace the current batteries with new ones within
1 week after the battery replacement noti cation
melody sounded o for the rst time.
Back Ass'y Mounting Plate Strike & Strike spacer
Installation Template
32mm diameter hole 32mm diameter hole
Folding line
Folding line for one-side
for standard open or
f ire-proof door both-side
open door
Installation Template AA Battery 4pcs Bolts for installation
Smart keys
(315S model only)
] button to lock the door.

Name of parts (Front Ass'y)
Keypad cover
Digital key
touch plate
(315D) Emergency
power terminal
Name of parts (Back Ass'y)
Auto Lock Latch
Deadbolt
Manual Lock
For the Emergency use : If [Open / Lock] button is not working, then just turn the
manual lock by nger to open.
To open the battery cover
Press battery cover slightly and push to the direction of the arrow to open.
Opening the door from outside
▶Opening the door with password
Push [Keypad cover] up. Push down the cover after pressing password and
the door will be opened with melody.
▶Opening the door with ▶Opening the door with
digital key (315D) smart key (315S)
1. Place the registered digital key 1. Place the registered smart key
to [Digital key touch plate]. to [Smart key touch point].
2. After beep sound, the door will be 2. After beep sound, the door will be
opened. opened.
1. If no button is pressed within 7 seconds after push up the [Keypad cover],
entering mode will end with error sound.
2. When [Keypad lamp] is o , press [] button and enter password.
Attention
Then, the door will be opened with melody.
Auto, Manual locking mode
▶Auto locking mode
(Default setting is auto locking mode.)
Open battery cover and
press [Register button]
After the door is opened, auto locking sensor detects auto locking status.
When the door is open(auto locking detect sensor is not working),
push up [Keypad cover] and press [  ] button to lock the door.
Auto relocking function : When the door is not opened within 7 seconds after
the lock is open, the door is relocked automatically.
▶Manual locking mode
Open battery cover and
press [Register button]
1. When the auto lock function is set, if the door is closed, it will be locked
automatically within 3 seconds.
2. User can set the manual lock function to unset the auto lock function
Attention
to lock the door only when it's necessary.
Keypad
Smart key
touch point
(315S)
Open/Lock button
Register
button
[Register button]
[Register button]
