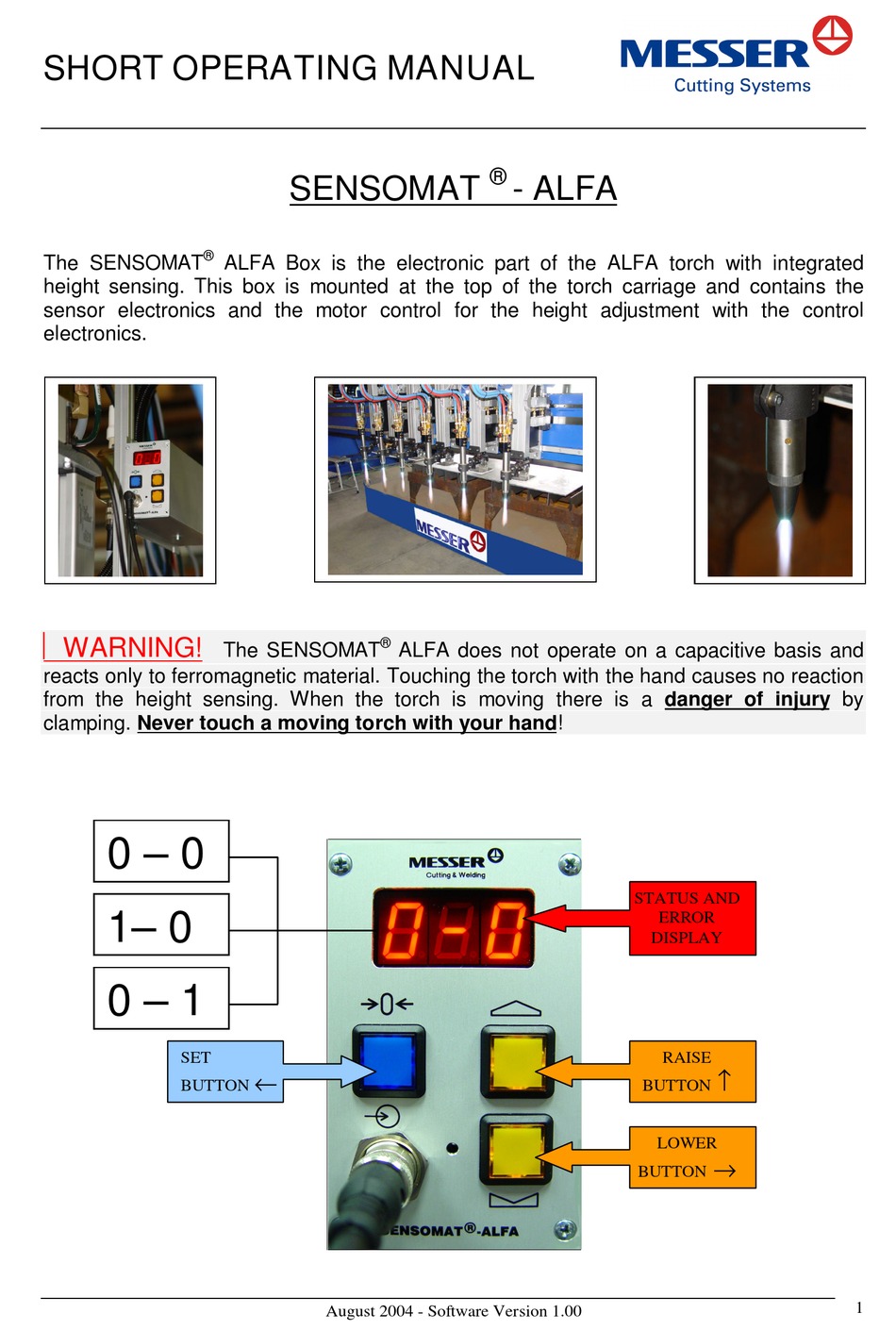

SHORT OPERATING MANUAL
®
The SENSOMAT
height sensing. This box is mounted at the top of the torch carriage and contains the
sensor electronics and the motor control for the height adjustment with the control
electronics.
WARNING!
reacts only to ferromagnetic material. Touching the torch with the hand causes no reaction
from the height sensing. When the torch is moving there is a danger of injury by
clamping. Never touch a moving torch with your hand!
0 – 0
1– 0
0 – 1
SET
BUTTON
SENSOMAT

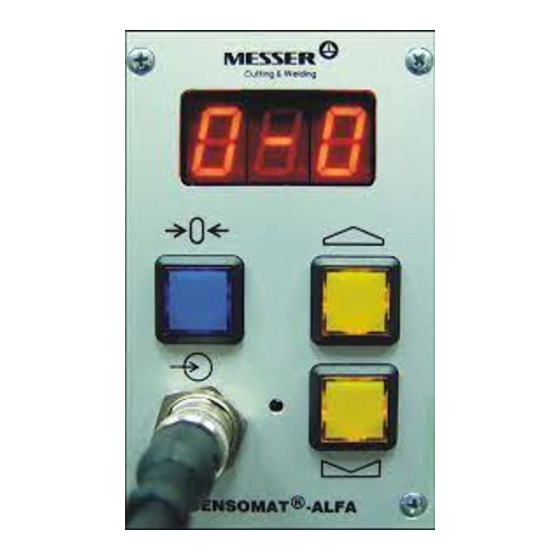

ALFA Box is the electronic part of the ALFA torch with integrated
®
The SENSOMAT
←
August 2004 - Software Version 1.00
®
- ALFA
ALFA does not operate on a capacitive basis and
STATUS AND
ERROR
RAISE
↑
BUTTON
LOWER
→
BUTTON
1
Advertisement
Table of Contents
Summary of Contents for Messer Cutting Systems SENSOMAT - ALFA
- Page 1 SHORT OPERATING MANUAL ® SENSOMAT - ALFA ® The SENSOMAT ALFA Box is the electronic part of the ALFA torch with integrated height sensing. This box is mounted at the top of the torch carriage and contains the sensor electronics and the motor control for the height adjustment with the control electronics.
- Page 2 SHORT OPERATING MANUAL 1. Adjustment procedure: Move the torch carriage to be adjusted to the working height required with the UP / DOWN control buttons on the control panel and set the height by pressing the blue SET button ← on the SENSOMAT ®...
- Page 3 SHORT OPERATING MANUAL WARNING! For safety reasons amplifier adjustment can only be made in automatic mode if the cutting torch is unlit and no coordinate motion is taking place. 5. Display: The left figure can be 0 or 1. 0 means automatic off. 1 means automatic on. The right figure be 0 and 1, alternating from carriage to carriage.
