Summary of Contents for Gofilex CIMA / IP300
- Page 1 Manual Gofilex Mediabox Live and Encore...

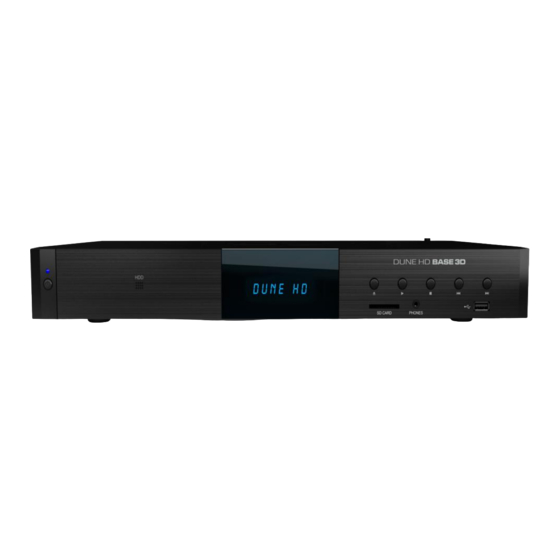

- Page 2 Setup Gofilex Mediabox for Live and Encore Unbox the Gofilex Mediabox. There are 3 versions: CIMA / IP300 DUNE 3D DUNE 4K Solo...
- Page 3 Setup Gofilex Mediabox for Live and Encore Filmvault QNAP (various models) safe storage DCP and Encore Router TPLink (various models) connects to the Gofilex network...
- Page 4 Setup Gofilex Mediabox for Live and Encore Installation schema...
- Page 5 Setup Gofilex Mediabox for Live and Encore Connect the HDMI-output of the Mediabox to the projector. with IMB, connect the HDMI-HDMI-cable to the HDMI1 port on the IMB without IMB, connect the HDMI-DVI-cable to a DVI port on the projector Connect the S/PDIF or optical sound of the Mediabox to the DMA8.
- Page 6 Setup Gofilex Mediabox for Live and Encore Select the correct macro on the projector with IMB, select macro HDMI and select HDMI1 on the server without IMB, select the DVI macro on the projector Select the correct audio input on the DMA8 and sound processor Select HDMI port on Doremi server...
- Page 7 Setup Gofilex Mediabox for Live and Encore Audio AC3 For AC3 audio on DUNE HD use the S/PDIF connector For AC3 Audio on DUNE4K SOLO use the (white) A/V connector...
- Page 8 Configuring the Mediabox CIMA/IP300 Select settings, network, edit TCP/IP settings IP address <please contact Gofilex support desk> Subnet mask 255.255.255.0 Default Gateway <please contact Gofilex support desk> DNS 8.8.8.8 When correct configured the name of your theater will be visible in the blue start screen...
- Page 9 Configuring the Mediabox DUNE HD Select settings, network, edit TCP/IP settings IP address <please contact Gofilex support desk> Subnet mask 255.255.255.0 Default Gateway <please contact Gofilex support desk> DNS 8.8.8.8 When correct configured the name of your theater will be visible in the blue start screen...
- Page 10 Configuring the Mediabox DUNE SOLO 4K Select settings, network, edit TCP/IP settings IP address <please contact Gofilex support desk> Subnet mask 255.255.255.0 Default Gateway <please contact Gofilex support desk> DNS 8.8.8.8 When correct configured the name of your theater will be visible in the blue start screen...
- Page 11 How to start a live stream? Select Content, Live Select Live Stream...
- Page 12 How to start Encore? Select Settings Select Source...
- Page 13 How to start Encore? Select Gofilex Select your Encore...
- Page 14 How to start Encore? Test your Encore: For the desired subtitles, Please press the subtitle button (on Remote Control) Forward to the point where you want to start your Encore Select Pause Press Start to play the Encore...
- Page 15 “Unidentified Mediabox” The Mediabox is not connected to the Gofilex network or does not have the correct IP settings configured. “Sound problems” Sound issues may occur while connecting HDMI with IMB depending on stream configuration. “Stream distortion” Reset Gofilex Mediabox and Gofilex...
- Page 16 Gofilex Support +31 (0)30 6070 802 live@gofilex.nl Monday – Friday 09:00 – 17:00...
