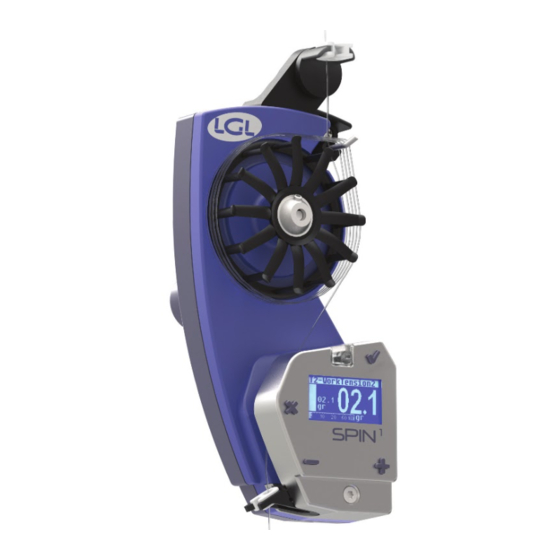

LGL Electronics SPIN1 Instruction Manual

Yarn accumulator with separate coils
Hide thumbs
Table of Contents

Advertisement

Quick Links

ALIMENTATORE DI FILO A SPIRE SEPARATE
YARN ACCUMULATOR WITH SEPARATE COILS
SCHUSSFADENGEBER MIT GETRENNTEN WINDUNGEN
ALIMENTADOR DE HILO DE ESPIRAL SEPARADOS
‹PL‹K ARASI MESAFEL‹ ‹PL‹K BESLEY‹C‹S‹
セパレート型コイル式 ヤーンアキュームレータ
MANUALE DI ISTRUZIONE
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCION
EL K‹TABI
取扱説明書
VALID FROM SERIAL
n° KPLG 10 0001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPIN1 and is the answer not in the manual?

Questions and answers

Summary of Contents for LGL Electronics SPIN1

  • Page 1 MANUALE DI ISTRUZIONE INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCION EL K‹TABI 取扱説明書 ALIMENTATORE DI FILO A SPIRE SEPARATE YARN ACCUMULATOR WITH SEPARATE COILS SCHUSSFADENGEBER MIT GETRENNTEN WINDUNGEN ALIMENTADOR DE HILO DE ESPIRAL SEPARADOS ‹PL‹K ARASI MESAFEL‹ ‹PL‹K BESLEY‹C‹S‹ VALID FROM SERIAL n°...
  • Page 3 N° Doc. : MAN/SPIN 1 Rev. 0 L.G.L. Electronics is flattered by your choice and thanks you for the preference granted SPIN 1 Yarn accumulator INSTRUCTION MANUAL Service Manager Data: 01/05/14 ISSUED BY: Technical Data: 01/05/14 APPROVED BY: Manager...
  • Page 4 WARNINGS 1) Switch off the power supply box and the yarn accumulator before starting any part connection, maintenance or replacement. 2) During standard machine operation, the yarn accumulator may suddenly start up without prior warning. CAUTION: the orange lights do not signal that the yarn accumulator is ON, but that the accumulator has gone into an alarm mode.
  • Page 5 WARNINGS TIPS TO KEEP THE YARN ACCUMULATOR IN GOOD WORKING ORDER AND EXTEND ITS SERVICE LIFE. For you to achieve and maintain a satisfactory performance of the yarn accumulator over the years, we suggest you should follow some simple steps: 1.

  • Page 7: Table Of Contents

    INDEX page GENERAL FEATURES..............8 Main parts – Control and adjustment points........8 Control buttons................9 Display unit ..................11 Main menu map................12 Overall dimensions................13 Intended use – Technical and operational features......14 INSTALLATION................15 Yarn accumulator installation ............15 Power supply box ................

  • Page 8: General Features

    1 - GENERAL FEATURES 1.1 MAIN PARTS – CONTROL AND ADJUSTMENT POINTS Main parts: 6 • Display unit • Tensioner 7 • Load cell 2 • Separating pin 8 • Yarn guide ceramic 3 • Separation control screw 9 • Connector 4 •...

  • Page 9: Control Buttons

    1 - GENERAL FEATURES 1.2 CONTROL BUTTONS ALARM LIGHT "ENTER" BUTTON "ESC" BUTTON "-" BUTTON "+" BUTTON “ ” Enter button The Enter button is used to access the reference tension programming function and the sub-menus and confirm an entry. The purpose of the button depends on the menu you are in.
  • Page 10 1 - GENERAL FEATURES − put the device in the non-self-resetting yarn threading state “WAIT:YarnWinding” (see chapter 3.1). To this purpose, hold this button pressed for about 1 second. “ ” Button This button is used to scroll menus and submenus upwards. Moreover, it is used to increase values in data entry/edit sessions.

  • Page 11: Display Unit

    1 - GENERAL FEATURES 1.3 DISPLAY UNIT Work tension/ alarms Icon bar Measured tension Desired tension Measurement unit Tension display bar– this bar shows the average yarn tension through a segment indicating the peak tension - Negative number display Negative numbers are displayed with the "-" sign on a black background. Negative number “-”...

  • Page 12: Main Menu Map

    1 - GENERAL FEATURES 1.4 MAIN MENU MAP CHAP. 3.2 CHAP. 4 Information on: Feeding voltage (Volt) Power Consumption (Watt) Electronic card temperature (degrees Celsius); State of signals INC and DEC (present in version 4.19 - 3.61) Information on yarn consumption and wheel speed...

  • Page 13: Overall Dimensions

    1 - GENERAL FEATURES 1.5 OVERALL DIMENSIONS ø 65 Weight 350 g...

  • Page 14: Intended Use – Technical And Operational Features

    1 - GENERAL FEATURES 1.6 INTENDED USE – TECHNICAL AND OPERATIONAL FEATURES SPIN1 is a yarn accumulator featuring separate coils suitable for all types of knitting machines or textile machines requiring constant tension yarn feed-in. Operational Features: • Quick reaction to machine speed changes without causing tension peaks on the yarn •...

  • Page 15: Installation

    FLAT CABLE VERSION 1. Place the flat cable onto the support ring and fix it by means of straps. The text “LGL Electronics” on the cable must be on the right reading side; the flat cable lip shall be turned downwards.
  • Page 16 2 - INSTALLATION 2. Connect the cable connector to clamp connector (A). 3. Place the clamp in the desired position; close the clamp grab screw until the strip is punctured (B), taking care to have the connector profile match that of the plate (C). 4.
  • Page 17 2 - INSTALLATION 5. Fix the accumulator to the clamp pin with the related screw (E). Terminated Unterminated clamp clamp A1C2SA072-T A1C2SA072 Place the terminated clamp on the first and the last SPIN in the row. On the others, use the unterminated clamp. Do not use more than two terminated clamps along the same line, as communication problems might result.
  • Page 18 2 - INSTALLATION SINGLE-CABLE VERSION 1. Fix the clamp (A1C2SA060) with the related screw in the desired position on the support ring. 2. Connect the single-cable (A1N1SA791) into the accumulator. 3. Fix the accumulator to the clamp. N.B.: The support ring shall be sized as follows: - height ranging between 15 and 30 mm - max.

  • Page 19: Power Supply Box

    2 - INSTALLATION 2.2 POWER SUPPLY BOX (Available for machines that are not originally equipped with yarn accumulators). 4, 8 or 12-position, power supply box with double INC-DEC signal. 4-position power supply board with 1 INC-DEC signal.
  • Page 20 2 - INSTALLATION 1. POWER (power supply connector) There are 3 different ways to feed voltage to LGL box: − 18Vac to 28Vac single phase alternating voltage. Connect the two (single-phase) lines between two phases whatsoev- er (a, b or c) of the POWER connector. −...
  • Page 21 2 - INSTALLATION 2. FLAT: connector for flat cable. 1 - Yellow/Green –0V (GND) power supply. 2 - Red – power supply (22Vdc to 40Vdc) for flat cable connected de- vices. 3 - Black – Stop signal. 4 - Brown – CANL / LSB serial communication. 5 - Blue –...
  • Page 22 2 - INSTALLATION 7. SERIAL COM: Serial port with dip switches for insertion of 100ohm termina- tion. 1 - CANH / LSA serial communication 2 - CANL / LSB serial communication 3 - 0V (GND). 4 - Power supply voltage (22V to 40V) available for serial port (if neces- sary).
  • Page 23 2 - INSTALLATION INC and DEC signals: signals coming from the machine to increase or decrease the working voltage or shift from one working voltage to another (admitted voltage values for the high logic level: 11V to 40V). N.B.: INC and DEC pulse times shall least exceed 10ms (see chapter 4.2.5 “RS-IncDec Resol”).
  • Page 24 2 - INSTALLATION DEC - INC - DEC + INC + STOP B STOP A STOP 1. CN1: There are 3 different ways to feed voltage to the LGL box: − 18Vac to 28Vac.Single-phase alternating voltage Connect the two (single-phase) lines between two phases whatsoever (1, 2 or 3) of the CN1 connector.
  • Page 25 2 - INSTALLATION 3. CN2: Extension Power Box 1 - 0V (GND). 2 - Power supply (22V to 40V) for expansion board. 3 - “Stop” signal. 4 - “INC” signal. 5 - “DEC” signal. 4. CN4 and CN5: Serial ports (parallel-connected) 1 - CANH / LSA serial communication.

  • Page 26: Module To Add Inc Dec Signal

    2 - INSTALLATION 2.3 MODULE TO ADD INC DEC SIGNALS Module to add INC DEC signals in addition to those that are already present in the standard power box. Each module provides 1 INC DEC signal and 1 EXCLUSION. 4 feeders can be connected for each module.
  • Page 27 2 - INSTALLATION VIN + VIN - DEC - INC - DEC + INC + STOP B STOP A ESC - ANALOG INPUT ANALOG INPUT - 1. POWER CONNECTOR ADMITTED POWER SUPPLY VOLTAGE RANGE: - from 23Vdc to 40Vdc. 2. KNITTING MACHINE INC DEC STOP CONNECTOR INC DEC ACTIVATION VOLTAGE: RS485 or CAN BUS - from 5Vdc to 40Vdc.

  • Page 28: Start-Up And Threading

    3 - START-UP AND THREADING 3.1 OFFSET Once installed on the machine, connected to the power supply box and fed with current, the accumulator appears to be ON. WARNING: Before performing the OFFSET calibration, ensure the accumulator is at a steady temperature. We suggest you go through the cell reset procedure 15 minutes after power on.
  • Page 29 3 - START-UP AND THREADING In cases when the offset calibration procedure is not successful, the led will blink and the message “ERR” will be displayed instead of “OK”. In this case, ensure the yarn does not come into contact with the cell and that there is no residual dirt left around the cell ceramic, then try and repeat the offset procedure.
  • Page 30 3 - START-UP AND THREADING • Wind the wire around the feeding wheel as shown in the figures, taking ca- re that the first coil is run below the separation pin, whereas for the fol- lowing coils the yarn shall run on top of it. (A) •...

  • Page 31: Quick Start-Up

    3 - START-UP AND THREADING N.B.: The “YarnWinding” procedure sets the device to the following status: − The motor is inhibited. Thus, yarn winding around the wheel is made simpler; − A stop signal is sent to the machine. This tells the machine the device is not ready to run; −...

  • Page 32: Setup Menu

    4 - SETTING THE OPERATING PARAMETERS 4.1 MENÙ SETUP Software Release YR: YARN RIGIDITY (see par. 4.2.9) Identification BR: BRAKE RATE (see par. 4.2.10) AO: ADVANCED OPTIONS TR Icon: Relaxation enabled (see paragraph 4.2.8) TE Icon: Tension Error enabled T2 Icon: WorkTension2 enabled The SETUP menu sums up the settings of the accumulator’s main parameters.
  • Page 33 4 - SETTING THE OPERATING PARAMETERS Parameter Editing To increase To decrease To confirm To Exit By pressing the “√” button in the “MENU SETUP" page you enter the parameter editing mode. In this condition, the Led will go on and the machine will Halt. 4.2 PARAMETERS Here follows a progressive list of the main parameters required to programme the accumulator.
  • Page 34 4 - SETTING THE OPERATING PARAMETERS 4.2.2 “T2-WorkTension2” Use + or – to set the Scroll the parameters By using + or - desired value It is the yarn reference tension the SPIN uses when the inputs named “INC” and “DEC” are not selected (OFF). If the parameter is not set to “OFF”, the related icon (T2) in the “MENU SETUP”...
  • Page 35 4 - SETTING THE OPERATING PARAMETERS On the contrary, if parameter “TA-Time Alarm” is set to “OFF”, the icon will not show up in the “SETUP MENU” and the Tension Error alarm will NEVER be actuated. Typically, when parameter “AO-Advanced Options” is set to the alarm default value, TE is only actuated when you work with T1, not with T2.
  • Page 36 4 - SETTING THE OPERATING PARAMETERS By simultaneously pressing the “+” and “-” buttons the increase Step value is set. The increase value will alternatively change from 0.1 to 1.0. By holding pressed the “X” button for 3 seconds, the minimum value that the parameter can take is set.
  • Page 37 4 - SETTING THE OPERATING PARAMETERS 4.2.6 “TR-TensionRelax ” Use + or - to set the Scroll the parameters by desired value using + or - a) Tension Relax “TR-TensionRelax” or the Tension Relax function is the reference tension, typically smaller than the work tension, that the device uses when yarn absorption falls below a given threshold.
  • Page 38 4 - SETTING THE OPERATING PARAMETERS 4.2.7 “SR-Speed Relax” Use + or - to set the Scroll the parameters by using + or - desired value “SR-Speed Relax” parameter stands for the yarn consumption threshold (expressed in m/min) below which the “Tension Relaxation” function is actuated at the value set and entered in parameter “TR-TensionRelax”.
  • Page 39 4 - SETTING THE OPERATING PARAMETERS 4.2.8 “LC- Length Count” “LC- Length Count” counts the amount of wire that has been consumed by the feeder. A value in metres is set which corresponds to the yarn length at the end of which the device has to stop (indicating a machine STOP). As soon as this value is set, the feeder will start measuring the amount of wire it consumes.
  • Page 40 4 - SETTING THE OPERATING PARAMETERS 4.2.9 “AO-Adv.Options” (Advanced Options) Scroll the parameters by using + or - Programmable switches Switch number Programming sequence code This parameter provides 8 programmable switches (0-1). Commands: To move the cursor among the switches. To toggle the switch state (0 to 1 or 1 to 0).
  • Page 41 4 - SETTING THE OPERATING PARAMETERS 4.2.9.1 Switch functions AO-0 - INC/DEC SIGNAL POLARITY 0=NO 1=NC AO-1 - STOP SIGNAL POLARITY 0=NO 1=NC 1= DEDICATED 0=T1 ¨ T2 AO-2 - INC/DEC GRADUATION RESET PROCEDURE 0=ENABLED 1=ENABLED AO-3 - “TE-Tension Error” ALARM POSITION ONLY ON T1 ON T1 &...
  • Page 42 4 - SETTING THE OPERATING PARAMETERS SWITCH 1: STOP SIGNAL POLARITY 0 = NO 1 = NC If set to 1, the STOP signal signalling logic is reversed. AO-1 – STOP POLARITY = 0 STOP STOP ENABLED STOP INHIBITED AO-1 – STOP POLARITY = 1 STOP STOP INHIBITED STOP ENABLED...
  • Page 43 4 - SETTING THE OPERATING PARAMETERS SWITCH 3: “TE-Tension Error” ALARM POSITION 0 = ENABLED ON T1 ONLY 1 = ENABLED ON T1 AND T2 It defines the work position (defined by the INC/DEC signal state) where the Tension Error alarm is enabled, namely where it is ready to operate in cases when Tension exceeds the limit range.
  • Page 44 4 - SETTING THE OPERATING PARAMETERS SWITCH 5: LED BLINKING RESET (Led Blinking due to "TE-Tension Error" alarm) 0 = T2 ¨ T1 1 = T1 ¨ T2 It defines the reset mode of the “TE-Tension Error” alarm display (blinking Leds) related to the INC/DEC signals.
  • Page 45 4 - SETTING THE OPERATING PARAMETERS SWITCH 6: STOP SIGNAL RESET (Stop signal due to a "TE-Tension Error" alarm) 0 = T1 ¨ T2 1 = NEVER It defines how to reset a “STOP” due to a “TE-Tension Error” alarm occurrence through the INC/DEC signals.
  • Page 46 4 - SETTING THE OPERATING PARAMETERS SWITCHES 7 & 8: POSITION OF THE “TR-Tension Relax” FUNCTION It defines the work position (dictated by the state of the INC/DEC signals) that has the relax function enabled, i.e. ready to be actuated. N.B.: −...
  • Page 47 4 - SETTING THE OPERATING PARAMETERS Examples: AO-7 and 8 = 0 - 0 ENABLED IN T1 AND T2 The relaxation function is always enabled, independent of the state of the INC/DEC signals. AO-7 and 8 = 0 - 1 ENABLED IN T1 The relaxation function is only enabled in T1.
  • Page 48 4 - SETTING THE OPERATING PARAMETERS For elastic yarns, a low “YR” value must be set, whereas for rigid yarns a high “YR” value is required. Coated elastic yarn Plain elastomer Rigid yarn 3 to 5 as a function of yarn rigidity This value can be set from 1 to 5.
  • Page 49 4 - SETTING THE OPERATING PARAMETERS This menu is used to perform the zero (or Offset) calibration of the mea- suring cell. Depending on the position the SPIN has on the machine, the ZERO point of the measuring cell may vary due to the actual weight of the cell. To reset the cell weight, the zero calibration needs to be performed.
  • Page 50 4 - SETTING THE OPERATING PARAMETERS 4.2.13.1 “DeviceIDsetting” ID = SPIN identification address. It is needed by the SPIN for serial commu- nication with the outside world. This value can be set from 1 to 254. This address is automatically set by the SPIN if connected to the LGL box or to the flat cable terminal clamp with included numbers.
  • Page 51 4 - SETTING THE OPERATING PARAMETERS 4.2.13.3 “DISPLAY CONTRAST” The display contrast can be adjusted as a function of the existing lighting conditions. This parameter can vary from a minimum value of 15 to a maxi- mum value of 45; The adjustment is made by using the keys + and -. The set parameter is entered upon pressing the key √.
  • Page 52 4 - SETTING THE OPERATING PARAMETERS In cases when the textile application requires the yarn to move bottom-up and the SPIN to be fitted with the outlet mounted upwards, the use of the menus can be made simpler by turning the view on display by 180°. OFF = Normal view 1 = View rotated by 180°...
  • Page 53 4 - SETTING THE OPERATING PARAMETERS - “T1-WorkTension1”;7 - “T2-WorkTension2”; - “TE-TensionError”; - “TA-Time Alarm”; - “TR-TensionRelax”; - “SR-Speed Relax”; - “AO-Adv.Options”; - “YR-Yarn Rigid.”; - “BR-Brake Rate”. In cases when the “Serial Communication Control” feature is enabled, the related blocked parameter icon will be displayed on entering the blocked parameter editing page: Note: the SPIN parameters can also be managed via the POCKET (A7N2S750) terminal unit and cable (A3N1SA1204), or via the KYC...

  • Page 54: Device Turn-Off

    5 - DEVICE TURN-OFF The SPIN can be switched off either by cutting off the power supply and thereby powering the unit down, or holding the “X” button pressed for 5 seconds. Thus, the device can be “switched OFF” and left connected to the system.

  • Page 55: Messages And Alarms

    6 - MESSAGES AND ALARMS The actuation of a message or an alarm is shown on the top line of the display unit, along with the general warning icon blinking on the top in the icon side bar. 6.1 MESSAGES Messages generally are meant to informing the operator on special states reached by the device.

  • Page 56: Alarms

    6 - MESSAGES AND ALARMS 6.1.4 System Error display An “E” followed by an error code appears in the icon area on the display unit as in the example provided below: System Error Code These system errors are useful to LGL technicians. In cases when such Error Codes appear on the display unit, please contact LGL Customer Service.
  • Page 57 6 - MESSAGES AND ALARMS Moreover, the conditions that actuate this alarm also depend on the settings of the “AO-Adv.Options” parameter (see chapter 4.2.8). 6.2.2 Motor Alarms When these alarms are actuated, the SPIN will immediately power OFF the motor. They can only be reset by switching off the device (see chapter 5). If the cause that actuated the alarm has not been removed upon turning on the unit again, the alarm will be actuated again.
  • Page 58 6 - MESSAGES AND ALARMS 6.2.4 Power Down Alarm The *POWER DOWN* alarm is actuated when the device power supply falls below a threshold value which does not guarantee flawless system operation any longer. In this state, the SPIN will immediately switch off the motor and store the operating parameters in the permanent flash memory.

  • Page 59: Conversion Table

    7 - CONVERSION TABLE 7.1 YARN CONVERSION TABLE IN THE VARIOUS COUNT SYSTEMS Dtex Dtex 16.930 48.380 28,57 18.000 10,63 29,76 50.000 29,53 82,68 18.140 10,71 50.800 19.350 11,43 54.190 89,6 20.000 11,81 33,07 54.430 32,14 20.320 33,60 60.000 35,43 99,21 21.170 12,50 60.960...

  • Page 60: Scrapping

    8 - SCRAPPING 8. SCRAPPING If you decide to scrap the machine, you need to destroy/erase all machine identification plates and related documents. If disposal is assigned to an external party, always resort to organizations duly authorized to recovery and/or disposal of the demolition materials. If you perform the disposal on your own, you need to divide the material by type and instruct authorized organizations to dispose of them according to the various waste categories.
