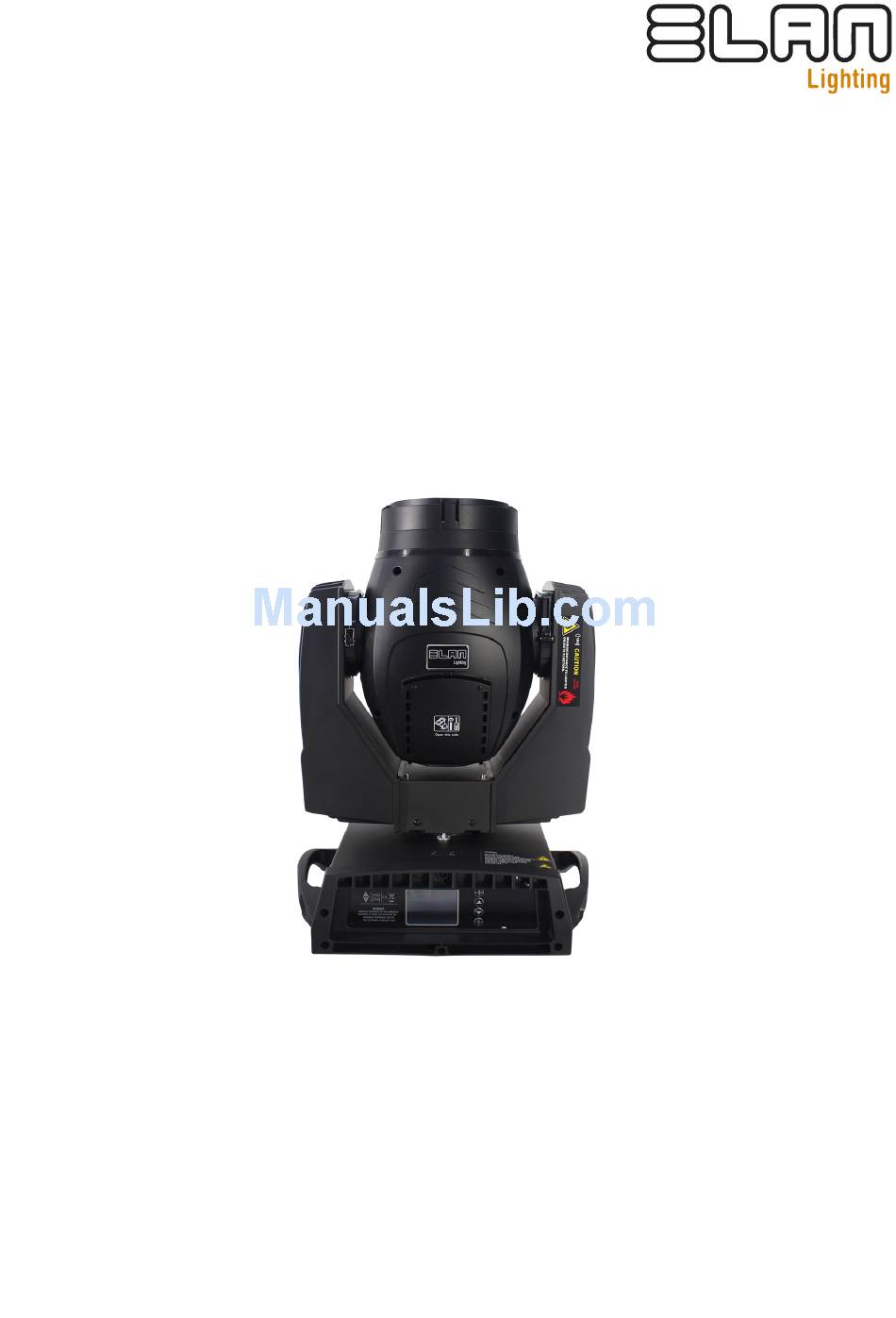

CAB-330-BEAM-IP
USER'S MANUAL
Thank you for purchasing a product from our CAB-330-BEAM-IP Every suit has been
thoroughly tested and shipped in perfect condition. Carefully check the shipping carton
for damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your unit for any damage and be sure all accessories necessary to operate
the unit has arrived intactly. In the case damage has been found or parts are missing,
please contact Acson Comercial or your local supplier for further instructions. Do not return
this unit without any warning.
Advertisement
Table of Contents
Summary of Contents for ELAN Lighting CAB-330-BEAM-IP
- Page 1 CAB-330-BEAM-IP USER’S MANUAL Thank you for purchasing a product from our CAB-330-BEAM-IP Every suit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived intactly.
-
Page 2: Table Of Contents
Contents 1. Introduction ............................3 Features Components Dimensions 2. Package Info ............................4 3. Safety Information ..........................4 4. DMX 512 Connection ..........................5 DMX-512 loop resistance terminal 5. AC Input Power ............................6 Input Voltage Power Consumption Fuse Standard 6. -
Page 3: Introduction
1. Introduction Thank you for choosing CAB-330-BEAM-IP, our brand new high tech fixture with international advan- ced electronic control technology and excellent user-friendly industrial design. It is fully compliant with CE standard, and the internationally accepted standard DMX512 signal mode. -
Page 4: Package Info
2. Package Info All CAB-330-BEAM-IP lights are packed in 1in1 or 2in1 flight case or carton with accessories inside . Included accesories: • Manual • Safety Chain • Omega Clamp (x2) • DMX Cable • Power Wire 3. Safety Information •... -
Page 5: Dmx 512 Connection
Attention! In order to fix the device securely, use 2 omega holders and 4 quick lock fasteners correctly into the quick lock hole turned 90 clockwise is necessary. Adding a safety chain to the base hole not the handle is extra and necessary safety method . Safety Chain Omega... -
Page 6: Ac Input Power
5. AC Input Power CAB-330-BEAM-IP input voltage, power consumption, and fuse standard. Attention! Only a qualified electrician can operate the power related work. Please make sure the voltage input complies with the specified standard. The fixture must be grounded and equipped with overload and leakage protection . -
Page 7: Color And Gobo Wheels Info
7. Color and Gobo Wheels Info Color Wheel. CAB-330-BEAM-IP is equipped with 14 colors Fixed Gobo Wheel. CAB-330-BEAM-IP is equipped with plus white for pure color and excellent effect . 17fixed gobos plus open .Better effects with 16 facet prism . - Page 8 Main Menu Submenu 1 Submenu2 Function SET Function description Mode3 18CH Chan Mode Mode4 20CH Pan Scan Normal X Reverse Pan Scan Reverse Tilt Scan Normal Y Reverse Tilt Scan Reverse X Angle Pan/Tilt optical sensor testing off XY OCcheck Pan/Tilt optical sensor testing on FEATURES SETTING...
- Page 9 Main Menu Submenu 1 Submenu2 Function SET Function description Use Mang Factory use only X Master X Slave Y Master Y Slave Lamp Y Angle XY Speed NORM Logo Neutral ADVANCED 4KEY FUNCTION Fact Set Password1 Password2 Fact Passwoed1 Fact Passwoed2 Back ALL MOTOR...
-
Page 10: Dmx Channel Data
Main Menu Submenu 1 Submenu2 Function SET Function description OTHER INTO back SYSTEM ERROR INTO INFO Back to main menu Brightness 1~7 Level Back Ground light level 10sec Back Ground light dim out after 10 second. 20sec Back Ground light dim out after 20 second. Light Delay 30sec Back Ground light dim out after 30 second. - Page 11 Mode 1 Mode 2 Mode 3 Mode 4 DMX Value Details Description 56 - 59 Color 6 + Color 7 60 - 63 Color 7 64 - 68 Color 7 + Color 8 69 - 72 Color 8 73 - 76 Color 8 + Color 9 77 - 81 Color 9...
- Page 12 Mode 1 Mode 2 Mode 3 Mode 4 DMX Value Details Description 20 - 23 Gobo5 24 - 27 Gobo6 28 - 31 Gobo7 32 - 35 Gobo8 36 - 39 Gobo9 40 - 43 Gobo10 44 - 47 Gobo11 48 - 51 Gobo12 52 - 55...
- Page 13 Mode 1 Mode 2 Mode 3 Mode 4 DMX Value Details Description 0 - 127 0°-> 360° 128 - 187 Clockwise rotation, Fast ->Slow 189 - 195 Halt 196 - 255 Anticlockwise rotation slow ->fast 10CH 0 - 255 Linear dimmer 0-100% 11CH 0 - 255 Linear focus 0-100%...
-
Page 14: Drive Board
11. Drive Board Drive board illustration. 12. Lamp Changing Method Theory Lamp Fixed Position Press the Lamp to make it leave the fixed position then tilt it out Steel spring blade to hold the lamp from falling... -
Page 15: Changing Method
Changing Method Lamp Fixed Position Remove the fan Remove the lamp 13. Body Covers Disassembling Method Open both side axle covers Remove head cover Remove body cover... -
Page 16: Base Part Info And Installation
14. Base Part Info and Installation Open basement Sealing Rubber Strips Basement Cover Power Board plastic cover Loosen screws and draw boards unit out Open boards Power unit cover Supply Unit 24V Power Supply Basement Ignitor Plastic Cover Open basement plastic cover Attention Loosen screws... -
Page 17: Attention Items
16. Attention Items • Check the light seal situation and make sure it’s not damaged before operating it . • The device can be installed normally and upside-down, • The device is only up to IP 54 waterproof standard wi- thout fully sealing structure ,therefore do not immerse it into water. - Page 18 IMPORTANT In order to optimize the recovery and recycling of the materials that old appliances contain and reduce the impact on human health and the environment, please make sure that this product is recycled at the end of its life. Note: All information is subject to change without prior notice.
