Enerwave ZWN-RSM1S Installation Instructions

INSTALLATION INSTRUCTIONS
ZWN-RSM1S
Smart Single Relay Switch Module
SPECIFICATIONS
Voltage.........................................................................120-277VAC, 50/60Hz
Maximum Load requirement.....................................................................10A
Z-Wave Frequency.............................................................. 908.42MHz(US)
Operating Temperature.............................................................32° F-104° F
Size................................................................................2.02'' ×1.71'' ×0.82''
Range.................................................................Up to 100 feet line of sight
between the Wireless Controller and the closest Z-Wave receiver module.
FEATURES
Work with existing light switches, required neutral wire
Slim size module with build in Z-Wave technology
Acts as a Z-Wave repeater to extend the range
On/Off control via Z-Wave controller, manual wall switch, and/or built-in button.
Connected switch still works even if the module is failed.
DESCRIPTION
Z-Wave unifies all your home electronics into an integrated wireless network
and helps them talk to each other. Any Z-Wave enabled item can be added
to the network, and making your home electronics fully compatible.
The ZWN-RSM1S Switch Module is a component of lighting control system, it
can not be used separately but should turn an existing switch into a Z-Wave
switch. This ZWN-RSM1S module is a Z-Wave enabled device and is fully
compatible with any Z-Wave enabled network. In a Z-Wave network, each
device is designed to act as a wireless repeater. Once the ZWN-RSM1S module
is installed and setup with in your wall, it will retransmit the RF signal from one
intended device is reached. This ensures that the
device to another until the
signal is received by its intended destination by routing the signal around
obstacles and radio dead spots.
-01-
WARNINGS AND CAUTIONS
To be installed and/or used in accordance with appropriate electrical codes
and regulations. Exercise extreme caution when using Z-Wave devices to
control appliances. Operation of the Z-Wave device may be in a different
room than the controlled appliance, also an unintentional activation may
occur if the wrong button on the remote is pressed. Z-Wave devices may
automatically be powered on due to timed event programming.Depending
upon the appliance, these unattended or unintentional operation could
possibly result in a hazardous condition.
Z-Wave enabled devices should never be used to supply power to, or
control the On/Off status of medical and/or life support equipment.
If you are unsure or uncomfortable about performing the installation,
please consult a qualified electrician.
INSTALLATION

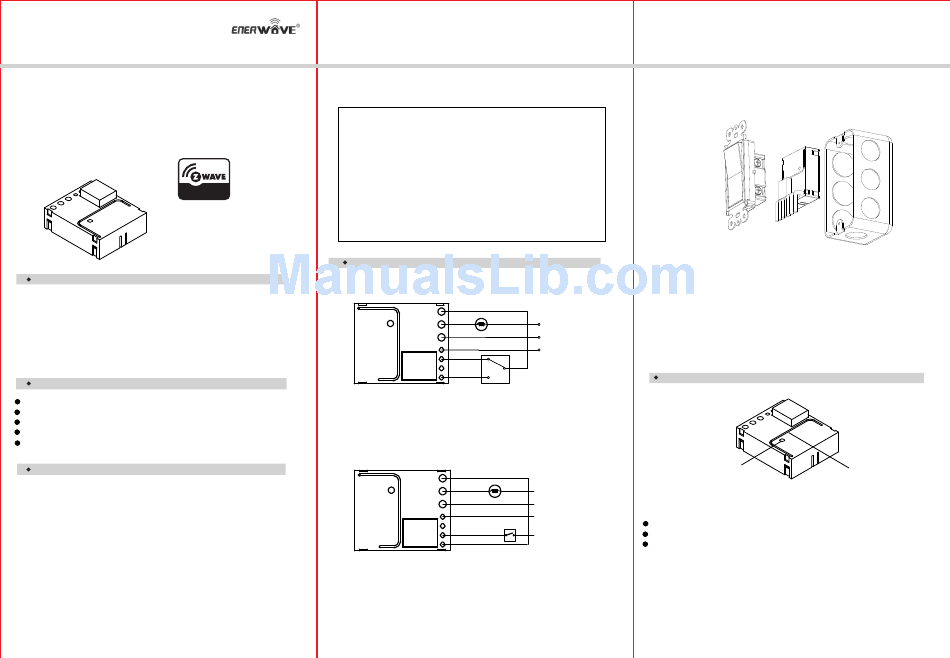

Wiring Diagram 1:
Com
Load
Hot
Neutral
NC
NO
Switch 1
Please note that Switch 1 must be a 3-way switch.
of ZWN-RSM1S becomes invalid, the connected switch still works. Connected
switch can not activate learning mode to be included or excluded with the
Z-Wave network.
Wiring Diagram 2:
Com
Load
Hot
Neutral
Switch 1
Aux
NO
When the electrical part of
Please note that Switch 1 is a regular switch.
ZWN-RSM1S becomes invalid, the connected switch does not work. With
this wiring, flick connected switch can activate learning mode to be included
or excluded with the Z-Wave network.
-02-
Please consult an electrician if you have trouble identifying the type of wiring
circuit you wish to convert or if you do not feel confident in your ability to
convert the circuit to Z-Wave control.
1. WARNING: To avoid fire, shock, or death. Turn off power at circuit breaker
or fuse and test that power is off before wiring.
2. Remove wall plate and switch mounting screws.
3. Carefully remove the existing switch from the switch box.
4. Disconnect the wiring from the existing switch.
5. Connect the ZWN-RSM1S module as shown in the wiring diagram.
6. Check connections to be sure they are tight and no bare conductors are exposed.
Neutral
Line 7. Insert the ZWN-RSM1S module into the box first
(Black)
8. Attach the wall plate.
Neutral
9. Restore power at the circuit breaker and test the system.
(White)
OPERATIONS
When the electrical part
Neutral
TIPS FOR ARRANGING THE ANTENNA:
Line
(Black)
Neutral
(White) Locate the antenna as far from metal elements as possible to prevent interferences.
Metal surfaces in the direct vicinity of the antenna may impair signal reception.
Line
Do not cut or shorten the antenna - its length is perfectly matched.
Basic Operation
The connected device can be turned ON in two ways:
1. Manual control with the button on the connected switch.
2. Z-Wave remote controller.
, then wire the existing switch.
Program Button
Antenna
-03-
