Cloud-Tracker CT-01 Quick Installation Manual

Cloud-Tracker
Quick Installation Guide

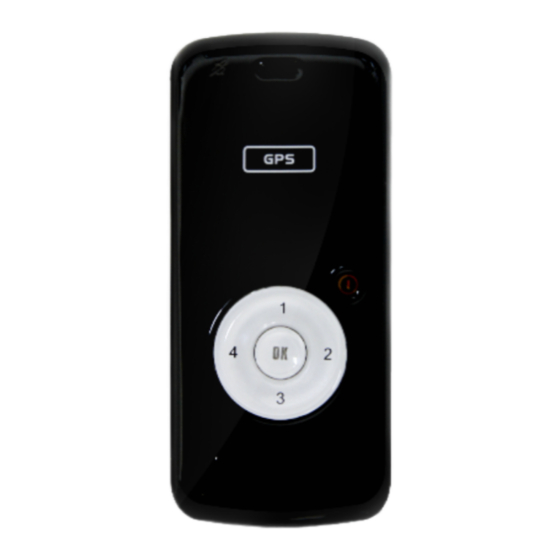

CT-01 GPS Tracker
MODEL NO. CT-01
Version 1.0
4

Cloud-Tracker Wizard

1.Inser t the Installation CD and Autorun will star t. (or you can run
setup.exe manually.)
2.Choose Language, consent the agreement and choose the setup
path.
Install
3.Click [Install] when the following message pops up.
Install
4.Cloud Tracker Wizard will run after installation.
Introduction

Hardware Interface:

Package Contents

1 Cloud Tracker 820mAh batter y QIG
NFC ID card USB cable CD
5V power supply Anti-Slip Pad

System Requirement

Windows 7 Windows Vista Windows XP
5

Cloud Tracker basic settings

1.Follow the screen instruction to power on Cloud Tracker and connect
Cloud Tracker with your PC.
2.Enter the PIN code to unlock SIM card and click [Next].
unlocked successfully, you will hear a beep sound from Cloud Tracker.
2

Tracker Basic Operation

Tracker LED indication:

Red blink No GSM signal
Blue blink No Internet connection
Green blink GPS/GSM signal is fixed.
Green fast blink Tracker is sending data.
Yellow blink Searching GPS signal
Red->Green blink Battery level is less than 35%
Red fast blink Battery level is less than 10%
Green on Charging completed
3.Choose your ser vice provider to bring in APN settings.
※If your ser vice provider is not in the list, please enter
APN settings manually.
Next
4.Enter SIM card phone number and the 4 preset hotline
numbers. (You can also change phone numbers in APP.)
If PIN is
※Geo Fence and SOS aler t is sent to the 4 preset hotline
Next
numbers by SMS (text message). Please make sure you
enter the hotline numbers correctly.
3

SIM card Installation

Install a SIM card
1.Unlock and open the back panel
2.Take the batter y out
3.Inser t the SIM card
5.The Cloud Tracker will restar t automatically with the new
settings. You can use Cloud Tracker APP and My Cloud web
ser vice to manage Cloud Trackers.
Next
Click [Yes] for the privacy settings.
Next
Finish
Yes(Y)
