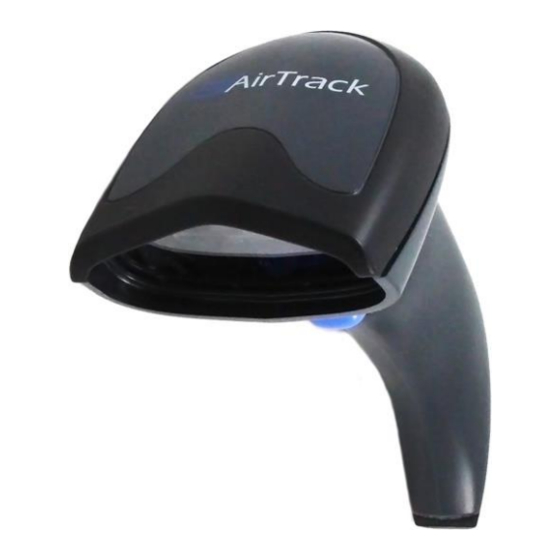

- Page 1 General Purpose Corded Handheld Linear Imager Bar Code Reader Quick Reference Guide...
- Page 2 U.S.A. and the E.U. All other brand and product names may be trademarks of their respective owners. S1 is a registered trademark of AirTrack, Inc. in many countries, including the U.S.A. Autosense is a registered trademark of AirTrack, Inc. in the U.S.
- Page 3 Agreement. If you do not intend to be bound to the terms of this Agreement, AirTrack is not willing to license the Software to you, you may not use the AirTrack Product or the Software, and you must contact the party from whom you acquired the AirTrack Product for instructions.
- Page 4 Software is protected by intellectual property laws and treaties. The license set forth in this Agreement does not transfer to End User any ownership of AirTrack's or its third party licensors' copyrights, patents, trademarks, service marks, trade secrets, or other intellectual property rights and End User shall have no right to commence any legal actions to obtain such rights.
- Page 5 Computer Software clause at DFARS 252.227-7013(c)(1)(ii), whichever is applicable. 9.2 If End User is using the AirTrack Product outside of the United States, End User must comply with the applicable local laws of the country in which the AirTrack Product is used, with U.S.
- Page 6 Software Product Policy AirTrack reserves the right to ship its products with the latest version of software/firmware available. This provides our customers with the very latest in AirTrack software technology. The only exception to this policy is when the buyer...
- Page 7 Hands Free Stand/Holder Figure 1. Adjusting the Stand...
- Page 8 Quick Reference Guide Connect/Disconnect Cable Connect Host Interface Keyboard Wedge Interface RS-232 Interface USB Interface...
- Page 9 Aim and Scan Aim and Scan 012345 012345 65° 65°...
- Page 10 Parts of the Reader 1. LED 3. Scan Window 2. Cable Release Hole 4. Trigger...
- Page 11 Programming Bar Codes Programming Bar Codes For your convenience, this guide includes the programming bar codes required to configure the reader for use with different interface (terminal/host) types. See the Product Reference Guide (PRG) for more complete information about programming and configurable features. You can download the latest version of the PRG and any other available publications for the reader from the website listed on the back cover of this manual.
- Page 12 RS-232 Interface To use an RS-232 interface, scan the bar code for the desired RS-232 host type. Select RS-232 Standard Select RS-232 Wincor Nixdorf Select RS-232 OPOS (for use with OPOS/UPOS/JavaPOS)
- Page 13 USB and defaults to the USB Keyboard interface. Select USB-COM-STD (simulates RS-232 standard interface) Select USB Keyboard (with standard key encoding) Select USB Alternate Keyboard (with alternate key encoding) Select USB OEM Download the correct USB Com driver from www.AirTrack.com.
- Page 14 Quick Guide Keyboard Wedge Interface To use a Keyboard Wedge interface, scan the bar code for the desired keyboard type. Select KBD-AT (AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key Encoding) Select KBD-AT-NK (IBM AT PS2 with standard key encoding but without external kbd.) Select KBD-AT-ALT (AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &...
-
Page 15: Scanning Modes
Scanning Modes Scanning Modes If the interface type is changed, scanner configuration automatically reset to a different Scanning Mode. NOTE The reader can operate in one of several scanning modes: When the trigger is pulled, scanning is activated Trigger Single — until one of the following occurs: - a programmable duration has elapsed... - Page 16 , except that a trigger pull is required to activate the Mode decoder. Scan Mode = Trigger Single Scan Mode = Trigger Hold Multiple Scan Mode = Trigger Pulse Multiple Scan Mode = Flashing Scan Mode = Always On ® Scan Mode = Autosense Stand Mode can Mode = Trigger Object Sense...
-
Page 17: Troubleshooting
Troubleshooting Troubleshooting Problem Possible Cause Possible Solutions Check system power. Nothing happens when No power to the Ensure power supply is the trigger is pulled. reader. connected. Interface or power Ensure all cable cables are loose. connections are secure. Ensure reader is programmed to read Reader not the type of bar code... -
Page 18: Led And Beeper Indications
LED and Beeper Indications The reader’s beeper sounds and its LED illuminates to indicate various functions or errors on the reader. A “Green Spot” also lights to indicate a good read. The tables below list these indications. One exception to the behaviors listed in the tables is that the reader’s functions are programmable, and may or may not be turned on. -
Page 19: Ergonomic Recommendations
AirTrack could void the user's authority to operate the equipment. Power Supply Use only a power supply approved by AirTrack for this product and model. Models require either a Listed class II or class III with a Limited Power Source(LPS) which supplies power directly to the reader. -
Page 20: Reader Labeling
Radio Frequency Interference Requirements This equipment has been tested and found to comply with the limits for a Class B digital Tested to comply with FCC Standards device, pursuant to Part 15 of the FCC rules. FOR HOME OR OFFICE USE These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 21: Warranty Coverage
AirTrack warrants repaired hardware devices against defects in workmanship and materials on the repaired assembly for a 90-day period starting from the date of shipment of the repaired product from AirTrack or until the expiration of the original warranty period, whichever is longer. AirTrack does not... - Page 22 Customer may not assign or otherwise transfer its rights or obligations under this warranty except to a purchaser or transferee of product. No attempted assignment or transfer in violation of this provision shall be valid or binding upon AirTrack. AIRTRACK'S LIMITED WARRANTY IS IN LIEU OF ALL OTHER...
- Page 23 Electronic Equipment (WEEE), please refer to the website at www.AirTrack.com. Italian Per informazioni sullo smaltimento delle apparecchiature elettriche ed elettroniche consultare il sito Web www.AirTrack.com. French Pour toute information relative à l’élimination des déchets électroniques (WEEE), veuillez consulter le site internet www.
- Page 24 ::I: China RoHS Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium biphenyls (PBB) diphenyl ethers (Cr(VI)) (PBDE) :ff :ff !J&J®::®GJ'G* :tc\111' 'if!Wf:!&fifr 'ffi' 1!U* PART ltJj Cable 7't ll{tf: Assy, Module Printed CircuiiBoard 4H.!Hll1tf: Assy {-'è$:Jitt9=t'èffi{!fé"JPJT:ff:I$J®:Jft*-4cf::l?JTI3-B"Jì t9=t :$ 1o/J®::J:l:]ffr.rcf::l $A.B AtifD00{§}J"'illL GBIT5JY-!:fflé"J Et!r{§} f"tfbcp :$ 1o/J®:B"J .N:!i ::K...
- Page 25 X{f(r"l't $" (t3ra'f {)() deter mine d by "Loo k-up Meth od" (sca nner) ff{!i Jtl!IJ .N!f.'...
- Page 26 :::r ::l"" s· :;· ;:;· " "' ::I: Ch" lv 4004-0849 RoHS " " Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium biphenyls diphenyl ethers (Cr(VI)) (PBB) (PBDE) "C :ff:ff!J&J&!:@G7C* '< "C '< 'fl1WJ::!b l :fc\111' l 1 lU* PART Power supply {-'è...
- Page 27 Cleaning When needed, gently clean the scan window using a lens cloth or lint-free cleaning tissues dampened with a nonabrasive, mild, water-based glass cleaner. The other surfaces can also be cleaned using the same cleaning agents. Do not allow fluids to flow into the internal parts of the scanner.
-
Page 28: Declaration Of Conformity
Floor Chicago, IL 60606 USA La presente dichiarazione di conformità è rilasciata sotto la responsabilità esclusiva di AirTrack, Inc. per: This Declaration of Conformity is issued under the sole responsibility of AirTrack, Inc. for: Cette déclaration de conformité est établie sous la seule responsabilité de AirTrack, Inc: Diese Konformitätserklärung wird unter der alleinigen Verantwortung des AirTrack, Inc. - Page 29 © 2016 AirTrack, Inc. • All rights reserved. • AirTrack and the AirTrack logo are registered trademarks of AirTrack in many countries, including the U.S.A. AirTrack, Inc. 200 West Monroe Street, 10 Floor | Chicago |IL 60606 | USA Telephone: (855)-235-1718...
