Summary of Contents for VAF instruments 258

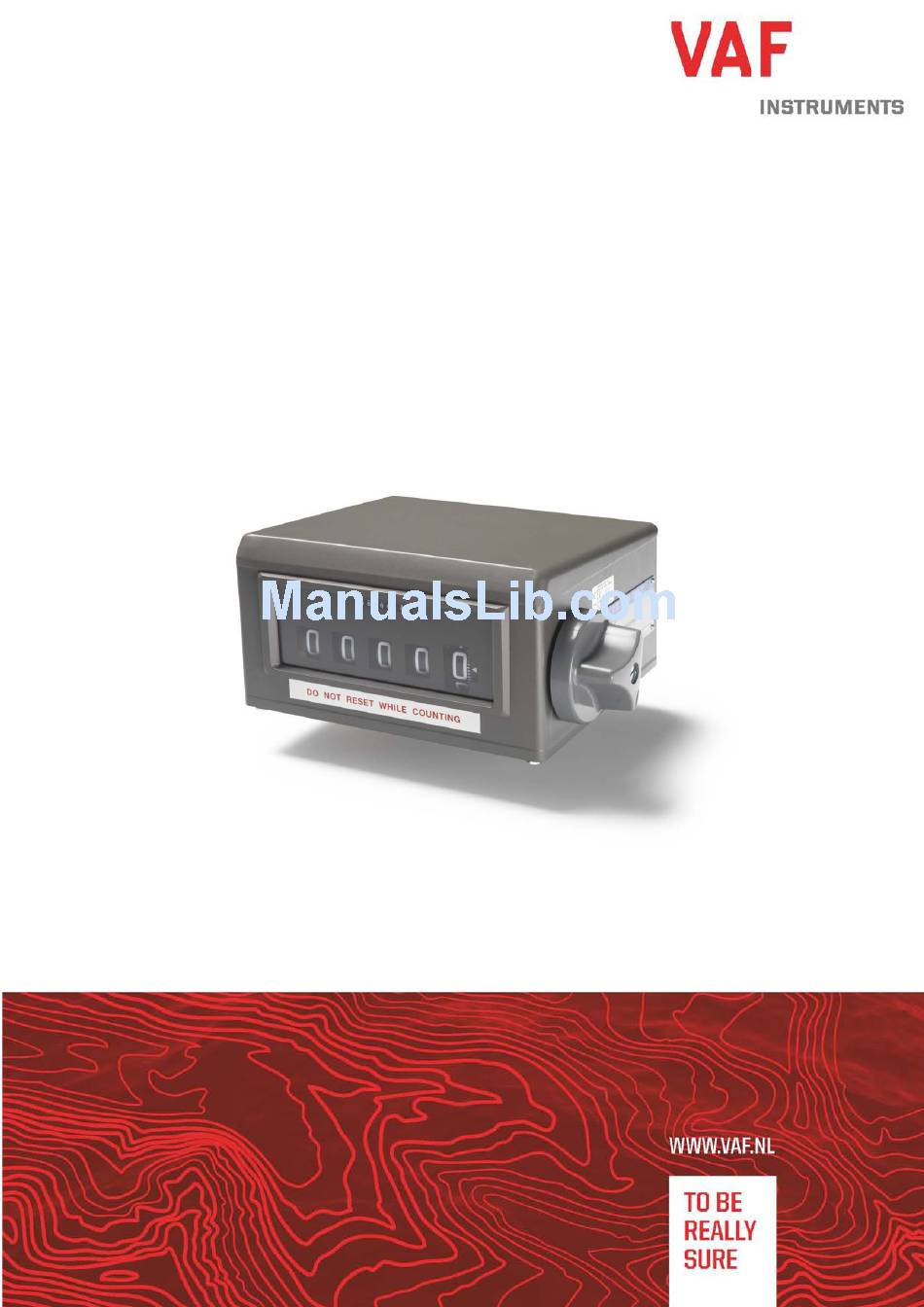

- Page 1 Technical Manual Instructions for installation, operation and maintenance RESET COUNTER ® ® For MidFlow and HiFlow series ‘J’ Vane meters Publication nr TIB-258-GB-0711 Supersedes TIB-258-GB-0290...
-
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION ..................2 2. OPERATION ....................2 GENERAL ......................2 OPERATION ......................2 3. MAINTENANCE ..................3 GENERAL ......................3 METER REGISTER REMOVAL ................ 3 DISASSEMBLY PRIOR TO CLEANING ............3 CLEANING ......................3 INSPECTION ....................... 4 LUBRICATION ..................... 4 3.6.1 RECOMMENDED LUBRICANTS ............. -
Page 3: Introduction
This manual contains important information for the installer, the operator and for your maintenance department. To ensure safe and correct installation and operation, study this manual carefully before starting operations. For any additional information contact: VAF Instruments B.V. Tel. +31 78 618 3100 Vierlinghstraat 24, 3316 EL Dordrecht +31 78 617 7068 P.O. -
Page 4: Maintenance
3. MAINTENANCE 3.1 GENERAL The meter-register is fully lubricated and properly adjusted at manufacture. However, periodic cleaning and lubrication are required. Judgement of the intervals at which the meterregister requires such service must necessarily be left to the individual user, due to varying conditions of service. Under normal conditions this will be at least once a year, or after each 2.5 million units of measure delivered, which ever comes first. -
Page 5: Inspection
3.5 INSPECTION A periodic inspection of the entire meter-register, housing and gear plate is required to make sure that they function properly, parts are in place, and no binding or excessive side-to-side motion of shafts occurs. A check list on such procedures follows: 1. -
Page 6: Points To Lubricate
If the Anderol lubricant is not available, a substitute with equivalent properties may be used. To assist fieldmen in obtaining suitable lubricants for the meter-register and ticket printers, the following list showing equivalent lubricants has been prepared: OIL: AEROSHELL FLUID NO. 3 ARGEOYLE ARTIC OIL LIGHT REGENT SPINTEX OIL 60 CASTROL HYSPIN - 40... -
Page 8: Gear Plate
4. GEAR PLATE A gear plate can be mounted at the bottom of the Meter-Register in order to obtain several read-outs on VAF Positive Displacement flowmeters (e.g. litres, m ). Two ratios are used, namely 1:1 and 10:1. -
Page 9: Parts List
5. PARTS LIST ITEM PART NUMBER DESCRIPTION 0609-0026 GROOVE PIN + DRIVE COUPLING W6104-76 WASHER W 7083-22 GEAR PLATE W5522-1 DRIVE SHAFT W6104-27 WASHER W7180-3 GEAR W6104-42 WASHER W4611-2 SPLIT PIN W4010-7 CIRCLIP W3006-50 GEAR 50 TEETH W5304-7 SPACER W33534-6 BUSH W5406-14 SCREW 10-32UNFx1/4”... - Page 11 ITEM PART NUMBER DESCRIPTION 1 + 2 0609-0026 GROOVE PIN + DRIVE COUPING W6104-76 WASHER W7083-22 GEAR PLATE W5522-1 DRIVE SHAFT W6104-27 WASHER W7180-3 GEAR W 6104-2 WASHER W4611-2 SPLIT PIN W33534-C BUSH W6104-66 WASHER W5471-25 SCREW W1001-2 STUD W6105-17 WASHER W1001-1 GEAR ARM...
- Page 13 Reset Register Assembly See Drawing 0830-1204-3, Sheet 1 Item Part Number Part name 0499-1280 Cover W4010014 Circlip W6104191 Washer (031) W6104023 Washer (010) W6104027 Washer (005) W4301041 Transfer Pinion W5573076 Pinion Shaft W6104191 Washer (031) W7779916 Detent Lever grp. J054-0057 Spring W4048013 Roller...
- Page 14 W7779913 Reset Lever grp. W5271313 Spring W6104194 Washer (010) W6104193 Washer (005) W4010070 Circlip W7779907 Left Frame W5471330 Screw W5401029 Screw W6105009 Lockwasher W3171419 Gear W4606041 Groove pin W1302013 Mounting bar W7779908 Bracket W6105038 Lockwasher W5471327 Screw J054-0062 Clutch Shaft J054-0063 Groove Pin J054-0064...
- Page 15 W5471329 Screw Crystal 0499-0322 Reading 0.1 1 (litre) 0499-0327 Reading 1 1 (litre) 0499-0337 Reading 0.01m3 0499-0338 Reading 0.1 m3 0499-0406 Reading 1 0499-0344 Reading 0.1 Gallon 0499-0345 Reading 1 Gallon 0499-0346 Reading 10 Gallon W4059002 Seal Wire W4058001 Seal W3071420 Gear W4010028...
-
Page 16: Warranty Conditions
6. WARRANTY CONDITIONS 1. Without prejudice to the restrictions stated hereinafter, the contractor guarantees both the soundness of the product delivered by him and the quality of the material used and/or delivered for it, insofar as this concerns faults in the product delivered which do not become apparent during inspection or transfer test, which the principal shall demonstrate to have arisen within 12 months from delivery in accordance with subarticle 1A exclusively or predominantly as a direct consequence of unsoundness of the construction used by the contractor or as a consequence of... - Page 17 g. all necessary safety and precautionary measures shall have been taken and adhered to, and all measures shall have been taken and adhered to necessary to observe the applicable government regulations in the context of assembly/installation; h. the products shipped shall be available at the correct site at the commencement of and during assembly.
- Page 18 Vierlinghstraat 24, 3316 EL Dordrecht, The Netherlands Specifications subject to change without notice. P.O. Box 40, 3300 AA Dordrecht, The Netherlands VAF Instruments B.V. is an ISO 9001 Certified Company. T +31 78 618 3100 sales@vaf.nl, www.vaf.nl Agents and distributors in more than 50 countries.
