Summary of Contents for W Audio MIXE10

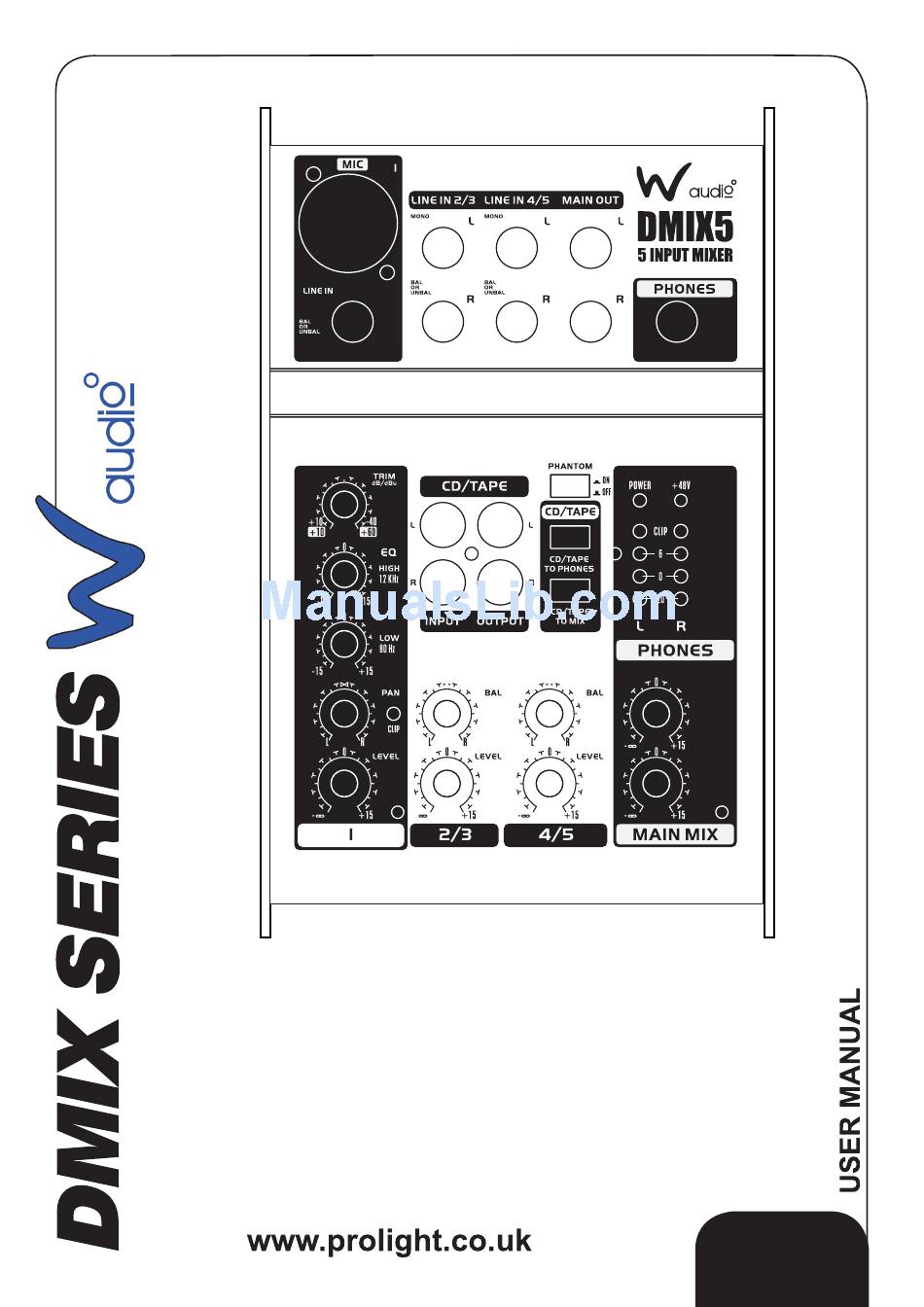

- Page 1 Order Code: MIXE10 - DMIX5 MIXE11 - DMIX6 MIXE12 - DMIX10FX MIXE10 - DMIX12FX ENGLISH...
-
Page 2: Safety Instructions
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! -

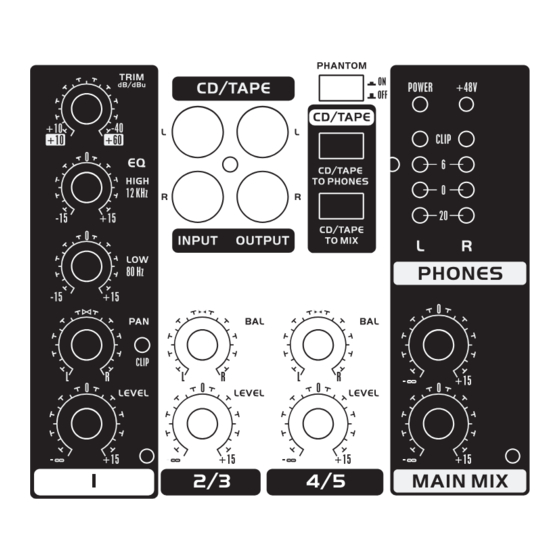

Page 3: Operating Determinations
IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 Introduction: The DMIX5, DMIX6, DMIX10FX and DMIX12FX mixing consoles offer versatility, audio quality and reliable performance from the minimal chassis size. With the microphone preamps including phantom power as an option. Balanced line inputs and a powerful effects section. The mixing consoles in the DMIX Series are equipped for live and studio applications.
- Page 5 Overview: DMIX5:...
- Page 6 Overview: DMIX6:...
- Page 7 Overview: DMIX10FX:...
- Page 8 Overview: DMIX12FX:...
- Page 9 Identification: 1, MIC Each mono input channel offers a balanced microphone input via the XLR connector and also features switchable +48V phantom power supply for condenser microphones. The DMIX preamps provide undistorted and noise-free gain as is typically known only from large format consoles. 2, LINE IN Each mono input also features a balanced line input on a 6.35mm Jack connector.
- Page 10 Identification: 11, MAIN OUT The MAIN OUT connectors are unbalanced mono connectors. 12, CD / TAPE INPUT The CD/MP3/TAPE INPUTS are used to bring an external signal source (e.g. CD player, tape deck, etc.) into the console. They can also be used as a standard stereo line input. OUTPUT These Phono connectors are wired parallel with the MAIN OUT.
- Page 11 Identification: 20, POWER LED LED lights up when the Mixer is turned on. 21, SIGNAL AND CLIP LED The 4-segment level indicator displays the signal level. The CLIP LED´s illuminate when the output signal is driven too high, which could cause distortion. If this happens, use the MAIN LEVEL control to reduce the main level until the LED does not light anymore.
- Page 12 Identification: 29, SENSITIVITY +4 / -10 The stereo inputs have an input sensitivity switch which selects between +4 dBu and -10 dBu. At -10 dBu (home-recording level), the input is more sensitive (requires less level to drive it) than at +4 dBu (studio level). 30, FX TO MAIN The FX TO MAIN control feeds the effects signal into the main mix.
-
Page 13: Rear Panels
Rear Panels: DMIX5: DMIX6: DMIX10FX: DMIX12FX: AC POWER IN Connect the power supply to the 3-pin 16.8V AC x 2 connector on the rear of the console. Use the 240V AC adapter supplied to connect the console to the mains. The adapter complies with all appli- cable safety standards. -
Page 14: Effects Presets
Effect Presets: EFFECTS PRESETS EFFECT Description EFFECT Description HALL 00-09 DELAY 50-59 SMALL HALL 1 approx. 1.0s reverb decay SHORT DELAY 1 Like a short shattering approx. 1.2s reverb decay 1-2 short impulse(s) SMALL HALL 2 SHORT DELAY 2 SMALL HALL 3 approx. -
Page 15: Specifications
Specifications: Model Name: DMIX5 DMIX6 Channels: Mono Mic and Line Input Channels: Mono Mic and Line Input Connectors: XLR, Jack 6.35mm XLR, Jack 6.35mm Stereo Line Input Channels: Stereo Line Input Connectors: Jack 6.35mm mono Jack 6.35mm mono AUX / Effects Send Channels: AUX / Effects Send Connectors: Jack 6.35mm Stereo AUX Return:... - Page 16 Specifications: Model Name: DMIX10FX DMIX12FX Channels: Mono Mic and Line Input Channels: Mono Mic and Line Input Connectors: XLR, Jack 6.35mm XLR, Jack 6.35mm Stereo Line Input Channels: Stereo Line Input Connectors: Jack 6.35mm mono Jack 6.35mm mono AUX / Effects Send Channels: AUX / Effects Send Connectors: Jack 6.35mm Jack 6.35mm...
