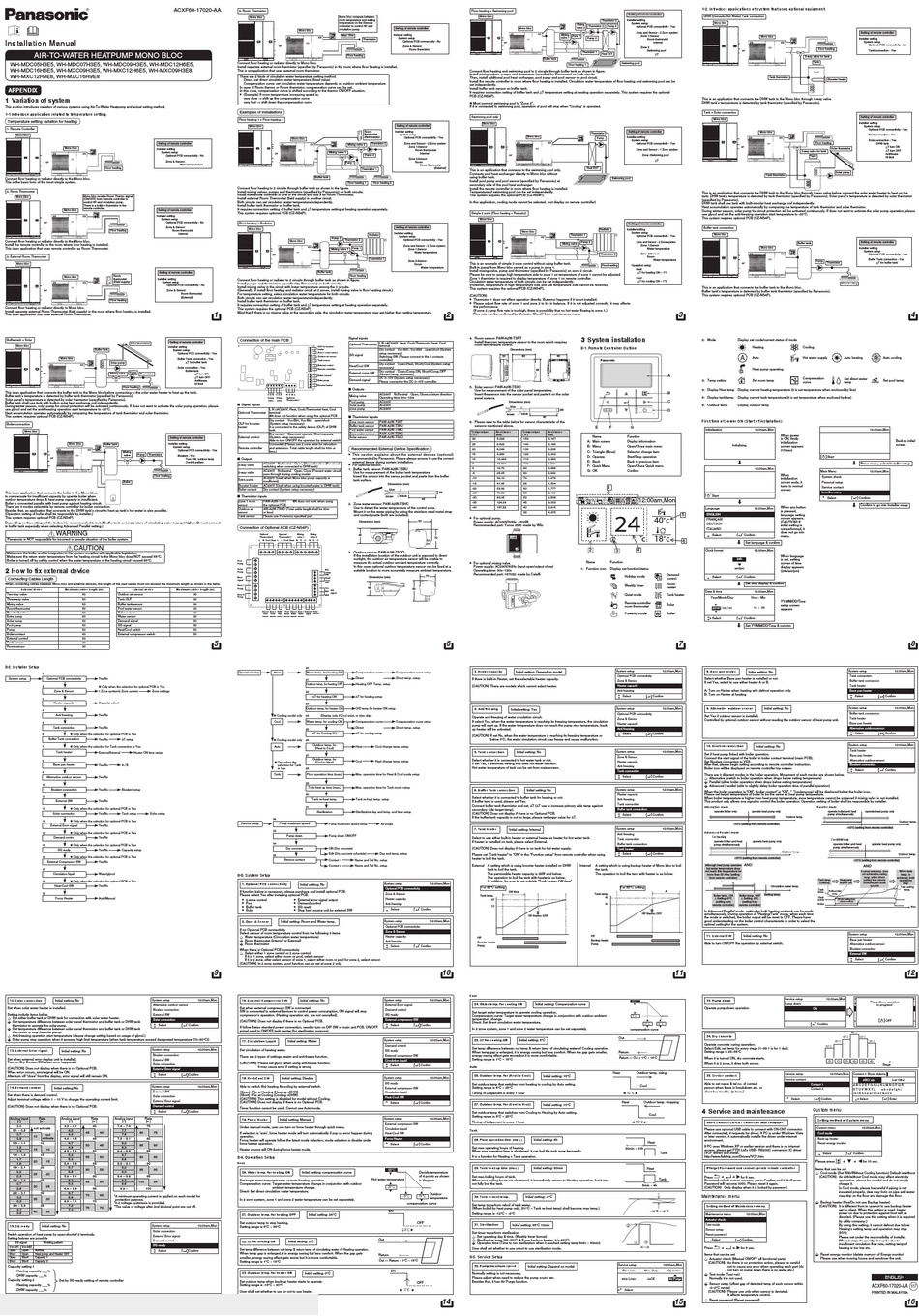

Panasonic WH-MDC07H3E5 Installation Manual

ACXF60-17020-AA
Installation Manual
AIR-TO-WATER HEATPUMP MONO BLOC
WH-MDC05H3E5, WH-MDC07H3E5, WH-MDC09H3E5, WH-MDC12H6E5,
WH-MDC16H6E5, WH-MXC09H3E5, WH-MXC12H6E5, WH-MXC09H3E8,
WH-MXC12H9E8, WH-MXC16H9E8
APPENDIX
1 Variation of system
This section introduces variation of various systems using Air-To-Water Heatpump and actual setting method.
1-1 Introduce application related to temperature setting.
Temperature setting variation for heating
1. Remote Controller
Mono bloc
Setting of remote controller
Mono bloc
Installer setting
System setup
Optional PCB connectivity - No
or Zone & Sensor:
Water temperature
Floor heating
Connect fl oor heating or radiator directly to the Mono bloc.
This is the basic form of the most simple system.
2. Room Thermostat
Mono bloc receive Room Thermo signal
Mono bloc
(ON/OFF) from Remote controller to
control HP and circulation pump.
There is a build-in thermistor in the
remote controller.
Mono bloc Setting of remote controller
Installer setting
System setup
or Optional PCB connectivity - No
Zone & Sensor:
Room thermostat
Floor heating
Internal
Connect fl oor heating or radiator directly to the Mono bloc.
Install the remote controller in the room where fl oor heating is installed.
This is an application that uses remote controller as Room Thermostat.
3. External Room Thermostat
Mono bloc
Setting of remote controller
Room
Mono bloc
thermostat
Installer setting
(Field supply)
System setup
Optional PCB connectivity - No
or
Zone & Sensor:
Room thermostat
(External)
Floor heating
Connect fl oor heating or radiator directly to Mono bloc.
Install separate external Room Thermostat (fi eld supply) in the room where fl oor heating is installed.
This is an application that uses external Room Thermostat.
Buffer tank + Solar
Setting of remote controller
Solar thermistor
Mono bloc
Installer setting
Buffer tank
System setup
Optional PCB connectivity - Yes
Mono bloc Buffer Tank connection - Yes
Solar pump
Solar connection - Yes
Pump
or Mixing valve Thermistor
Floor heating
This is an application that connects the buffer tank to the Mono bloc before connecting to the solar water heater to heat up the tank.
Buffer tank's temperature is detected by buffer tank thermistor (specifi ed by Panasonic).
Solar panel's temperature is detected by solar thermistor (specifi ed by Panasonic).
Buffer tank shall use tank with built-in solar heat exchange coil independently.
During winter season, solar pump for circuit protection will be activated continuously. If does not want to activate the solar pump operation, please
use glycol and set the anti-freezing operation start temperature to -20°C.
Heat accumulation operates automatically by comparing the temperature of tank thermistor and solar thermistor.
This system requires optional PCB (CZ-NS4P).
Boiler connection
Mono bloc
Setting of remote controller
Mono bloc Installer setting
Buffer tank
System setup
Optional PCB connectivity - Yes
Mixing
Pump Thermistor
valve Bivalent - Yes
or
Floor heating
Boiler
This is an application that connects the boiler to the Mono bloc,
to compensate for insuffi cient capacity by operate boiler when
outdoor temperature drops & heat pump capacity is insuffi cient.
Boiler is connected parallel with heat pump against heating circuit.
There are 3 modes selectable by remote controller for boiler connection.
Besides that, an application that connects to the DHW tank's circuit to heat up tank's hot water is also possible.
(Operation setting of boiler shall be responsible by installer.)
This system requires optional PCB (CZ-NS4P).
Depending on the settings of the boiler, it is recommended to install buffer tank as temperature of circulating water may get higher. (It must connect
to buffer tank especially when selecting Advanced Parallel setting.)
WARNING
Panasonic is NOT responsible for incorrect or unsafe situation of the boiler system.
CAUTION
Make sure the boiler and its integration in the system complies with applicable legislation.
Make sure the return water temperature from the heating circuit to the Mono bloc does NOT exceed 55°C.
Boiler is turned off by safety control when the water temperature of the heating circuit exceed 85°C.
2 How to x external device
Connecting Cables Length
When connecting cables between Mono bloc and external devices, the length of the said cables must not exceed the maximum length as shown in the table.
External device Maximum cables length (m) External device Maximum cables length (m)
Two-way valve 50 Outdoor air sensor
Three-way valve 50 Tank OLP
Mixing valve 50 Buffer tank sensor
Room thermostat 50 Pool water sensor
Booster heater 50 Solar sensor
Extra pump 50 Water sensor
Solar pump 50 Demand signal
Pool pump 50 SG signal
Pump 50 Heat/Cool switch
Boiler contact 50 External compressor switch
External control 50
Tank sensor 30
Room sensor 30
3-2. Installer Setup
1
System setup Optional PCB connectivity Yes/No
2 Only when the selection for optional PCB is Yes
Zone & Sensor
1 Zone system/2 Zone system Zone settings
3
Heater capacity Capacity select
4
Anti freezing Yes/No
5
Tank connection Yes/No
6 Only when the selection for optional PCB is Yes
Buffer Tank connection Yes/No T setup
7 Only when the selection for Tank connection is Yes
Tank heater External/Internal Heater ON time setup
8
Base pan heater Yes/No A / B
9
Alternative outdoor sensor Yes/No
10
Bivalent connection Yes/No Bivalent setup
11
External SW Yes/No
12 Only when the selection for optional PCB is Yes
Solar connection Yes/No Tank setup Solar setup
13 Only when the selection for optional PCB is Yes
External Error signal Yes/No
14 Only when the selection for optional PCB is Yes
Demand control Yes/No
15 Only when the selection for optional PCB is Yes
SG ready Yes/No Capacity setup
16 Only when the selection for optional PCB is Yes
External Compressor SW Yes/No
17
Circulation liquid Water/glycol
18 Only when the selection for optional PCB is Yes
Heat-Cool SW Yes/No
19
Force Heater Auto/Manual
12. Solar connection System setup
Initial setting: No
Alternative outdoor sensor
Set when solar water heater is installed.
Bivalent connection
Setting include items below. External SW
1 Set either buffer tank or DHW tank for connection with solar water heater.
Solar connection
2 Set temperature difference between solar panel thermistor and buffer tank or DHW tank
thermistor to operate the solar pump. Select
3 Set temperature difference between solar panel thermistor and buffer tank or DHW tank
thermistor to stop the solar pump.
4 Anti-freezing operation start temperature (please change setting based on usage of glycol.)
5 Solar pump stop operation when it exceeds high limit temperature (when tank temperature exceed designated temperature (70~90°C))
System setup
13. External Error signal Initial setting: No
Bivalent connection
Set when external error display unit is installed.
External SW
Turn on Dry Contact SW when error happened.
Solar connection
(CAUTION) Does not display when there is no Optional PCB.
External Error signal
When error occurs, error signal will be ON.
Select
After turn off "close" from the display, error signal will still remain ON.
System setup
14. Demand control
Initial setting: No
External SW
Set when there is demand control.
Solar connection
Adjust terminal voltage within 1 ~ 10 V to change the operating current limit.
External Error signal
(CAUTION) Does not display when there is no Optional PCB. Demand control
Select
Analog input Rate Analog input Rate Analog input Rate
[v] [%] [v] [%] [v] [%]
0.0 3.9 ~ 4.1 40 7.4 ~ 7.6 75
not activate
0.1 ~ 0.6 4.2 7.7
45 40 80 75
0.7 4.3 7.8
not
10
activate
0.8 4.4 ~ 4.6 45 7.9 ~ 8.1 80
0.9 ~ 1.1 10 4.7 8.2
50 45 85 80
1.2 4.8 8.3
15 10
1.3 4.9 ~ 5.1 50 8.4 ~ 8.6 85
1.4 ~ 1.6 15 5.2 8.7
55 50 90 85
1.7 5.3 8.8
20 15
1.8 5.4 ~ 5.6 55 8.9 ~ 9.1 90
1.9 ~ 2.1 20 5.7 9.2
60 55 95 90
2.2 5.8 9.3
25 20
2.3 5.9 ~ 6.1 60 9.4 ~ 9.6 95
2.4 ~ 2.6 25 6.2 9.7
65 60 100 95
2.7 6.3 9.8
30 25
2.8 6.4 ~ 6.6 65 9.9 ~ 100
2.9 ~ 3.1 30 6.7
70 65
3.2 6.8 *A minimum operating current is applied on each model for
35 30
protection purpose.
3.3 6.9 ~ 7.1 70
*0.2 voltage hysteresis is provided.
3.4 ~ 3.6 35 7.2
*The value of voltage after 2nd decimal point are cut off.
75 70
3.7 7.3
40 35
3.8
15. SG ready Initial setting: No System setup
Solar connection
Switch operation of heat pump by open-short of 2 terminals.
External Error signal
Setting belows are possible
Demand control
SG signal Working pattern
SG ready
Vcc-bit1 Vcc-bit2
Open Open Normal Select
Short Open Heat pump and Heater OFF
Open Short Capacity 1
Short Short Capacity 2
Capacity setting 1
- Heating capacity ___%
- DHW capacity ___%
Capacity setting 2 Set by SG ready setting of remote controller
- Heating capacity ___%
- DHW capacity ___%
4. Room Thermistor
Mono bloc compare between
Mono bloc
room temperature and setting
temperature on the Remote
controller to control HP and
circulation pump.
Mono bloc
Max: 30m
or
Floor heating
Connect fl oor heating or radiator directly to Mono bloc.
Install separate external room thermistor (specifi ed by Panasonic) in the room where fl oor heating is installed.
This is an application that uses external room thermistor.
There are 2 kinds of circulation water temperature setting method.
Direct: set direct circulation water temperature (fi xed value)
Compensation curve: set circulation water temperature depends on outdoor ambient temperature
In case of Room thermo or Room thermistor, compensation curve can be set.
In this case, compensation curve is shifted according to the thermo ON/OFF situation.
•
(Example) If room temperature increasing speed is;
very slow shift up the compensation curve
very fast shift down the compensation curve
Examples of installations
Floor heating 1 + Floor heating 2
Mono bloc
Mono bloc
Mixing valve 2
Mixing valve 1
or
Pump 1
Buffer tank
Floor heating 1
Connect fl oor heating to 2 circuits through buffer tank as shown in the fi gure.
Install mixing valves, pumps and thermistors (specifi ed by Panasonic) on both circuits.
Install the remote controller in one of the circuit and use it as Room Thermostat.
Install external Room Thermostat (fi eld supply) in another circuit.
Both circuits can set circulation water temperature independently.
Install buffer tank thermistor on buffer tank.
It requires connection setting of buffer tank and T temperature setting at heating operation separately.
This system requires optional PCB (CZ-NS4P).
Floor heating + Radiator
Mono bloc
Pump 2
Thermistor 2
Mono bloc
Pump 1
Mixing valve 1
or
Buffer tank
Floor heating
Connect fl oor heating or radiator to 2 circuits through buffer tank as shown in fi gure.
Install pumps and thermistors (specifi ed by Panasonic) on both circuits.
Install mixing valve in the circuit with lower temperature among the 2 circuits.
(Generally, if install fl oor heating and radiator circuit at 2 zones, install mixing valve in fl oor heating circuit.)
For temperature setting, select circulation water temperature for both circuits.
Both circuits can set circulation water temperature independently.
Install buffer tank thermistor on buffer tank.
It requires connection setting of buffer tank and T temperature setting at heating operation separately.
This system requires the optional PCB (CZ-NS4P).
Mind that if there is no mixing valve at the secondary side, the circulation water temperature may get higher than setting temperature.
1
Signal inputs
Connection of the main PCB
Optional Thermostat
OLP for booster
heater
Zone 1 room sensor
SG signal
Outdoor air sensor
Tank sensor
T for buffer tank
External control Heat/Cool SW
Remote controller
Buffer tank
External comp.SW
T turn ON
Boiler contact
T turn OFF
Demand signal
Antifreeze Extra pump
Hi limit
Booster heater
Outputs
C O N C O N H C N L
Mixing valve
2-way 3-way Optional
Thermostat 1
valve valve
Pool pump
Signal inputs
Solar pump
L N =AC230V, Heat, Cool=Thermostat heat, Cool Zone pump
Optional Thermostat terminal
It does not function when using the optional PCB Thermistor inputs
Dry contact Vcc-Bit1, Vcc-Bit2 open/short
Zone room sensor
OLP for booster (System setup necessary)
Buffer tank sensor
heater It is connected to the safety device (OLP) of DHW
Pool water sensor
tank.
Zone water sensor
Dry contact Open=not operate, Short=operate
External control (System setup necessary) Solar sensor
Able to turn ON/OFF the operation by external switch
Connected (Please use 2 cores wire for relocation
Remote controller and extension. Total cable length shall be 50m or
Recommended External Device Specifi cation
less.)
•
This section explains about the external devices (optional)
recommended by Panasonic. Please always ensure to use the correct
Turn ON: outdoor temp Outputs
external device during system installation.
Control pattern
AC230V N=Neutral Open, Close=direction (For circuit
•
3-way valve For optional sensor.
switching when connected to DHW tank)
1. Buffer tank sensor: PAW-A2W-TSBU
AC230V N=Neutral Open, Close (Prevent water circuit
2-way valve Use for measurement of the buffer tank temperature.
pass through during cooling mode)
Insert the sensor into the sensor pocket and paste it on the buffer
AC230V (Used when Mono bloc pump capacity is
Extra pump tank surface.
insuffi cient)
Booster heater AC230V (Used when using booster heater in DHW tank)
Boiler contact Dry contact (System setup necessary)
Thermistor inputs
Zone 1 room PAW-A2W-TSRT It does not work when using
sensor the optional PCB 2. Zone water sensor: PAW-A2W-TSHC
Use to detect the water temperature of the control zone.
Outdoor air AW-A2W-TSOD (Total cable length shall be 30m
Mount it on the water piping by using the stainless steel metal strap
sensor or less)
and contact paste (both are included).
Tank sensor Please use Panasonic specifi ed part
Dimensions (mm)
Connection of Optional PCB (CZ-NS4P)
Optional Optional Mixing Mixing
35
Thermostat 2 Thermostat 1 valve 1 valve 2
L N Cool Heat L N Cool Heat N O C N O C
3. Outdoor sensor: PAW-A2W-TSOD
If the installation location of the outdoor unit is exposed to direct
sunlight, the outdoor air temperature sensor will be unable to
Pool
measure the actual outdoor ambient temperature correctly.
Pump
In this case, optional outdoor temperature sensor can be fi xed at a
Solar
Ext. suitable location to more accurately measure ambient temperature.
Pump comp.
SW
Error
Heat/
signal
Cool
SW
Zone 1
Pump Vcc
SG
Bit1
signal
30 Zone 2
Bit2
Pump
30
30
30
Zone 2 Zone 1 Buffer Pool Zone 2 Zone 1 Demand Solar
30
room room Tank water water water signal sensor
30 sensor sensor sensor sensor sensor sensor
50
50
50
50
5
20
Operation setup Heat Water temp. for heating ON Compensation curve
Direct
21
Outdoor temp. for heating OFF Heating OFF Temp. setup
22
T for heating ON T for heating setup
23
Outdoor temp. for heater ON O/D temp for heater ON setup
Cooling model only 24 (Display only if Cool exist, or else skip)
Cool Water temp. for cooling ON Compensation curve
Direct
25
T for Cooling ON T for cooling setup
Cooling model only 26
Outdoor temp. for
Auto Heat
(Heat to Cool)
27
Outdoor temp. for
Cool
Only when the (Cool to Heat)
selection for Tank
is Yes 28
Tank Floor operation time (max.) Max. operation time for Heat & Cool mode setup
29
Tank heat up time (max.) Max. operation time for Tank mode setup
30
Tank re-heat temp. Tank re-heat temp. setup
31
Sterilization Sterilization day and temp. and time setup
32
Service setup Pump maximum speed Pump maximum speed setup
33
Pump down Pump down ON/OFF
34
Dry concrete ON (Dry concrete)
Edit (Dry concrete schedule)
35
Service contact Contact 1 Name and Tel No. setup
Contact 2 Name and Tel No. setup
3-3. System Setup
1. Optional PCB connectivity Initial setting: No
If function below is necessary, please purchase and install optional PCB.
Please select Yes after installing optional PCB.
• •
2-zone control External error signal output
• Pool • Demand control
• •
Buffer tank SG ready
• •
Solar Stop heat source unit by external SW
2. Zone & Sensor Initial setting: Room and Water temp.
If no Optional PCB connectivity
Select sensor of room temperature control from the following 3 items
1 Water temperature (Circulation water temperature)
2 Room thermostat (Internal or External)
3 Room thermistor
When there is Optional PCB connectivity
1 Select either 1 zone control or 2 zone control.
If it is 1 zone, select either room or pool, select sensor
If it is 2 zone, after select sensor of zone 1, select either room or pool for zone 2, select sensor
(CAUTION) In 2 zone system, pool function can be set at zone 2 only.
9
12:00am,Mon 16. External Compressor SW
Initial setting: No
Set when external compressor SW is connected.
SW is connected to external devices to control power consumption, ON signal will stop
compressor's operation. (Heating operation etc. are not cancelled).
(CAUTION) Does not display if there is no Optional PCB.
Confi rm
If follow Swiss standard power connection, need to turn on DIP SW of main unit PCB. ON/OFF
signal used to ON/OFF tank heater (for sterilization purpose)
17. Circulation Liquid
Initial setting: Water
12:00am,Mon Set circulation of heating water.
There are 2 types of settings, water and anti-freeze function.
(CAUTION) Please set glycol when using anti-freeze function.
It may cause error if setting is wrong.
Confi rm
18. Heat-Cool SW Initial setting: Disable
12:00am,Mon Able to switch (fi x) heating & cooling by external switch.
(Open) : Fix at Heating (Heating +DHW)
(Short) : Fix at Cooling (Cooling +DHW)
(CAUTION) This setting is disabled for model without Cooling.
(CAUTION) Does not display if there is no Optional PCB.
Timer function cannot be used. Cannot use Auto mode.
Confi rm
19. Force Heater Initial setting: Manual
Under manual mode, user can turn on force heater through quick menu.
If selection is 'auto', force heater mode will turn automatically if pop up error happen during
operation.
Force heater will operate follow the latest mode selection, mode selection is disable under
force heater operation.
Heater source will ON during force heater mode.
3-4. Operation Setup
Heat
20. Water temp. for heating ON Initial setting: compensation curve
Set target water temperature to operate heating operation.
Compensation curve: Target water temperature change in conjunction with outdoor
ambient temperature change.
Direct: Set direct circulation water temperature.
In 2 zone system, zone 1 and zone 2 water temperature can be set separately.
21. Outdoor temp. for heating OFF
Initial setting: 24°C
Set outdoor temp to stop heating.
12:00am,Mon
Setting range is 5°C ~ 35°C
22. T for heating ON Initial setting: 5°C
Set temp difference between out temp & return temp of circulating water of Heating operation.
Confi rm
When temp gap is enlarged, it is energy saving but less comfort. When the gap gets
smaller, energy saving effect gets worse but it is more comfortable.
Setting range is 1°C ~ 15°C
23. Outdoor temp. for heater ON Initial setting: 0°C
Set outdoor temp when back-up heater starts to operate.
Setting range is -15°C ~ 20°C
User shall set whether to use or not to use heater.
13
Floor heating + Swimming pool
Mono bloc
Setting of remote controller Mono bloc
Installer setting
System setup
Thermistor
Optional PCB connectivity - No
or
Zone & Sensor:
Room thermistor
Connect fl oor heating and swimming pool to 2 circuits through buffer tank as shown in fi gure.
Install mixing valves, pumps and thermistors (specifi ed by Panasonic) on both circuits.
Then, install additional pool heat exchanger, pool pump and pool sensor on pool circuit.
Install the remote controller in room where fl oor heating is installed. Circulation water temperature of fl oor heating and swimming pool can be
set independently.
Install buffer tank sensor on buffer tank.
It requires connection setting of buffer tank and T temperature setting at heating operation separately. This system requires the optional
PCB (CZ-NS4P).
Must connect swimming pool to "Zone 2".
If it is connected to swimming pool, operation of pool will stop when "Cooling" is operated.
Swimming pool only
Mono bloc
Setting of remote controller
Room Installer setting
thermostat System setup
Mono bloc
(fi eld supply) Optional PCB connectivity - Yes
Thermistor 2 Zone and Sensor - 2 Zone system
Zone 1:Sensor
Room thermostat
Internal
Pump 2 or
Zone 2:Sensor
Room
Room thermostat
(External)
Thermistor 1 This is an application that connects to the swimming pool only.
Connects pool heat exchanger directly to Mono bloc without
using buffer tank.
Install pool pump and pool sensor (specifi ed by Panasonic) at
Floor heating 2
secondary side of the pool heat exchanger.
Install the remote controller in room where fl oor heating is installed.
Temperature of swimming pool can be set independently.
This system requires the optional PCB (CZ-NS4P).
In this application, cooling mode cannot be selected. (not display on remote controller)
Simple 2 zone (Floor heating + Radiator)
Mono bloc
Setting of remote controller
Mono bloc
Installer setting
Radiator
System setup
Optional PCB connectivity - Yes
Zone and Sensor - 2 Zone system
or
Zone 1:Sensor
Water temperature
Thermistor 1
Zone 2:Sensor
This is an example of simple 2 zone control without using buffer tank.
Room
Built-in pump from Mono bloc served as a pump in zone 1.
Water temperature
Install mixing valve, pump and thermistor (specifi ed by Panasonic) on zone 2 circuit.
Please be sure to assign high temperature side to zone 1 as temperature of zone 1 cannot be adjusted.
Zone 1 thermistor is required to display temperature of zone 1 on remote controller.
Circulation water temperature of both circuits can be set independently.
(However, temperature of high temperature side and low temperature side cannot be reversed)
This system requires the optional PCB (CZ-NS4P).
(CAUTION)
• Thermistor 1 does not affect operation directly. But error happens if it is not installed.
•
Please adjust fl ow rate of zone 1 and zone 2 to be in balance. If it is not adjusted correctly, it may affects
the performance.
(If zone 2 pump fl ow rate is too high, there is possibility that no hot water fl owing to zone 1.)
2
Flow rate can be confi rmed by "Actuator Check" from maintenance menu.
4. Room sensor: PAW-A2W-TSRT
Install the room temperature sensor to the room which requires
L N =AC230V, Heat, Cool=Thermostat heat, Cool
room temperature control.
terminal
Dry contact Vcc-Bit1, Vcc-Bit2 open/short (System Dimensions (mm)
setup necessary)
Switching SW (Please connect to the 2 contacts 30 86
controller)
Dry contact Open=Heat, Short=Cool (System setup
necessary)
86
Dry contact Open=Comp.ON, Short=Comp.OFF
(System setup necessary)
DC 0~10V (System setup necessary)
Please connect to the DC 0~10V controller.
5. Solar sensor: PAW-A2W-TSSO
Use for measurement of the solar panel temperature.
AC230V N=Neutral Open, Close=mixture direction Insert the sensor into the sensor pocket and paste it on the solar
Operating time: 30s~120s panel surface.
AC230V Dimensions (mm)
AC230V
blue
AC230V
brown black
PAW-A2W-TSRT
6. Please refer to the table below for sensor characteristic of the
PAW-A2W-TSBU sensors mentioned above.
PAW-A2W-TSHC
Temperature Resistance Temperature
PAW-A2W-TSHC
(°C) (k ) (°C)
PAW-A2W-TSSO
30 5.326 150
25 6.523 140
20 8.044 130
15 9.980 120
10 12.443 110
5 15.604 100
0 19.70 90
-5 25.05 80
-10 32.10 70
-15 41.45 65
Dimensions (mm)
-20 53.92 60
blue
Ø6 -25 70.53 55
brown black
-30 93.05 50
40
-35 124.24 45
-40 167.82 40
35
•
For optional pump.
93 Power supply: AC230V/50Hz, <500W
Recommended part: Yonos 25/6: made by Wilo
70
•
For optional mixing valve.
Power supply: AC230V/50Hz (input open/output close)
Operating time: 30s~120s
Recommended part: 167032: made by Caleffi
70
Dimensions (mm)
46
93
6
3. Heater capacity
Compensation curve setup Initial setting: Depend on model
Direct temp. setup
If there is built-in Heater, set the selectable heater capacity.
(CAUTION) There are models which cannot select heater.
4. Anti freezing Initial setting: Yes
Operate anti-freezing of water circulation circuit.
Compensation curve setup If select Yes, when the water temperature is reaching its freezing temperature, the circulation
pump will start up. If the water temperature does not reach the pump stop temperature, back-
Direct temp. setup
up heater will be activated.
(CAUTION) If set No, when the water temperature is reaching its freezing temperature or
below 0°C, the water circulation circuit may freeze and cause malfunction.
Cool change temp. setup
5. Tank connection Initial setting: No
Select whether it is connected to hot water tank or not.
Heat change temp. setup
If set Yes, it becomes setting that uses hot water function.
Hot water temperature of tank can be set from main screen.
6. Buffer Tank connection
Initial setting: No
Select whether it is connected to buffer tank for heating or not.
If buffer tank is used, please set Yes.
Connect buffer tank thermistor and set, T ( T use to increase primary side temp against
secondary side target temp).
(CAUTION) Does not display if there is no Optional PCB.
If the buffer tank capacity is not so large, please set larger value for T.
Air purge
7. Tank heater Initial setting: Internal
Select to use either built-in heater or external heater as heater for hot water tank.
If heater is installed on tank, please select External.
(CAUTION) Does not display if there is no tank for hot water supply.
Day and temp. setup
Please set "Tank heater" to "ON" in the "Function setup" from remote controller when using
heater to boil the tank.
External A setting which is using booster heater installed on DHW
tank to boil the tank.
The permissible heater capacity is 3kW and below.
The operation to boil the tank with heater is as below.
In addition, be sure to set suitable "Tank heater: ON time"
12:00am,Mon
System setup
For 65°C setting
Optional PCB connectivity
ON time
Zone & Sensor
Tank temp.
Heater capacity
65
Anti freezing
53
Select Confi rm
HP thermo OFF
System setup 12:00am,Mon
Optional PCB connectivity
Zone & Sensor
Heater capacity
HP
Anti freezing
Booster heater
Select Confi rm Pump
10
Cool
System setup 12:00am,Mon
24. Water temp. for cooling ON
External Error signal Initial setting: Compensation curve
Demand control
Set target water temperature to operate cooling operation.
SG ready
Compensation curve: Target water temperature change in conjunction with outdoor ambient
temperature change.
External compressor SW
Direct: Set direct circulation water temperature.
Select Confi rm
In 2 zone system, zone 1 and zone 2 water temperature can be set separately.
System setup 12:00am,Mon 25. T for cooling ON Initial setting: 5°C
Demand control
Set temp difference between out temp & return temp of circulating water of Cooling operation.
SG ready
When temp gap is enlarged, it is energy saving but less comfort. When the gap gets smaller,
External compressor SW energy saving effect gets worse but it is more comfortable.
Setting range is 1°C ~ 15°C
Circulation liquid
Select Confi rm
Auto
26. Outdoor temp. for (Heat to Cool)
System setup 12:00am,Mon
SG ready
Set outdoor temp that switches from heating to cooling by Auto setting.
Setting range is 5°C ~ 25°C
External compressor SW
Circulation liquid Timing of judgement is every 1 hour
Heat-Cool SW
Select Confi rm
27. Outdoor temp. for (Cool to Heat)
Set outdoor temp that switches from Cooling to Heating by Auto setting.
Setting range is 5°C ~ 25°C
System setup 12:00am,Mon
Timing of judgement is every 1 hour
External compressor SW
Circulation liquid
Tank
Heat-Cool SW
Force Heater
28. Floor operation time (max.) Initial setting: 8h
Select Confi rm
Set max operating hours of heating.
When max operation time is shortened, it can boil the tank more frequently.
It is a function for Heating + Tank operation.
29. Tank heat up time (max.) Initial setting: 60min
¡ ¡ ¢ £
Decide temperature
of 4 points as shown Set max boiling hours of tank.
Hot water temperature
in diagram When max boiling hours are shortened, it immediately returns to Heating operation, but it may
not fully boil the tank.
¡ ¢ £
Outdoor
¡ ¢ £ ¥ ¡ ¢ £
30. Tank re-heat temp. Initial setting: -8°C
¤ temperature
compensation curve
Set temp to perform reboil of tank water.
(When boiled by heat pump only, (51°C – Tank re-heat temp) shall become max temp.)
ON
Setting range is -12°C ~ -2°C
OFF
31. Sterilization Initial setting: 65°C 10min
¦ § ¨ ©
Set timer to perform sterilization.
1 Set operating day & time. (Weekly timer format)
Out 2 Sterilization temp (55~75°C If use back-up heater, it is 65°C)
3 Operation time (Time to run sterilization when it reached setting temp 5min ~ 60min)
User shall set whether to use or not to use sterilization mode.
Return
3-5. Service Setup
Out — Return = 1°C ~ 15°C
32. Pump maximum speed Initial setting: Depend on model
ON
Normally setting is not necessary.
Please adjust when need to reduce the pump sound etc.
Besides that, it has Air Purge function.
OFF
  C
14
1-2. Introduce applications of system that uses optional equipment.
Setting of remote controller
DHW (Domestic Hot Water) Tank connection
Thermistor 3 Installer setting
Mono bloc
System setup
Mixing
Thermistor 2 Pump 3
Optional PCB connectivity - Yes
valve 2
Zone and Sensor - 2 Zone system
Mixing
Pump 1 Zone 1:Sensor
valve 1 Pump 2
Room thermostat
Internal
Zone 2
Swimming pool
Thermistor 1
Heat EXT T
Buffer tank
Swimming pool
Floor heating 1
This is an application that connects the DHW tank to the Mono bloc through 3-way valve.
DHW tank's temperature is detected by tank thermistor (specifi ed by Panasonic).
Tank + Solar connection
Mono bloc
Setting of remote controller
Thermistor
Installer setting
Pump
System setup
Optional PCB connectivity - Yes
Zone and Sensor - 1 Zone system
Zone :Swimming pool
T
Heat EXT
Swimming pool
This is an application that connects the DHW tank to the Mono bloc through 3-way valve before connect the solar water heater to heat up the
tank. DHW tank's temperature is detected by tank thermistor (specifi ed by Panasonic). Solar panel's temperature is detected by solar thermistor
(specifi ed by Panasonic).
DHW tank shall use tank with built-in solar heat exchange coil independently.
Heat accumulation operates automatically by comparing the temperature of tank thermistor and solar thermistor.
During winter season, solar pump for circuit protection will be activated continuously. If does not want to activate the solar pump operation, please
use glycol and set the anti-freezing operation start temperature to -20°C.
This system requires optional PCB (CZ-NS4P).
Setting of remote controller
Buffer tank connection
Installer setting
Radiator
System setup
Thermistor 1 Mono bloc
Optional PCB connectivity - Yes
Pump 2 Zone and Sensor - 2 Zone system
Mixing valve
Zone 1:Sensor
Water temperature
Thermistor 2 Zone 2:Sensor
Room
Water temperature
Floor heating Operation setup
Heat
T for heating ON – 1°C
Cool
T for cooling ON – 1°C
This is an application that connects the buffer tank to the Mono bloc.
Buffer tank's temperature is detected by buffer tank thermistor (specifi ed by Panasonic).
This system requires optional PCB (CZ-NS4P).
3
3 System installation
2: Mode
3-1. Remote Controller Outline
60
A
3: Temp setting
4: Display Heat temp Display current heating temperature (it is set temperature when enclosed by line)
B
5: Display tank temp
C
6: Outdoor temp
Ø6 D
40
First time of power ON (Start of installation)
E F G
Initialization
Resistance
(k )
Name Function
0.147
A: Main screen Display information
0.186
B: Menu Open/Close main menu
0.236
C: Triangle (Move) Select or change item
0.302
D: Operate Start/Stop operation
0.390
E: Back Back to previous item
0.511
F: Quick Menu Open/Close Quick menu
0.686
G: OK Confi rm
0.932
1.279
1.504
1
1.777
2.106
Start
2.508
12:00am,Mon 10:34am, Mon
3.003
3.615
Language
4.375
5
ENGLISH
24
40 ˚ c
FRANÇAIS
DEUTSCH
ITALIANO
Select
˚ c
18 ˚ c
6
2 4
3 Clock format
Name Function
1: Function icon Display set function/status
Demand
Holiday mode
Select
control
Room
Weekly timer
heater
Date & time
Quiet mode Tank heater
Year/Month/Day
Remote controller
Solar
room thermostat
2015
Powerful mode Boiler
Select
7
System setup 12:00am,Mon 8. Base pan heater
Optional PCB connectivity
Select whether Base pan heater is installed or not.
Zone & Sensor
If set Yes, select to use either heater A or B.
Heater capacity
Anti freezing A: Turn on Heater when heating with defrost operation only
B: Turn on Heater at heating
Select Confi rm
System setup 12:00am,Mon 9. Alternative outdoor sensor
Optional PCB connectivity
Set Yes if outdoor sensor is installed.
Zone & Sensor
Controlled by optional outdoor sensor without reading the outdoor sensor of heat pump unit.
Heater capacity
Anti freezing
Select Confi rm
10. Bivalent connection
System setup 12:00am,Mon
Set if heat pump linked with boiler operation.
Zone & Sensor
Connect the start signal of the boiler in boiler contact terminal (main PCB).
Set Bivalent connection to YES.
Heater capacity
After that, please begin setting according to remote controller instruction.
Anti freezing
Boiler icon will be displayed on remote controller top screen.
Tank connection
There are 3 different modes in the boiler operation. Movement of each modes are shown below.
Select Confi rm
1 Alternative (switch to boiler operation when drops below setting temperature)
2 Parallel (allow boiler operation when drops below setting temperature)
3 Advanced Parallel (able to slightly delay boiler operation time of parallel operation)
System setup 12:00am,Mon
When the boiler operation is "ON", "boiler contact" is "ON", "_"(underscore) will be displayed below the boiler icon.
Heater capacity Please set target temperature of boiler to be the same as heat pump temperature.
When boiler temperature is higher than heat pump temperature, zone temperature cannot be achieved if mixing valve is not installed.
Anti freezing
This product only allows one signal to control the boiler operation. Operation setting of boiler shall be responsible by installer.
Tank connection
Alternative mode
Buffer tank connection
operate boiler only
Select Confi rm
12:00am,Mon
System setup
Advanced Parallel mode
Anti freezing
For heating
Tank connection
operate boiler and heat
Buffer tank connection pump simultaneously
Tank heater
Select Confi rm
Internal A setting which is using backup heater of Mono bloc to boil Although heat pump operates
but water temperature does
the tank.
not reach this temperature for
The operation to boil the tank with heater is as below.
more than 30 mins (setting
from remote controller)
For 65°C setting
A
Tank temp.
Boiler temp. ON
65
= Setting -8°C
(setting from
53
remote controller)
In Advanced Parallel mode, setting for both heating and tank can be made
simultaneously. During operation of "Heating/Tank" mode, when each time
HP thermo OFF
the mode is switched, the boiler output will be reset to OFF. Please have
good understanding on the boiler control characteristic in order to select the
optimal setting for the system.
11. External SW
HP
Backup heater
Able to turn ON/OFF the operation by external switch.
Pump
11
33. Pump down

Operate pump down operation


compensation curve
34. Dry concrete
Out
Operate concrete curing operation.
Select Edit, set temp for every stage (1~99 1 is for 1 day).
Return Setting range is 25~55°C
Return — Out = 1°C ~ 15°C When it is turned ON, dry concrete starts.
When it is 2 zone, it dries both zones.
Heat Outdoor temp. rising
35. Service contact
Initial setting: 15°C
Able to set name & tel no. of contact
Cool
person when there is breakdown etc. or
client has trouble. (2 items)
   C
Heat Outdoor temp. dropping
Initial setting: 10°C
4 Service and maintenance
Cool
C
   When connect CN-CNT connector with computer
Please use optional USB cable to connect with CN-CNT connector.
After connected, it requests for driver. If PC is under Windows Vista
or later version, it automatically installs the driver under internet
environment.
Heat
If PC uses Windows XP or earlier version and there is no internet
30min ~ 10h
access, please get FTDI Ltd's USB - RS232C conversion IC driver
Tank (VCP driver) and install.
http://www.ftdichip.com/Drivers/VCP.htm
Heat If forget Password and cannot operate remote controller
Press
Tank
Password unlock screen appears, press Confi rm and it shall reset.
Password will become 0000. Please reset it again.
5min ~ 4h
(CAUTION) Only display when it is locked by password.
Maintenance menu
Setting method of Maintenance menu
-12°C ~ -2°C
Maintenance menu
Actuator check
② Test mode
Sensor setup
Reset password
Select
① ③
Press
Items that can be set
1 Actuator check (Manual ON/OFF all functional parts)
(CAUTION) As there is no protection action, please be careful
12:00am,Mon
Service setup
Flow rate Max. Duty Operation
2 Test mode (Test run)
Air Purge Normally it is not used.
88:8 L/min 0xCE
3 Sensor setup (offset gap of detected temp of each sensor within
-2~2°C range)
Select
(CAUTION) Please use only when sensor is deviated.
15 4 Reset password (Reset password)
Setting of remote controller
Mono bloc
Installer setting
System setup
Optional PCB connectivity - No
Floor heating
or
Tank connection - Yes
3-way valve for tank
Tank
Tank thermistor
Booster heater
Setting of remote controller
Installer setting
System setup
Optional PCB connectivity - Yes
Mono bloc
Tank connection - Yes
Solar connection - Yes
Floor heating
DHW tank
or
T turn ON
Solar thermistor
T turn OFF
3-way valve for tank
Antifreeze
Tank
Hi limit
Solar pump
Tank thermistor
Setting of remote controller
Buffer tank
Mono bloc Installer setting
System setup
Optional PCB connectivity - Yes
Buffer Tank connection - Yes
Pump
Thermistor T for buffer tank
or
Floor heating
Display set mode/current status of mode
Heating Cooling
Auto Hot water supply Auto heating Auto cooling
Heat pump operating
Compensation
Set direct water
Set room temp Set pool temp
curve temp
Display current tank temperature (it is set temperature when enclosed by line)
Display outdoor temp
12:00am,Mon 12:00am,Mon
When power
is ON, fi rstly
Back to initial
initialization
screen
Initializing. screen appears
(10 sec)
Start
«
«
Press menu, select Installer setup
12:00am,Mon
Main Menu 12:00am,Mon
When
System check
initialization
screen ends, it Personal setup
turns to normal
Service contact
screen.
Installer setup
Select Confi rm
«
«
Confi rm to go into Installer setup
When any button
12:00am,Mon
is pressed,
language setting
screen appears.
(CAUTION) If
initial setting is
not performed, it
does not go into
Confi rm
menu.
«
Set language & confi rm
12:00am,Mon
When language
24h is set, setting
screen of time
display appears
am/pm
(24h/am/pm)
Confi rm
«
Set time display & confi rm
12:00am,Mon
Hour : Min
YY/MM/DD/Time
setup screen
/ 01 / 01 12 : 00
appears
Confi rm
«
Set YY/MM/DD/Time & confi rm
System setup 12:00am,Mon
Initial setting: No
Tank connection
Buffer tank connection
Tank heater
Base pan heater
Select Confi rm
System setup 12:00am,Mon
Initial setting: No
Buffer tank connection
Tank heater
Base pan heater
Alternative outdoor sensor
Select Confi rm
12:00am,Mon
System setup
Initial setting: No
Tank heater
Base pan heater
Alternative outdoor sensor
Bivalent connection
Select Confi rm
Parallel mode
operate heat pump only operate boiler and heat operate heat pump only
pump simultaneously
Outdoor temp.
-10°C (setting from remote controller)
-10°C (setting from remote controller)
For DHW tank
operate heat pump only
operate boiler and heat operate heat pump only
pump simultaneously
Outdoor temp.
-10°C (setting from remote controller)
-10°C (setting from remote controller)
AND
AND
If actual tank temp. does
not achieve the setting
temp. within 30min
Tank temp. Heat pump (setting from remote
Lowering thermo ON controller), the boiler
turn ON
Circulation water temp.
Tank
Boiling initial
temp.
temp.
Setting temp
Boiler temp. OFF
Heat
= Setting -2°C
pump 30 min (setting from
(setting from remote control)
Boiler
remote controller)
System setup 12:00am,Mon
Initial setting: No
Base pan heater
Alternative outdoor sensor
Bivalent connection
External SW
Select Confi rm
Service setup 12:00am,Mon Service setup
Pump down operation
Pump down: Pump down:
in progress!
ON ON
OFF
Confi rm Confi rm
& ' " #
& ! " # & ! " #
' " # ' " #
! " #
$ % & ' (
Stage
Service setup 12:00am,Mon Contact-1: Bryan Adams
Service contact:
ABC/ abc 0-9/ Other
Contact 1
A B C D E F G H I J K L M N O P Q R
Contact 2 S T U V W X Y Z a b c d e f g h i
j k l m n o p q r s t u v w x y z
Select Confi rm Select Enter
Custom menu
Setting method of Custom menu
Custom menu 12:00am,Mon
Cool mode
Back-up heater
Reset energy monitor
Select Confi rm
Please press for 10 sec.
Items that can be set
1 Cool mode (Set With/Without Cooling function) Default is without
(CAUTION) As with/without Cool mode may affect electricity
for 5 sec.
application, please be careful and do not simply
change it.
In Cool mode, please be careful if piping is not
insulated properly, dew may form on pipe and water
may drip on the fl oor and damage the fl oor.
2 Backup heater (Use/Do not use Backup heater)
(CAUTION) It is different from to use/not to use backup heater
set by client. When this setting is used, heater
power on due to protection against frost will be
12:00am,Mon
disabled. (Please use this setting when it is required
by utility company.)
By using this setting, it cannot defrost due to low
Heating's setting temp and operation may stop
(H75)
Please set under the responsibility of installer.
Confi rm
When it stops frequently, it may be due to
insuffi cient circulation fl ow rate, setting temp of
for 5 sec.
heating is too low etc.
3 Reset energy monitor (delete memory of Energy monitor)
Please use when moving house and handover the unit.
not to cause any error when operating each part (do
not turn on pump when there is no water etc.)
ENGLISH
ACXF60-17020-AA
PRINTED IN MALAYSIA
It affects temperature control.
4
8
Outdoor temp.
Outdoor temp.
When tank
temp. is
achieved, both
operations
stop
Tank setting
temp.
time
12
17:26, Wed
1/17
16
