Anson ASI-8920 User Manual

Integrated
Access Controller
User Manual
1 2 3
ASI-8920
4 5 6
7 8 9
0 #
Read the manual before usage and keep for
future reference.
http://www.ansoncorp.com

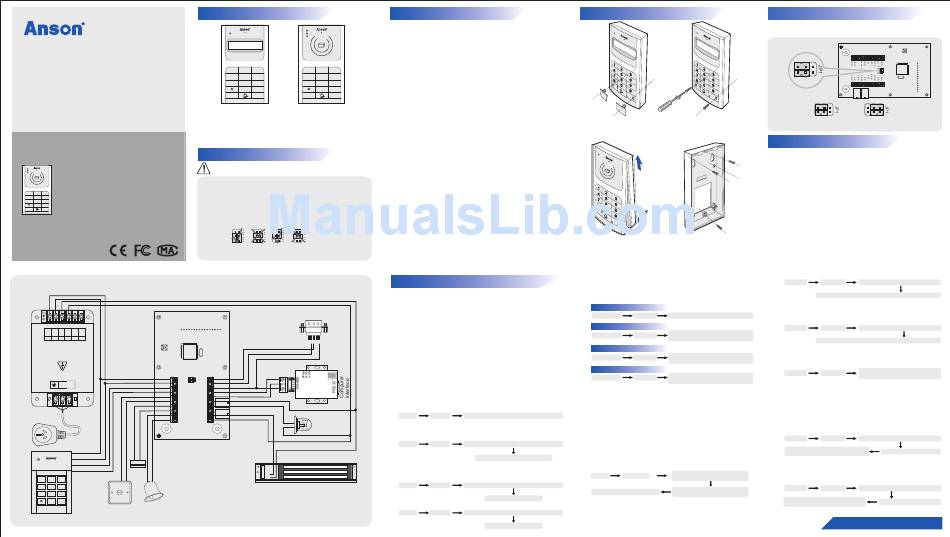

Controller Wiring Diagram
+12 GND +12V GND + B -B
① ① ② ② ③ ③
Controller Power
Access Controller
GND
12V
485 232
AC90~220V
DAT0 GND
DAT1 485+
SW
GND
MenC1
GND
BELL
AC 90~220V
BELL
GND
+12V
DATA0
Door
DATA1
Magnet
1 2 3
4 5 6
7 8 9
0 #
Exit Button Doorbell
2620
Exterior Reader

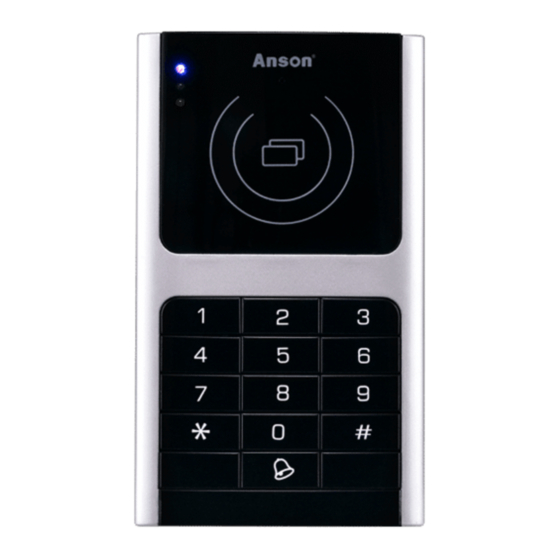

1. Model and Appearance

1 2 3 1 2 3
4 5 6 4 5 6
7 8 9 7 8 9
0 # 0 #
ASI-8930 ASI-8920
1.1 Structure and Appearance design of Anson ASI-8930 and ASI-8920 are patented
and any sort/form of copy and counterfeit will be charged.
1.2 Color: pure black, black decorated with silver
1.3 Size: L×W×H (mm): 150×88×30

2. Important Notices

Failure to follow the instructions below may lead to the malfunction of
the system, property damage and even physical injury.
2.1 Connection and operation on any components or the controller with power on is
strictly prohibited.
2.2 Connect the system according to the instructions described in this manual.
2.3 The RS232 cable connected to the computer should be no more than 15 meters.
2.4 The RS485 cable connected to the computer should be no more than 1200m.
2.5 Please use the specified power supply.
2.6 The communication mode between the controller and computer should be either
RS232 or RS485.
JP1 JP1 JP1 JP1
2.7 When RS485 mode is applied, a highway can connect maximally 32 controllers
with identification address differs from each other.
Computer
Interface
DB9-Hole
12345
T/R+
RX
TX
T/R- RS485-RS232
GND
Convertor
485-
2C
2NO
1NO
1C
1NC
读卡器
Connected with
Alarm Light
接口1
Fail-Secure
EM Lock
NC
COM
NO
V-
V+
Detailed installation procedure, Refer to Installation & Commissioning
Manual. Strictly follow the diagram for connection.
Any modification will be notified.

3. Product Parameters

3.1 Electric Parameters
Working Voltage: DC9-15V Anti-static Capability: ≥15KV
Static Current: ≤110mA Relative Humidity: 0%-95%
Input Interface: Stem joint switch input
Working Temperature:-10℃to 55℃
Drive Capability: 2 groups of Type C Relay output, DC12V/3A
Power-off Protection: Data will be preserved for 10 years when power off
3.2 Type of Card : EM card or compatible EM Card
3.3 I/O Interface: 2 groups of switch input, 1 group anti-disassemble alarm input, 1
exterior card interface, 2 groups of output interfaces, DC12/3A
3.4 Network Interface: RS232/RS485 interface
Communication Rate: 9600bps
3.5 System Capacity and Main Functions
Number of Card Holder: 3000
Number of Records: 8200 pcs Entrance/Exit Mode:
——Card alone ——Card plus Password
——Password alone ——Initial Card Open
——Multiple Card Open (2≤N≤4)
——Remote Open ——Forced Open
Multiple and programmable working modes:
——Normal Open
——Forced Close
——Identification after Card-presenting (Door will be opened only after the card
holder is identified by the control center)
——Anti-passback function
Multiple access group and working hour setup
——Every controller supports 42 access groups
——Support 20 groups of schedule
——Support 32 groups of annual holiday setup
Protection
——All inputs are equipped with advanced TVS protection
——Voltage clamp protection
——All outputs adopt spark depress circuit and absorption circuit
——Four-layer PCB structures enhances anti-EMI capability

7. Instruction for Keypad Function

Sound Indication:
One sound means correct input, continuously sound twice means error or exit.
Light Indication:
Blue light is for power, green for valid, yellow for Edit, yellow flash for "Waiting to input
password", and yellow light on for "Editing status entered"
Keypad Edit:
Wait for 6 seconds after inputing password/card+password
7.1 Enter/Exit Edit mode
Push "*", yellow light flashes=>input administrator password, yellow light on,
Edit status entered. (Default administrator password is "000000".
If password is not inputted or wrongly inputted within 20s, sound twice and
exit Edit status, orange light off and blue light on).
Push "#" to exit Edit status.
7.2 Basic setup
Basic setup includes: system initiation, address setup, anti-disassemble alarm
setup, door-open setup.
7.2.1 System Initiation
System initiation will clear all original setup of the controller (including pass
mode setup, basic setup, all keypad-added card, password etc. however,
administrator setup will not be changed).
Edit input 11 wait for 3 second, blue light on, exit Edit status
7.2.2 Setup address
Address is applied to differentiate the controller from any other devices on the
network. An address within a single 485 network should be unique.
input 12 input address e.g. 29 (range 00-39)
Edit
exit Edit, address is set as 29
7.2.3 Anti-disassemble alarm setup
Anti-disassemble alarm is applied to protect controller from being disassembled
or damaged.
Edit input 14 input Edit code(00: cancel alarm, 01 initiate alarm)
exit Edit status
7.2.4 Door-open Setup
input 21 input door-open duration (range 00-99 second)
Edit
exit Edit

4. Installation Instruction

4.1 Remove the two keys first. 4.2 Unfasten the two screws.
push up the back cover
to open
First open the lower
part of backcover
for around 1cm.
Please note that
open too wide may
lead to damage to
the device.
4.3 Open the back cover and connect the 4.4 Fix the backcover on the wall and
device according to the wiring diagram. reassemble the device. (according to
4.1, 4.2 and 4.3 in reversed order)
7.3 Pass Mode Setu
This function is used to define the mode of pass, including three modes:
card, card plus password and password. For card+password and password
mode, the door-open password and card-holder password are the same
Open with card
Edit input 223 door will be opened once the card is valid
Card plus password
door will be opened once the card is valid and
Edit input 234
card-holder password is correctly inputted
Screen door-open password
input door-open password (card-holder pass-
Edit input 243
word) can not open the door
Door-open password
input door-open password (card-holder pass-
Edit input 254
word) can open the door
7.4 Off-line user management
his function enables the user to manage card-holders by the integrated
access controller without connecting to computer.
Max. 1500 cards/card-holders can be managed in Off-line manage
mode. There is no conflict between off-line cards and cards read by
computer. The off-line card possesses top authority and is not affected
by such functions as multiple card, initial card, remote control, anti-
passback and access level.
7.4.1 Add multiple cards
A number of cards can be registered in the device, with a designated
first number. The second card will be assigned with a number next to the
number designated to the first card. This continues until user exits the
function automatically or manually.
input 4-digit initial number
input 31
Edit
(range from 0000-1499)
read the card and device sounds
complete input and push # to exit
once,then read the second card
7.4.2 Add single card
User can designate a certain number to a card. Only one card can be
designated in one time. If the number has been designated to other card
before, the newly designated card will overwrite the original card (the one
with this number before).

5. Communication Mode Setup

Change the communication mode with computer by changing the jumper-
wire in jumper JP1
485 232
485 232 485 232
RS485 Mode RS232 Mode

6. Rules for Installation

6.1 Selection of exterior components may be based on installation environment.
However, the selection should be in accordance to existing National and
International Standards as well as matched with the controller. A careful study on
the instructions on exterior components selection is strongly advised.
6.2 Installation of the control unit (including microprocessor) should not be inside the
high-voltage box or near any large converter or high voltage/current devices. The
components should be installed in places easy for uninstallation in order for
convenient maintenance.
6.3 The controller board should be connected to earth independently. Please ensure
that grounding has been provided in the installation site.
6.4 When installing the box with microprocessors inside, please ensure that the screw
and lock has been fastened.
6.5 The 220V terminal power cable should be plugged in separate power supply socket
(the power cable should not share the socket with other devices) with grounding
ensured.
6.6 Do not crossover the system cables through other devices.
6.7 All components should not be installed in places with excess high/low temperature
or humidity.
Edit input 32 input 4-digit number (range 0000-1499)
read the card and device sounds once, exit automatically
7.4.3 Delete one card
User can invalidate a card by delete the card number registered in the
controller. Only one card can be deleted in one time.
input 33 input 4-digit number (0000-1499)
Edit
exit automatically, the card deleted is invalidated
7.4.4 Delete All Cards
This function will invalidate all the keypad-registered cards; similarly,
initiation will also clear all cards. Please be warned for applying this
function.
Automatic exit, all off-line subscribers
input 34
Edit
will be cleared.
7.5 Password management
Password management refers to the management of administrator
password and card-holder password.Administrator password is used to
enter Edit status.Card-holder password is used to open the door in the
password or card+password door-open mode.
7.5.1 Set card-holder password
Card-holder password can be applied in both the password and the
" Screen
card+password door-open mode. In the Door-open
Password" mode, password only is ineffective for opening door.
Edit input 41 input 6-digit password, yellow light flashes
exit automatically. If sounds twice, error occurs
input 6-digit password again
and password setting is ineffective.
7.5.2 Set administrator password
Default administrator password is 000000
If a number has been designated to other card before, the newly designated
card will overwrite the original card (the one with this number before).
input 42
Edit input 6-digit password, yellow light flashes
exit automatically. If sounds twice,error
input 6-digit password again
occurs and password setting is ineffective.
Sustained Effort for the Better
