PRIMARY END ASSEMBLY

WORK BENCH

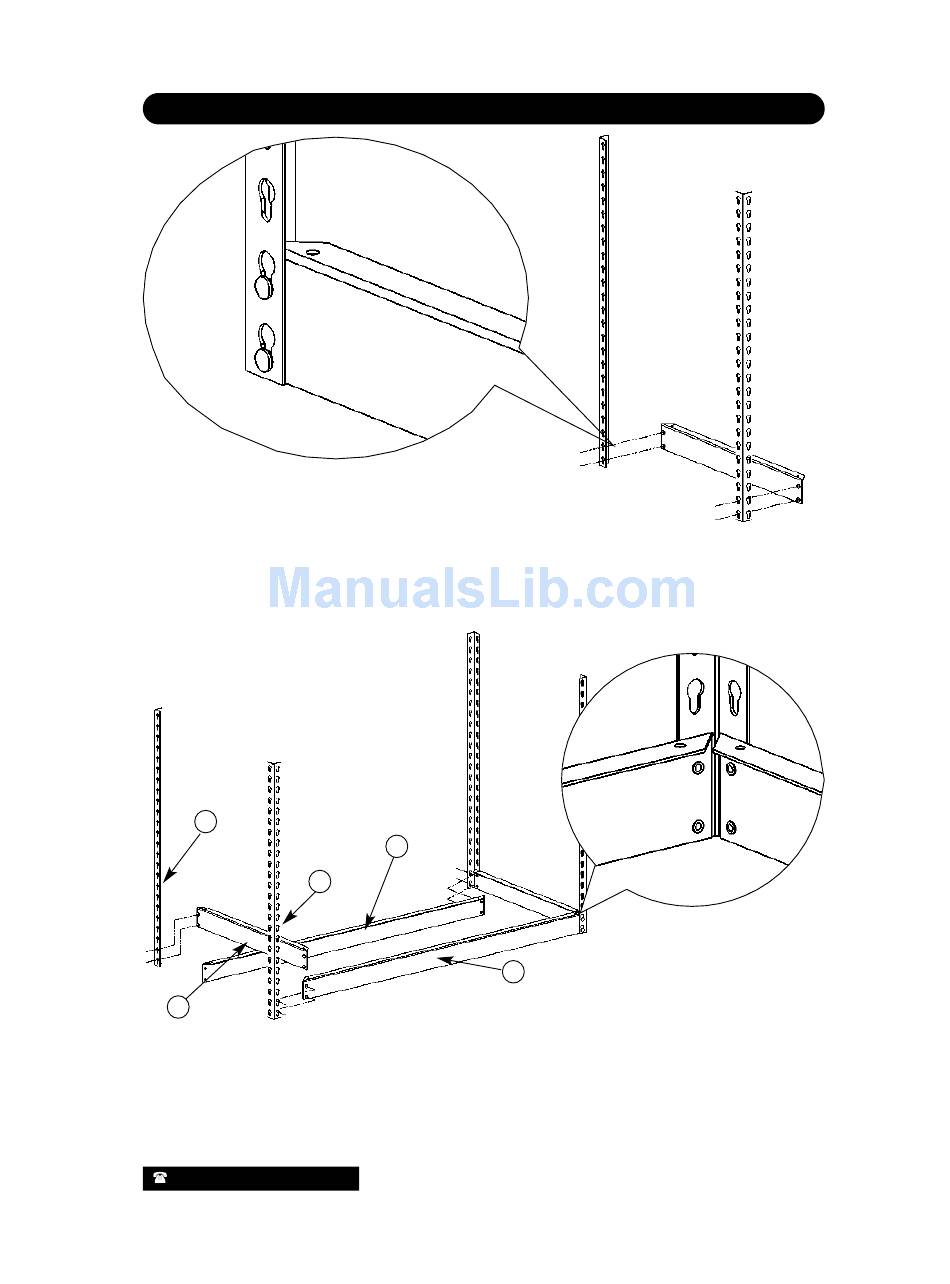

Step 1 - End Assembly
Start bottom of frame assembly by joining an Short Double Rivet Beam ( I tem 3)
into the two bottom keyholes of a 36" Angle Post ( I tem 1) . Be sure that the
flange is up and drive the rivets to the bottom of the key hole by hitting the
beam with a rubber mallet.
Tip: Hit the beam close to joints locking the pieces together.
Repeat to add the second 36" Angle Post creating a Bottom End.
th
4
th
5
nd
2
st
1
rd
3
Step 2 - Primary End and 36Ó Double Rivet Beams
Assemble a Long Double Rivet Beam ( I tem 2) to the bottom key holes of the bottom end assembly
( r efer to detail) . Hit the beam with a rubber mallet to lock pieces together. Add the Angle Posts and
Short Double Rivet Beam and lock pieces together until complete. All beam flange must be up.
st th
Follow the order 1 through 5 shown in the drawing to facilitate the assembly.
Note: Hit the beams near the joints to lock the pieces into place.
