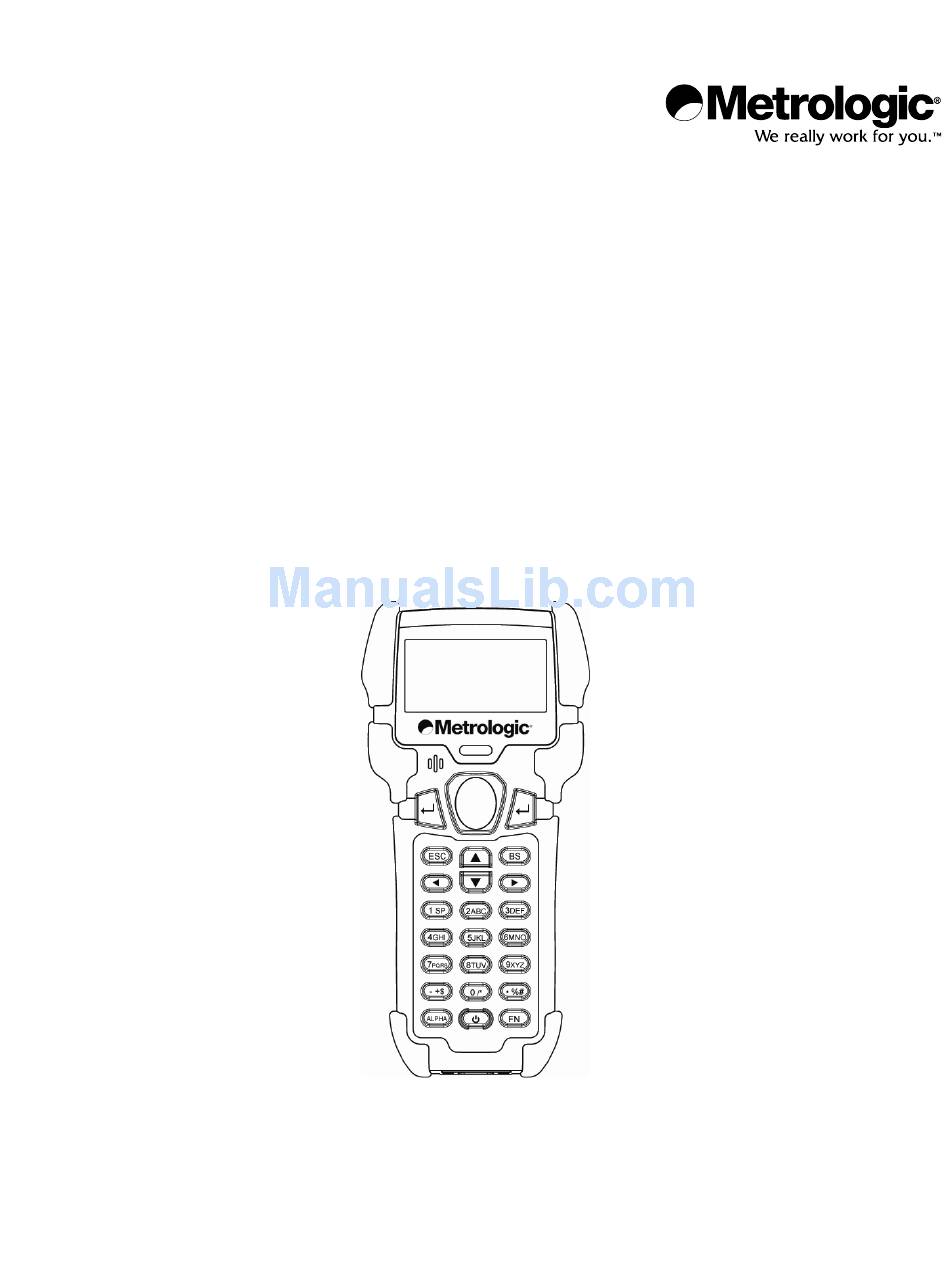

- Page 1 METROLOGIC INSTRUMENTS, INC. SP5600 OptimusR User’s Guide...
- Page 2 Copyright © 2008 by Metrologic Instruments, Inc. All rights reserved. No part of this work may be reproduced, transmitted, or stored in any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or provided for in the Copyright Act of 1976.
-
Page 3: Table Of Contents
ABLE OF ONTENTS Introduction Product Overview ..............................1 Scanner and Accessories ............................. 1 General Features and Characteristics Scanner Features..............................2 Cradle Features..............................3 Multifunctional Keypad ............................4 LCD Screen................................5 Lithium Battery ..............................5 Maintenance................................5 Labels..................................6 Installation Getting Started ..............................7 Basic Operation.............................. -
Page 5: Introduction Product Overview
OptimusR laser Wi-Fi unit with 4MB RAM SP5658 OptimusR laser Wi-Fi unit with 8MB RAM MI5600-614 OptimusR standard cradle MI5600-6107 OptimusR modem cradle 52-52860A RS232 Cradle Cable 52-52861A USB cradle cable * For information on additional accessories and scanner kits, contact your local Metrologic Instruments representative. -
Page 6: General Features And Characteristics Scanner Features
ENERAL EATURES AND HARACTERISTICS CANNER EATURES Figure 1. Scanner Features ESCRIPTION Multi-functional Keypad Scan Button LCD display Red Output Window (Laser Aperture) Speaker for audible indicators Protective rubber bumpers Battery Compartment Communication Ports (RS232 and IrDA), Power Adapter Port, and Battery Contacts Comfort Strap Battery Compartment Release... -
Page 7: Cradle Features
ENERAL EATURES AND HARACTERISTICS RADLE EATURES Figure 2. Cradle Features ESCRIPTION LED Transmission Indicator LED Power indicator Battery Contacts IR communication port Rubber Footpads RS232 Communication Port and Power Adapter Port... -
Page 8: Multifunctional Keypad
ENERAL EATURES AND HARACTERISTICS ULTIFUNCTIONAL EYPAD Figure 3. Keypad Features ESCRIPTION The toggle key for Alphabet/Numeral input. When the system is in alpha-mode, a small icon will be shown in the lower right corner of the display. Each numeric key can be used to generate one of the three capital letters located on that number key. -
Page 9: Lcd Screen
ENERAL EATURES AND HARACTERISTICS LCD S CREEN The LCD screen of the OptimusR Portable Data Terminal displays program settings, operational parameters, data collected, and much more. The display is a graphical LCD with the following characteristics: Display area of 64 pixels x 100 pixels Resolution: Maximum of 8 lines x 16 characters Minimum of 4 lines x 12 characters... -
Page 10: Labels
ENERAL EATURES AND HARACTERISTICS ABELS The scanner and cradle have labels that provide important information including the model number, date of manufacture, serial number, safety and regulatory information. Figure 5 provides examples of these labels and their locations. Figure 5. Label Sample and Location... -
Page 11: Installation Getting Started
NSTALLATION ETTING TARTED The OptimusR Portable Data Terminal (PDT) requires minimal effort to begin functional operation for data collection in any application. In order to get started, the unit must have a fresh battery inserted into the battery compartment. 1. Access the battery compartment by removing the battery cover. To remove the cover, pull the cover release up on each side of the compartment and slide the cover away form the unit. -
Page 12: Basic Operation
NSTALLATION ASIC PERATION In order for the Optimus to operate properly, an application program must be loaded onto the PDT. It is possible for the Optimus to power up without at active application. On power up if the Optimus has no application program loaded, then the following Program Manager menu options will appear on the display. -
Page 13: Communication And Data Collection Setup
* A software driver is required for proper installation. The driver is included with the installation CD provided with each Optimus. In addition, the driver can be downloaded from http://www.metrologic.com. -
Page 14: Data Upload
Upon completion of the configuration process, and depending on the active application program, the user will be able to begin data transmission via Wi-Fi communication. Note: Contact a Metrologic Instruments representative if assistance is required when integrating a Metrologic device into a network. -
Page 15: System Menu
NSTALLATION YSTEM The system menu on the Optimus is another useful tool included with the Optimus. The system menu provides information about the Optimus and access to the system menu for configuring the Optimus. In order to access the system module, follow the instructions below: 1. - Page 16 NSTALLATION ETTINGS ETTING ESCRIPTION EFAULT Clock Set date and time for the system. the light goes off after Backlight ON Period Set the duration for the keyboard/LCD backlight 20 seconds Set CPU running speed. There are five speeds available: CPU Speed Full speed, half speed, quarter speed, eighth speed and Full speed sixteenth speed.
- Page 17 NSTALLATION EMORY The menu option provides the user with the ability to gather information on the amount of memory available on the Optimus, as well as the ability to initialize the memory. This is accomplished by choosing one of the two available selections: 1.
- Page 18 NSTALLATION The Wi-Fi Menu will configure the OptimusR with the appropriate network and security settings for Wi-Fi communication. 1. Information Modifying TCP/IP settings can affect the 2. Network Set performance of certain devices. Contact an IT 3. WLAN Setting professional to ensure that modifying these settings 4.
-
Page 19: Application
• The ‘BASIC’ Compiler • The ‘C’ Compiler For detailed information, please consult the appropriate manual or contact Metrologic Instruments, Inc. ROGRAMMING THE OMMUNICATION RADLE The communication cradle of the OptimusR Portable Data Terminal supports serial IR interface only. If a customized PC application has been developed for communication with the terminal via the cradle, it will be necessary to first configure the cradle through programming. -
Page 20: Troubleshooting
ROUBLESHOOTING YMPTOM ESCRIPTION Make sure the battery is inserted and charged. The scanner does not Charge the battery and check the charging status. If no charging information is power up after pressing shown on the display, reload the battery and check if the battery is properly POWER key. -
Page 21: Specifications
PECIFICATIONS PTIMUS ERIES PERATIONAL Light Source: Visible Laser Diode (VLD) @ 650 nm Normal Depth of Field: 51 mm - 381 mm (2"-15") 0.33 mm (13 mil) bar code Width of Scan Field: 305mm (12") @ 381 mm (15") Single-Line Scan Speed: 42 scan lines per second No. - Page 22 PECIFICATIONS PTIMUS ERIES ECHANICAL Width (Unit): 81 mm (3.2") Depth (Unit): 46 mm (1.8") Height (Unit): 172 mm (6.77") Weight (Unit): 10.6 oz (300 g) – including battery Width (Cradle): 96 mm (3.8") Depth (Cradle): 106 mm (4.17") Height (Cradle): 80 mm (3.15") LECTRICAL Battery Operation:...
-
Page 23: Limited Warranty
This warranty is limited to repair, replacement of product or refund of product price at the sole discretion of Metrologic. Faulty equipment must be returned to one of the following Metrologic repair facilities: Blackwood, New Jersey, USA; Madrid, Spain;... -
Page 24: Safety Notices
AFETY OTICES This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 25: Patents
ATENTS This METROLOGIC product may be covered by, but is not limited to, one or more of the following U.S. Patents: US Patent No.: 5,349,678; 5,468,947; 5,568,645; 5,598,487; 5,671,436; 5,892,971; 5,987,499; 6,375,344; 6,621,942 No license right or sublicense is granted, either expressly or by implication, estoppel, or otherwise, under any... -
Page 26: Index
NDEX activate ..............8 maintenance ............5 alpha .................4 memory ..............13 alphanumeric ............4 arrow.................4 notices..............20 backspace..............4 battery............1, 2, 3, 5, 7 Optimizer..............1 BS ............See backspace patents ..............21 cable .................9 power ............. 4, 7, 13 RS232..............9 power adapter ............2, 3 USB ..............9 Wi-Fi ..............9 cradle ............3, 9, 10, 15... - Page 28 OTES...
- Page 29 OTES...
- Page 30 OTES...
- Page 32 June 2008 0 0 - 0 2 0 6 4 B...
