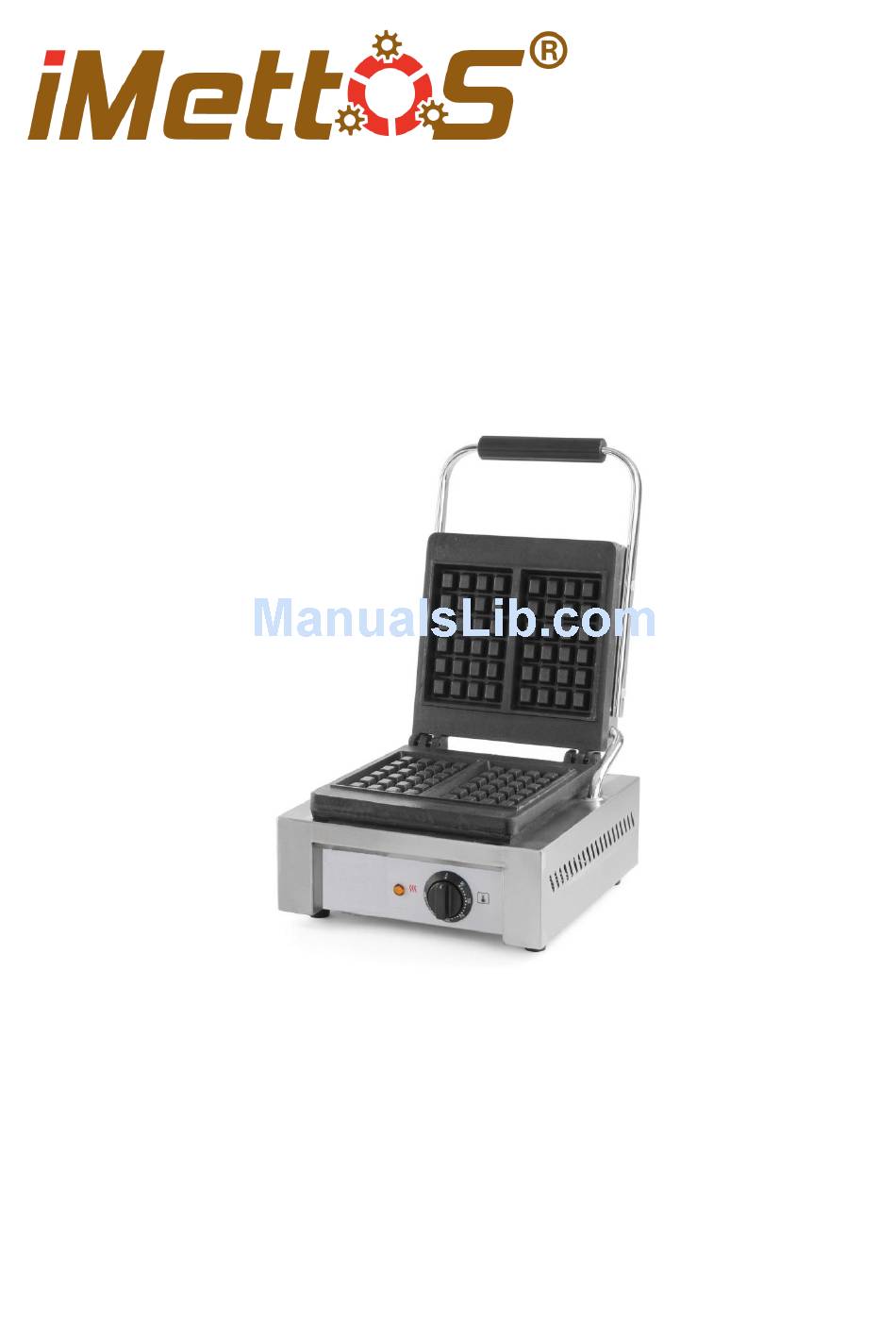

- Page 1 Waffle Baker Instruction Manual Please read this instruction manual carefully before operating this equipment...
- Page 2 Safety Tips Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.
- Page 3 • Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. • Do not use any accessory or spare parts that have not been recommended by the manufacturer.
- Page 4 Warning Any self-modification, wrong installation, adjustment or maintenance can lead to property loss or casualty. Please contact the manufacturer for any adjustment or maintenance, and have the work done by a trained & qualified person. For your safety sake, please keep the machine away from any liquid, gas or other object, which is flammable or explosive.
-
Page 5: Functional Introduction
1. Functional Introduction This product is manufactured by our company, which is combined with advantages from home and abroad. It is novel in design, reasonable in structure, easy in operation, stainless steel in making, durable in using and convenient in maintenance. The thermostatic control makes the temperature adjustable freely in a certain range according to food requirement. -
Page 6: Basic Features & Parameters
3. Basic Features & Parameters Name Model Voltage Power Dimension 1-Plate Waffle Baker WB-S 220V-240V 1500W 320×325×225mm 4. Precautions & Recommendations Transportation and Storage During transportation, the machine should be carefully handled and do not put it upside down to prevent from damaging to the shell and inside. The packaged machine should be stored in a ventilated warehouse without corrosive gas. - Page 7 Notice for Installment 1. The supply voltage should correspond with the working voltage of the appliance. 2. There is an earth stud at rear of the furnace body, which should be connected with a copper wire that no less than 1.5mm and ground wire that complying with safety regulations reliably.
-
Page 8: Working Instructions & Operation Flow
5. Working Instructions & Operation Flow 1. Before using, check that whether the power supply installation is normal and make sure the power supply voltage corresponds to the working voltage of the appliance. 2. Plug in the power outlet, rotate the temperature controlled knob to adjust the temperature to reach the desired range the food needs. -
Page 9: Failure Analysis &Trouble Shooting
8. Failure Analysis &Trouble Shooting Symptoms Causes Solutions 1． The temperature detect 1． Replace temperature The power supply is connected and switch is damaged. detect switch. the indicator is on, but it does not heat 2． One or two of the heating 2．... -
Page 10: Waste Disposal
10.WARRANTY iMettos warrants to the original purchaser of every new product, under normal and proper use and maintenance service as specified by iMettos and upon proper installation and start-up in accordance with the instruction packet supplied with each unit. iMettos’... - Page 11 Limited www.imettos.co.uk...
