SCAL-400 CALIBRATION AND CHARGING STATION F O R U S E W I T H S E N S I T ® P 4 0 0 G A S M O N I TO R S TABLE OF CONTENTS Specification ...............4 Features ..............4... -
Page 4: Specification
Specifications What’s Included: SCAL-400 Power: 100 – 240 VAC input Power Cord (120 VAC) Size: 24” X 7” X 3” (61cm X 17.8cm X 7.6cm) Instruction Manual Weight: 5.75 lbs. (2.6 kg) SCAL-D Software Operational Temperature: 40 ‐ 122°F (5 ‐ 50°C) USB Cable Maximum inlet pressure: 20psi Features Touch screen display LED status indicators Charging pins Communication pin Power connection ... -
Page 5: Description

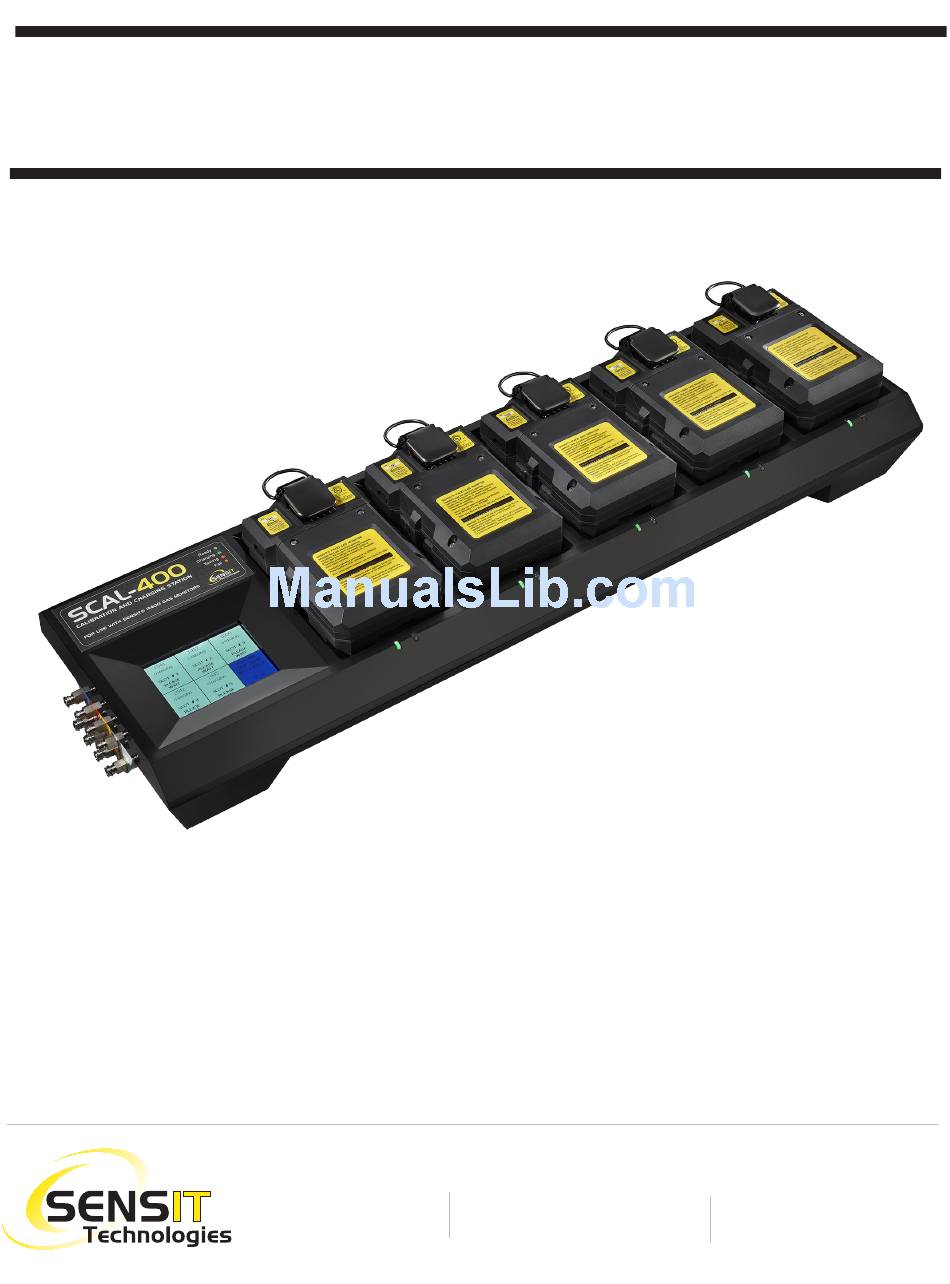

Description The SCal‐400 is a multi‐unit charging and calibration station for Sensit P400 gas detection instruments. It can bump test and/or calibrate up to five P400 units consecutively while simultaneously recharging the battery packs. The SCal‐400 also detects if a P400 requires calibration or a bump test when connected and automatically performs the required test. During connection any manually performed calibration and bump tests in the instrument memory log will automatically transfer from P400 to SCal‐400. Data management for the SCal‐400 requires either SCal‐D or SCal‐N software packages. All SCal‐400 stations come standard with SCal‐D software for desktop application. The location to place any instrument is referred to as a “slot”. For each slot there are charger and communication connections as well as LEDs to indicate the status. All testing functions require no user interaction. The display is a touchscreen. Instrument and station information can be accessed by using your finger or the included stylus. The SCal‐400 scans each slot, updates the LED status, and refreshes the display screen for each slot every three seconds. During communication, the SCal‐400 completes any log transfer before scanning another slot. LED Status Each slot has two LEDs indicating the status for the docked instrument. The following table describes the various LED states: SCal‐400 Individual Slot LED Status: Green LED Red LED Description 1 OFF OFF Nothing on slot 2 ON ... -
Page 6: Main Screen
Main Screen When the SCal‐400 is powered on by connecting it to a 100‐240 VAC supply, the display will show the Main Screen (refer to the sample shown below). This screen is divided in six cells. Five of the cells are for the five instrument slots and one cell is for showing SCal‐400 information. The background color of a slot indicates the status of the P400 in the corresponding slot (See Table 1). Tapping the slot that has a unit docked will activate the Detail Status Screen. Tapping the blue section will take you to the Main Screen only if no unit test is pending or in progress. Sample image of the Main Screen: Table 1: Main Screen background colors and descriptions Slot Screen Status Description Background color GRAY Empty slot (Instrument is not docked) One of the following Tasks In Progress Detected unit and acquiring more information Waking up unit DATA TRANSFER – Update P400 RTC, transfer BUMP/CAL Log from Instrument to SCal‐400 WHITE Calibration in progress Bump test in progress Waiting in queue Charging One of the following failures occurred Calibration failed RED ... -
Page 7: Details Status Screen
Detail Status Screen The Detail Status Screen provides additional Sample image of the Detail Status Screen: details about the P400 in the selected slot. This provides real time progress of data transfer, calibration and bump test. From here you can manually perform a calibration or bump test by tapping the appropriate icon. Table 2 references the displayed example. Table 2: Detail Status Screen description Label Type Background Status Description Color WHITE WAKING UP/DATA TRANSFERRED/TEST PENDING/WAITING IN QUEUE/IN PROGRESS 1. Header RED FAILED BUMP TEST OR CALIBRATION GREEN ALL TEST SUCCESSFULLY COMPLETED WHITE CHARGING 2. Battery RED ALKALINE: LOW BATTERY GREEN CHARGED/ALKALINE: OK GRAY PENDING 3. Data WHITE ... -
Page 8: Main Menu Screen
Main Menu Screen The Main Menu Screen provides an overview of the system (Serial #, Software Rev#, Date and Time, Valve Configuration). It also provides access to view calibration gas information, view logs, update settings through the Supervisor Menu, and a Test Menu. The Valve Setup Overview provides information about which gas inlets (valves) are configured for each calibration gas. Each lure inlet on the manifold is color coded with label around it. The Supervisor and Test Menu screens are password protected. Sample image of the Main Screen: Calibration Gas Information Screen This screen is divided in eight cells. Each cell represents a single gas inlet (valve). The background colors and gas inlets are color coded and matched for easy identification. The colors on the manifold label correspond to the colors shown on this screen. It also provides the information about type of regulator required for the gas bottle and the expiration date of the calibration gas. A blank/empty cell indicates that particular gas inlet (valve) is not configured and will not be used. “N/A” in a cell indicates that the valve is not installed. Tapping on a configured cell (i.e. ‐ not blank/empty) will take you the password screen. Upon providing the correct password, the calibration gas information will be displayed. Sample image of the Calibration Gas Information Screen: ... -
Page 9: Log Review Screen
Log Review Screen Sample image of the Log Review Screen: This screen lets you review all the logs available in the SCal‐400s local database. It will display the most recent log first, but other logs can be viewed by using the “PREV” and “NEXT” buttons. NOTE: you cannot see logs from other stations or SCal‐N/D databases. Table 3 references the displayed example. Table 3: Log Review Screen background colors and descriptions Type Background Description Color Serial # NA Displays the serial number of the P400 unit Type NA Displays the type of log: BUMP/CAL Result bar is divided in 5 cells. Each cell represents sensor calibration/bump result. FAILED: BUMP FAILED RED CAL FAILED: CALIBRATION FAILED ZERO FAILED Result Bar YELLOW CAL GAS FAILED: Calibration gas supply check failed GRAY Sensor Test (calibration/bump) is skipped by user PASSED GREEN Password Screen Sample image of the Password Screen: The Password Screen provides a supervisor level of protection to access ... -
Page 10: Supervisor Menu Screen
Supervisor Menu Screen: The settings of the SCal‐400 can be changed from within the Supervisor Menu. Please see Table 4 for a list of all the configurable items that can be modified. You can use the vertical scroll bar to view all available options. Scroll to and tap the button for the setting you would like to change. Another screen will appear that will allow you to view/adjust the current setting. Select Value Screen: The header of this screen will display the name of the setting you are changing. “LL” and “UL” in the sample image will be replaced by the lower limit and upper limit numbers for the selected setting. Click the “ACCEPT” button to update the value. Enable/Disable Screen: The header of this screen will display the name of the setting you are changing. This screen allows you to enable or disable the selected feature. Click the “ACCEPT” button to update the value. Table 4: Supervisor Menu Items This allows you to set the time zone of the clock. Updating this setting will restart the SCal‐400 application. All available time zones will be listed. Select the appropriate time zone and click “UPDATE”. A message box will be displayed to indicate system will restart. Click “OK” to continue. 1 SET TIME ZONE This allows you to change the date and time of the clock. 2 SET CLOCK ... - Page 11 This option allows the factory to adjust the offset for recharging. It will display the current ADC reading for each slot and also the currently saved offset. Click “UPDATE” to save a new offset reading. Before updating this setting, please remove all P400 units from all slots and wait few seconds for the readings to stabilize. Please contact factory before changing this setting. 3 SET CHARGING OFFSET This will allow you to set the necessary network information to enable this device to communicate with SCal‐N. 4 SCAL/LAN SETTINGS AUTO BACKUP: This option allows a supervisor to setup automatic backups of the database to an internal memory card. Enabling this option will require a memory card to be present. A copy of the database will be saved to the memory card every day. The automatically saved backup files are named AUTO_DDMMYYYY.sdf. b. BACKUP DATABASE: 5 BACKUP/RESTORE DB This option will create a manual backup on the memory card. These backup databases are named MANUAL_DDMMMYYYY.sdf. RESTORE DATABASE: This will allow the user to restore a database back from the memory card. It will display a list of all available backup databases (both manual and automatic) that exist on the memory card. You can choose one database and click “SELECT” to restore it. Turning this option on will make the unit to go through the bump test after 6 BUMP AFTER CAL calibration is performed successfully. Turning this option on will make the unit to go through the bump test every ...
- Page 12 Valve configuration screen: The middle section of this screen is divided in eight cells. Each cell represents a single gas inlet (valve). The background colors and gas inlets are color coded and matched for easy identification. The colors on the manifold label correspond to the colors shown on this screen. It also provides the information about the type of regulator required for the gas bottle and the expiration date of the calibration gas. A blank/empty cell indicates that particular gas inlet is not configured and will not be used. “N/A” in a cell indicates that the valve is not installed. Tapping on any of the cells will take you to Valve Configuration Modification Screen. Valve Configuration Modification Screen: This screen provides you with an option to configure the calibration gas for the selected gas inlet (valve). You can also choose which regulator type to use. If a demand regulator is used, the internal pump will turn on while using that particular gas inlet (valve). If you want to disable the selected gas inlet (valve), then select “NONE” as the gas type. All of the calibration gases that are configured for the other inlets (valves) will be disabled in this screen. If you want to switch a gas to a different inlet (valve), you need to disable that particular calibration gas from the inlet (valve) before enabling it on the desired inlet (valve). Reset the valve configuration to the factory default as per following: 9 RESET VALVE CONFIG GREEN – AIR – DEMAND REGULATOR GRAY – QUAD – DEMAND REGULATOR 10 ERASE LOG This will erase the entire log saved in the local database. Amount of time (in seconds) the unit will purge the line with air before 11 PURGE TIME BEFORE starting any calibration/bump test. Amount of time (in seconds) the unit will purge the line with air after it 12 PURGE TIME AFTER completes a calibration/bump test. Amount of time (in seconds) the unit will purge the line with air before 13 SPECIALITY GAS PURGE starting any calibration/bump test for a specialty gas sensor (other than O2, ...
-
Page 13: Operation - Setup
Tap the corresponding screen location for more information. Warranty Your Sensit SCal-400 is warranted to be free from defects in materials and workmanship for a period of two years after purchase. If within the warranty period the instrument should become inoperative from such defects the instrument will be repaired or replaced at our option. This warranty covers normal use and does not cover damage which occurs in shipment or failure which results from alteration, tampering, accident, misuse, abuse, neglect or improper maintenance. - Page 14 NOTES...
- Page 15 NOTES...
- Page 16 Warranty Your Sensit SCal-400 is warranted to be free from defects in materials and workmanship for a period of two years after purchase. If within the warranty period the instrument should become inoperative from such defects the instrument will be repaired or replaced at our option. This warranty covers normal use and does not cover damage which occurs in shipment or failure which results from alteration, tampering, accident, misuse, abuse, neglect or improper maintenance.
