JTS UC-900 Instruction Manual

THE UC-900
ACTIVE ANTENNA COMBINER
Caution : To reduce the risk of fire or shock hazard, do not expose this appliance to heat or moisture.
Warning : To prevent electric shock, do not remove the cover. Refer all servicing to qualified service personnel or distributors.
1. Read this instruction manual before using.
2. Keep this instruction manual.
3. Use the device in a well ventilated area. Do not block any ventilation openings.
4. Do not install the device near heat sources, Ex : Oven, furnaces or any other
apparatus that produce heat to prevent fire.
5. Do not place the device in humid or dusty environment to prevent short circuit.
6. Choose proper place to place the device to avoid product failure or personal
injury caused by accidental drops.
7. Do not use the device under lighting to avoid personal injury or equipment
damage caused by strikes.
Instruction Manual
The UC-900 UHF antenna combiner actively combine antenna outputs from wireless transmitter such as SIEM-111T or
TG-10STX onto a single transmitting antenna,improving RF performance by reducing signal interference and saving further
antenna system investments. A wide-band operation frequency range from 470MHz - 970MHz. Equipped with 4 DC power
outlets that can be used for transmitters, without adding external power supplies.

Accessories

• AC Power Cable x 1
• DC Power Cable x 4
• BNC to BNC Cable x 4

Operating Controls

1 POWER SWITCH :
2 SIGNAL INDICATOR :
BNC socket antenna output :
3

Specifications

• Frequency Range :
• Input Connectors :
• Full System Gain :
• Maximum RF Input Power :
• LED Indicator (Input signal Threshold) :
• Power Consumption :
• Input / Output Connectors :
• DC Output : DC12V/1A Max (4 outputs, total of 48W)
• Input Voltage :
• Dimensions (m/m) :
• Weight : 2.3kg
Antenna Combiner Antenna Output
3
The indicator will light up when power is on.
When the input power signal is greater than +5dBm, the corresponding channel will light up.
Signal will be transmitted once combined.
8. Stop using and turn off the power when encounter abnormal situation. Contact
qualified service personnel or distributors.
> Machine has smoke or burning smell
> Water or any liquid has been spilled
9. Keep the machine outlet or plug clean. Dust gathering may result in bad
connection or electric fire.
10. Pay attention to the cable usage
> Hold the plug when unplugging. Breaking the wire may result in electric fire.
> Do not cut or twist the wire. Place the wire in a well ventilated area without
inflammable objects.
470 - 970MHz
Up to 4 transmitters
0dB(±2dB)
+20dBm (100mW) /CH
>+5dBm (Threshold Power)
6W
BNC@50Ω : 4 Antenna Input at back, 1 Antenna Output at front.
DC Output Jacks : 4 at back.
100-240 VAC, 50/602Hz, MAX 2A
W480 * H45 * D260 mm

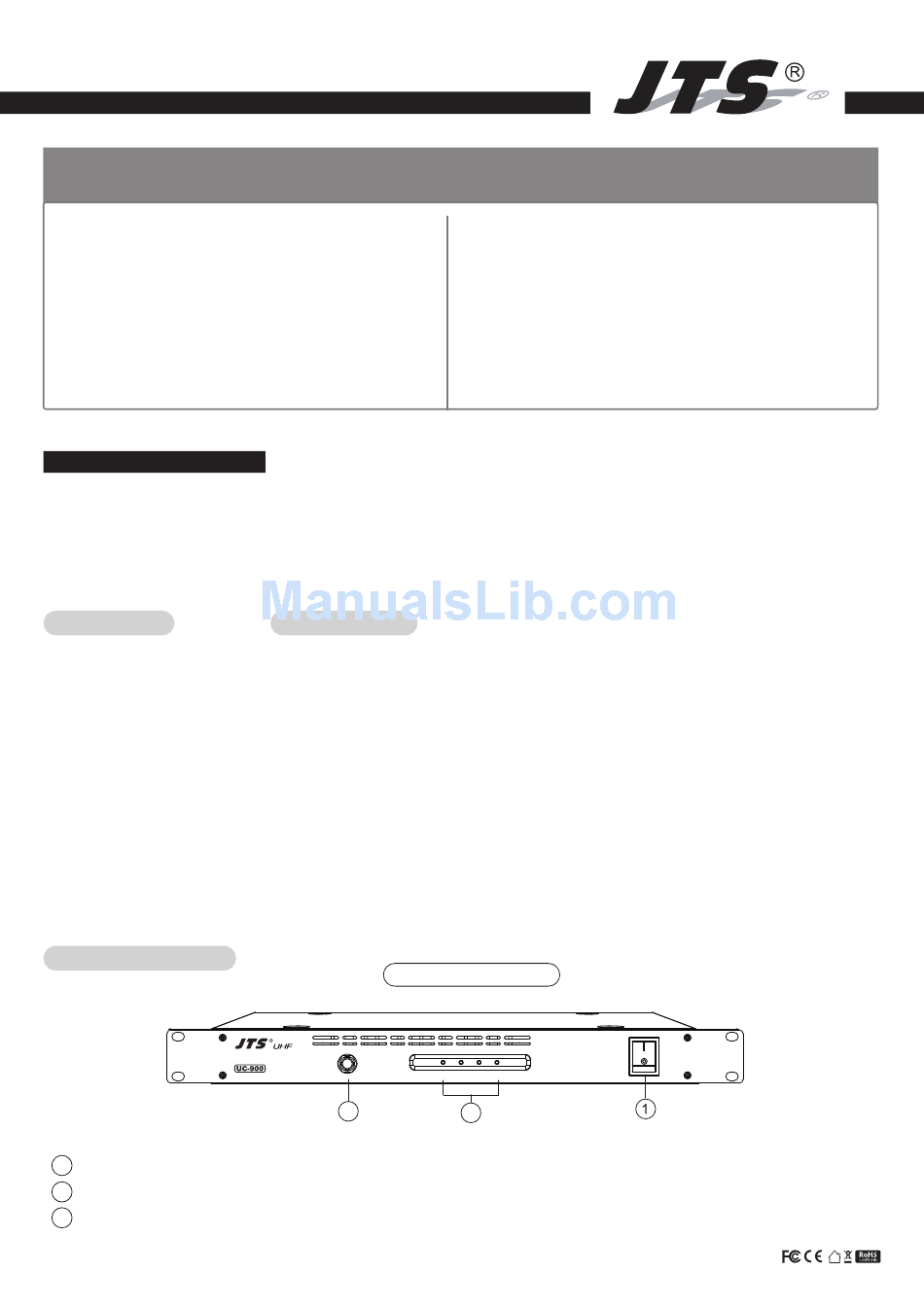

UC-900 Front Panel
CH1 CH2 CH3 CH4
2
