Automated Pure Water 400 Installation & Operation Manual

Non-electric dry chlorine pellet feeder
Hide thumbs

Advertisement

Table of Contents

Automated Pure Water
Model 400
Non-Electric Dry Chlorine Pellet Feeder
Installation & Operation Information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Automated Pure Water 400

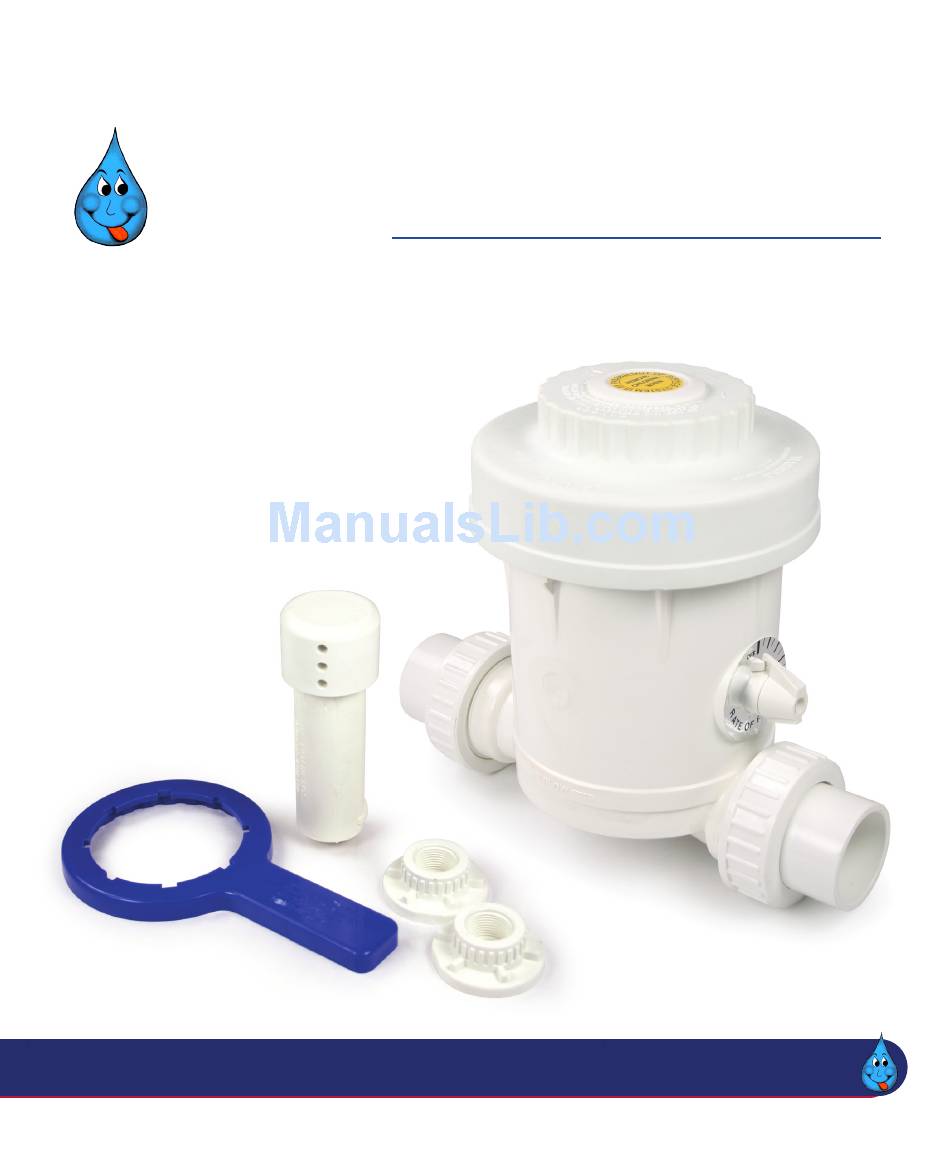

  • Page 1 Automated Pure Water Model 400 Non-Electric Dry Chlorine Pellet Feeder Installation & Operation Information...

  • Page 2: Table Of Contents

    Model 400 feeder or any part thereof, (b) any actual or alleged failure or defect in the Model 400 feeder or any part thereof, or (c) any actual or alleged breach or non-performance by the manufacturer. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

  • Page 3: Installation And Operation

    These readings are obtained with no iron or hydrogen sulfide using the chlorine. Variables that will change the (Actual size of the Model 400 Feeder - 10.5'' high X 11.5'' long) (Empty weight - 6.5 lbs.) MAXIMUM TESTED PRESSURE IS 80 LBS.

  • Page 4: Theory Of Operation

    20 PPM Fe X .64 C~ = 12.8 PPM of Cl labeled PPM and start at 1 and move horizontal The Model 400 feeder will hold about 4 pounds of Cl to the line marked Hydrogen Sulfide - H S X 2.2 (10 gram tablets).

  • Page 5: Calculating Chlorine Concentration Per Pump Cycle

    If Using a 20 Gallon Pressure Tank Multiply the PPM By 2 1 = 2 PPM A = 3.5 PPM 2 = 8 PPM B = 13 PPM 3 = 30 PPM C = 40 PPM OFF = 60+ PPM CHLORINE–(Cl ) PPM Model 400 Installation & Operation Manual...

  • Page 6: Chlorine Setting In Ppm For Center Tube & Cap

    Before Refilling. (See filling information #3) replacing cap. Install PVC Check Valve Before Feeder if Untreated When removing center tube for cleaning, check hole set- ting in cap. Water is Used Before Feeder. Model 400 Non-Electric Dry Chlorine Pellet Feeder...

  • Page 7: Refilling Information And Part Identification

    May be fatal if swallowed and irritating to nose and throat. Wear goggles or face shield and rubber gloves when handling or opening the Model 400 feeder. Avoid breathing dust. Remove and wash contaminated clothing and shoes before reuse.

  • Page 8: Model 400 Feeder - Trouble Shooting

    5 - The chart for chlorine output is for a 42 gallon pressure tank. If using a smaller tank such as a 20 gallon tank, cut the chlorine output by one half. The Model 400 feeder will output the same amount of chemical for each pump cycle and a smaller tank is delivering less water on each pump cycle increasing the chemical concentration.
