Specifications; Features; Assembly - Expand-it UT15520C Operator's Manual

FEATURES

PRODUCT SPECIFICATIONS
Bar length ........................................................................................................................................................................10 in.
Weight ...................................................................................................................................................................... 5-1/2 lbs.
BAR
CHAIN
KNOW YOUR PRUNER ATTACHMENT

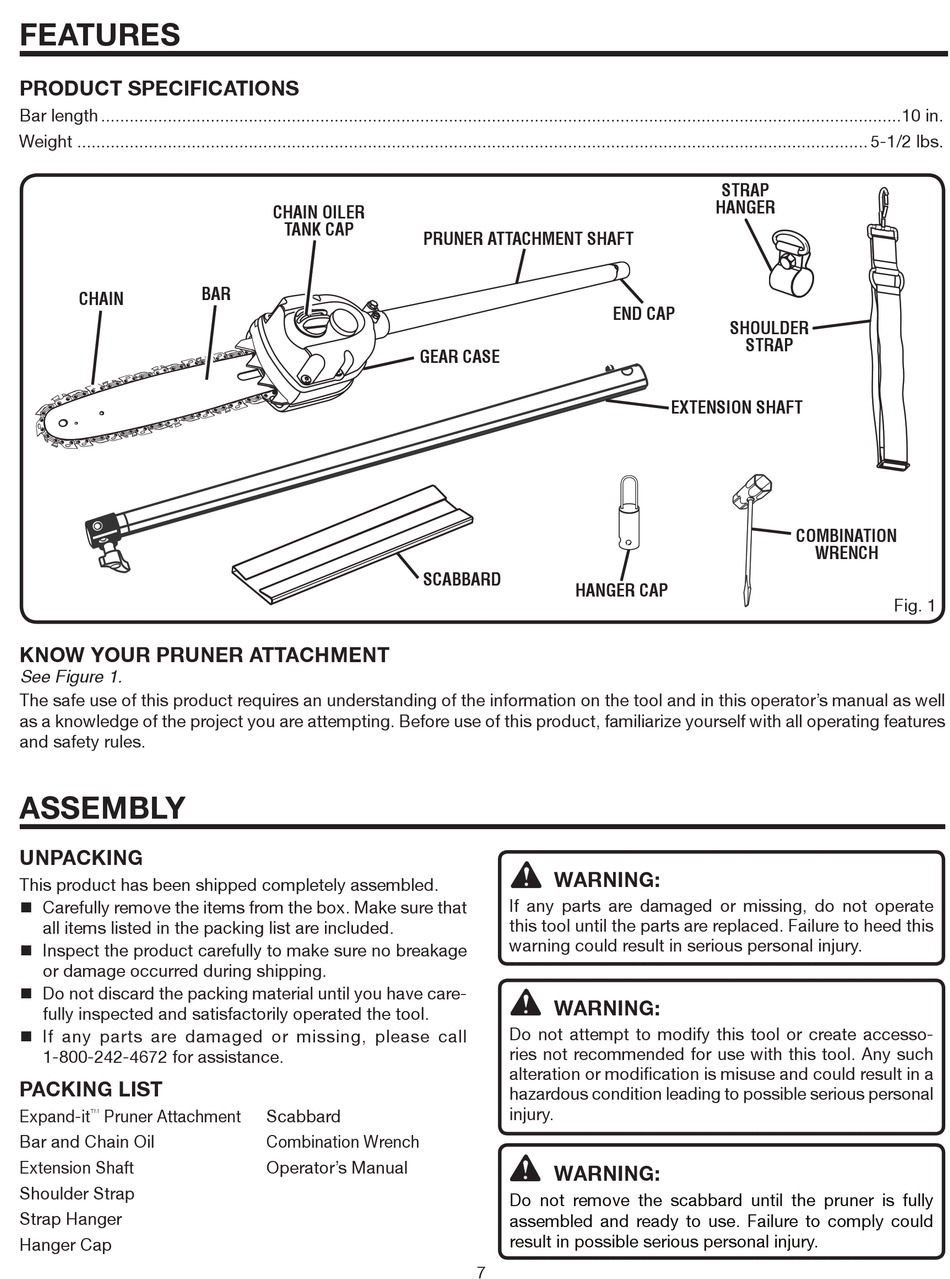

See Figure 1.
The safe use of this product requires an understanding of the information on the tool and in this operator's manual as well
as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features
and safety rules.

ASSEMBLY

UNPACKING
This product has been shipped completely assembled.
 Carefully remove the items from the box. Make sure that
all items listed in the packing list are included.
 Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
 Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
 If any parts are damaged or missing, please call
1-800-242-4672 for assistance.
PACKING LIST
Expand-it Pruner Attachment
™
Bar and Chain Oil
Extension Shaft
Shoulder Strap
Strap Hanger
Hanger Cap
CHAIN OILER
TANK CAP
PRUNER ATTACHMENT SHAFT
GEAR CASE
SCABBARD
Scabbard
Combination Wrench
Operator's Manual
END CAP
HANGER CAP
WARNING:
If any parts are damaged or missing, do not operate
this tool until the parts are replaced. Failure to heed this
warning could result in serious personal injury.
WARNING:
Do not attempt to modify this tool or create accesso-
ries not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
Do not remove the scabbard until the pruner is fully
assembled and ready to use. Failure to comply could
result in possible serious personal injury.
7
STRAP
HANGER
SHOULDER
STRAP
EXTENSION SHAFT
COMBINATION
WRENCH
Fig. 1
