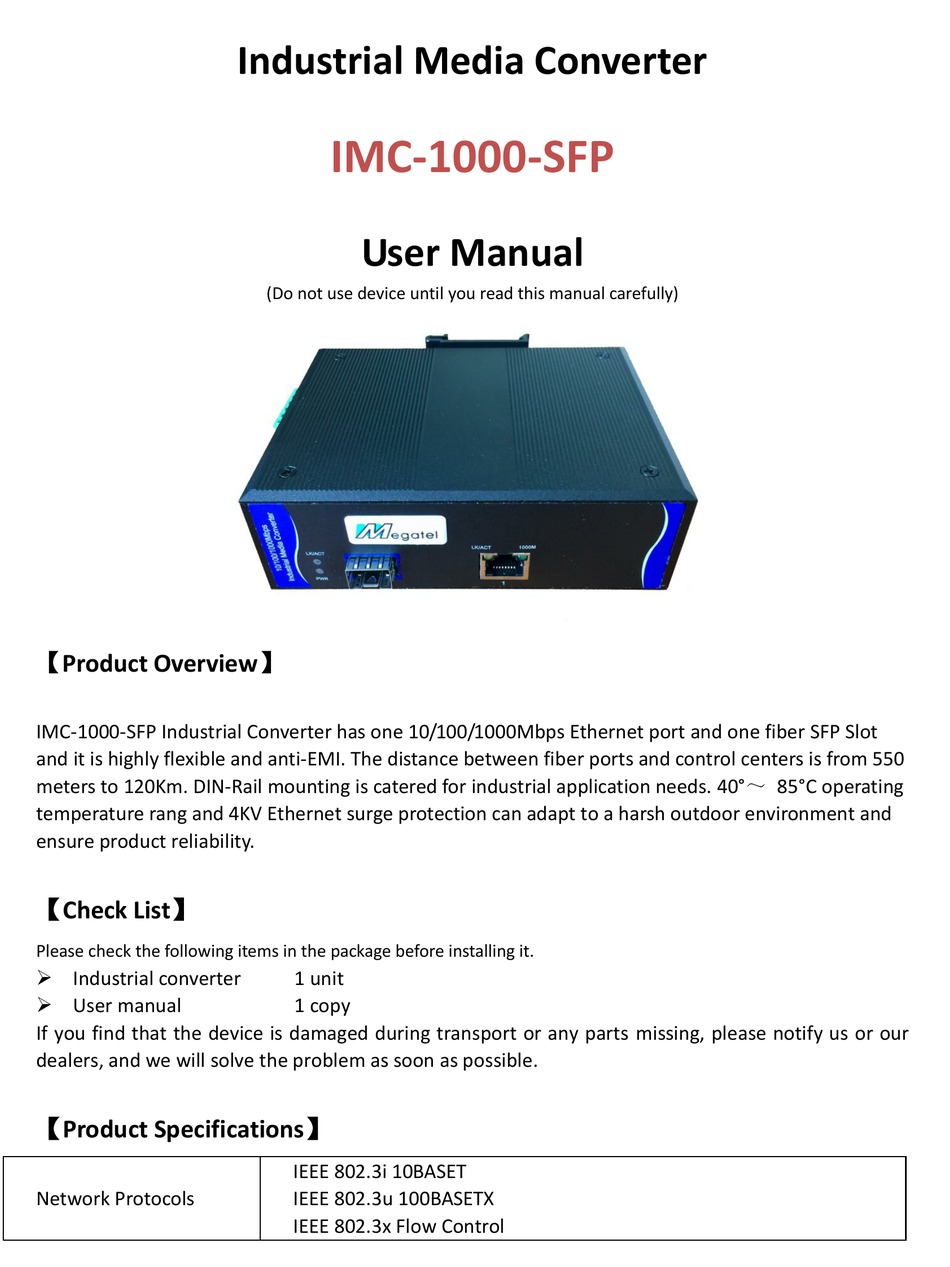

【Product Overview】

IMC-1000-SFP Industrial Converter has one 10/100/1000Mbps Ethernet port and one fiber SFP Slot
and it is highly flexible and anti-EMI. The distance between fiber ports and control centers is from 550
meters to 120Km. DIN-Rail mounting is catered for industrial application needs. 40°～ 85°C operating
temperature rang and 4KV Ethernet surge protection can adapt to a harsh outdoor environment and
ensure product reliability.

【Check List】

Please check the following items in the package before installing it.
 Industrial converter
 User manual
If you find that the device is damaged during transport or any parts missing, please notify us or our
dealers, and we will solve the problem as soon as possible.

【Product Specifications】

Network Protocols
Industrial Media Converter
IMC-1000-SFP

User Manual

(Do not use device until you read this manual carefully)
1 unit
1 copy
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
