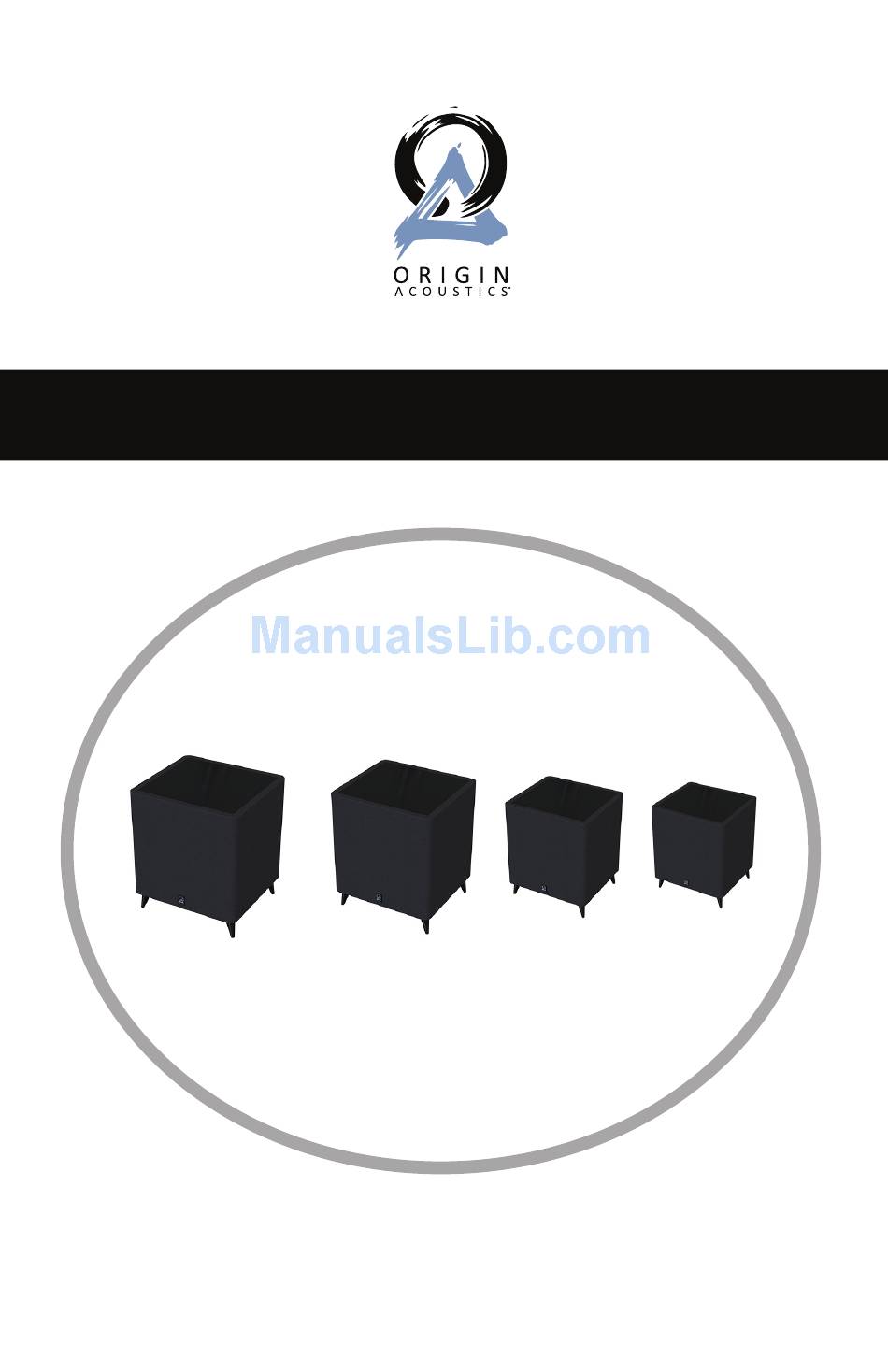

- Page 1 D E E P ™ C O L L E C T I O N I N S TA L L AT I O N U S E R M A N U A L Deep Collection Subwoofer SUBDD12EQ SUBD12EQ SUBD10EQ SUBD8EQ...
-
Page 2: Table Of Contents
D E E P ™ C O L L E C T I O N I N S TA L L AT I O N U S E R M A N U A L Table of Contents Introduction Safety Instructions Specifications In Preparation Bash Amplification... -
Page 3: Introduction
Thank you for purchasing the Deep™ Subwoofer Collection. At Origin Acoustics, we take pride in providing you with a high quality product. All of Origin Acoustics’ speakers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Safety Instructions
D E E P ™ C O L L E C T I O N I N S TA L L AT I O N U S E R M A N U A L SAFETY INSTRUCTIONS General lnformation • Please read and follow these safety instructions. •... - Page 5 D E E P ™ C O L L E C T I O N I N S TA L L AT I O N U S E R M A N U A L Warning Please ensure the product is perfectly stable to avoid injury from tip-over. Please note, that stability can be increased by using spikes on carpeted surfaces.
-
Page 6: Specifications
• Crossover Frequency: 50-150HZ • Cabinet Finish – Cloth wrapped, Aluminum Top • Weight: 63 lbs. Model: SUBD12EQ Part: SUBDEQ12000 • Dimensions: 17 x 17 x 17” (432 x 432 x 432mm) • Woofer: 12” Custom Resin Coated Paper Active, 12” Passive •... -
Page 7: In Preparation
D E E P ™ C O L L E C T I O N I N S TA L L AT I O N U S E R M A N U A L IN PREPARATION Unbox the subwoofer and set box and packing material aside. Turn off the entire audio system before making any connections. -
Page 8: Controls And Indicators
D E E P ™ C O L L E C T I O N I N S TA L L AT I O N U S E R M A N U A L CONTROLS AND INDICATORS Power Light – This blue light will be on in when the Deep subwoofer is powered on. -
Page 9: Connecting The Deep Subwoofer
D E E P ™ C O L L E C T I O N I N S TA L L AT I O N U S E R M A N U A L CONNECTING THE DEEP SUBWOOFER Connect the Deep subwoofer to a receiver or preamp using an RCA interconnect cable. -
Page 10: Deep ™ Subwoofer App
D E E P ™ C O L L E C T I O N I N S TA L L AT I O N U S E R M A N U A L DEEP SUBWOOFER APP Your Origin DEEP subwoofer app allows you to make several adjustments to fine-tune the output using our proprietary app for you iPhone® or Android® device. Download the app at the Apple®... - Page 11 D E E P ™ C O L L E C T I O N I N S TA L L AT I O N U S E R M A N U A L ADJUSTMENTS VOLUME: To set the output volume of the Deep subwoofer, slide the slider on the volume line to the desired output level.
- Page 12 D E E P ™ C O L L E C T I O N I N S TA L L AT I O N U S E R M A N U A L PHASE The blend of the sub and speakers is best when they are in phase with each other.
- Page 13 D E E P ™ C O L L E C T I O N I N S TA L L AT I O N U S E R M A N U A L DELAY The DELAY parameter enables you to delay playback of the Deep subwoofer audio signal.
- Page 14 D E E P ™ C O L L E C T I O N I N S TA L L AT I O N U S E R M A N U A L Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works.
- Page 15 If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide...
- Page 16 If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original.
- Page 17 Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product.
- Page 18 6975 S. Decatur Blvd, Las Vegas, NV 89147• www.originacoustics.com • 844-674-4461 ©2017 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
