Summary of Contents for Lyngdorf TDAI-2170

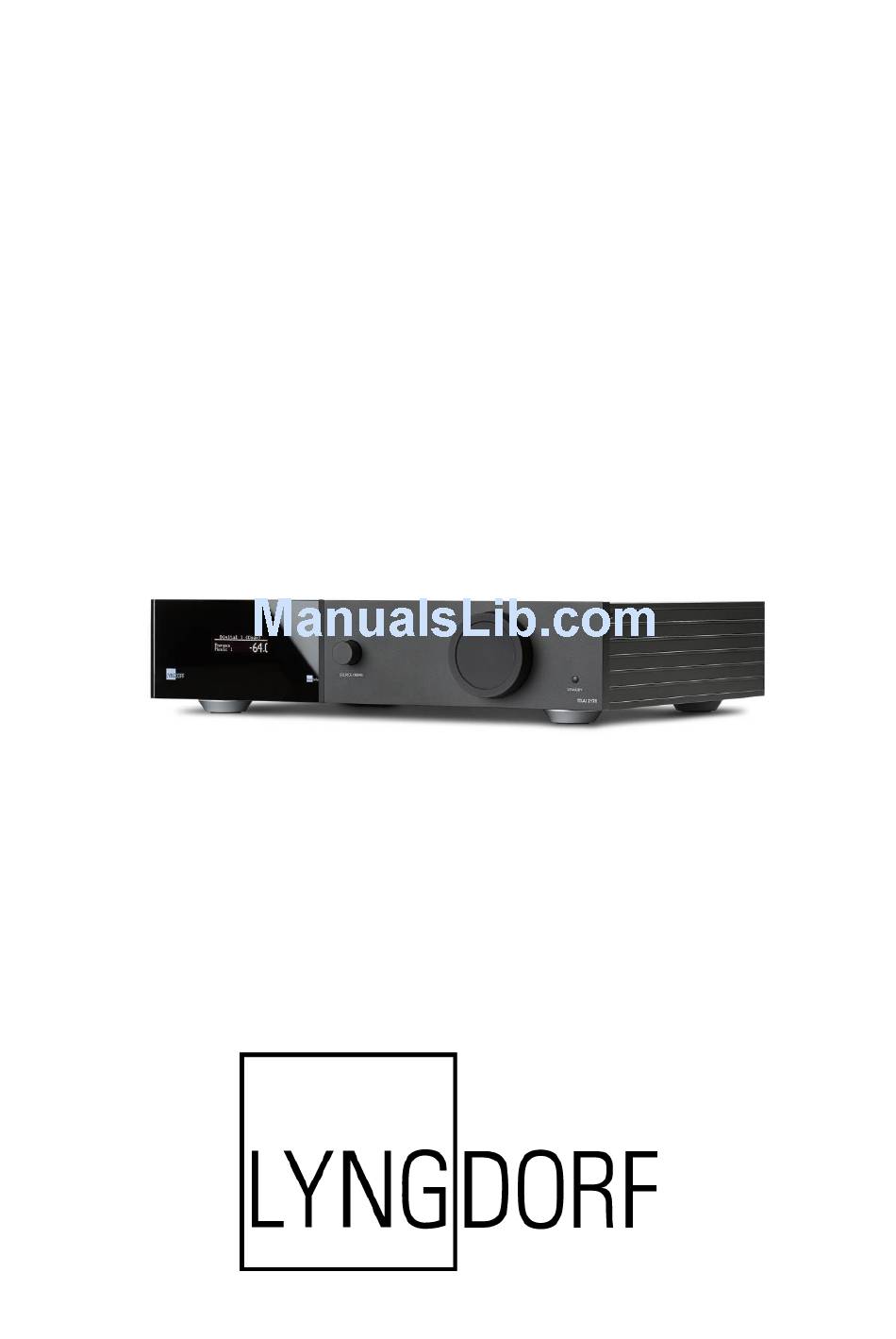

  • Page 1 Serial Control Manual TDAI-2170...
  • Page 2 Serial Settings The serial port settings are always 8 data bits, no parity and one stop bit with a baud rate of 115200. Commands and Requests All commands and requests start with the ‘!’ character. Commands end with a combination of the Carriage Return character (ascii 0x0D, referred to as <CR>...
  • Page 3 Requests The following requests are available on the TDAI-2170: Request name Action Reply !VER?<CR><LF> Requests the SW version !VER(1.23a)<CR><LF> If the version is 1.23a !DEVICE?<CR><LF Requests the type of device A TDAI-2170 will reply with: > !DEVICE(TDAI-2170)<CR><LF> !PWR?<CR><LF> Requests the current power !PWR(OFF)<CR><LF>...
  • Page 4 !VOINAME(n)?<CR Requests the name of voicing !VOINAME(n,Name)<CR><LF> ><LF> number n. For legal values of n Where n is the number of the voicing and see “Appendix B: Voicing “Name” is a string with the name of the Numbering” requested voicing. !VOIENABLED?<C Requests the list of which !VOIENABLED(b)<CR><LF>...
  • Page 5 Commands The following commands are available on the TDAI-2170. Command name Action !OFF<CR><LF> Turns the amplifier off. !ON<CR><LF> Turns the amplifier on. !PWR<CR><LF> Toggles power on the amplifier. Same functionality as the standby button on the front. !VOLDN<CR><LF> Decreases the volume 1 step (0.5 dB).
  • Page 6 !RPFOC(n)<CR><LF> Selects RoomPerfect focus position n, where n is between 1 and 8. !RPGLOB<CR><LF> Selects the RoomPerfect Global position. !VOIDN<CR><LF> Selects the previous voicing. !VOIUP<CR><LF> Selects the next voicing Selects voicing number n. For possible values see “Appendix !VOI(n)<CR><LF> B: Voicing Numbering” !SUBSCRIBE<CR><LF>...
  • Page 7 Appendix A: Input Source Numbering The following table shows which numbers corresponds to which inputs. Number Source Input Coax Digital 1 Coax Digital 2 Optical Digital 3 Optical Digital 4 Optical Digital 5 Optical Digital 6 USB Input HDMI Input 1 HDMI Input 2 HDMI Input 3 HDMI Input 4...
  • Page 8 Appendix B: Voicing Numbering This table shows which numbers corresponds to which voicings. Number Voicing Neutral Music 1 Music 2 Relaxed Open Open Air Soft Action 1 Action 2 Movie Action Movie News Bass 1 Bass 2...
