SMARTLOG
User manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMARTLOG and is the answer not in the manual?

Questions and answers

Summary of Contents for AquaLabo SMARTLOG

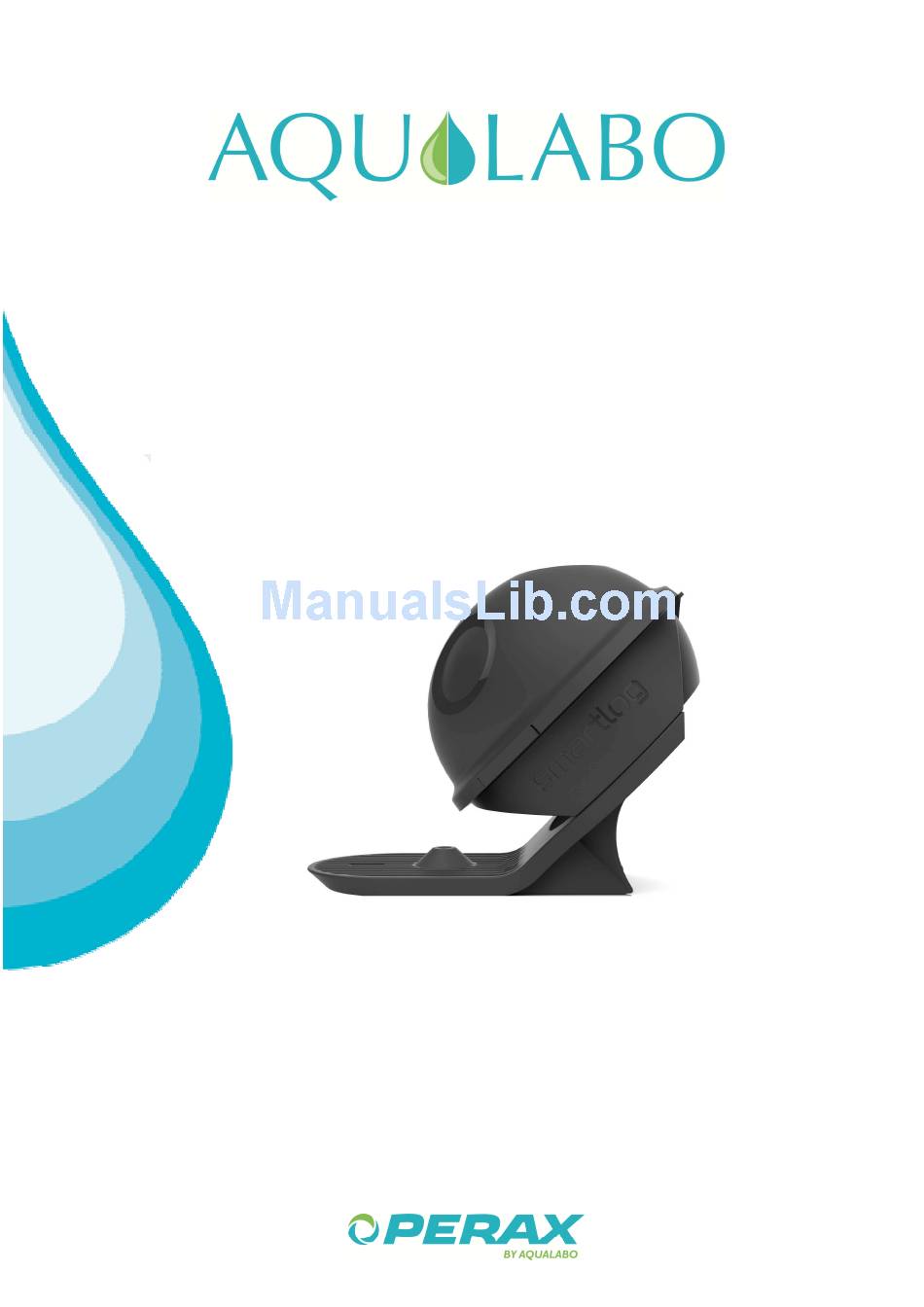

  • Page 1 SMARTLOG User manual Version 1.0...
  • Page 2 Smartlog - 2 -...
  • Page 3 COMMENTS: The information contained in this document may be the subject of patents or patent applications by Aqualabo. Owning a version of this document does not grant license to these patents. The following names are Aqualabo’s registered trademarks worldwide.
  • Page 4: Table Of Contents

    7.1.1 Management of studies ________________________________________________________________________ 21 7.1.2 Management of measuring points _______________________________________________________________ 22 7.1.3 Management of Smartlogs______________________________________________________________________ 23 SMARTLOG CONFIGURATION ____________________________________________________ 24 8.1 meter sectorization mode ______________________________________________________________ 24 8.1.1 Unidirectional meter __________________________________________________________________________ 24 8.1.2 Bidirectional dedicated pulse meter ______________________________________________________________ 27 8.1.3 Bidirectional meter with direction reverser ________________________________________________________ 30...
  • Page 5 8.5 General settings and communications management _________________________________________ 43 8.6 Backing up and Exporting the set-up ______________________________________________________ 47 8.6.1 Configuration backup __________________________________________________________________________ 47 8.6.2 Exporting and recording the Smartlog set-up _______________________________________________________ 48 DATA MANAGEMENT ___________________________________________________________ 50 9.1 Recording a Smartlog __________________________________________________________________ 50 9.2 Data backup and viewing _______________________________________________________________ 51...
  • Page 6: Warranty

    AWB, consignment note, or bill of lading. The Company AQUALABO - GAMME PERAX’s warranty only applies in the event of flaws derived from a design or latent defect. It is strictly limited to the free shipping of replacement parts (excluding consumables) or repair of the unit in our workshop within 10 working days, not including shipping.
  • Page 7: Information

    If the equipment is not used immediately, it should be stored in a clean, dry place. Abide by the storage temperature (10-35°C). The AQUALABO - GAMME PERAX equipment is thoroughly inspected before packaging. Upon receipt of your device, check the condition of the packaging and if you find something wrong, declare usage reservations to the carrier within 48 hours.
  • Page 8: Safety

    Smartlog 3 SAFETY 3.1 SAFETY INSTRUCTIONS 3.1.1 S AFETY INFORMATION IN THE MANUAL This manual provides important information on operating the product in total safety. Read it carefully to familiarize yourself with the product before commissioning and using it. This manual must be kept close to the product so that you can always find the information you need.
  • Page 9: Handling Remarks

    3.4 PACKAGING The Smartlog is shipped in packaging designed to protect it during transport. The original packaging absolutely must be kept as well as inner packaging to ensure optimum protection of the device against impact in the event of any shipping. The original packaging is also a prerequisite for return shipping in adequate conditions in the event of repair.
  • Page 10: Presentation Of The Smartlog

    4.1 CONTENTS OF THE PACKAGE Just received your Smartlog; The package consists of a Smartlog with its battery (not connected), optional cables used to connect your physical inputs and the USB stick containing the Aquamonitor set-up software and this manual.
  • Page 11: Overview Of The Smartlog

    The Smartlog comes with a base fitted a fastening screw (3 mm diameter) or a magnet You can separate the Smartlog from its base. To do this, hold the Smartlog turned over (connectors facing you) so as to see the fasteners connecting the Smartlog to its base.
  • Page 12 When installing the SIM card, proceed with caution and make sure not to introduce foreign material into the device. Every time you disconnect the battery, the Smartlog loses the current time (unless it is connected to a computer); you will have to reset the time via its configuration software.
  • Page 13: Characteristics

    Smartlog 4.3 CHARACTERISTICS GSM/GPRS Antenna Communication For local PC connection GPRS, SMS or GPRS backed Internal or external via IP68 Set-up and operation via GSM, up by SMS connector GPRS or USB, compatible with Up to 3 configurable recipients Flat external antenna with 2m-long...
  • Page 14: Connection And Wiring

    (“-” of analogue sensors). If the analogue sensors are powered by an external power supply to the Smartlog, the 0V power supply and '-' signals from analogue sensors must be connected to the 0V of the Smartlog (green wire). The signals are then wired on the Violet and Grey wires (“+” of analogue sensors).
  • Page 15: Y Cable

    5.3 Y CABLE This cable is essential when you want to connect several sensors. The "single" end is plugged into the Smartlog inputs/outputs connector; the "double" end is used to connect your sensors. Specific cases: Pressure sensor and I/O cable...
  • Page 16: Usb Cable

    For Windows 7 and later: The cable appears in Device Manager, in the subheading "Ports (COM and LTP)" under the name "PONSEL" "SENSLOG" or "SMARTLOG. If one of these terms does not appear, your cable has been installed incorrectly; in this case the software will need to be reinstalled.
  • Page 17: Pre-Cable Sensors And Digital Probes

    To use a digital probe on your Smartlog it absolutely must be equipped with a communication card RS485/Modbus. A visual inspection of the inside of the Smartlog also lets you know if your Smartlog is equipped with an RS485 card. To do this, remove the housing cover if your Smartlog contains two cards side by side, perpendicular to the motherboard of the Smartlog, the latter is fitted with a RS485 card, if there is only one card your Smartlog is not equipped to handle digital sensors.
  • Page 18 Smartlog The wiring of the Digisens range of digital sensors is the following, they are delivered with a connector directly compatible with your Smartlog: For more information on the Digisens range of digital sensors and their usage you can consult our web site: http://www.aqualabo-group.com/capteurs...
  • Page 19: Installation And Discovery Of Aquamonitor

    Smartlogs. It allows you to manage your Smartlogs, implement them and enables you to carry out data recording and analyses. 6.1 INSTALLATION The Smartlog comes with a USB stick containing the Aquamonitor software. The software is also available for download from the following link: http://controle-eau.fr/index.php?topic=3200.msg7857#msg7857 To install Aquamonitor, plug the USB stick into your computer and run the set-up program (Setupfr.msi) as administrator (right click, "Run as...
  • Page 20: Getting Started With Aquamonitor

    “Configure logger": To start the configuration of a Smartlog directly (see SMARTLOG CONFIGURATION) "Record logger": To record data stored in the Smartlog (see 9.1 Recording a Smartlog) "Diagnose logger": To access to the Smartlog diagnostic functions (see Erreur ! Source du renvoi introuvable.) To organise windows “Import”: To import data from Wintek or Isco (special applications) (see10.7 Backup and import a...
  • Page 21: Management Of Smartlogs And Data

    The principle of managing Smartlogs in Aquamonitor is the following: A measuring point may contain several Smartlogs (e.g. A Smartlog is configured, at the same measuring point, like a meter with a second measurement for turbidity), a study can contain several measuring points (e.g. an "Upstream" and "Downstream" point) and you can create as many studies as you like.
  • Page 22: Management Of Measuring Points

    Aquamonitor also allows you to rename or delete an existing measuring point and add Smartlogs (see SMARTLOG CONFIGURATION section 8). To do this, right click on the measuring point you want to change and select the action to be performed.
  • Page 23: Management Of Smartlogs

    Smartlog from the USB stick (see10.7 Backup and import a database). Once the configuration has been exported or imported into a product, the serial number of the Smartlog as well as the version of the software installed in it are displayed.
  • Page 24: Smartlog Configuration

    To configure a Smartlog in “Meter Sectorization” mode, right click on the desired measuring point and then click It allows you to create a configuration that you can subsequently send to the Smartlog. If your Smartlog is connected to the computer you can configure it directly by clicking "Configure logger”...
  • Page 25 Adjusting the threshold value The flow rate is calculated automatically by the Smartlog using the sensor information in the following way: Flow (m /h) = (Count impulse since the last memorization x weight of the impulses) x (60 / Period of memorization in minutes)
  • Page 26 Once the configuration has been set, click next to set the general parameters and communications (see 8.5 General settings and communications management). After adjusting your Smartlog general settings click “Next”, Aquamonitor displays a last screen with the wiring to be performed. - 26 -...
  • Page 27: Bidirectional Dedicated Pulse Meter

    8.1.2 B IDIRECTIONAL DEDICATED PULSE METER This configuration is to be used if you have, a bidirectional meter or two meters, allowing the Smartlog to have a pulse signal for each direction (forward and reverse). The first configuration screen manages your installation settings.
  • Page 28 Setting the threshold value (reverse direction) for sending the alert The flow rate is calculated automatically by the Smartlog using the sensor information in the following way: Flow (m /h) = (Count impulse since the last memorization x weight of the impulses) x (60 / Period of memorization in minutes)
  • Page 29 Once the configuration has been set, click next to set the general parameters and communications (see 8.5 General settings and communications management). After adjusting your Smartlog general settings click “Next”, Aquamonitor displays a last screen with the wiring to be performed. - 29 -...
  • Page 30: Bidirectional Meter With Direction Reverser

    8.1.3 B IDIRECTIONAL METER WITH DIRECTION REVERSER This configuration is to be used if you have, a bidirectional meter fitted with a direction reverser, allowing the Smartlog to have a pulse signal and a signal indicating the direction of flow.
  • Page 31 Once the configuration has been set, click next to set the general parameters and communications (see Settings. Section 8.5). After adjusting your Smartlog general settings click “Next”, Aquamonitor displays a last screen with the wiring to be performed. - 31 -...
  • Page 32: Pressure Sectorization Mode

    To configure a Smartlog in "Pressure Sectorization" mode right click the desired measuring point and then click It allows you to create a configuration that you can subsequently send to the Smartlog. If your Smartlog is connected to the computer you can configure it directly by clicking "Configure logger”...
  • Page 33 Smartlog “Alerts” tab: To enable alerts on the pressure value, choose one or two ways to over-step the set point causing an alert to be sent. Each alert is entirely independent. Limit over-stepping settings may include: None: Non-configured alert If greater than: Alert sent if the value becomes greater than the threshold...
  • Page 34: Storm Spillway

    To configure a Smartlog in “Overflow” mode, right click on the desired measuring point and then click It allows you to create a configuration that you can subsequently send to the Smartlog. If your Smartlog is connected to the computer you can configure it directly by clicking "Configure logger”...
  • Page 35 Smartlog The following height sensors are available: Immersed sensor (heating time pre-set to 1s) Probe US dBi3, dBi6, dBi10, dBi15 (heating time pre-set to 5s) Generic US probe (heating time pre-set to 5s) Choice of sensor type used Setting the unit and the height to 20mA Setting the height to 4mA Click “Next”...
  • Page 36 Once the configuration has been set, click next to set the general parameters and communications (see 8.5 General settings and communications management). After adjusting your Smartlog general settings click “Next”, Aquamonitor displays a last screen with the wiring to be performed. - 36 -...
  • Page 37: Storm Spillway With Overflow Sensor

    Smartlog 8.3.2 S TORM SPILLWAY WITH OVERFLOW SENSOR For a storm spillway equipped with height measurement and overflow sensor, select “Height measurement” and “Overflow sensor ." On this screen, you can also enter the serial numbers of the sensors used Click “Next”...
  • Page 38 Smartlog Click “Next” to continue. The next screen allows you to configure the flow rate interpolation table and alerts. Graphic representation of the table Choice of the unit used for the table Height/flow rate interpolation table Add/Delete a point on the table*...
  • Page 39 Once the configuration has been set, click next to set the general parameters and communications (see 8.5 General settings and communications management). After adjusting your Smartlog general settings click “Next”, Aquamonitor displays a last screen with the wiring to be performed. - 39 -...
  • Page 40: Digital Probe Mode

    To configure a Smartlog in "Digital Probes" mode right click the desired measuring point and then click It allows you to create a configuration that you can subsequently send to the Smartlog. If your Smartlog is connected to the computer you can configure it directly by clicking "Configure logger”...
  • Page 41 Smartlog The next screen has three tabs for configuring the digital sensor and alerts: “Settings” tab: Sensor name entry field* Sensor serial number Sensor ModBus address Adjustment of measurement ranges Units matching the selected range Setting the sensor heating time...
  • Page 42 “Connection” tab: The connection tab presents the wiring to be set up to implement the sensor. The signals in red are those used by the configuration. The table below presents correspondences between the Smartlog and Ponsel digital sensors. Pin number...
  • Page 43: General Settings And Communications Management

    - If you chose “Edit configuration” from one of your measuring points or "New Smartlog" to start the set-up. The screen has only two tabs (as the Clock & Storage tab is available only when you are connected to the Smartlog). In this case, this screen will be available when exporting the configuration to the Smartlog (see 8.6 Backing up and Exporting the set-up).
  • Page 44 "Recipient(s)” tab: The “Recipient(s)” tab configures the communications made by the Smartlog. Up to three different recipients can be configured with the maximum of one recipient using a GPRS communication (GPRS central station or Auto central station).
  • Page 45 Click “Next” to send the new configuration to the Smartlog. A warning message will appear to inform you that the Smartlog data is going to be deleted and that a new campaign will start. Click “Yes” to confirm and start exporting the configuration to the Smartlog.
  • Page 46 At this stage, your measuring point is configured with your new settings, but they have not been exported to the Smartlog. For the Smartlog to take your set-up into account, you have to export it to the device (see 8.6 Backing up...
  • Page 47: Backing Up And Exporting The Set-Up

    - “ARLEQUIN” export file”: file for your ARLEQUIN supervision The TOPKAPI or ARLEQUIN files are intended to configure supervisory stations so that they can correctly interpret the data sent by the Smartlog. Similarly, you can import a set-up to one of your measuring points to assign it to an existing configuration. To do this, select your measuring point then, right click, "Open Set-up".
  • Page 48: Exporting And Recording The Smartlog Set-Up

    The software then asks you to confirm sending the set-up to the Smartlog. Click “Yes” to continue. A warning message will appear to inform you that the Smartlog data is going to be deleted and that a new campaign will start. Click “Yes” to confirm and start exporting the configuration to the Smartlog.
  • Page 49 Smartlog The set-up can be imported to a Smartlog that is connected to a computer. To do this, select the measuring points from the list, and then the Smartlog to which you want to import a configuration from the USB stick. Right click on the Smartlog then "Import set-up from USB". The software will search the connected devices, select the Smartlog, to which you wish to import the set-up, from the list that appears, and then click "Connect".
  • Page 50: Data Management

    The Smartlog and its data, are then updated in your list of measuring points or are added to a new measuring point with the same name as the Smartlog, if it does not exist in any of the measuring points in the study.
  • Page 51: Data Backup And Viewing

    Smartlog 9.2 DATA BACKUP AND VIEWING After having recorded your Smartlog data, they can be viewed, exported and analysed using Aquamonitor. To do this, select your measuring point, and then deploy the desired Smartlog. The list of saved values is then displayed.
  • Page 52 Smartlog Aquamonitor lets you freely and thoroughly set up the creation and display of graphs. To do this, use the menu dedicated to graphics in the top banner. Open the wizard to configure the curves Print preview Check the graph in PDF or image format...
  • Page 53 Smartlog Open the print preview Data export and backup options The print preview allows you to arrange the page layout of your data sets before printing or exporting in PDF format. To do this, use the preview menu to perform the desired actions, for example, adding header and footer, adjusting the layout and orientation of the document, etc.
  • Page 54 IMPORTANT As data saved in Aquamonitor is overwritten, when performing a new import from the same Smartlog or when restoring the database, and deleted if the Smartlog, measuring point or study directories are deleted, it is strongly recommended to always back up your data in a separate file.
  • Page 55: Create A Calculated Size

    To do this, right click on the desired Smartlog, then “create calculated quantity”, a window will open allowing you to set the quantity to be calculated. In this example we will see how to recalculate the “Direct meter” quantity from the “Flow rate” information provided by the Smartlog by adding a starting point offset of 10 m3.
  • Page 56 Smartlog The calculated quantity is added to your Smartlog and you can view it and use it in the same way as other Smartlog quantities (see 10.7 Backup and import a database). In our example, we clearly see that we have managed to recalculate the “Direct meter” (red curve) from the “Flow rate” information provided by the Smartlog by adding an offset of 10m3 compared to the “Direct meter”...
  • Page 57: Create An Interpolation Table

    Smartlog. Once your interpolation tables have been created you can use them in your Smartlog configured in “Storm spillway” by clicking “Open an interpolation table” during the configuration (see8.3 Storm spillway).
  • Page 58: Maintenance And Diagnostic

    While setting the time on your Smartlog, an information message is displayed, wait for the end of the operation to continue. If that fails, click "Stop logger" then rerun the Smartlog time setting before finishing by clicking "Restart logger”.
  • Page 59: Smartlog Update

    A window then opens, allowing you to browse through your folders to select the version to install on your Smartlog. Select the matching .hex format file, and then click Open. A warning message will be displayed advising you that all data will be erased from your Smartlog during the update. Click Yes to confirm the update.
  • Page 60: Adjustment Of Channels

    Aquamonitor opens a window where all configured values are refreshed in real-time (alerts are not triggered when setting the channels), to do this Aquamonitor calls up data from the Smartlog at regular intervals and displays the measured values. The channels for which setting can be carried out are indicated by the symbol...
  • Page 61 Once the setting is complete click “Finish” to return to the main screen or “Back” to return to the diagnostic wizard main screen. IMPORTANT Once the channels have been set, be sure to back up the configuration of your Smartlog with these new values in Aquamonitor (See10.7 Backup and import a database) and update your supervisor if necessary.
  • Page 62: Smartlog Log

    10.4 SMARTLOG LOG When the Smartlog is operating, it records information messages to facilitate troubleshooting and the analysis of problems. This log can be accessed from Aquamonitor. Click diagnostic tools, and then, after selecting the device to be tested, choose "Reading the logger’ log”.
  • Page 63: On-Board Modem Control

    Click diagnostic tools in Aquamonitor and then, after selecting the device to be tested, choose the on-board modem control. In the next window, choose the modem response level test. Aquamonitor attempts to communicate with your Smartlog’s modem and displays the result of the communication. - 63 -...
  • Page 64 Smartlog Proper operation of the modem returns: CCID identifier of the SIM card (if present) Modem serial number Modem software version To repeat the test, or if it fails, click "Refresh" to go back to the modem test page click “Previous”, and click “Finish” to return to the main screen.
  • Page 65: Measuring Network Quality

    Smartlog 10.5.2 M EASURING NETWORK QUALITY Click diagnostic tools in Aquamonitor and then, after selecting the device to be tested, choose the on-board modem control. In the next window, choose the reception level test. - 65 -...
  • Page 66 For this test, the Smartlog must be fitted with a SIM card. The test utility, allows you to set a delay before starting the test, this will if necessary allow you to move the Smartlog to place it in the actual environment before running the test.
  • Page 67: Looking For Operators

    Smartlog 10.5.3 L OOKING FOR OPERATORS Click diagnostic tools in Aquamonitor and then, after selecting the device to be tested, choose the on-board modem control. In the next window, choose the operator search test. - 67 -...
  • Page 68 For this test, the Smartlog must not be fitted with a SIM card. The test utility then allows you to set a delay before starting the test, this will if necessary allow you to move the Smartlog to place it in the actual environment before running the test.
  • Page 69 Smartlog IMPORTANT The network reception level has a direct impact on the Smartlog’s useful life and the proper operation of communications and data transfers. - 69 -...
  • Page 70: Daily Call Test

    Click diagnostic tools in Aquamonitor and then, after selecting the device to be tested, choose the on-board modem control. In the next window, choose the daily call test. Aquamonitor then sends the run test for a daily call to the Smartlog, when the latter answers OK, the response is displayed in the window and the test will run.
  • Page 71: Useful Life And Data Storage

    (hazardous waste processing). The Smartlog was designed to offer a useful life of several years under normal conditions of use. This useful life is directly related to the configuration used and the environment of the Smartlog.
  • Page 72: Data Storage

    The Smartlog is equipped with an internal Flash memory of 2MB to save data. The log used for the diagnosis of the Smartlog uses 128KB. This allows the Smartlog to contain up to 8,192 information messages thus providing an accurate diagnosis of at least the last 2 days of operation.
  • Page 73: Backup And Import A Database

    Smartlog 10.7 BACKUP AND IMPORT A DATABASE Aquamonitor offers the option to save your software's database, thus offering you greater security and the option to share your database with other computers or to restore a database that is backed up on your computer.
  • Page 74 90 rue du Professeur Paul Milliez 94500 CHAMPIGNY SUR MARNE – France Tel : +33 (0)1 55 09 10 10 - Fax : +33 (0)1 55 09 10 39 Hotline: +33 (0)5 62 75 95 70 info@aqualabo.fr – www.aqualabo.fr - 74 -...
